2004 ISUZU TF SERIES brakes

CONSTRUCTION AND FUNCTION 7A1-3

DESCRIPTION
CONSTRUCTION



































1 Converter Housing 6 Low Clutch 11 Oil Pump
2 Torque Converter 7 Low & Reverse Brake 12 Control Valve
3 High Clutch 8 Output Shaft 13 Low One-way Clutch
4 Reverse Clutch 9 Extension Housing 14 Parking Gear
5 2-4 Brake 10 Input Shaft

Figure 1. Construction of Automatic Transmission

The JR405E automatic transmission is electrically controlled by a microcomputer transmission control module
(TCM). There are four forward speeds and one reverse speed.
This JR405E automatic transmission employs a clutch pressure direct control system (Direct Electronic Shift
Control: DESC) using a duty cycle type solenoid, which ensures high shift quality.
This transmission also controls learning and constantly checks the time of each clutch and brake required for
the speed change to match this time with the target value for the optimum speed change.

The TCM will automatically select the most appropriate shift points and lock-up points depending on the
throttle opening angle, the vehicle speed and the vehicle load.
If any trouble arises in the vehicle sensor, throttle sensor, solenoid, etc., the fail-safe control function is
activated to keep the running performance.
Problems with the sensors, the solenoids can be quickly detected with the self diagnosis procedure described
in this manual.

The JR405E automatic transmission consists of the torque converter, the oil pump, the input shaft, the out put
shaft, the planetary gears and the control valve.
The gear train consists of two planetary gear sets and three multiple plate clutches in combination with two
multiple plate brakes and a one-way clutch.
2WD
4WD

7A1-10 CONSTRUCTION AND FUNCTION

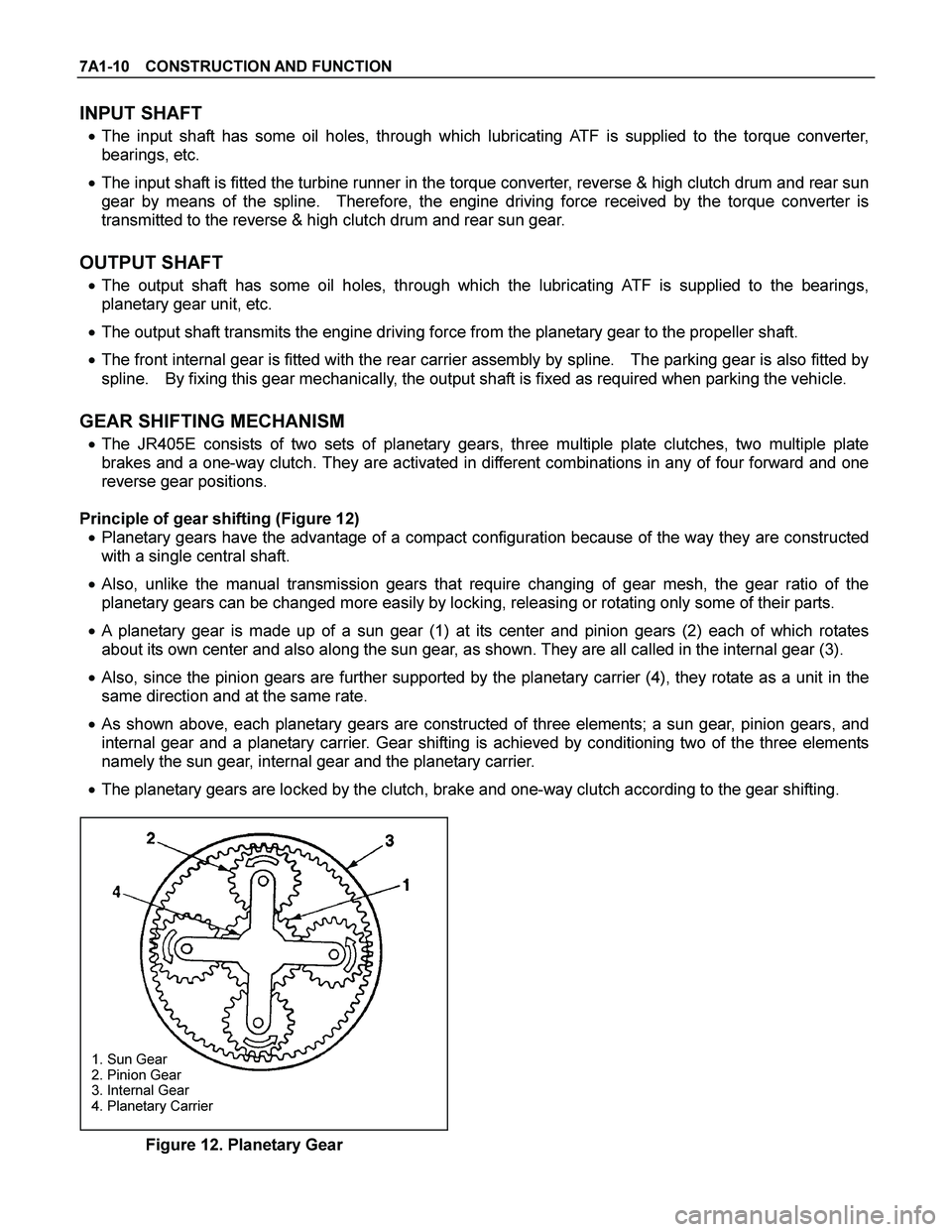

INPUT SHAFT

The input shaft has some oil holes, through which lubricating ATF is supplied to the torque converter,
bearings, etc.

The input shaft is fitted the turbine runner in the torque converter, reverse & high clutch drum and rear sun
gear by means of the spline. Therefore, the engine driving force received by the torque converter is
transmitted to the reverse & high clutch drum and rear sun gear.

OUTPUT SHAFT

The output shaft has some oil holes, through which the lubricating ATF is supplied to the bearings,
planetary gear unit, etc.

The output shaft transmits the engine driving force from the planetary gear to the propeller shaft.

The front internal gear is fitted with the rear carrier assembly by spline. The parking gear is also fitted by
spline. By fixing this gear mechanically, the output shaft is fixed as required when parking the vehicle.

GEAR SHIFTING MECHANISM

The JR405E consists of two sets of planetary gears, three multiple plate clutches, two multiple plate
brakes and a one-way clutch. They are activated in different combinations in any of four forward and one
reverse gear positions.

Principle of gear shifting (Figure 12)

Planetary gears have the advantage of a compact configuration because of the way they are constructed
with a single central shaft.

Also, unlike the manual transmission gears that require changing of gear mesh, the gear ratio of the
planetary gears can be changed more easily by locking, releasing or rotating only some of their parts.

A planetary gear is made up of a sun gear (1) at its center and pinion gears (2) each of which rotates
about its own center and also along the sun gear, as shown. They are all called in the internal gear (3).

Also, since the pinion gears are further supported by the planetary carrier (4), they rotate as a unit in the
same direction and at the same rate.

As shown above, each planetary gears are constructed of three elements; a sun gear, pinion gears, and
internal gear and a planetary carrier. Gear shifting is achieved by conditioning two of the three elements
namely the sun gear, internal gear and the planetary carrier.

The planetary gears are locked by the clutch, brake and one-way clutch according to the gear shifting.
















1. Sun Gear
2. Pinion Gear
3. Internal Gear
4. Planetary Carrier

Figure 12. Planetary Gear

CONSTRUCTION AND FUNCTION 7A1-13

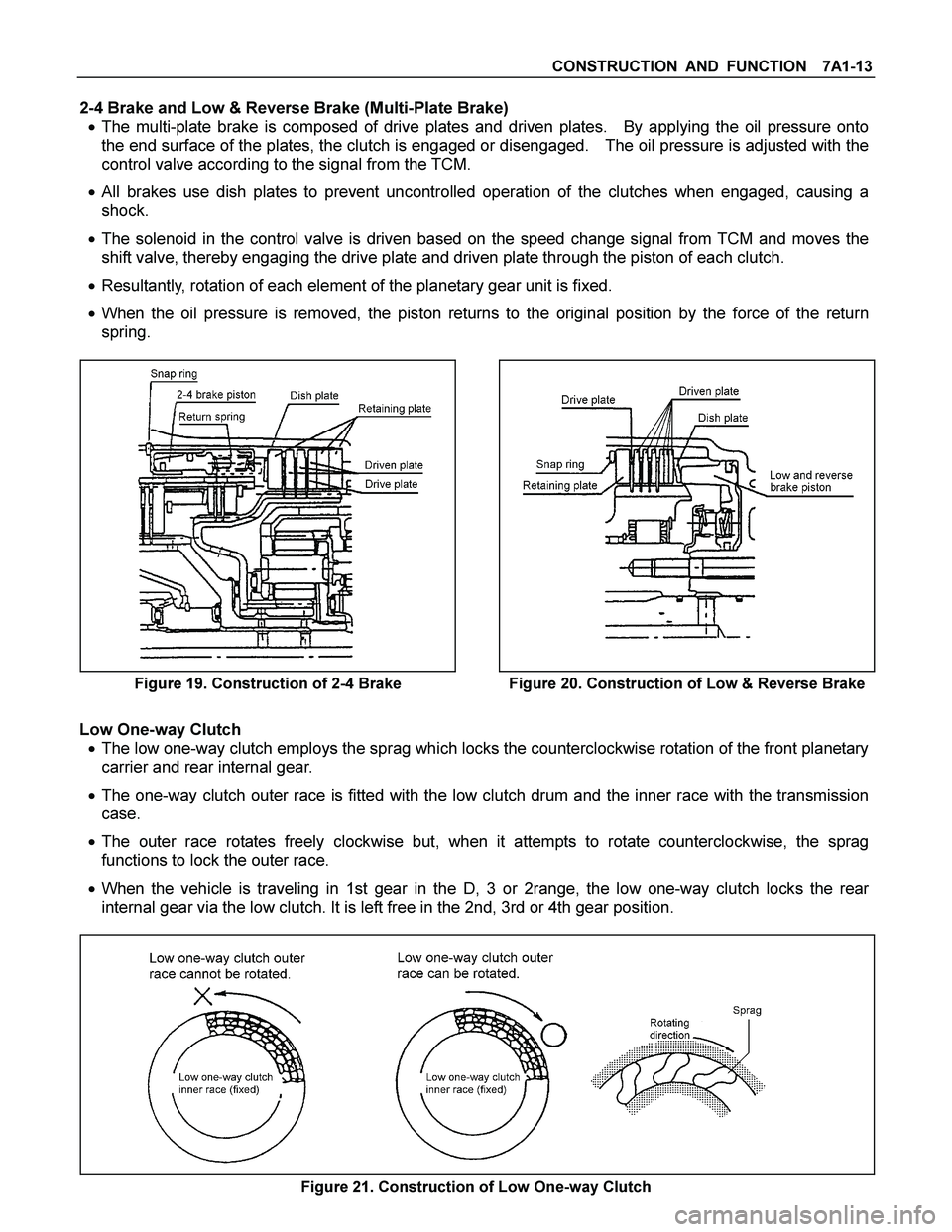

2-4 Brake and Low & Reverse Brake (Multi-Plate Brake)

The multi-plate brake is composed of drive plates and driven plates. By applying the oil pressure onto
the end surface of the plates, the clutch is engaged or disengaged. The oil pressure is adjusted with the
control valve according to the signal from the TCM.

All brakes use dish plates to prevent uncontrolled operation of the clutches when engaged, causing a
shock.

The solenoid in the control valve is driven based on the speed change signal from TCM and moves the
shift valve, thereby engaging the drive plate and driven plate through the piston of each clutch.

Resultantly, rotation of each element of the planetary gear unit is fixed.

When the oil pressure is removed, the piston returns to the original position by the force of the return
spring.




Figure 19. Construction of 2-4 Brake
Figure 20. Construction of Low & Reverse Brake

Low One-way Clutch

The low one-way clutch employs the sprag which locks the counterclockwise rotation of the front planetary
carrier and rear internal gear.

The one-way clutch outer race is fitted with the low clutch drum and the inner race with the transmission
case.

The outer race rotates freely clockwise but, when it attempts to rotate counterclockwise, the sprag
functions to lock the outer race.

When the vehicle is traveling in 1st gear in the D, 3 or 2range, the low one-way clutch locks the rear
internal gear via the low clutch. It is left free in the 2nd, 3rd or 4th gear position.


Figure 21. Construction of Low One-way Clutch

7A1-16 CONSTRUCTION AND FUNCTION
Control Valve Fail-safe Function

To prevent interlocking due to engagement of more than three clutches and brakes at the same time, the
2-4 brake fail-safe valve A and B, and the low & reverse brake fail-safe valve A and B are provided.

When oil pressure is generated in the high clutch and the low clutch, the 2-4 brake solenoid is turned ON
to drain the oil pressure applied to the 2-4 brake.

When oil pressure is generated in the high clutch or 2-4 brake, the low & reverse brake solenoid is turned
ON to drain the oil pressure applied to the low & reverse brake.



Oil Pressure Switch

The oil pressure switch detects the oil pressure supply condition to the clutch and brake and sends the
detection result to the TCM.

The oil pressure switch is turned ON when the oil pressure reaches the switch working pressure and
turned OFF when the pressure decreases below the specified value.

The high clutch oil pressure switch detects the high clutch oil pressure, 2-4 brake oil pressure switch the
2-4 brake oil pressure, and the low & reverse brake oil pressure switch the low & reverse brake oil
pressure respectively.




Figure 27. Oil Pressure Switch Figure 28. Location of Oil Pressure Switch

7A1-36 CONSTRUCTION AND FUNCTION
GEAR TRAIN (TRANSMISSION MECHANISM) OPERATION AND
HYDRAULIC CIRCUIT
CONSTRUCTION AND OPERATION
The JR405E consists of two sets of planetary gears, three multiple plate clutches, two multiple plate brakes
and one one-way clutch.





COMPONENT NAME AND FUNCTION
Component Name Symbol Function
Low Clutch L/C Connects the front planetary carrier to the rear
internal gear.
Engaged at 1st, 2nd and 3rd gear.
High Clutch H/C Connects the input shaft to the front planetary
carrier.
Engaged at 3rd and 4th (O/D) gear.
Reverse Clutch R/C Connects the input shaft to the front sun gear.
Engaged at Reverse gear.
Low & Reverse Brake L&R/B Locks the front planetary carrier.
Engaged at L range and Reverse gear.
2-4 Brake 2-4/B Locks the front sun gear.
Engaged at 2nd and 4th (O/D) gear.
Low One-way Clutch L/O.C Allows the front planetary carrier to turn forward
(clockwise) but locks to opposite direction
(counterclockwise).
Operative when accelerating.
Low Clutch Solenoid L/C.S Regulates low clutch pressure.
High Clutch Solenoid H/C.S Regulates high clutch pressure.
Low & Reverse Brake Solenoid L&R/B.S Regulates low & reverse brake pressure.
2-4 Brake Solenoid 2-4/B.S Regulates 2-4 brake pressure.
Lock-up Solenoid L/U.S Regulates lock-up clutch pressure.
High Clutch Oil Pressure SW H/C.P/SW Detects high clutch supply oil pressure.
Low & Reverse Brake Oil Pressure SW L&R/B.P/SWDetects low & reverse brake supply oil pressure.
2-4 Brake Oil Pressure SW 2-4/B.P/SWDetects 2-4 brake supply oil pressure.

7A1-38 CONSTRUCTION AND FUNCTION
P Range
Though the driving force of the input shaft is transmitted to the rear sun gear and reverse & high clutch drum,
the driving force is not transmitted to the output shaft since all of the clutches and brakes are not engaged.
Therefore, the vehicle can move at this condition. However, since the output shaft is mechanically locked
with the parking pawl, the rear planetary carrier and front internal gear are locked. For this reason, the
vehicle does not move.

CONSTRUCTION AND FUNCTION 7A1-39
N Range
Though the driving force of the input shaft is transmitted to the rear sun gear and reverse & high clutch drum,
the driving force is not transmitted to the output shaft, since all of the clutches and brakes are not engaged.
Therefore, the vehicle can move at this condition.
