2004 ISUZU TF SERIES brakes

PARKING BRAKE SYSTEM 5D-1

SECTION 5D
BRAKES
PARKING BRAKE SYSTEM
CONTENTS

Service Precaution .......................................... 5D-1
Service Precaution ....................................... 5D-1
General Description ...................................... 5D-1
Parking Brake Lever ........................................ 5D-2
Parking Brake Lever Assembly and
Associated Parts (Bench Seat) .................. 5D-2
Removal ....................................................... 5D-3
Installation............................................................
5D-3
Front Parking Brake Cable....................................
5D-5
Front Parking Brake Cable and Associated
Parts (Bench Seat).........................................
5D-5
Removal...............................................................
5D-6
Installation............................................................
5D-6
Parking Brake Lever...............................................
5D-8
Parking Brake Lever Assembly and Associated
Parts (Buckle Seat)....................................... 5D-8
Removal ....................................................... 5D-8
Installation .................................................... 5D-8
Parking Brake Rear Cable ............................... 5D-9
Parking Brake Rear Cable and Associated
Parts ............................................................ 5D-9
Removal ....................................................... 5D-10
Installation .................................................... 5D-10
Inspection and Repair ................................... 5D-11
Parking Brake Adjustment ............................ 5D-11
Main Data and Specifications........................... 5D-12
Troubleshooting ............................................ 5D-13


Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFE
R
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, o
r
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

General Description
Pulling up the parking brake lever by hand will set the
parking brake. By means of a ratchet type lock, the
lever can be held in that position until it is released. The
position of the lever is transmitted through cable/leve
r
systems to the rear wheels. These parts are designed
to obtain sufficient braking force even when parking on
slopes. When the parking brake is set, or when the
ignition SW is in the "ON" position, the brake warning
light illuminates. The rear wheel parking brake is a
leading-trailing brake (mechanical inside expansion
type) built in the rear drum brake. Parking brake
adjustment is made through the adjusting hole (bored
through back plate). Parking brake lever stroke should
be adjusted to 8

14 notches with 30kg (bench seat) o
r
6

8 notches with 30kg (bucket seat). Refer to “Parking
Brake Adjustment" in this section.

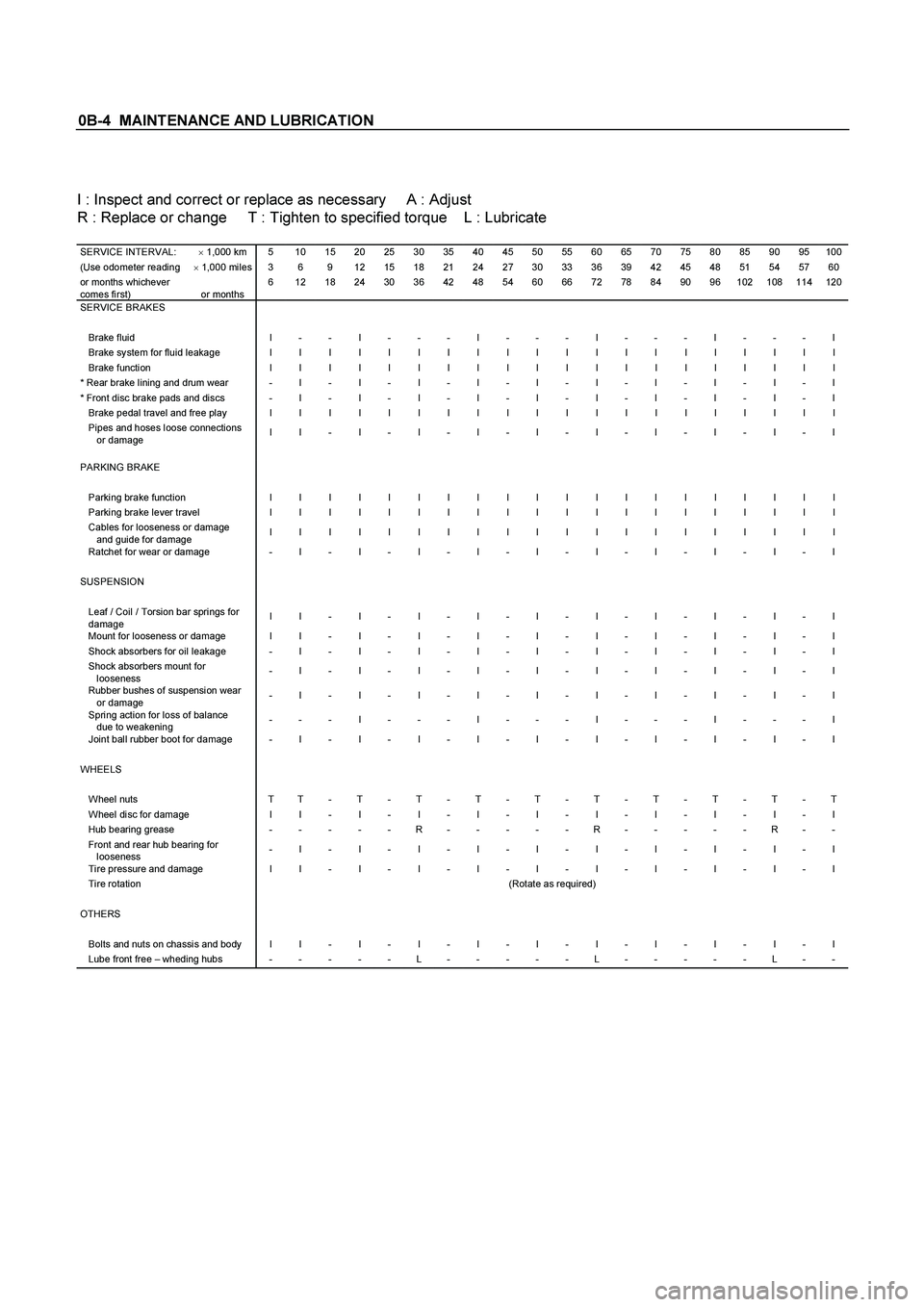

0B-4 MAINTENANCE AND LUBRICATION




I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading
1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60or months whichever
comes fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
SERVICE BRAKES Brake fluid I - - I - - - I - - - I - - - I - - - I Brake sy stem for fluid l eakage I I I I I I I I I I I I I I I I I I I I Brake functi on I I I I I I I I I I I I I I I I I I I I * Rear brake lining and drum wear - I - I - I - I - I - I - I - I - I - I * Front disc brake pads and discs - I - I - I - I - I - I - I - I - I - I Brake pedal travel and free play I I I I I I I I I I I I I I I I I I I I Pipes and hoses loose connections
or damage I I - I - I - I - I - I - I - I - I - I
PARKING BRAKE Parki ng brake functi on I I I I I I I I I I I I I I I I I I I I Parki ng brake l ever travel I I I I I I I I I I I I I I I I I I I I Cables for looseness or damage
and guide for damage I I I I I I I I I I I I I I I I I I I I
Ratchet for wear or damage - I - I - I - I - I - I - I - I - I - I SUSPENSION Leaf / Coil / Torsion bar springs for
damage I I - I - I - I - I - I - I - I - I - I
Mount for l ooseness or damage I I - I - I - I - I - I - I - I - I - I Shock absorbers for oil leakage - I - I - I - I - I - I - I - I - I - I Shock absorbers mount for
looseness - I - I - I - I - I - I - I - I - I - I
Rubber bushes of suspension wear
or damage - I - I - I - I - I - I - I - I - I - I
Spring action for loss of balance
due to weakening - - - I - - - I - - - I - - - I - - - I
Joint ball rubber boot for damage - I - I - I - I - I - I - I - I - I - I WHEELS Wheel nuts T T - T - T - T - T - T - T - T - T - T Wheel disc for damage I I - I - I - I - I - I - I - I - I - I Hub bearing grease - - - - - R - - - - - R - - - - - R - - Front and rear hub bearing for
looseness - I - I - I - I - I - I - I - I - I - I
Tire pressure and damage I I - I - I - I - I - I - I - I - I - I Tire rotation (Rotate as required) OTHERS Bolts and nuts on chassis and body I I - I - I - I - I - I - I - I - I - I Lube front free – wheding hubs - - - - - L - - - - - L - - - - - L - -

MAINTENANCE AND LUBRICATION 0B-7




I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or
1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
SERVICE BRAKES Brake fluid (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Brake fluid (4JA1-TC) - - - - - I - - - - - I - - - - - I - - Brake system for fluid leakage
(4JH1-TC) I I I I I I I I I I I I I I I I I I I I Brake system for fluid leakage
(4JA1-TC) - - I - - I - - I - - I - - I - - I - - Brake function (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Brake function (4JA1-TC) - - I - - I - - I - - I - - I - - I - - * Front Disc brake pads and discs wear (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Front Disc brake pads and discs wear (4JA1-TC) - - I - - I - - I - - I - - I - - I - - * Rear brake lining and drum wear (4JH1-TC) - I - I - I - I - I - I - I - I - I - I * Rear brake lining and drum wear (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Brake pedal travel and play (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Brake pedal travel and play (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Pipes and hoses for loose
connections or damage (4JH1-TC) I I - I - I - I - I - I - I - I - I - I Pipes and hoses for loose
connections or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - PARKING BRAKE Parking brake function (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Parking brake function (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Parking brake lever travel (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Parking brake lever travel (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Cables for looseness or damage and
guide for damage (4JH1-TC) I I I I I I I I I I I I I I I I I I I I Cables for looseness or damage and
guide for damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Ratchet for wear or damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Ratchet for wear or damage (4JA1-TC) SUSPENSION Leaf/Coil/Torsion bar springs for
damage (4JH1-TC) I I - I - I - I - I - I - I - I - I - I Leaf/Coil/Torsion bar springs for
damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Mount for looseness or damage (4JH1-TC) I I - I - I - I - I - I - I - I - I - I Mount for looseness or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Shock absorbers for oil leakage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Shock absorbers for oil leakage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Shock absorbers mount for
looseness (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Shock absorbers mount for
looseness (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Rubber bushes of suspension wear
or damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Rubber bushes of suspension wear
or damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Spring action for loss of balance due
to weakening (4JH1-TC) - - - I - - - I - - - I - - - I - - - I Spring action for loss of balance due
to weakening (4JA1-TC) - - I - - I - - I - - I - - I - - I - - Joint ball rubber boot for damage (4JH1-TC) - I - I - I - I - I - I - I - I - I - I Joint ball rubber boot for damage (4JA1-TC) - - I - - I - - I - - I - - I - - I - -

0B-10 MAINTENANCE AND LUBRICATION




I : Inspect and correct or replace as necessary A : Adjust
R : Replace or change T : Tighten to specified torque L : Lubricate
SERVICE INTERVAL:
1,000 km 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100(Use odometer reading or
1,000 miles 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60months whichever comes
fi rst)
or months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 102 108 114 120
SERVICE BRAKES Brake fluid - - - - - - - I - - - - - - - I - - - - Brake system for fluid leakage - - - I - - - I - - - I - - - I - - - I Brake function - - - I - - - I - - - I - - - I - - - I * Front Disc brake pads and discs wear - - - I - - - I - - - I - - - I - - - I * Rear brake lining and drum wear - - - I - - - I - - - I - - - I - - - I Brake pedal travel and play - - - I - - - I - - - I - - - I - - - I Pipes and hoses for loose
connections or damage - - - I - - - I - - - I - - - I - - - I
PARKING BRAKE Parking brake function - - - I - - - I - - - I - - - I - - - I Parking brake lever travel - - - I - - - I - - - I - - - I - - - I Cables for looseness or damage and
guide for damage
-
-
-
I
-
-
-
I
-
-
-
I
-
-
-
I
-
-
-
-
Ratchet for wear or damage - - - I - - - I - - - I - - - I - - - I SUSPENSION Leaf/Coil/Torsion bar springs for
damage - - - I - - - I - - - I - - - I - - - I
Mount for looseness or damage - - - I - - - I - - - I - - - I - - - I Shock absorbers for oil leakage - - - I - - - I - - - I - - - I - - - I Shock absorbers mount for
looseness - - - I - - - I - - - I - - - I - - - I
Rubber bushes of suspension wear
or damage - - - I - - - I - - - I - - - I - - - I
Spring action for loss of balance due
to weakening - - - - - - - - - - - I - - - - - - - -
Joi nt ball rubber boot for damage - - - I - - - I - - - I - - - I - - - I WHEELS Wheel nuts - - - T - - - T - - - T - - - T - - - T Wheel disc for damage - - - I - - - I - - - I - - - I - - - I Hub bearing grease - - - - - - - R - - - - - - - R - - - - Front and rear hub bearings for
looseness - - - I - - - I - - - I - - - I - - - I
Tire pressure and damage I - - I - - - I - - - I - - - I - - - I Tire rotation (Rotate as required) OTHERS Bolts and nuts on chassis and body - - - I - - - I - - - I - - - I - - - I Lube front free - wheeling hubs - - - - - - - L - - - - - - - L - - - -

FRONT SUSPENSION 3C-17

Knuckle
Knuckle and Associated Parts


450R300037
Legend

(1)
Nut and Cotter Pin

(2)
Back Plate

(3)
Nut and Cotter Pin


(4)
Nut and Cotter Pin

(5)
Knuckle

(6)
Bolt


Removal
1. Raise the vehicle and support the frame with
suitable safety stands.
2. Remove wheel and tire assembly. Refer to Wheel
in this section.

3. Remove the brake caliper. Refer to Disc Brakes in
Brake section.
4. Remove the hub assembly. Refer to Front Hub
and Disk in this section.
5. Remove tie-rod end from the knuckle. Refer to
Power Steering Unit in Steering section.

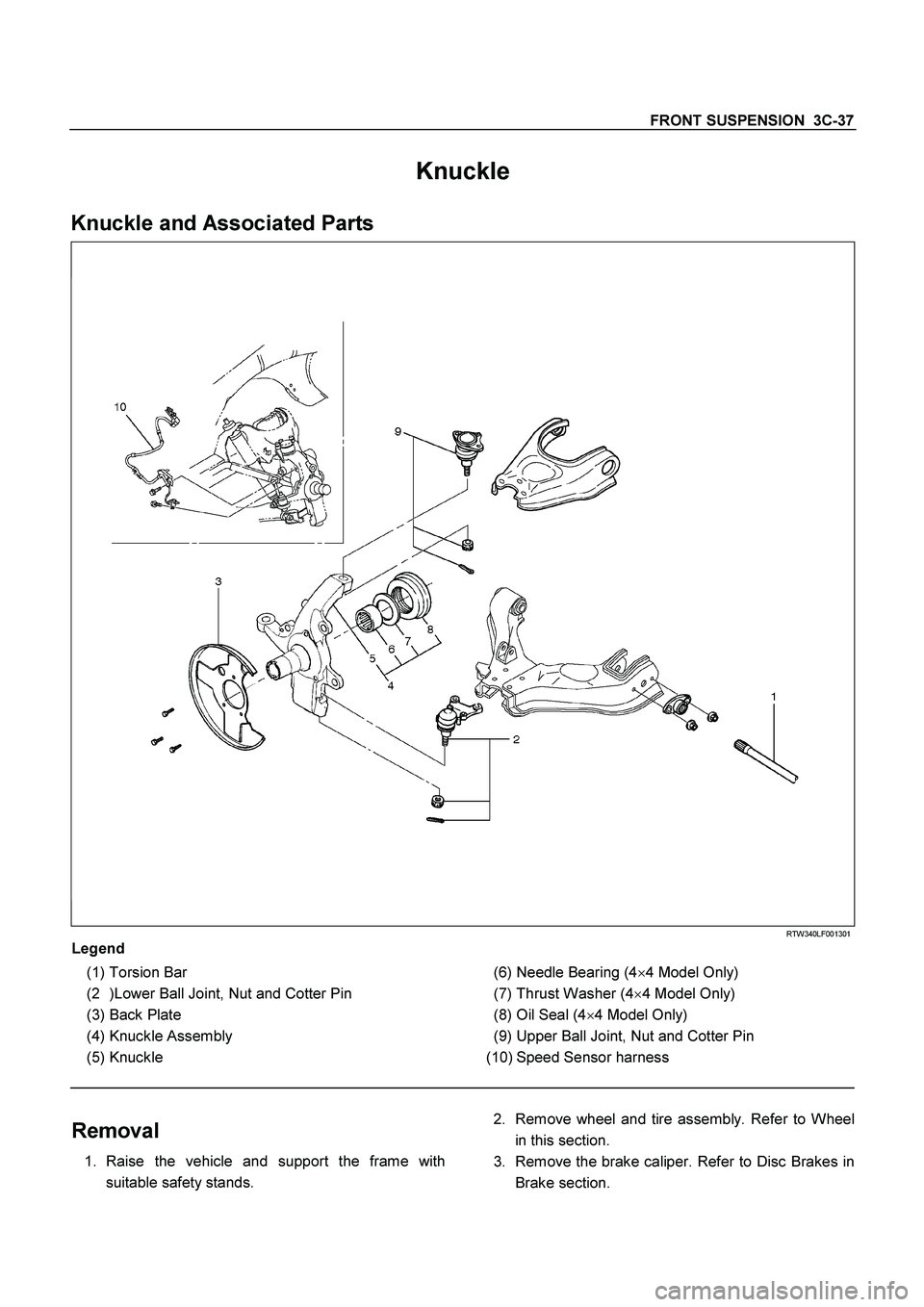

FRONT SUSPENSION 3C-37

Knuckle
Knuckle and Associated Parts


RTW340LF001301
Legend
(1) Torsion Bar
(2 )Lower Ball Joint, Nut and Cotter Pin
(3) Back Plate
(4) Knuckle Assembly
(5) Knuckle


(6) Needle Bearing (44 Model Only)
(7) Thrust Washer (44 Model Only)
(8) Oil Seal (4
4 Model Only)
(9) Upper Ball Joint, Nut and Cotter Pin
(10) Speed Sensor harness


Removal
1. Raise the vehicle and support the frame with
suitable safety stands.

2. Remove wheel and tire assembly. Refer to Wheel
in this section.
3. Remove the brake caliper. Refer to Disc Brakes in
Brake section.

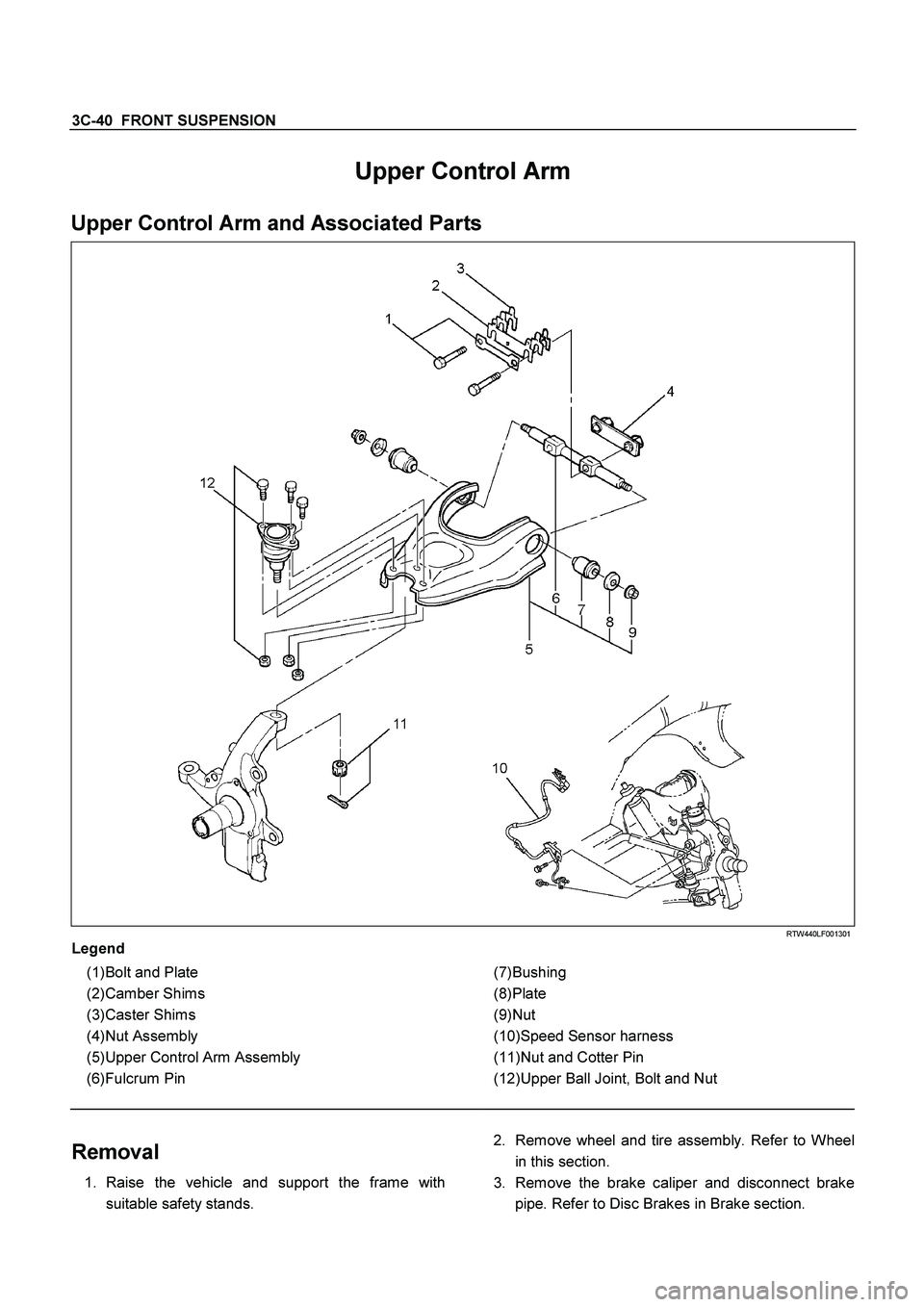

3C-40 FRONT SUSPENSION

Upper Control Arm
Upper Control Arm and Associated Parts


RTW440LF001301
Legend
(1)Bolt and Plate
(2)Camber Shims
(3)Caster Shims
(4)Nut Assembly
(5)Upper Control Arm Assembly
(6)Fulcrum Pin


(7)Bushing
(8)Plate
(9)Nut
(10)Speed Sensor harness
(11)Nut and Cotter Pin
(12)Upper Ball Joint, Bolt and Nut


Removal
1. Raise the vehicle and support the frame with
suitable safety stands.
2. Remove wheel and tire assembly. Refer to Wheel
in this section.
3. Remove the brake caliper and disconnect brake
pipe. Refer to Disc Brakes in Brake section.

UNIT REPAIR (AW30–40LE) 7A4–37
Diaassembly, Inspection and
Reassembly of minor Components
NOTE: The instructions here are organized so that you
work on only one component group at a time.
This will help avoid confusion from similar-looking parts
of different subassemblies being on your workbench at
the same time.
The component groups are inspected and repaired from
the converter housing side.
As much as possible, complete the inspection, repair
and reassembly before proceeding to the nex t
component group. If a component group cannot be
reassembled because parts are being ordered, be sure
to keep all parts of that group in separate container
while proceeding with disassembly, inspection, repair
and reassembly of other component groups.
Recommended ATF type DEXRON III.
General Cleaning Notes:
1. All disassembled parts should be washed clean and
any fluid passages and holes should be blown
through with compressed air.
2. When using compressed air to dry parts, always aim
away from yourself to prevent accidentally spraying
automatic transmission fluid in your face.
3. The recommended automatic transmission fluid
should be used for cleaning.
Parts Arrangement:
1. After cleaning, the parts should be arranged in
proper order to allow performing inspection, repairs,
and reassembly with efficiency.
2. When disassembling a valve body, be sure to keep
each valve together with the corresponding spring.
3. New brakes and clutches that are to be used for
replacement must be soaked in transmission fluid
for at least thirty minutes before assembly.
General Assembly:
1. All oil seal rings, clutch discs, clutch plates, rotating
parts, and sliding surfaces should be coated with
transmission fluid prior to reassembly.
2. All gaskets and rubber O-ring should be replaced.
3. Make sure that the ends of a snap ring are not
aligned with one of the cutouts and are installed in
the groove correctly.
4. If a worn bushing is to be replaced, the
subassembly containing that bushing must be
replaced.
5. Check thrust bearings and races for wear or
damage. Replace if necessary.
6. Use petroleum jelly or vaseline to keep parts in
place.
