Check steering angle sensor circuit. Refer to LAN-121, "Steering Angle Sensor Circuit Check" .
PKIA8079E
PKIA8166E

CAN SYSTEM (TYPE 3)
LAN-121
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Data Link Connector Circuit CheckUKS001A5
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check the terminals and connector of data link connector for damage, bend and loose connection (con-
nector side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M22 terminals 6 (W)
and 14 (R).
OK or NG
OK >> Diagnose again. Refer to LAN-95, "Work Flow" .
NG >> Repair harness between data link connector and combi-
nation meter.
Steering Angle Sensor Circuit CheckUKS001A6
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M47 terminals 3 (W) and 4 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector. 6 (W) - 14 (R) : Approx. 54 - 66Ω
PKIA2077E
3 (W) - 4 (R) : Approx. 54 - 66Ω
PKIA6838E

LAN-124
[CAN]
CAN SYSTEM (TYPE 3)
Revision: August 20072004 QX56
CAN Communication Circuit CheckUKS001AB
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–Transfer control unit
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data link connector M22 terminals 6 (W) and 14
(R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M22 terminals 6 (W),
14 (R) and ground.
OK or NG
OK >> Check ECM and IPDM E/R. Refer to LAN-125, "ECM/
IPDM E/R INTERNAL CIRCUIT INSPECTION" .
NG >> Repair harness.
IPDM E/R Ignition Relay Circuit CheckUKS001AC
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-27, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-13, "IGNITION POWER SUPPLY — IGNITION SW. IN ON
AND/OR START" . 6 (W) - 14 (R) : Continuity should not exist.
PKIA2077E
6 (W) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
PKIA2079E

CAN SYSTEM (TYPE 4)
LAN-149
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56

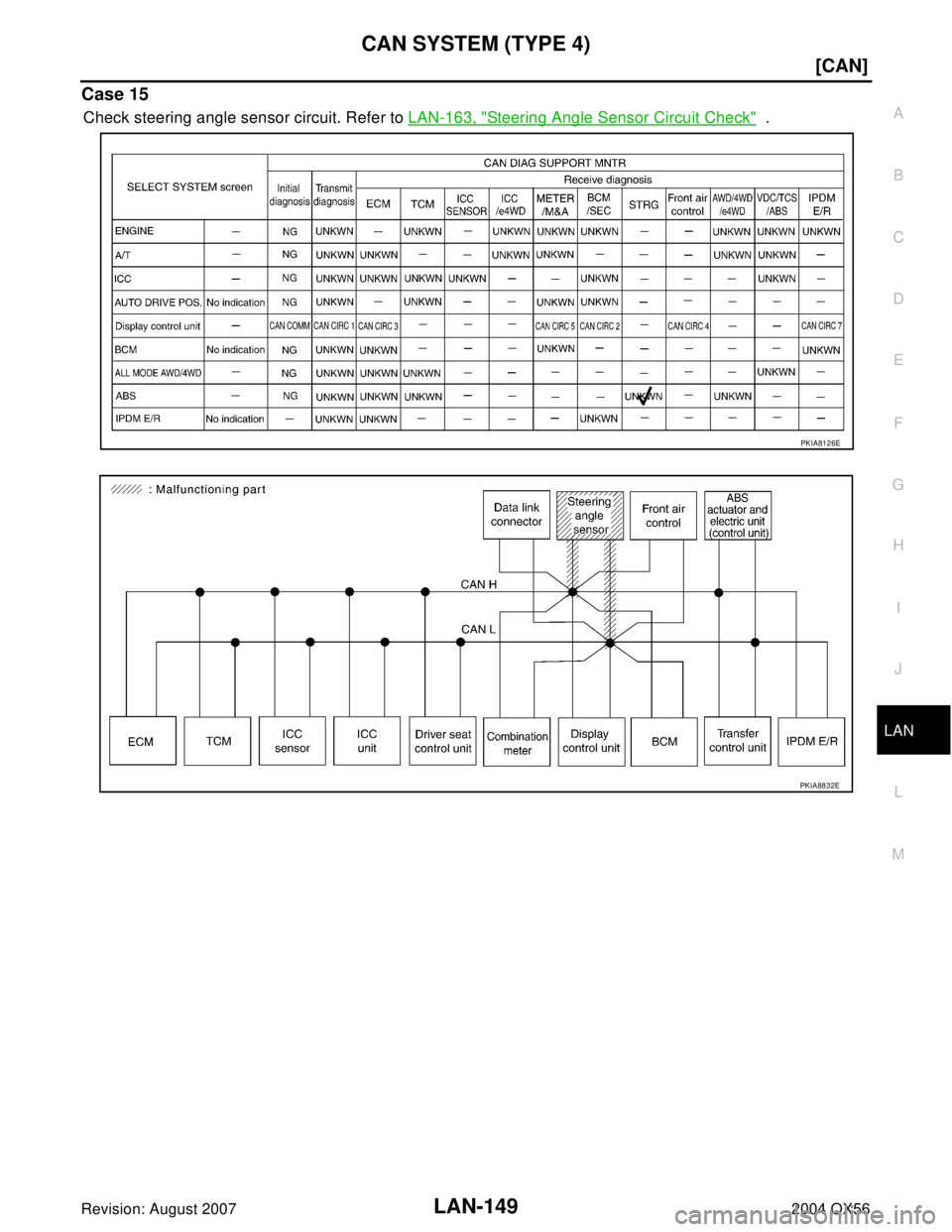

Case 15
Check steering angle sensor circuit. Refer to LAN-163, "Steering Angle Sensor Circuit Check" .
PKIA8126E
PKIA8832E

CAN SYSTEM (TYPE 4)
LAN-163
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: August 20072004 QX56
Data Link Connector Circuit CheckUKS001O3
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of data link connector for damage, bend and loose connection (connector
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M22 terminals 6 (W)
and 14 (R).
OK or NG
OK >> Diagnose again. Refer to LAN-131, "Work Flow" .
NG >> Repair harness between data link connector and combi-
nation meter.
Steering Angle Sensor Circuit CheckUKS001O4
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M47 terminals 3 (W) and 4 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector. 6 (W) - 14 (R) : Approx. 54 - 66Ω
PKIA2077E
3 (W) - 4 (R) : Approx. 54 - 66Ω
PKIA6838E

LAN-166
[CAN]
CAN SYSTEM (TYPE 4)
Revision: August 20072004 QX56
CAN Communication Circuit CheckUKS001O9
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–ICC sensor
–ICC unit
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–Transfer control unit
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data link connector M22 terminals 6 (W) and 14
(R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M22 terminals 6 (W),
14 (R) and ground.
OK or NG
OK >> Check ECM and IPDM E/R. Refer to LAN-167, "ECM/
IPDM E/R INTERNAL CIRCUIT INSPECTION" .
NG >> Repair harness.
IPDM E/R Ignition Relay Circuit CheckUKS001OA
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-27, "IPDM E/R Power/Ground Circuit Inspection" . 6 (W) - 14 (R) : Continuity should not exist.
PKIA2077E
6 (W) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
PKIA2079E

LIGHTING AND TURN SIGNAL SWITCH
LT-95
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: August 20072004 QX56
LIGHTING AND TURN SIGNAL SWITCHPFP:25540
Removal and InstallationEKS007BY
REMOVAL
1. Remove steering column cover.
2. While pressing tabs, pull lighting and turn signal switch toward
driver door and disconnect from the base.
INSTALLATION
Installation is in the reverse order of removal.
LKIA0013E
