2004 INFINITI FX35 stop start

BRAKE PEDAL
BR-7
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2004 November 2004 FX35/FX45
ADJUSTMENT
1. Loosen stop lamp switch and ASCD cancel switch (or brake
switch) by turning it counterclockwise by 45°.
2. Loosen lock nut (A) on input rod, then rotate input rod to set
pedal to the specified height, and tighten lock nut (A).
CAUTION:
Make sure the threaded end of input rod stays inside clevis.
3. With pedal pulled and held by hand, press stop lamp switch and
ASCD cancel switch (or brake switch) until its threaded end con-
tacts stopper rubber.
4. With the threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) contacting stopper rubber, rotate switch
clockwise by 45° to secure.
CAUTION:
Make sure that the clearance (C) between stopper rubber
and threaded end of stop lamp switch and ASCD cancel
switch (or brake switch) is within the standard.
5. Check pedal play.
CAUTION:
Make sure that stop lamps go off when pedal is released.
6. Start engine to check brake pedal depressed height.
Removal and InstallationAFS001MU
COMPONENT PARTS LOCATION
Lock nut (A) :
Refer to BR-16, "
Removal and Installation"
SFIA0160E
SFIA1940E

BRAKE BOOSTER
BR-15
C
D
E
G
H
I
J
K
L
MA
B
BR
Revision: 2004 November 2004 FX35/FX45

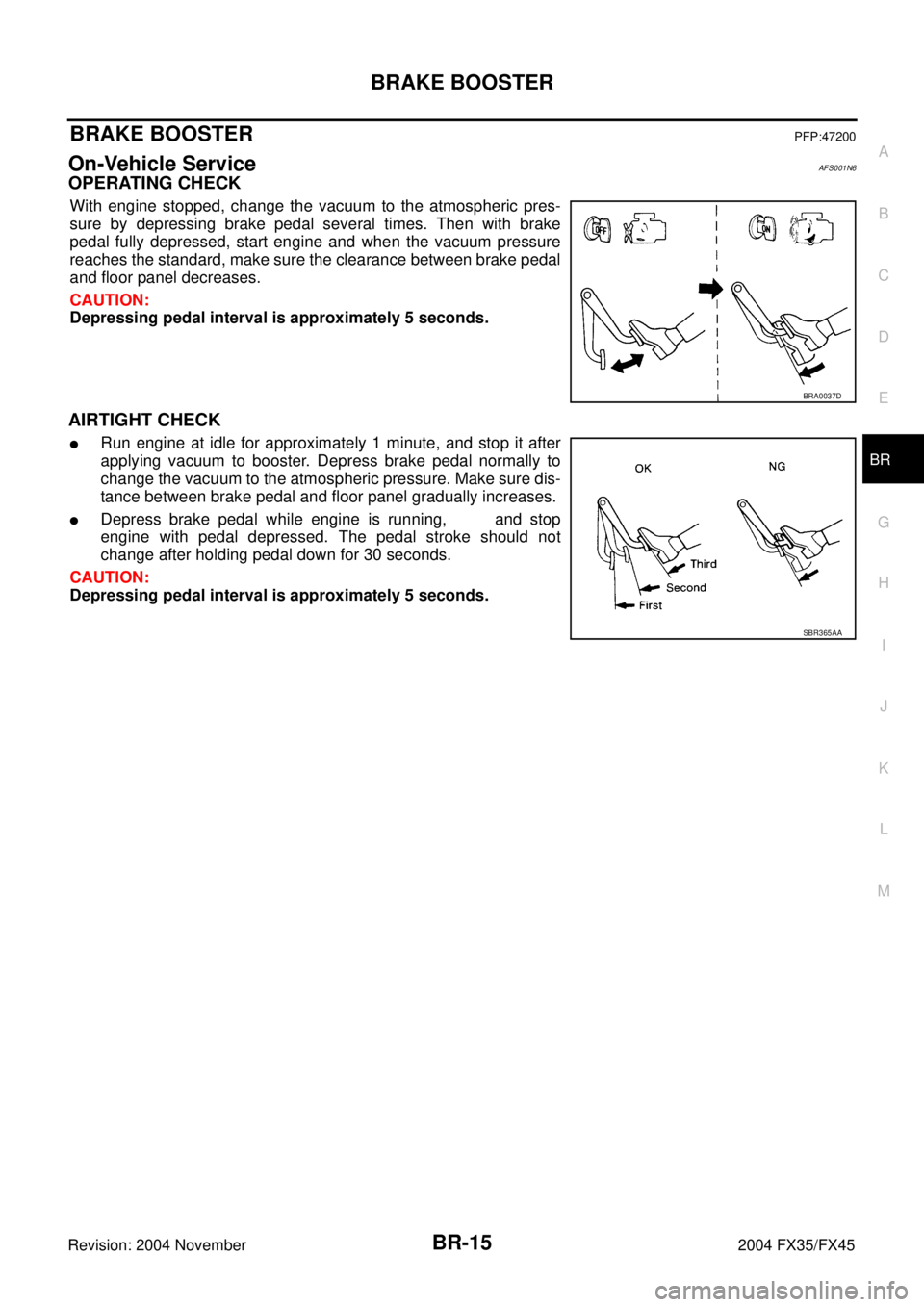

BRAKE BOOSTERPFP:47200
On-Vehicle ServiceAFS001N6
OPERATING CHECK
With engine stopped, change the vacuum to the atmospheric pres-
sure by depressing brake pedal several times. Then with brake
pedal fully depressed, start engine and when the vacuum pressure
reaches the standard, make sure the clearance between brake pedal
and floor panel decreases.
CAUTION:
Depressing pedal interval is approximately 5 seconds.
AIRTIGHT CHECK

Run engine at idle for approximately 1 minute, and stop it after
applying vacuum to booster. Depress brake pedal normally to
change the vacuum to the atmospheric pressure. Make sure dis-
tance between brake pedal and floor panel gradually increases.

Depress brake pedal while engine is running, and stop
engine with pedal depressed. The pedal stroke should not
change after holding pedal down for 30 seconds.
CAUTION:
Depressing pedal interval is approximately 5 seconds.
BRA0037D
SBR365AA

PRECAUTIONS
BRC-3
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AFS00289
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemAFS001S3

Recommended fluid is brake fluid “DOT 3”.

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.

Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.

Using a flare nut crowfoot and torque wrench, securely tighten
brake tube flare nuts.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.

Before working, turn ignition switch OFF and disconnect electri-
cal connectors of ABS actuator and electric unit (control unit) or
battery negative terminal.

When installing brake piping, be sure to check torque.
Precautions for Brake ControlAFS001S4

During VDC/TCS/ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This
is normal.

Just after starting vehicle after ignition switch ON, brake pedal may vibrate or motor operating noise may
be heard from engine room. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level, and
fluid leaks.

If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.

If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, VDC/TCS/ABS
function may have a malfunction or error.
SBR686C

BRC-6
[VDC/TCS/ABS]
ON-VEHICLE SERVICE
Revision: 2004 November 2004 FX35/FX45
ON-VEHICLE SERVICEPFP:00000
Adjustment of Steering Angle Sensor Neutral PositionAFS001S9
In case of doing work that applies to the list below, make sure to adjust neutral position of steering angle sen-
sor before running vehicle.
×: Required
–: Not required
CAUTION:
To adjust neutral position of steering angle sensor, make sure to use CONSULT-II.
(Adjustment cannot be done without CONSULT-II.)
1. Stop vehicle with front wheels in straight-ahead position.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle, and turn ignition
switch ON (do not start engine).
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
3. Touch “ABS”, “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” on CONSULT-II screen in
this order. Refer to BRC-26, "
CONSULT-II BASIC OPERATION PROCEDURE" .
4. Touch “START”.
CAUTION:
Do not touch steering wheel while adjusting steering angle
sensor.
5. After approximately 10 seconds, touch “END”. (After approxi-
mately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again.
CAUTION:
Be sure to carry out above operation.
7. Run vehicle with front wheels in straight-ahead position, then
stop.
8. Select “DATA MONITOR”, “SELECTION FROM MENU”, and “STR ANGLE SIG” on CONSULT-II screen.
Then make sure “STR ANGLE SIG” is within 0 ±3.5 deg. If value is more than specification, repeat steps 3
to 7.
9. Erase memory of ABS actuator and electric unit (control unit) and ECM.
10. Turn ignition switch OFF.
Calibration of Decel G-sensor (AWD Model)AFS001TQ
NOTE:
After removing/installing or replacing yaw rate/side/decel G-sensor, ABS actuator and electric unit (control
unit), suspension components, or after adjusting wheel alignment make sure to calibrate of decel G-sensor
before running vehicle.
CAUTION:
To calibrate decel G-sensor, make sure to use CONSULT-II. (Adjustment cannot be done without CON-
SULT-II.)
Situation Adjustment of Steering Angle Sensor Neutral Position
Removing/Installing ABS actuator and electric unit (control unit)−
Replacing ABS actuator and electric unit (control unit)×
Removing/Installing steering angle sensor×
Removing/Installing steering components×
Removing/Installing suspension components×
Change 4 tires to new ones –
Tire rotation–
Adjusting wheel alignment×
SFIA0371E

ON-VEHICLE SERVICE
BRC-7
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
1. Stop vehicle with front wheels in straight-ahead position.
CAUTION:

The work should be done at a horizontal place when vehicle is in the unloaded vehicle condi-
tion.

Keep all tires inflated to correct pressures. Adjust the tire pressure to the specified pressure
value.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector on vehicle, and turn ignition
switch ON (do not start engine).
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
3. Touch “ABS”, “WORK SUPPORT” and “DECEL G-SEN CALIBRATION” on CONSULT-II screen in this
order. Refer to BRC-26, "
CONSULT-II BASIC OPERATION PROCEDURE" .
4. Touch “START”.
CAUTION:
Set vehicle as shown in the display.
5. After approximately 10 seconds, touch “END”. (After approxi-
mately 60 seconds, it ends automatically.)
6. Turn ignition switch OFF, then turn it ON again.
CAUTION:
Be sure to carry out above operation.
7. Run vehicle with front wheels in straight-ahead position, then
stop.
8. Select “DATA MONITOR”, “SELECTION FROM MENU”, and
“DECEL G-SEN” on CONSULT-II screen. Then make sure “DECEL G-SEN” is within 0 ±0.08 G. If value is
more than specification, repeat steps 3 to 7.
9. Erase memory of ABS actuator and electric unit (control unit) and ECM.
10. Turn ignition switch OFF.
SFIA1162E

SYSTEM DESCRIPTION
BRC-9
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45

When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
EBD FunctionAFS001SF

Electronic brake distributor is a function that detects subtle slippages between front and rear wheels dur-
ing braking, and it improves handling stability by electronically controlling the brake fluid pressure which
results in reduced rear wheel slippage.

In case of electrical system break down, the fail-safe function is activated, EBD and ABS becomes inoper-
ative, and ABS warning lamp and brake warning lamp are turned on.

Electrical system diagnosis by CONSULT-II is available.

During EBD operation, brake pedal lightly vibrates and a mechanical noise may be heard. This is normal.

When starting engine, or just after starting vehicle, brake pedal may vibrate or motor operating noises
may be heard from engine compartment. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without EBD when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.
Fail-Safe FunctionAFS001SG
VDC / TCS SYSTEM
In case of malfunction in the VDC/TCS system, VDC OFF indicator lamp and SLIP indicator lamp are turned
on, and the condition of vehicle is the same as the condition of vehicles without VDC/TCS system. In case of
malfunction in the VDC/TCS system, the ABS control continues to operate normally without VDC/TCS control.
CAUTION:
If the fail-safe function is activated, then perform the self-diagnosis for VDC/TCS/ABS control system.
ABS, EBD SYSTEM
In case of electrical malfunctions with the ABS, ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp will turn on. In case of electrical malfunctions with the EBD, brake warning lamp, ABS warning lamp,
VDC OFF indicator lamp and SLIP indicator lamp will turn on. Simultaneously, the VDC/TCS/ABS become one
of the following conditions of the fail-safe function.
1. For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of
vehicles without TCS/ABS system.
2. For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as
the condition of vehicles without TCS/ABS, EBD system.
NOTE:
In condition 1 described above, an ABS self-diagnosis sound may be heard. That is a normal condition
because a self-diagnosis for “Key Switch ON” and “the First Starting” are being performed.

TROUBLE DIAGNOSIS
BRC-27
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
6. Select the required diagnostic location from the “SELECT DIAG
MODE” screen.
For further information, see CONSULT-II Operation Manual.
SELF-DIAGNOSIS
Description

If an error is detected in the system, ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp
on the combination meter turn on. In this case, perform self-diagnosis as follows:

While CONSULT-II is used, ABS warning lamp, VDC OFF indicator lamp, SLIP indicator lamp may be
turned on in a case of no malfunctioning.
Operation Procedure
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
3. Turn ignition switch ON.
4. Start engine and drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
5. After stopping vehicle, with the engine running, touch “START (NISSAN BASED VHCL)”, “ABS”, “SELF-
DIAG RESULTS” in order on the CONSULT-II screen.
CAUTION:
If “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on the
ignition switch, “ABS” might not be displayed in the System Selection screen. In this case, repeat
the operation from step 1. If it cannot be shown after several attempts, ABS actuator and electric
unit (control unit) may have malfunctioned.
6. The self-diagnostic results are displayed. (If necessary, the self-diagnostic results can be printed out by
touching “PRINT”.)

When “NO FAILURE” is displayed, check ABS warning lamp, VDC OFF indicator lamp and SLIP indica-
tor lamp.
7. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning
component.
8. Drive the vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute.
CAUTION:

In a case that a wheel sensor is malfunctioning, ABS warning lamp, VDC OFF indicator lamp,
SLIP indicator lamp will turn on. If vehicle is not driven at approximately 30 km/h (19 MPH) or
more for at least approximately 1 minute after repair of the wheel sensor system, ABS warning
lamp, VDC OFF indicator lamp and SLIP indicator lamp may not turn off even if everything is
normal. Check again to make sure that there is no malfunction on other parts.
9. Turn ignition switch OFF to prepare for erasing the memory.
10. Start engine and touch “START (NISSAN BASED VHCL)”, “ABS”, “SELF-DIAG RESULTS”, “ERASE
MEMORY” in order on the CONSULT-II screen to erase the error memory.
If “ABS” is not indicated, go to GI-40, "
CONSULT-II Data Link Connector (DLC) Circuit" .
CAUTION:
If the error memory is not erased, re-perform the operation from step 5.
11. For the final inspection, drive at approximately 30 km/h (19 MPH) or more for approximately 1 minute and
confirm that ABS warning lamp, VDC OFF indicator lamp and SLIP indicator lamp are OFF.
SFIA2436E

TROUBLE DIAGNOSIS
BRC-31
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2004 November 2004 FX35/FX45
CAUTION:
When “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on
ignition switch, “ABS” might not be displayed in the system selection screen. In this case, repeat
the operation from step 1.
4. Return to the Monitor Item Selection screen, and touch “ECU INPUT SIGNALS”, “MAIN SIGNALS” or
“SELECTION FROM MENU”. Refer to the following information.
5. When “START” is touched, the data monitor screen is displayed.
Display Item List
Item
(Unit)Data monitor item selection
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
GEAR×××Gear position judged by PNP
switch signal is displayed.
FR RH SENSOR
(km/h, MPH)×××Wheel speed calculated by front
RH wheel sensor signal is dis-
played.
FR LH SENSOR
(km/h, MPH)×××Wheel speed calculated by front
LH wheel sensor signal is dis-
played.
RR RH SENSOR
(km/h, MPH)×××Wheel speed calculated by rear
RH wheel sensor signal is dis-
played.
RR LH SENSOR
(km/h, MPH)×××Wheel speed calculated by rear
LH wheel sensor signal is dis-
played.
BATTERY VOLT
(V)×××Voltage supplied to ABS actuator
and electric unit (control unit) is
displayed.
SLCT LVR POSI×××Shift position judged by PNP
switch signal.
ACCEL POS SIG
(%)×––Throttle valve open/close status
judged by CAN communication
signal is displayed.
ENGINE SPEED
(rpm)×××Engine speed judged by CAN
communication signal is displayed.
STR ANGLE SIG
(deg)×––Steering angle detected by steer-
ing angle sensor is displayed.
YAW RATE SEN
(d/s)××–Yaw rate detected by yaw rate
sensor is displayed.
DECEL G-SEN (AWD model)
(G)×××Longitudinal acceleration detected
by decel G-sensor is displayed.
SIDE G-SENSOR
(m/s
2 )×––Lateral acceleration detected by
side G-sensor is displayed.
PRESS SENSOR
(bar)×––Brake fluid pressure detected by
pressure sensor is displayed.
STOP LAMP SW
(ON/OFF)×××Stop lamp switch (ON/OFF) status
is displayed.
OFF SW
(ON/OFF) ×× ×VDC OFF switch (ON/OFF) sta-
tus is displayed.
ABS WARN LAMP
(ON/OFF)–××ABS warning lamp (ON/OFF) sta-
tus is displayed.
SLIP LAMP
(ON/OFF)–××SLIP indicator lamp (ON/OFF) sta-
tus is displayed.
FR LH IN SOL
(ON/OFF)–××Front LH IN ABS solenoid (ON/
OFF) status is displayed.
