![INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6)
LAN-211
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00C2D
1. When there are no indications of “AIR PRESSURE MONITOR”, “INTELLIGENT KEY](/manual-img/42/57021/w960_57021-3511.png "INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6)
LAN-211
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00C2D
1. When there are no indications of “AIR PRESSURE MONITOR”, “INTELLIGENT KEY")
CAN SYSTEM (TYPE 6)
LAN-211
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00C2D
1. When there are no indications of “AIR PRESSURE MONITOR”, “INTELLIGENT KEY”, “BCM”, “METER A/
C AMP”, “AUTO DRIVE POS.” or “IPDM E/R” on “SELECT SYSTEM” display of CONSULT-II, print the
“SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “AIR PRESSURE MONITOR”, “ALL
MODE AWD/4WD”, “ICC”, “INTELLIGENT KEY”, “BCM”, “METER A/C AMP”, “ABS”, “AUTO DRIVE
POS.”, and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “AIR PRESSURE MONITOR”,
“ALL MODE AWD/4WD”, “ICC”, “INTELLIGENT KEY”, “BCM”, “METER A/C AMP”, “ABS”, “AUTO DRIVE
POS.”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-213, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
213, "CHECK SHEET" .
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the navigation system. Refer to AV- 1 5 8 , "
CAN Communication Line
Check" .
PKIA2093E
PKIA8260E
PKIA8343E
Page 3527 of 4449
![INFINITI FX35 2004 Service Manual LAN-226
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
Case 11
Check Intelligent Key unit circuit. Refer to LAN-243, "Intelligent Key Unit Circuit Check" .
PKIA8036E
SKIA6640E](/manual-img/42/57021/w960_57021-3526.png "INFINITI FX35 2004 Service Manual LAN-226
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
Case 11
Check Intelligent Key unit circuit. Refer to LAN-243, \"Intelligent Key Unit Circuit Check\" .
PKIA8036E
SKIA6640E")
LAN-226
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
Case 11
Check Intelligent Key unit circuit. Refer to LAN-243, "Intelligent Key Unit Circuit Check" .
PKIA8036E
SKIA6640E
Page 3544 of 4449
![INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6)
LAN-243
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

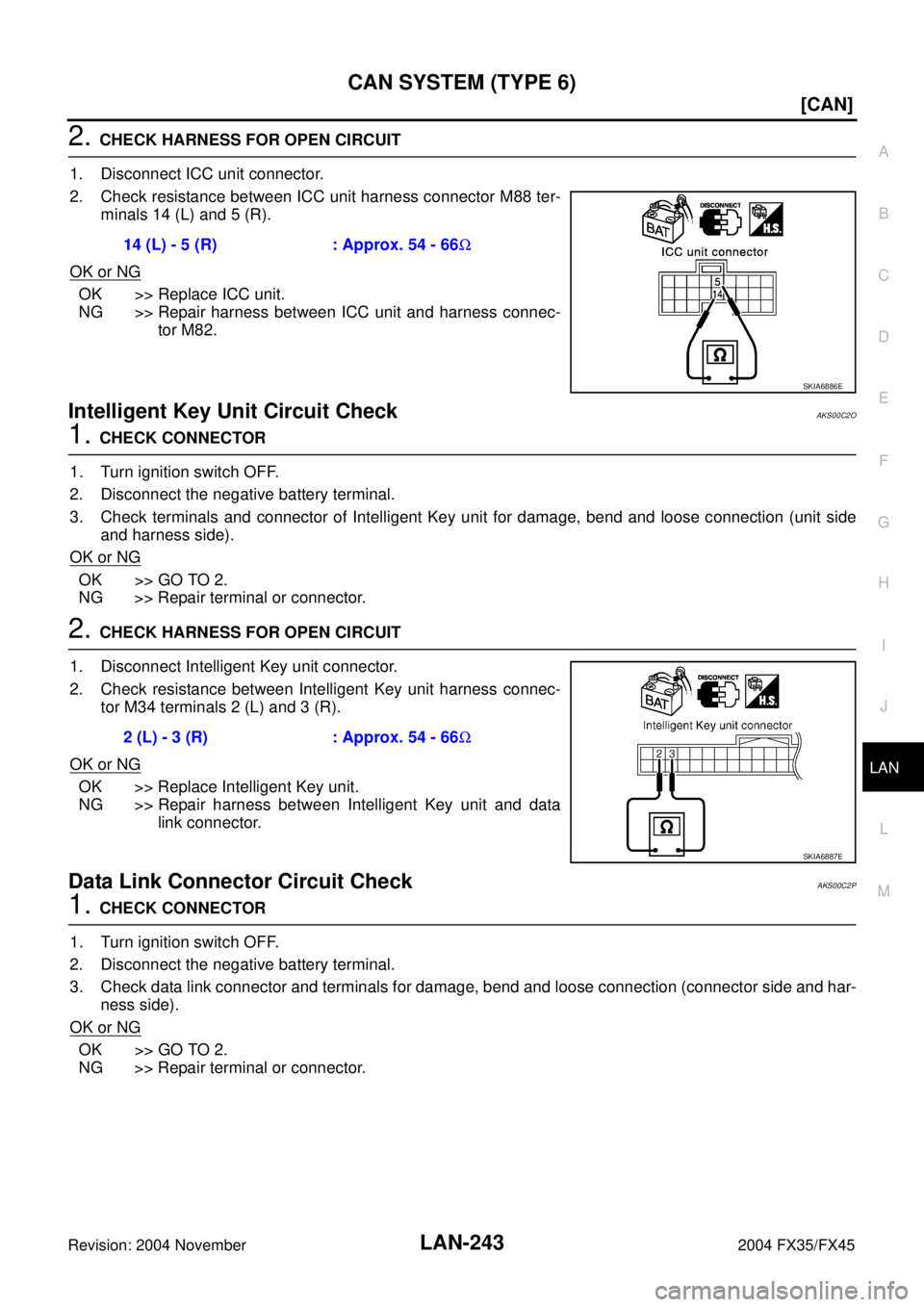

2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between ICC](/manual-img/42/57021/w960_57021-3543.png "INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6)
LAN-243
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between ICC")
CAN SYSTEM (TYPE 6)
LAN-243
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between ICC unit harness connector M88 ter-
minals 14 (L) and 5 (R).
OK or NG
OK >> Replace ICC unit.
NG >> Repair harness between ICC unit and harness connec-
tor M82.
Intelligent Key Unit Circuit CheckAKS00C2O
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of Intelligent Key unit for damage, bend and loose connection (unit side
and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect Intelligent Key unit connector.
2. Check resistance between Intelligent Key unit harness connec-
tor M34 terminals 2 (L) and 3 (R).
OK or NG
OK >> Replace Intelligent Key unit.
NG >> Repair harness between Intelligent Key unit and data
link connector.
Data Link Connector Circuit CheckAKS00C2P
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check data link connector and terminals for damage, bend and loose connection (connector side and har-
ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.14 (L) - 5 (R) : Approx. 54 - 66Ω
SKIA6886E
2 (L) - 3 (R) : Approx. 54 - 66Ω
SKIA6887E
Page 3549 of 4449
![INFINITI FX35 2004 Service Manual LAN-248
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
CAN Communication Circuit CheckAKS00C2X
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery term](/manual-img/42/57021/w960_57021-3548.png "INFINITI FX35 2004 Service Manual LAN-248
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
CAN Communication Circuit CheckAKS00C2X
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery term")
LAN-248
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
CAN Communication Circuit CheckAKS00C2X
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
control unit side, unit side, sensor side, meter side and harness side).
–ECM
–A/T assembly
–Display control unit
–AWD control unit
–Low tire pressure warning control unit
–ICC unit
–Intelligent Key unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ICC sensor
–ABS actuator and electric unit (control unit)
–Driver seat control unit
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
Page 3550 of 4449
![INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6)
LAN-249
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness c](/manual-img/42/57021/w960_57021-3549.png "INFINITI FX35 2004 Service Manual CAN SYSTEM (TYPE 6)
LAN-249
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness c")
CAN SYSTEM (TYPE 6)
LAN-249
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display control unit connector
–Low tire pressure warning control unit connector
–AWD control unit connector
–ICC unit connector
–Intelligent Key unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display control unit
Harness between data link connector and low tire pressure warning control unit
Harness between data link connector and AWD control unit
Harness between data link connector and ICC unit
Harness between data link connector and Intelligent Key unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41 6 (L) - 14 (R) : Continuity should not exist.
SKIA6868E
Page 3551 of 4449
![INFINITI FX35 2004 Service Manual LAN-250
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG](/manual-img/42/57021/w960_57021-3550.png "INFINITI FX35 2004 Service Manual LAN-250
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG")
LAN-250
[CAN]
CAN SYSTEM (TYPE 6)
Revision: 2004 November 2004 FX35/FX45
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.
Harness between data link connector and ECM
Harness between data link connector and harness
connector M82
Harness between data link connector and display control unit
Harness between data link connector and low tire pressure warning control unit
Harness between data link connector and AWD control unit
Harness between data link connector and ICC unit
Harness between data link connector and Intelligent Key unit
Harness between data link connector and BCM
Harness between data link connector and steering angle sensor
Harness between data link connector and unified meter and A/C amp.
Harness between data link connector and harness connector M41
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector F44
terminals 3 (L) and 8 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector F44 ter-
minals 3 (L), 8 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102. 6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
SKIA6874E
3 (L) - 8 (R) : Continuity should not exist.
SKIA6866E
3 (L) - Ground : Continuity should not exist.
8 (R) - Ground : Continuity should not exist.
SKIA6875E
Page 3558 of 4449
LT-3
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45HAZARD SWITCH .................................................. 109
Removal and Installation ...................................... 109
REMOVAL ......................................................... 109
INSTALLATION ................................................. 109
COMBINATION SWITCH .........................................110
Wiring Diagram — COMBSW — ........................... 110
Combination Switch Reading Function ................ . 111
CONSULT-II Function .......................................... . 111
CONSULT-II BASIC OPERATION ..................... . 111
DATA MONITOR ................................................ 112
Combination Switch Inspection ............................. 113
Removal and Installation ....................................... 115
STOP LAMP ............................................................116
Component Parts and Harness Connector Location .. 116
System Description ............................................... 116
Schematic ............................................................. 117
Wiring Diagram — STOP/L — ............................... 118
Stop Lamp Does Not Operate .............................. 121
High-Mounted Stop Lamp .................................... 123
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................. 123
Stop Lamp ............................................................ 123
BULB REPLACEMENT ..................................... 123
REMOVAL AND INSTALLATION ...................... 123
Rear Combination Lamp Control Unit .................. 123
REMOVAL AND INSTALLATION ...................... 123
STEP LAMP ............................................................ 124
Front Door Step Lamp .......................................... 124
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................. 124
Rear Door Step Lamp .......................................... 124
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................. 124
BACK-UP LAMP .................................................... 125
Wiring Diagram — BACK/L — ............................. 125
Bulb Replacement ................................................ 126
Removal and Installation ...................................... 126
PARKING, LICENSE PLATE AND TAIL LAMPS ... 127
Component Parts and Harness Connector Location . 127
System Description .............................................. 127
OPERATION BY LIGHTING SWITCH .............. 128
COMBINATION SWITCH READING FUNCTION . 129
EXTERIOR LAMP BATTERY SAVER CONTROL . 129
CAN Communication System Description ............ 129
CAN Communication Unit .................................... 129
Schematic ............................................................ 130
Wiring Diagram — TAIL/L — ................................ 131
Terminals and Reference Values for BCM ........... 136
Terminals and Reference Values for IPDM E/R ... 137
How to Proceed With Trouble Diagnosis .............. 137
Preliminary Check ................................................ 137
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................. 137
CONSULT-II Functions ......................................... 138
Parking, License Plate and Tail Lamps Do Not Illu-
minate .................................................................. 139
Tail Lamp Does Not Operate ................................ 144
Parking, License Plate and Tail Lamps Do Not Turn
OFF (After Approx. 10 Minutes) ........................... 145License Plate Lamp ..............................................145
BULB REPLACEMENT, REMOVAL AND
INSTALLATION .................................................145
Front Parking (Clearance) Lamp ..........................146
BULB REPLACEMENT .....................................146
REMOVAL AND INSTALLATION ......................146
Tail Lamp ..............................................................146
BULB REPLACEMENT .....................................146
REMOVAL AND INSTALLATION ......................146
Front Side Marker Lamp .......................................146
BULB REPLACEMENT .....................................146
REMOVAL AND INSTALLATION ......................146
Rear Side Marker Lamp .......................................146
BULB REPLACEMENT .....................................146
REMOVAL AND INSTALLATION ......................146
Rear Combination Lamp Control Unit ...................146
REMOVAL AND INSTALLATION ......................146
REAR COMBINATION LAMP .................................147
Bulb Replacement ................................................147
REAR FENDER SIDE (REAR SIDE MARKER
LAMP BULB) .....................................................147
BACK DOOR SIDE (BACK-UP LAMP) .............147
Removal and Installation ......................................147
REMOVAL .........................................................147
INSTALLATION .................................................148
VANITY MIRROR LAMP .........................................149
Bulb Replacement ................................................149
MAP LAMP .............................................................150
Bulb Replacement ................................................150
Removal and Installation ......................................150
REMOVAL .........................................................150
INSTALLATION .................................................150
PERSONAL LAMP .................................................151
Bulb Replacement ................................................151
Removal and Installation ......................................151
REMOVAL .........................................................151
INSTALLATION .................................................151
LUGGAGE ROOM LAMP .......................................152
Bulb Replacement ................................................152
Removal and Installation ......................................152
REMOVAL .........................................................152
INSTALLATION .................................................152
IGNITION KEY HOLE ILLUMINATION ...................153
Bulb Replacement, Removal and Installation .......153
GLOVE BOX LAMP ................................................154
Bulb Replacement, Removal and Installation .......154
ASHTRAY ILLUMINATION .....................................155
Bulb Replacement and Removal and Installation . 155
CIGARETTE LIGHTER ILLUMINATION .................156
Bulb Replacement and Removal and Installation . 156
INTERIOR ROOM LAMP ........................................157
Component Parts and Harness Connector Location .157
System Description ...............................................157
POWER SUPPLY AND GROUND ....................157
SWITCH OPERATION ......................................159
ROOM LAMP TIMER OPERATION ..................159
INTERIOR LAMP BATTERY SAVER CONTROL .160
Schematic .............................................................162
Wiring Diagram — ROOM/L — ............................164
Page 3559 of 4449
LT-4Revision: 2004 November 2004 FX35/FX45Terminals and Reference Values for BCM ............172
How to Proceed With Trouble Diagnosis ..............173
Preliminary Check ................................................173
CHECK FOR POWER SUPPLY AND GROUND
CIRCUIT ............................................................173
CONSULT-II Functions .........................................174
CONSULT-II BASIC OPERATION .....................174
WORK SUPPORT .............................................175
DATA MONITOR ................................................175
ACTIVE TEST ...................................................176
Interior Room Lamp Control Does Not Operate ...176
Map Lamp Control Does Not Operate ..................178
Personal Lamp Control Does Not Operate ...........180
Ignition key Hole illumination Control Does Not
Operate .................................................................181
All Step Lamps Do Not Operate ............................182
All Interior Room Lamps Do Not Operate .............183
Bulb Replacement ................................................183
ROOM LAMP .....................................................183
MAP LAMP ........................................................184PERSONAL LAMP .............................................184
Removal and Installation .......................................184
ROOM LAMP .....................................................184
MAP LAMP ........................................................184
PERSONAL LAMP .............................................184
ILLUMINATION ........................................................185
System Description ...............................................185
ILLUMINATION OPERATION BY LIGHTING
SWITCH .............................................................185
EXTERIOR LAMP BATTERY SAVER CONTROL .186
CAN Communication System Description ............186
CAN Communication Unit .....................................186
Schematic .............................................................187
Wiring Diagram — ILL — ......................................189
Removal and Installation .......................................197
ILLUMINATION CONTROL SWITCH ................197
GLOVE BOX LAMP ...........................................197
FRONT DOOR INSIDE ILLUMINATION ............197
BULB SPECIFICATIONS ........................................198
Headlamp ..............................................................198
Exterior Lamp ........................................................198
Interior Lamp/Illumination ......................................198
