IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-25
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
Concept of Auto Active Test

IPDM E/R actuates auto active test mode when it receives door switch signal from BCM via CAN commu-
nication line. Therefore, when auto active test mode is activated successfully, CAN communication
between IPDM E/R and BCM is normal.

If any of systems controlled by IPDM E/R cannot be operated, possible cause can be easily diagnosed
using auto active test.
Diagnosis chart in auto active test mode
Symptom Inspection contents Possible cause
Any of front wipers, tail
and parking lamps, front
fog lamps, and head
lamps (Hi, Lo) do not
operate.Perform auto active
test. Does system in
question operate?YES

BCM signal input system
NO

Lamp/wiper motor malfunction

Lamp/wiper motor ground circuit malfunction

Harness/connector malfunction between IPDM E/R and system in question

IPDM E/R (integrated relay) malfunction
Rear window defogger
does not operate.Perform auto active
test. Does rear win-
dow defogger oper-
ate?YES

BCM signal input circuit
NO

Rear window defogger relay circuit

Open circuit of rear window defogger

IPDM E/R malfunction
A/C compressor does
not operate.Perform auto active
test. Does mag-
netic clutch oper-
ate?YES

BCM signal input circuit

CAN communication signal between BCM and ECM.

CAN communication signal between ECM and IPDM E/R
NO

Magnetic clutch malfunction

Harness/connector malfunction between IPDM E/R and magnetic clutch

IPDM E/R (integrated relay) malfunction
Cooling fan does not
operate.Perform auto active
test. Does cooling
fan operate?YES

ECM signal input circuit

CAN communication signal between ECM and IPDM E/R
NO

Cooling fan motor malfunction

Harness/connector malfunction between IPDM E/R and cooling fan motor

IPDM E/R (integrated relay) malfunction
Oil pressure warning
lamp does not operate.Perform auto active
test. Does oil pres-
sure warning lamp
blink?YES

Harness/connector malfunction between IPDM E/R and oil pressure switch

Oil pressure switch malfunction

IPDM E/R malfunction
NO

CAN communication signal between BCM and Unified Meter and A/C Amp

Combination meter

HARNESS
PG-67
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
Wiring Diagram Codes (Cell Codes) AKS007X0
Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.
Code Section Wiring Diagram Name
A/C ATC Air Conditioner
APPS1 EC Accelerator Pedal Position Sensor
APPS2 EC Accelerator Pedal Position Sensor
APPS3 EC Accelerator Pedal Position Sensor
ASC/BS EC Automatic Speed Control Device (ASCD) Brake Switch
ASC/SW EC Automatic Speed Control Device (ASCD) Steering Switch
ASCBOF EC Automatic Speed Control Device (ASCD) Brake Switch
ASCIND EC Automatic Speed Control Device (ASCD) Indicator
AT/IND DI A/T Indicator Lamp
AUDIO AV Audio
AUT/DP SE Automatic Drive Positioner
AUTO/L LT Automatic Light System
AWD TF AWD Control System
B/CLOS BL Back Door Closure System
BACK/L LT Back-Up Lamp
BRK/SW EC Brake Switch
CAN AT CAN Communication Line
CAN EC CAN Communication Line
CAN LAN CAN System
CHARGE SC Charging System
CHIME DI Warning Chime
CIGAR WW Cigarette Lighter
CLOCK DI Clock
COMBSW LT Combination Switch
COMM AV Audio Visual Communication Line
COMPASS DI Compass
COOL/F EC Cooling Fan Control
D/LOCK BL Power Door Lock
DEF GW Rear Window Defogger
DTRL LT Headlamp - With Daytime Light System
ECM/PW EC ECM Power Supply For Back-Up
ECTS EC Engine Coolant Temperature Sensor
ETC1 EC Electric Throttle Control Function
ETC2 EC Electric Throttle Control Motor Relay
ETC3 EC Electric Throttle Control Motor
F/FOG LT Front Fog Lamp
F/PUMP EC Fuel Pump
FTS AT A/T Fluid Temperature Sensor Circuit
FTTS EC Fuel Tank Temperature Sensor
FUELB1 EC Fuel Injection System Function (Bank 1)
FUELB2 EC Fuel Injection System Function (Bank 2)

STANDARDIZED RELAY
PG-81
C
D
E
F
G
H
I
J
L
MA
B
PG
Revision: 2004 November 2004 FX35/FX45
STANDARDIZED RELAY PFP:00011
Description AKS007W7
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.

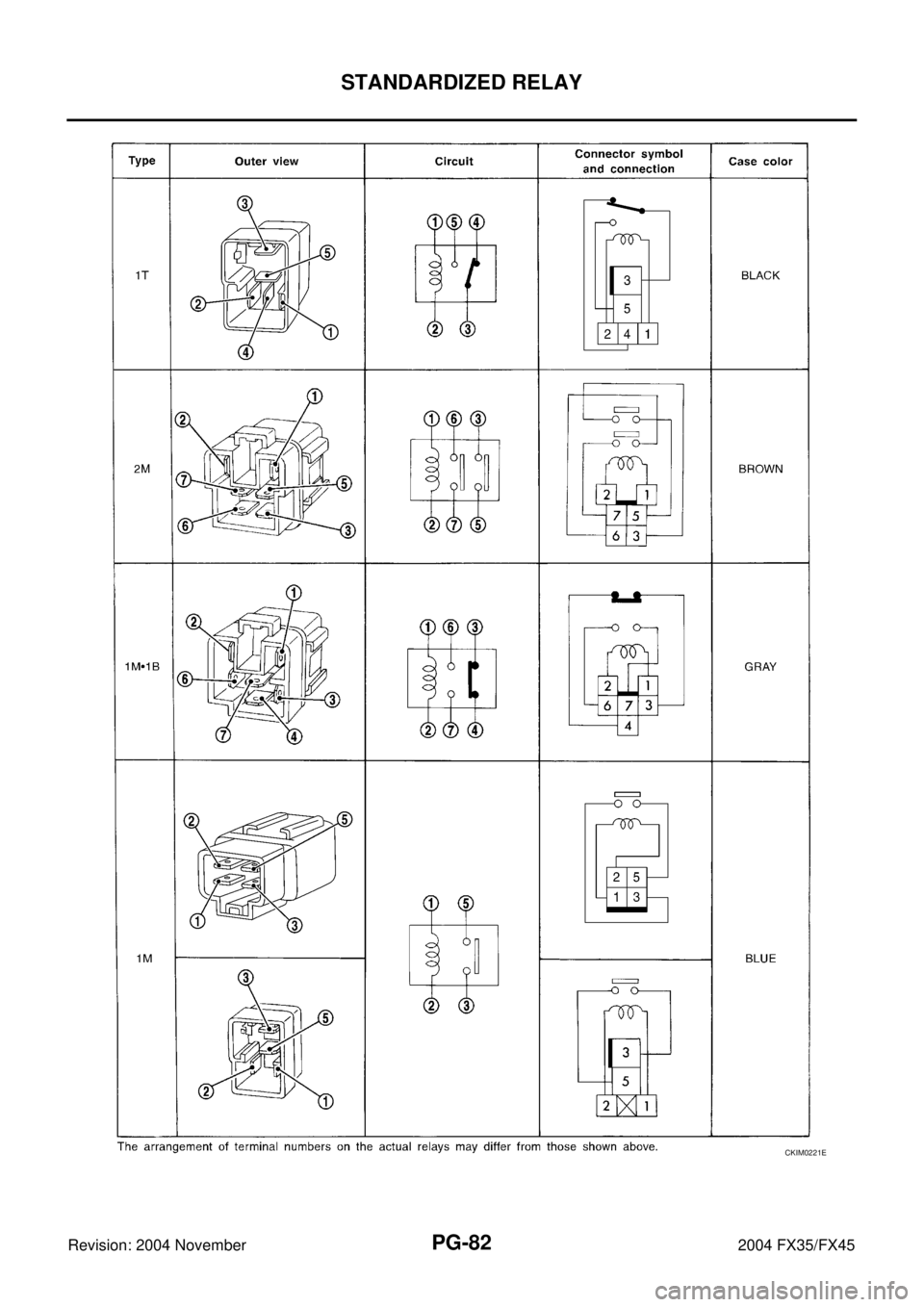

TYPE OF STANDARDIZED RELAYS
SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H

PG-82
STANDARDIZED RELAY
Revision: 2004 November 2004 FX35/FX45
CKIM0221E

PG-84
FUSE, FUSIBLE LINK AND RELAY BOX
Revision: 2004 November 2004 FX35/FX45

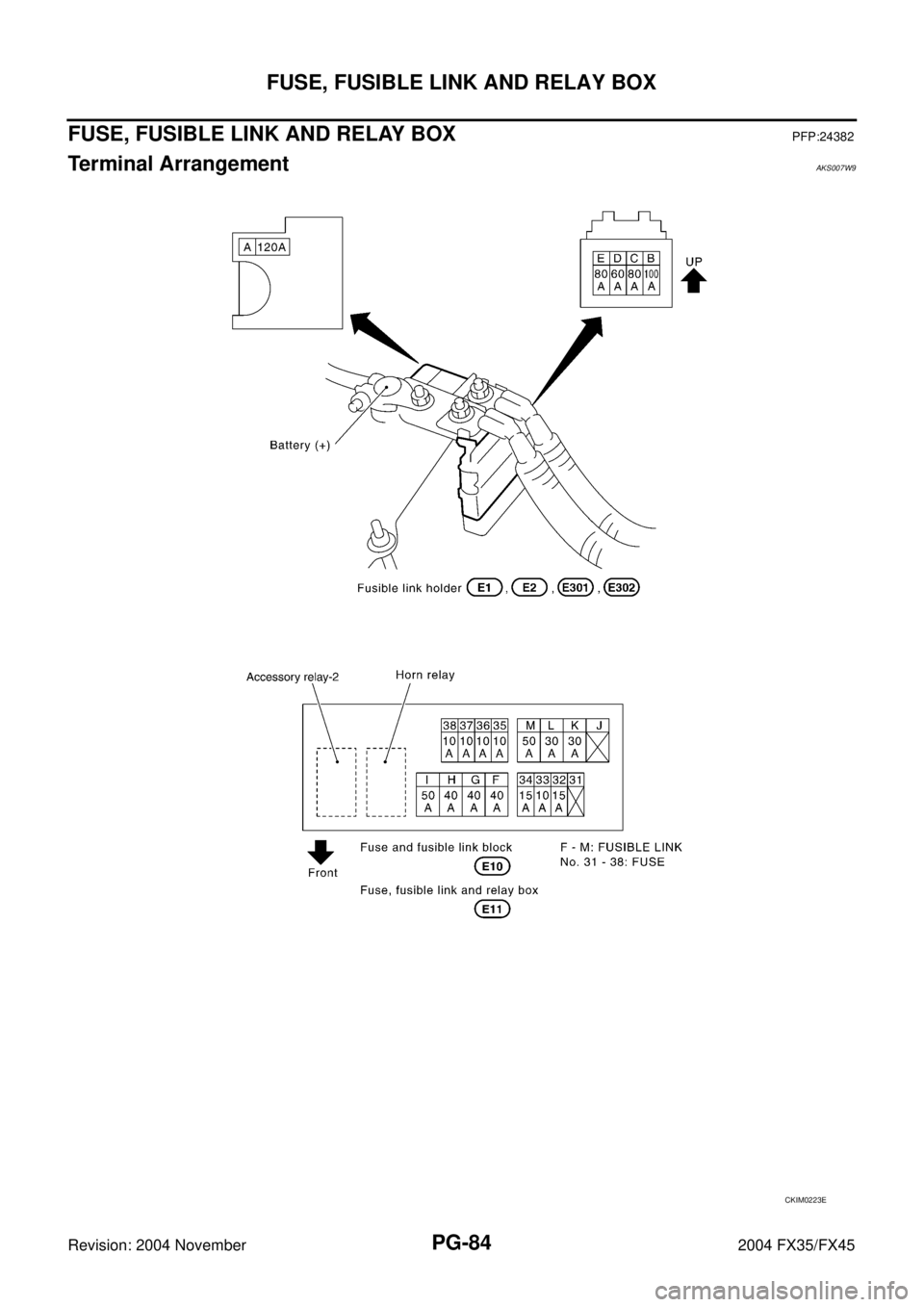

FUSE, FUSIBLE LINK AND RELAY BOXPFP:24382
