HEADLAMP - XENON TYPE -
LT-7
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
HEADLAMP - XENON TYPE -PFP:26010
Component Parts and Harness Connector LocationAKS007M9
System DescriptionAKS007MA
Control of the headlamp system operation is dependent upon the position of the combination switch (lighting
switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives input
signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the IPDM E/
R (intelligent power distribution module engine room) across the CAN communication lines. The central pro-
cessing unit of the IPDM E/R controls the headlamp high and headlamp low relay coils. These relays, when
energized, direct power to the respective headlamps, which then illuminate.
If voltage is applied to a high beam solenoid, the bulb shade will move, even a xenon head lamp bulb comes
out, and a high beam and a low beam are changed.
OUTLINE
Power is supplied at all times

to headlamp high relay [located in IPDM E/R (intelligent power distribution module engine room)]

to headlamp low relay [located in IPDM E/R (intelligent power distribution module engine room)]

to ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 10A fuse [No. 71, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 78, located in IPDM E/R (intelligent power distribution module engine room)]

to CPU (central processing unit) [located in IPDM E/R (intelligent power distribution module engine room)]

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM (body control module) terminal 55

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
PKIA5270E

LT-8
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45
With the ignition switch in the ON or START position, power is supplied

to ignition relay [located in IPDM E/R (intelligent power distribution module engine room)]

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 7.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM (body control module) terminal 11.
Ground is supplied

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85

to IPDM E/R (intelligent power distribution module engine room) terminals 38 and 60

through grounds E21, E50 and E51

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85.
Low Beam Operation
With the lighting switch in 2ND position, the BCM receives input signal requesting the headlamps to illuminate.
This input signal is communicated to the IPDM E/R across the CAN communication lines. The CPU in the
IPDM E/R controls the headlamp low relay coil, which when energized, directs power

to 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to headlamp RH terminal 6

to 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to headlamp LH terminal 6.
Ground is supplied

to headlamp RH terminal 7

through grounds E21, E50 and E51

to headlamp LH terminal 7

through grounds E21, E50 and E51.
With power and ground supplied, low beam headlamps illuminate.
High Beam Operation/Flash-to-Pass Operation
With the lighting switch in 2ND position and placed in HIGH or PASS position, the BCM receives input signal
requesting the headlamp high beams to illuminate. This input signal is communicated to the IPDM E/R across
the CAN communication lines. The CPU in the IPDM E/R controls the headlamp high relay coil and low relay
coil, which when energized, directs power

to 15A fuse [No. 76, located in IPDM E/R]

through IPDM E/R terminal 20

to headlamp RH terminal 6, and

to 15A fuse [No. 86, located in IPDM E/R]

through IPDM E/R terminal 30

to headlamp LH terminal 6

to 10A fuse [No. 72, located in IPDM E/R]

through IPDM E/R terminal 27

to headlamp RH terminal 5, and

to 10A fuse [No. 74, located in IPDM E/R]

through IPDM E/R terminal 28

to headlamp LH terminal 5.

LT-20
HEADLAMP - XENON TYPE -
Revision: 2004 November 2004 FX35/FX45
Display Item List
NOTE:
1. Vehicles without auto light system display this item, but cannot monitor it.
2. Vehicles without daytime light system display this item, but cannot monitor it.
ACTIVE TEST
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “BACK” deactivates the operation.
Display Item List
Monitor item Contents
IGN ON SW “ON/OFF” Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from the ignition switch signal.
ACC ON SW “ON/OFF” Displays “ACC (ON)/OFF, Ignition OFF (OFF)” status judged from ignition switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from light-
ing switch signal.
HEAD LAMP SW 1 “ON/OFF”Displays status (headlamp switch 1: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
LIGHT SW 1 ST “ON/OFF”Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from
lighting switch signal.
AUTO LIGHT SW
NOTE 1 “ON/OFF”Displays status of the lighting switch as judged from the lighting switch signal. (AUTO posi-
tion: ON/Other than AUTO position: OFF)
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from
lighting switch signal.
FR FOG SW “ON/OFF”Displays status (front fog lamp switch: ON/Others: OFF) of front fog lamp switch judged from
lighting switch signal.
DOOR SW - DR “ON/OFF”Displays status of the driver door as judged from the driver door switch signal. (Door is open:
ON/Door is closed: OFF)
DOOR SW - AS “ON/OFF”Displays status of the passenger door as judged from the passenger door switch signal.
(Door is open: ON/Door is closed: OFF)
DOOR SW - RR “ON/OFF”Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW - RL “ON/OFF”Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is
open: ON/Door is closed: OFF)
BACK DOOR SW “ON/OFF”Displays status of the back door as judged from the back door switch signal. (Door is open:
ON/Door is closed: OFF)
TURN SIGNAL R “ON/OFF” Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
ENGINE RUN
NOTE 2“ON/OFF” Displays status (Engine running: ON/Others: OFF) as judged from engine status signal.
PKB SW
NOTE 2“ON/OFF”Displays status (Parking brake switch: ON/Others: OFF) as judged from parking brake switch
signal.
OPTICAL SENSOR
NOTE 1
[0 - 5V] Displays “ambient light (close to 5V when light/close to 0V when dark)” judged from optical
sensor signal.
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON–OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON−OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON–OFF.

HEADLAMP - XENON TYPE -
LT-23
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested, and check operation.
3. Touch “START”.
4. Touch “STOP” while testing to stop the operation.
Headlamp Does Not Change To High Beam (Both Sides)AKS007ML
1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “HI BEAM SW” turns ON-OFF linked with operation of
lighting switch.
Without CONSULT-II
Refer to LT- 11 3 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check lighting switch. Refer to LT- 11 3 , "
Combination
Switch Inspection" .
2. HEADLAMP ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II. and select “ACTIVE TEST”
on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
4. Make sure headlamp high beam operates.
Without CONSULT-II
1. Start auto active test. Refer to PG-24, "
Auto Active Test" .
2. Make sure headlamp high beam operates.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
Te s t i t e mCONSULT-II
screen displayDescription
Headlamp relay (HI, LO) output
LAMPSAllows headlamp relay (HI, LO) to operate by switching operation (OFF, HI ON,
LO ON) at your option (Head lamp high beam repeats ON–OFF every 1 second).
Front fog lamp relay output Allows fog lamp relay to operate by switching operation ON-OFF at your option.
Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON-OFF at your option.
When lighting switch is
HIGH BEAM position: HI BEAM SW ON
SKIA4193E
Headlamp high beam should operate (Headlamp high
beam repeats ON–OFF every 1 second).
Headlamp high beam should operate.
SKIA5774E

LT-38
DAYTIME LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
DAYTIME LIGHT SYSTEMPFP:284B2

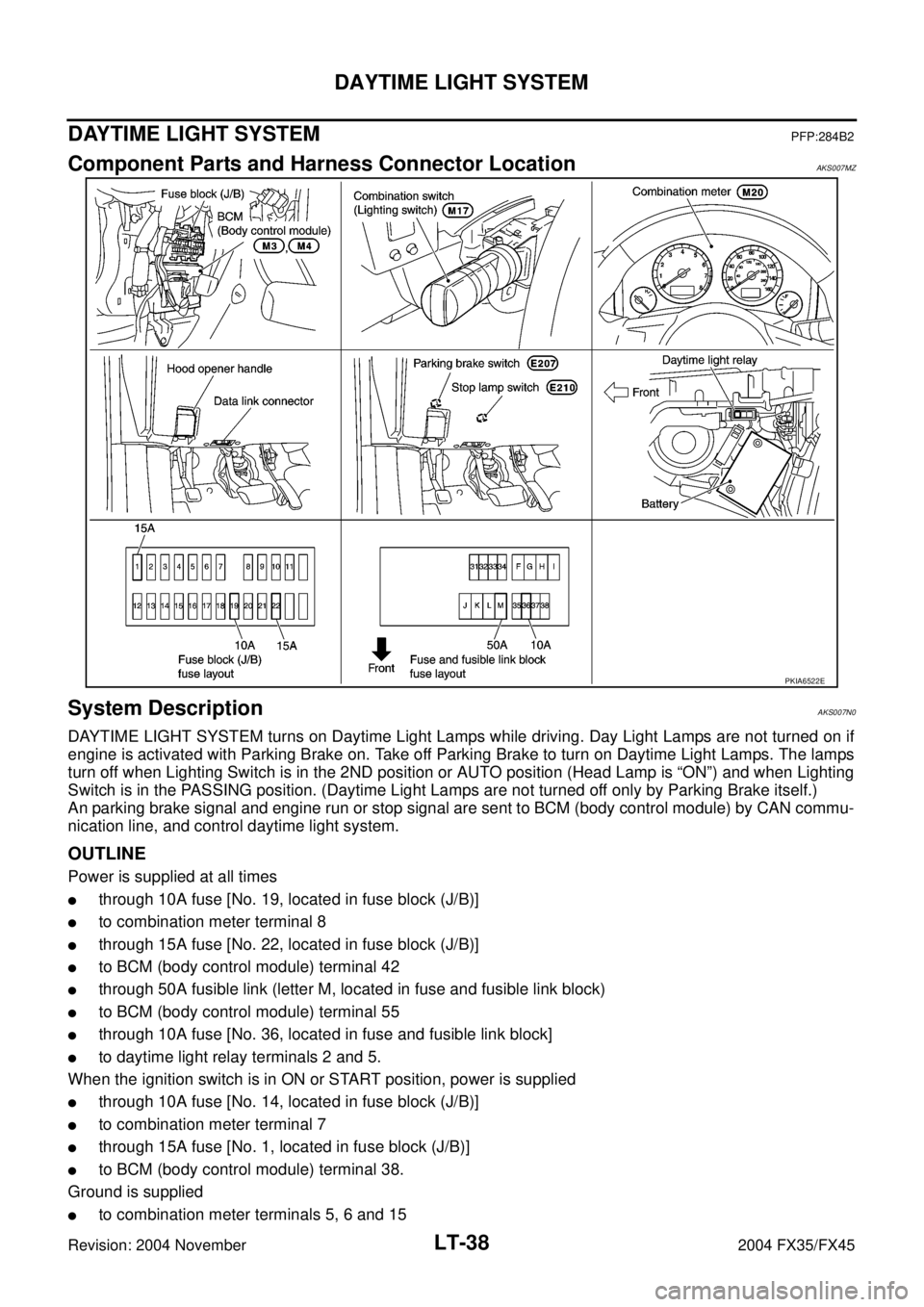

Component Parts and Harness Connector LocationAKS007MZ
System DescriptionAKS007N0
DAYTIME LIGHT SYSTEM turns on Daytime Light Lamps while driving. Day Light Lamps are not turned on if
engine is activated with Parking Brake on. Take off Parking Brake to turn on Daytime Light Lamps. The lamps
turn off when Lighting Switch is in the 2ND position or AUTO position (Head Lamp is “ON”) and when Lighting
Switch is in the PASSING position. (Daytime Light Lamps are not turned off only by Parking Brake itself.)
An parking brake signal and engine run or stop signal are sent to BCM (body control module) by CAN commu-
nication line, and control daytime light system.
OUTLINE
Power is supplied at all times

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM (body control module) terminal 42

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM (body control module) terminal 55

through 10A fuse [No. 36, located in fuse and fusible link block]

to daytime light relay terminals 2 and 5.
When the ignition switch is in ON or START position, power is supplied

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 7

through 15A fuse [No. 1, located in fuse block (J/B)]

to BCM (body control module) terminal 38.
Ground is supplied

to combination meter terminals 5, 6 and 15
PKIA6522E

DAYTIME LIGHT SYSTEM
LT-39
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45

through grounds M35, M45 and M85

to BCM (body control module) terminals 49 and 52

through grounds M35, M45 and M85.
DAYTIME LIGHT OPERATION
With the engine running, the lighting switch in the OFF or 1ST position and parking brake released, power is
supplied

through daytime light relay terminal 1

to combination meter terminal 10

through daytime light relay terminal 3

to clearance lamp RH and LH terminal 1.
Ground is supplied

to combination meter terminals 5, 6 and 15

through grounds M35, M45 and M85

to clearance lamp RH and LH terminal 3

through grounds E21, E50 and E51.
With power and grounds supplied, the front fog lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
AUTO LIGHT OPERATION
For auto light operation, refer to LT- 5 4 , "System Description" in “AUTO LIGHT SYSTEM”.
CAN Communication System DescriptionAKS007N1
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080T
Refer to LAN-6, "CAN Communication Unit" .

LT-46
DAYTIME LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
How to Proceed With Trouble DiagnosisAKS007N6
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 3 8 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 4 6 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the headlamp operate normally? If YES: GO TO 6. If NO: GO TO 4.
6. INSPECTION END
Preliminary CheckAKS007N7
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES

Check fuses for blown-out.
Refer to LT- 4 1 , "Wiring Diagram — DTRL —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
35 W/G Combination switch output 2
ONLighting, turn, wiper OFF
Wiper dial position 4
36 W/R Combination switch output 1
38 W/L Ignition switch (ON) ON — Battery voltage
39 L CAN− H—— —
40 R CAN− L—— —
42 L/R Battery power supply OFF — Battery voltage
49 B Ground ON — Approx. 0V
52 B Ground ON — Approx. 0V
55 G Battery power supply OFF — Battery voltage Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
SKIA5292E
Unit Power source Fuse and fusible link No.
BCMBatteryM
22
Ignition switch ON or START position 1
Daytime light relay Battery 36

LT-50
DAYTIME LIGHT SYSTEM
Revision: 2004 November 2004 FX35/FX45
NOTE:
1. Vehicles without auto light system display this item, but cannot monitor it.
2. Vehicles without daytime light system display this item, but cannot monitor it.
ACTIVE TEST
Operation Procedure
1. Touch “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching “BACK” deactivates the operation.
Display Item List
NOTE:
1. Vehicles without daytime light lamp system display this item, but cannot monitor it.
2. This item is displayed, but cannot monitor it. HEAD LAMP SW 1 “ON/OFF”Displays status (headlamp switch 1: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
LIGHT SW 1 ST “ON/OFF”Displays status (lighting switch 1st position: ON/Others: OFF) of lighting switch judged from
lighting switch signal.
AUTO LIGHT SW
NOTE 1 “ON/OFF”Displays status of the lighting switch as judged from the lighting switch signal. (AUTO posi-
tion: ON/Other than AUTO position: OFF)
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from
lighting switch signal.
FR FOG SW “ON/OFF”Displays status (front fog lamp switch: ON/Others: OFF) of front fog lamp switch judged from
lighting switch signal.
DOOR SW - DR “ON/OFF”Displays status of the driver door as judged from the driver door switch signal. (Door is open:
ON/Door is closed: OFF)
DOOR SW - AS “ON/OFF”Displays status of the passenger door as judged from the passenger door switch signal.
(Door is open: ON/Door is closed: OFF)
DOOR SW - RR “ON/OFF”Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW - RL “ON/OFF”Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is
open: ON/Door is closed: OFF)
BACK DOOR SW “ON/OFF”Displays status of the back door as judged from the back door switch signal. (Door is open:
ON/Door is closed: OFF)
TURN SIGNAL R “ON/OFF” Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
ENGINE RUN
NOTE 2“ON/OFF” Displays status (Engine running: ON/Others: OFF) as judged from engine status signal.
PKB SW
NOTE 2“ON/OFF”Displays status (Parking brake switch: ON/Others: OFF) as judged from parking brake
switch signal.
OPTICAL SENSOR
NOTE 1
[0 - 5V] Displays “ambient light (close to 5V when light/close to 0V when dark)” judged from optical
sensor signal. Monitor item Contents
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON–OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON−OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON–OFF.
DTRL
NOTE 1Allow day time light lamp operate by switching ON–OFF.
CORNERING LAMP
NOTE 2—
