2004 INFINITI FX35 Front end

TOW TRUCK TOWING
GI-45
C
D
E
F
G
H
I
J
K
L
MB
GI
Revision: 2004 November 2004 FX35/FX45
TOW TRUCK TOWINGPFP:00000
Tow Truck TowingAAS000EH
CAUTION:

All applicable state or Provincial (in Canada) laws and local laws regarding the towing operation
must be obeyed.

It is necessary to use proper towing equipment to avoid possible damage to the vehicle during
towing operation. Towing is in accordance with Towing Procedure Manual at dealer.

Always attach safety chains before towing.

When towing, make sure that the transmission, steering system and power train are in good order.
If any unit is damaged, dollies must be used.

Never tow an automatic transmission model from the rear (that is backward) with four wheels on
the ground. This may cause serious and expensive damage to the transmission.
2WD MODELS
INFINITI recommends that your vehicle be towed with the driving (rear) wheels off the ground or that a dolly be
used as illustrated.
CAUTION:

Never tow automatic transmission models with the rear wheels on the ground or four wheels on
the ground (forward or backward) as this may cause serious and expensive damage to the trans-
mission.
If it is necessary to tow the vehicle with the front wheels raised, always use towing dollies under
the rear wheels.

When towing rear wheel drive models with the front wheels on the ground or on towing dollies:
–Turn the ignition key to the OFF position, and secure the steering wheel in a straight ahead posi-
tion with a rope or similar device.Never secure the steering wheel by turning the ignition key to the
LOCK position. This may damage the steering lock mechanism.
–Move the selector lever to the N (Neutral) position.

When the battery of vehicle equipped with the Intelligent Key system is discharged, your vehicle
should be towed with the front wheels on towing dollies or place the vehicle on a flat bed truck.
PAIA0097E

GI-46
TOW TRUCK TOWING
Revision: 2004 November 2004 FX35/FX45
AW D M OD E LS
INFINITI recommends that a dolly be used as illustrated when towing AWD models.
CAUTION:
Never tow AWD models with any of the wheels on the ground as this may cause serious and expen-
sive damage to the power train.
Vehicle Recovery (Freeing a Stuck Vehicle) AAS000EI
Securely install the recovery hook stored with jacking tools.
Make sure that the hook is properly secured in the stored place after
use.
WARNING:

Stand clear of a stuck vehicle.

Do not spin your tires at high speed. This could be cause
them to explode and result in serious injury. Parts of your
vehicle could also overheat and be damaged.
CAUTION:

Use the recovery hook only, not other parts of the vehicle.
Otherwise, the vehicle body will be damaged.

Use the recovery hook only to free a vehicle stuck in sand,
snow, mud, etc. Never tow the vehicle for a long distance
using only the recovery hook.

The recovery hook is under tremendous force when used to
free a stuck vehicle. Always pull the cable straight out from
the front of the vehicle. Never pull on the hook at an angle.
AUTOMATIC TRANSMISSION
To tow a vehicle equipped with an automatic transmission, an appropriate vehicle dolly MUST be placed
under the towed vehicle's drive wheels. Always follow the dolly manufacture's recommendations when using
their product.
PAIA0098E
PAIA0099E

PRECAUTIONS
GW-3
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AIS0039V
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Handling for Adhesive and PrimerAIS0039W

Do not use an adhesive which is past its usable date. Shelf life of this product is limited to six months after
the date of manufacture. Carefully adhere to the expiration or manufacture date printed on the box.

Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

Open the seal of the primer and adhesive just before application. Discard the remainder.

Before application, be sure to shake the primer container to stir the contents. If any floating material is
found, do not use it.

If any primer or adhesive contacts the skin, wipe it off with gasoline or equivalent and wash the skin with
soap.

When using primer and adhesive, always observe the precautions in the instruction manual.
Wiring Diagrams and Trouble Diagnosis AIS0039X
When you read wiring diagrams, refer to the following:

GI-15, "How to Read Wiring Diagrams".

PG-3, "POWER SUPPLY ROUTING CIRCUIT".
When you perform trouble diagnosis, refer to the following:

GI-11, "HOW TO FOLLOW TEST GROUPS IN TROUBLE DIAGNOSES".

GI-27, "How to Perform Efficient Diagnosis for an Electrical Incident".
Check for any service bulletins before servicing the vehicle.

POWER WINDOW SYSTEM
GW-39
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45

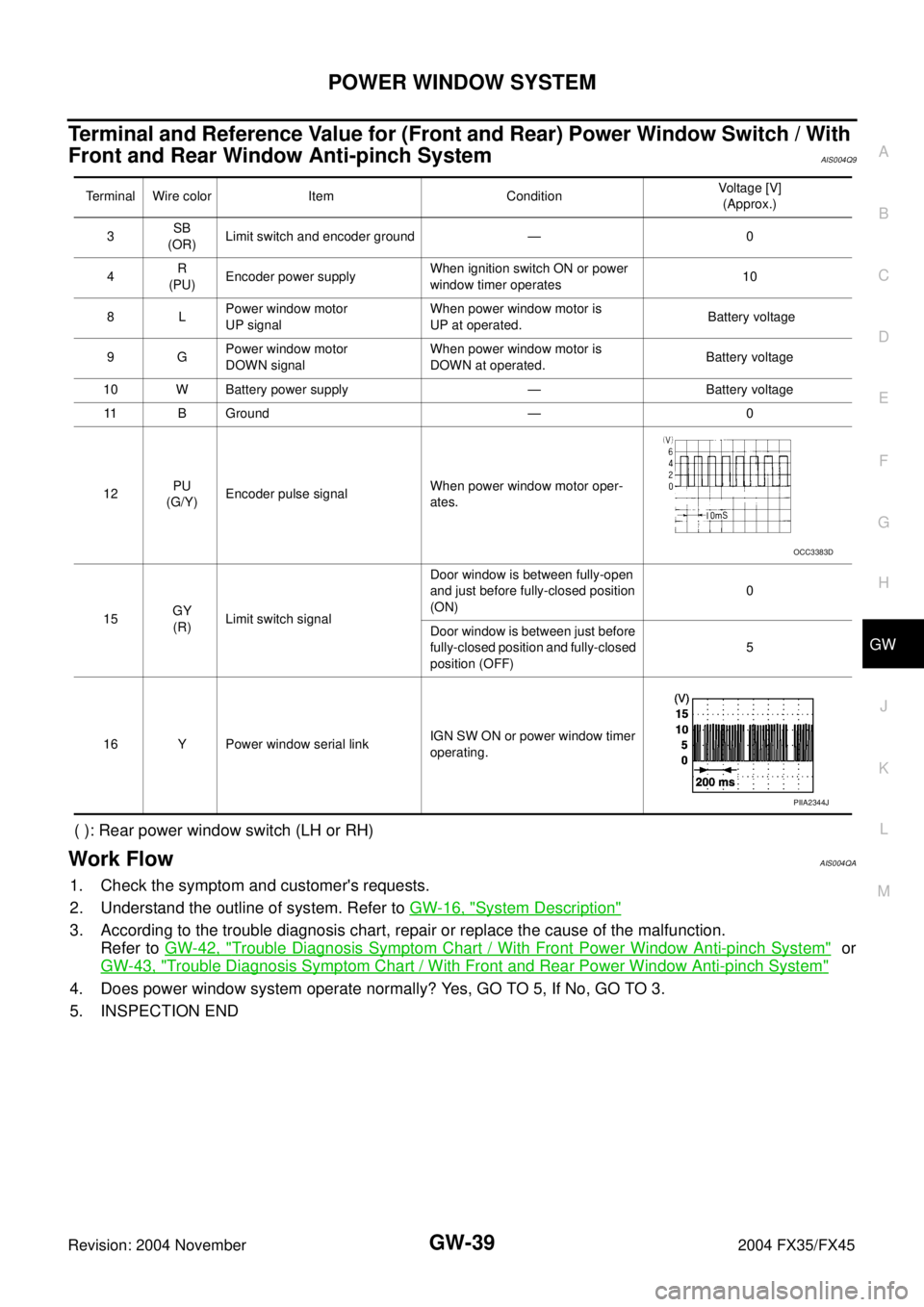

Terminal and Reference Value for (Front and Rear) Power Window Switch / With
Front and Rear Window Anti-pinch System
AIS004Q9
( ): Rear power window switch (LH or RH)
Work FlowAIS004QA
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to GW-16, "
System Description"
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction.
Refer to GW-42, "
Trouble Diagnosis Symptom Chart / With Front Power Window Anti-pinch System" or
GW-43, "
Trouble Diagnosis Symptom Chart / With Front and Rear Power Window Anti-pinch System"
4. Does power window system operate normally? Yes, GO TO 5, If No, GO TO 3.
5. INSPECTION END
Terminal Wire color Item ConditionVoltage [V]
(Approx.)
3SB
(OR)Limit switch and encoder ground — 0
4R
(PU)Encoder power supplyWhen ignition switch ON or power
window timer operates10
8LPower window motor
UP signalWhen power window motor is
UP at operated. Battery voltage
9GPower window motor
DOWN signalWhen power window motor is
DOWN at operated.Battery voltage
10 W Battery power supply — Battery voltage
11 B G r o u n d — 0
12PU
(G/Y)Encoder pulse signalWhen power window motor oper-
ates.
15GY
(R)Limit switch signalDoor window is between fully-open
and just before fully-closed position
(ON)0
Door window is between just before
fully-closed position and fully-closed
position (OFF)5
16 Y Power window serial linkIGN SW ON or power window timer
operating.
OCC3383D
PIIA2344J

FRONT DOOR GLASS AND REGULATOR
GW-77
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2004 November 2004 FX35/FX45
6. While holding the door glass, raise it at the rear end to pull the
glass out of the sash toward the outside of the door.
Installation
Install in the reverse order of removal.
REGULATOR ASSEMBLY
Removal
1. Remove the front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove speaker unit. Refer to AV- 4 6 , "
Removal and Installation for Front Door Speaker" .
3. Operate the power window main switch to raise/lower the door
window until the glass mounting bolts can be seen.
4. Remove the glass mounting bolts.
5. Remove the module stop bolts.
6. Raise up the door glass and hold with a suction lifter.
7. Remove the mounting bolts, and remove the module assembly.
8. Disconnect the harness connector for the module assembly, and
unclip the harness from the back.
Installation
Install in the reverse order of removal.
PIIA4004E
PIIA4729E
PIIB1811E
SIIA0287E

IP-2
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AIS003CB
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
PrecautionsAIS003CC

Disconnect both battery cables in advance.

Disconnect air bag system line in advance.

Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

Be careful not to scratch pad and other parts.

When removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.

When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.

Keep removed parts protected with cloth.

If a clip is deformed or damaged, replace it.

If an unreusable part is removed, replace it with a new one.

Tighten bolts and nuts firmly to the specified torque.

After re-assembly has been completed, make sure each part functions correctly.

Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.

Do not use any organic solvent, such as thinner or benzine.

LAN-4
[CAN]
PRECAUTIONS
Revision: 2004 November 2004 FX35/FX45
[CAN]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
AKS007WY
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions When Using CONSULT-IIAKS0058H
When connecting CONSULT-II to data link connector, connect them through CONSULT-II CONVERTER.
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
CHECK POINTS FOR USING CONSULT-II
1. Has CONSULT-II been used without connecting CONSULT-II CONVERTER on this vehicle?
–If YES, GO TO 2.
–If NO, GO TO 5.
2. Is there any indication other than indications relating to CAN communication system in the self-diagnosis
results?
–If YES, GO TO 3.
–If NO, GO TO 4.
3. Based on self-diagnosis results unrelated to CAN communication, carry out the inspection.
4. Malfunctions may be detected in self-diagnosis depending on control units carrying out CAN communica-
tion. Therefore, erase the self-diagnosis results.
5. Diagnose CAN communication system. Refer to LAN-6, "
CAN Communication Unit" .
Precautions For Trouble DiagnosisAKS0058I
CAN SYSTEM

Do not apply voltage of 7.0 V or higher to the measurement terminals.

Use the tester with its open terminal voltage being 7.0 V or less.

Be sure to turn ignition switch off and disconnect negative battery terminal before checking the circuit.

LT-3
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2004 November 2004 FX35/FX45HAZARD SWITCH .................................................. 109
Removal and Installation ...................................... 109
REMOVAL ......................................................... 109
INSTALLATION ................................................. 109
COMBINATION SWITCH .........................................110
Wiring Diagram — COMBSW — ........................... 110
Combination Switch Reading Function ................ . 111
CONSULT-II Function .......................................... . 111
CONSULT-II BASIC OPERATION ..................... . 111
DATA MONITOR ................................................ 112
Combination Switch Inspection ............................. 113
Removal and Installation ....................................... 115
STOP LAMP ............................................................116
Component Parts and Harness Connector Location .. 116
System Description ............................................... 116
Schematic ............................................................. 117
Wiring Diagram — STOP/L — ............................... 118
Stop Lamp Does Not Operate .............................. 121
High-Mounted Stop Lamp .................................... 123
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................. 123
Stop Lamp ............................................................ 123
BULB REPLACEMENT ..................................... 123
REMOVAL AND INSTALLATION ...................... 123
Rear Combination Lamp Control Unit .................. 123
REMOVAL AND INSTALLATION ...................... 123
STEP LAMP ............................................................ 124
Front Door Step Lamp .......................................... 124
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................. 124
Rear Door Step Lamp .......................................... 124
BULB REPLACEMENT, REMOVAL AND
INSTALLATION ................................................. 124
BACK-UP LAMP .................................................... 125
Wiring Diagram — BACK/L — ............................. 125
Bulb Replacement ................................................ 126
Removal and Installation ...................................... 126
PARKING, LICENSE PLATE AND TAIL LAMPS ... 127
Component Parts and Harness Connector Location . 127
System Description .............................................. 127
OPERATION BY LIGHTING SWITCH .............. 128
COMBINATION SWITCH READING FUNCTION . 129
EXTERIOR LAMP BATTERY SAVER CONTROL . 129
CAN Communication System Description ............ 129
CAN Communication Unit .................................... 129
Schematic ............................................................ 130
Wiring Diagram — TAIL/L — ................................ 131
Terminals and Reference Values for BCM ........... 136
Terminals and Reference Values for IPDM E/R ... 137
How to Proceed With Trouble Diagnosis .............. 137
Preliminary Check ................................................ 137
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................. 137
CONSULT-II Functions ......................................... 138
Parking, License Plate and Tail Lamps Do Not Illu-
minate .................................................................. 139
Tail Lamp Does Not Operate ................................ 144
Parking, License Plate and Tail Lamps Do Not Turn
OFF (After Approx. 10 Minutes) ........................... 145License Plate Lamp ..............................................145
BULB REPLACEMENT, REMOVAL AND
INSTALLATION .................................................145
Front Parking (Clearance) Lamp ..........................146
BULB REPLACEMENT .....................................146
REMOVAL AND INSTALLATION ......................146
Tail Lamp ..............................................................146
BULB REPLACEMENT .....................................146
REMOVAL AND INSTALLATION ......................146
Front Side Marker Lamp .......................................146
BULB REPLACEMENT .....................................146
REMOVAL AND INSTALLATION ......................146
Rear Side Marker Lamp .......................................146
BULB REPLACEMENT .....................................146
REMOVAL AND INSTALLATION ......................146
Rear Combination Lamp Control Unit ...................146
REMOVAL AND INSTALLATION ......................146
REAR COMBINATION LAMP .................................147
Bulb Replacement ................................................147
REAR FENDER SIDE (REAR SIDE MARKER
LAMP BULB) .....................................................147
BACK DOOR SIDE (BACK-UP LAMP) .............147
Removal and Installation ......................................147
REMOVAL .........................................................147
INSTALLATION .................................................148
VANITY MIRROR LAMP .........................................149
Bulb Replacement ................................................149
MAP LAMP .............................................................150
Bulb Replacement ................................................150
Removal and Installation ......................................150
REMOVAL .........................................................150
INSTALLATION .................................................150
PERSONAL LAMP .................................................151
Bulb Replacement ................................................151
Removal and Installation ......................................151
REMOVAL .........................................................151
INSTALLATION .................................................151
LUGGAGE ROOM LAMP .......................................152
Bulb Replacement ................................................152
Removal and Installation ......................................152
REMOVAL .........................................................152
INSTALLATION .................................................152
IGNITION KEY HOLE ILLUMINATION ...................153
Bulb Replacement, Removal and Installation .......153
GLOVE BOX LAMP ................................................154
Bulb Replacement, Removal and Installation .......154
ASHTRAY ILLUMINATION .....................................155
Bulb Replacement and Removal and Installation . 155
CIGARETTE LIGHTER ILLUMINATION .................156
Bulb Replacement and Removal and Installation . 156
INTERIOR ROOM LAMP ........................................157
Component Parts and Harness Connector Location .157
System Description ...............................................157
POWER SUPPLY AND GROUND ....................157
SWITCH OPERATION ......................................159
ROOM LAMP TIMER OPERATION ..................159
INTERIOR LAMP BATTERY SAVER CONTROL .160
Schematic .............................................................162
Wiring Diagram — ROOM/L — ............................164
