2004 INFINITI FX35 Front end

FRONT DRIVE SHAFT
FAX-13
[AWD]
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: 2004 November 2004 FX35/FX45
Removal and Installation (Right Side)ADS000OO
REMOVAL
1. Remove tire from vehicle with power tool.
2. Remove undercover with power tool.
3. Remove cotter pin. Then remove lock nut from drive shaft with power tool.
4. Remove wheel sensor harness from strut assembly. Refer to BRC-57, "
WHEEL SENSORS" .
CAUTION:
Do not pull on wheel sensor harness.
5. Remove brake hose lock prate. Then remove brake hose from strut assembly. Refer to BR-11, "
BRAKE
PIPING AND HOSE" .
6. Remove fixing bolts and nuts between strut assembly and steering knuckle with power tool.
7. Remove drive shaft from steering knuckle.
CAUTION:
When removing drive shaft, do not apply an excessive angle to drive shaft joint. Also be careful
not to excessively extend slide joint.
8. Pry off drive shaft from front final drive assembly side as shown
in the figure.
INSPECTION AFTER REMOVAL

Move joint up/down, left/right, and in the axial direction. Check for any rough movement or significant
looseness.

Check boot for cracks or other damage, and also for grease
leakage.

If a trouble is found, disassemble drive shaft, and then replace
with new one.
1. Cotter pin 2. Washer
SDIA1442E
SDIA1489E
SFA108A

FAX-18
[AWD]
FRONT DRIVE SHAFT
Revision: 2004 November 2004 FX35/FX45

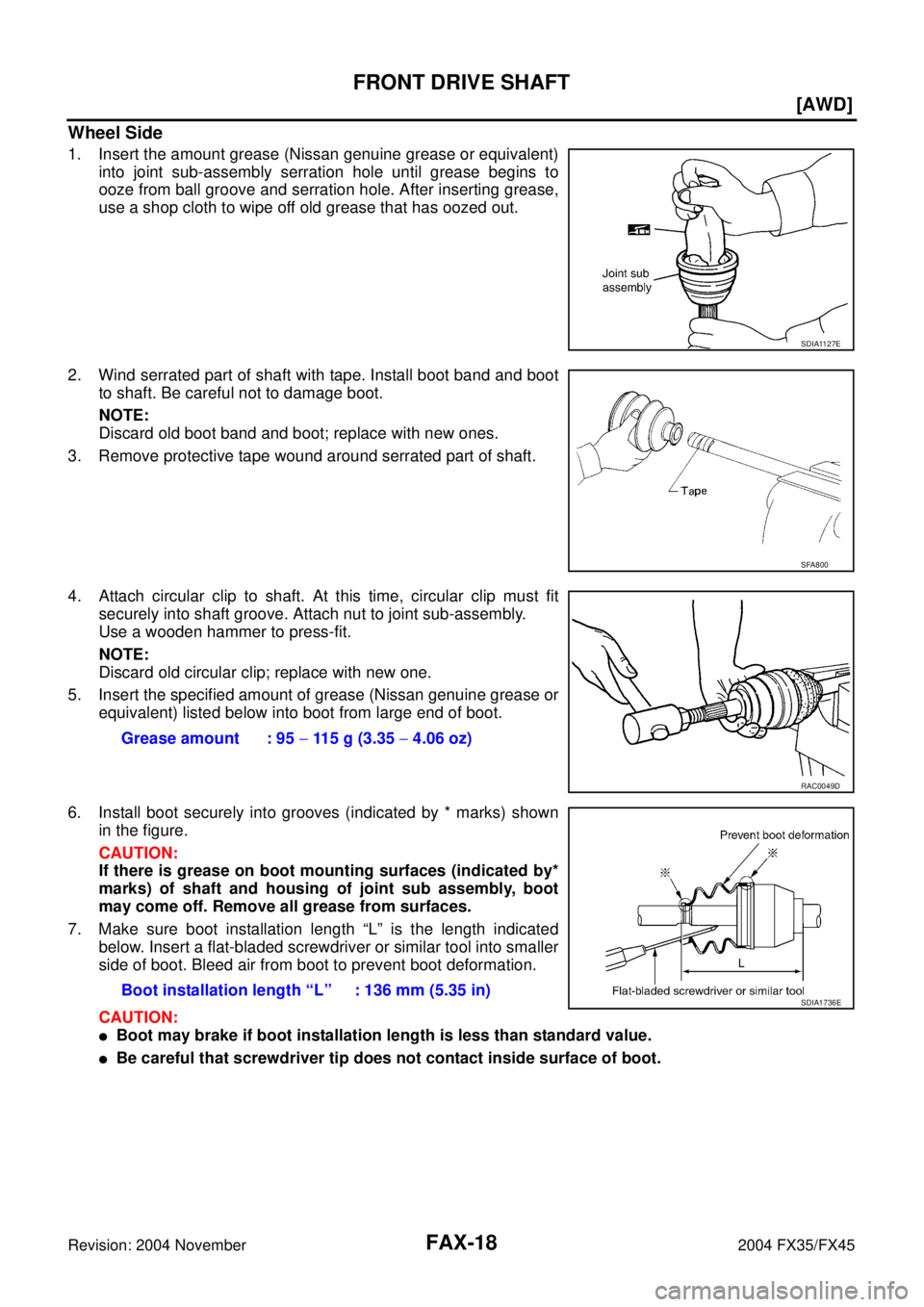

Wheel Side
1. Insert the amount grease (Nissan genuine grease or equivalent)
into joint sub-assembly serration hole until grease begins to
ooze from ball groove and serration hole. After inserting grease,
use a shop cloth to wipe off old grease that has oozed out.

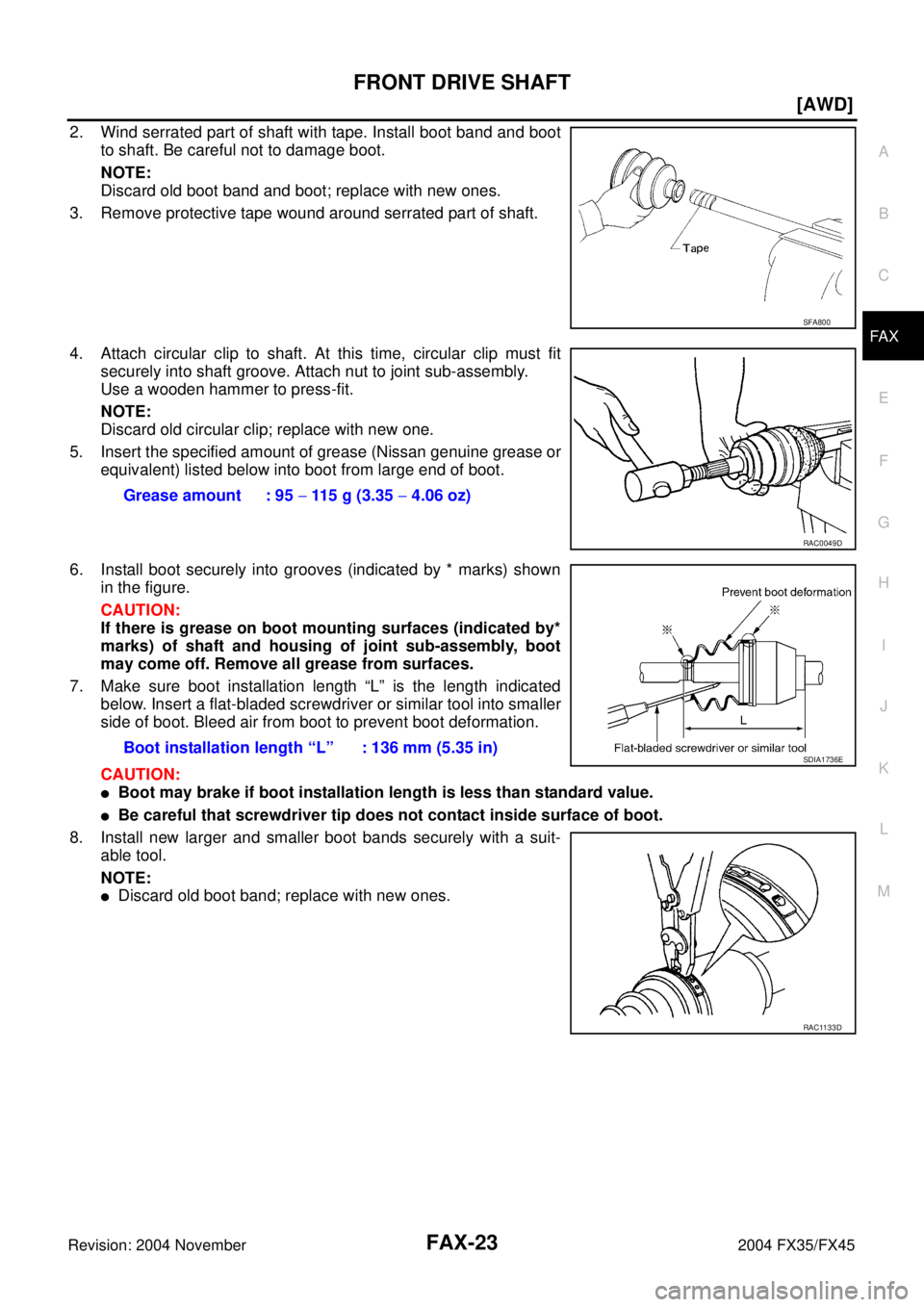

2. Wind serrated part of shaft with tape. Install boot band and boot
to shaft. Be careful not to damage boot.
NOTE:
Discard old boot band and boot; replace with new ones.
3. Remove protective tape wound around serrated part of shaft.
4. Attach circular clip to shaft. At this time, circular clip must fit
securely into shaft groove. Attach nut to joint sub-assembly.
Use a wooden hammer to press-fit.
NOTE:
Discard old circular clip; replace with new one.
5. Insert the specified amount of grease (Nissan genuine grease or
equivalent) listed below into boot from large end of boot.
6. Install boot securely into grooves (indicated by * marks) shown
in the figure.
CAUTION:
If there is grease on boot mounting surfaces (indicated by*
marks) of shaft and housing of joint sub assembly, boot
may come off. Remove all grease from surfaces.
7. Make sure boot installation length “L” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into smaller
side of boot. Bleed air from boot to prevent boot deformation.
CAUTION:

Boot may brake if boot installation length is less than standard value.

Be careful that screwdriver tip does not contact inside surface of boot.
SDIA1127E
SFA800
Grease amount : 95 − 11 5 g ( 3 . 3 5 − 4.06 oz)
RAC0049D
Boot installation length “L” : 136 mm (5.35 in)SDIA1736E

FRONT DRIVE SHAFT
FAX-23
[AWD]
C
E
F
G
H
I
J
K
L
MA
B
FA X
Revision: 2004 November 2004 FX35/FX45
2. Wind serrated part of shaft with tape. Install boot band and boot
to shaft. Be careful not to damage boot.
NOTE:
Discard old boot band and boot; replace with new ones.
3. Remove protective tape wound around serrated part of shaft.
4. Attach circular clip to shaft. At this time, circular clip must fit
securely into shaft groove. Attach nut to joint sub-assembly.
Use a wooden hammer to press-fit.
NOTE:
Discard old circular clip; replace with new one.
5. Insert the specified amount of grease (Nissan genuine grease or
equivalent) listed below into boot from large end of boot.
6. Install boot securely into grooves (indicated by * marks) shown
in the figure.
CAUTION:
If there is grease on boot mounting surfaces (indicated by*
marks) of shaft and housing of joint sub-assembly, boot
may come off. Remove all grease from surfaces.
7. Make sure boot installation length “L” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into smaller
side of boot. Bleed air from boot to prevent boot deformation.
CAUTION:

Boot may brake if boot installation length is less than standard value.

Be careful that screwdriver tip does not contact inside surface of boot.
8. Install new larger and smaller boot bands securely with a suit-
able tool.
NOTE:

Discard old boot band; replace with new ones.
SFA800
Grease amount : 95 − 11 5 g ( 3 . 3 5 − 4.06 oz)
RAC0049D
Boot installation length “L” : 136 mm (5.35 in) SDIA1736E
RAC1133D

FRONT OIL SEAL
FFD-7
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: 2004 November 2004 FX35/FX45
FRONT OIL SEALPFP:38189
Removal and InstallationADS000N7

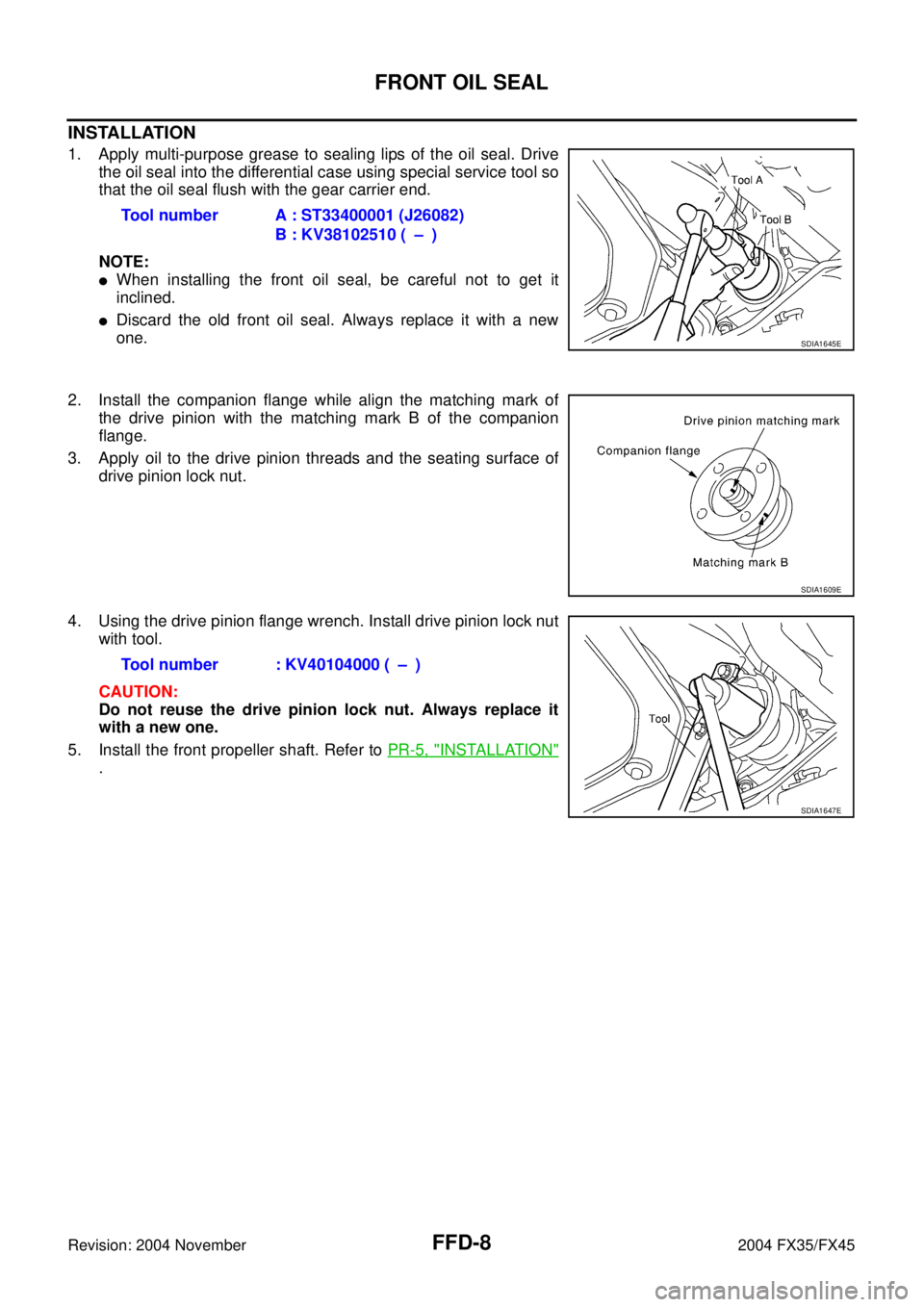

REMOVAL
1. Remove the front propeller shaft. Refer to PR-4, "REMOVAL" .
2. Put a matching mark on the end of the drive pinion correspond-
ing to the B position matching mark on the final drive companion
flange.
CAUTION:

For matching mark, use paint. Never damage drive pin-
ion.

The matching mark B on the final drive companion flange
indicates the maximum vertical runout position.
3. Using the drive pinion flange wrench.Remove drive pinion lock
nut with tool.
4. Remove the companion flange using puller (commercial service
tool)
5. Remove the front oil seal using outer race puller.
SDIA1609E
Tool number : KV40104000 ( – )
SDIA1647E
SDIA1642E
Tool number : ST33290001 (J34286)
SDIA1643E

FFD-8
FRONT OIL SEAL
Revision: 2004 November 2004 FX35/FX45
INSTALLATION
1. Apply multi-purpose grease to sealing lips of the oil seal. Drive
the oil seal into the differential case using special service tool so
that the oil seal flush with the gear carrier end.
NOTE:

When installing the front oil seal, be careful not to get it
inclined.

Discard the old front oil seal. Always replace it with a new
one.
2. Install the companion flange while align the matching mark of
the drive pinion with the matching mark B of the companion
flange.
3. Apply oil to the drive pinion threads and the seating surface of
drive pinion lock nut.
4. Using the drive pinion flange wrench. Install drive pinion lock nut
with tool.
CAUTION:
Do not reuse the drive pinion lock nut. Always replace it
with a new one.
5. Install the front propeller shaft. Refer to PR-5, "
INSTALLATION"
.Tool number A : ST33400001 (J26082)
B : KV38102510 ( – )
SDIA1645E
SDIA1609E
Tool number : KV40104000 ( – )
SDIA1647E

SIDE OIL SEAL
FFD-9
C
E
F
G
H
I
J
K
L
MA
B
FFD
Revision: 2004 November 2004 FX35/FX45
SIDE OIL SEALPFP:33142
Removal and InstallationADS000N8

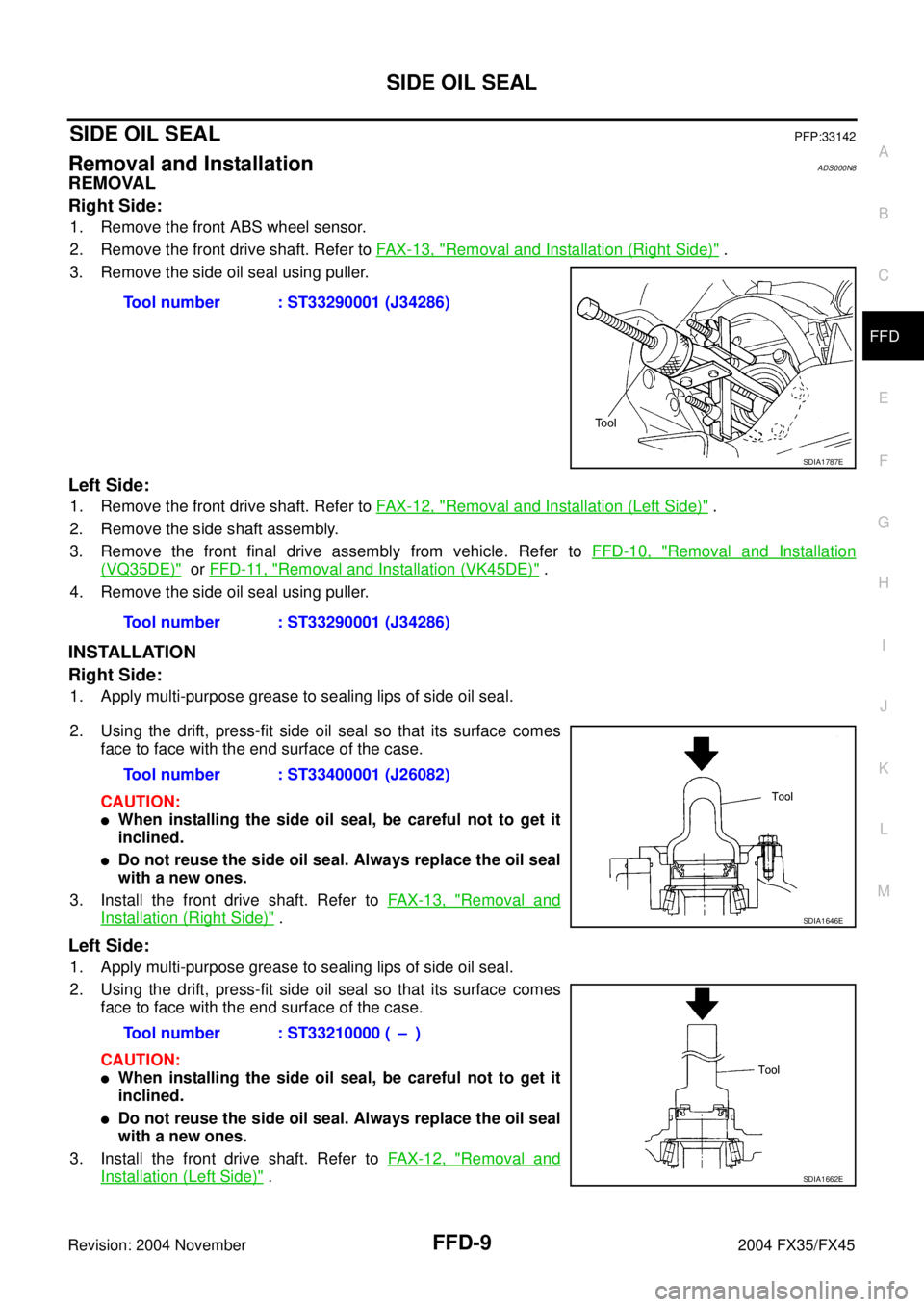

REMOVAL
Right Side:
1. Remove the front ABS wheel sensor.
2. Remove the front drive shaft. Refer to FAX-13, "
Removal and Installation (Right Side)" .
3. Remove the side oil seal using puller.
Left Side:
1. Remove the front drive shaft. Refer to FAX-12, "Removal and Installation (Left Side)" .
2. Remove the side shaft assembly.
3. Remove the front final drive assembly from vehicle. Refer to FFD-10, "
Removal and Installation
(VQ35DE)" or FFD-11, "Removal and Installation (VK45DE)" .
4. Remove the side oil seal using puller.
INSTALLATION
Right Side:
1. Apply multi-purpose grease to sealing lips of side oil seal.
2. Using the drift, press-fit side oil seal so that its surface comes
face to face with the end surface of the case.
CAUTION:

When installing the side oil seal, be careful not to get it
inclined.

Do not reuse the side oil seal. Always replace the oil seal
with a new ones.
3. Install the front drive shaft. Refer to FAX-13, "
Removal and
Installation (Right Side)" .
Left Side:
1. Apply multi-purpose grease to sealing lips of side oil seal.
2. Using the drift, press-fit side oil seal so that its surface comes
face to face with the end surface of the case.
CAUTION:

When installing the side oil seal, be careful not to get it
inclined.

Do not reuse the side oil seal. Always replace the oil seal
with a new ones.
3. Install the front drive shaft. Refer to FAX-12, "
Removal and
Installation (Left Side)" . Tool number : ST33290001 (J34286)
SDIA1787E
Tool number : ST33290001 (J34286)
Tool number : ST33400001 (J26082)
SDIA1646E
Tool number : ST33210000 ( – )
SDIA1662E

FFD-12
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45

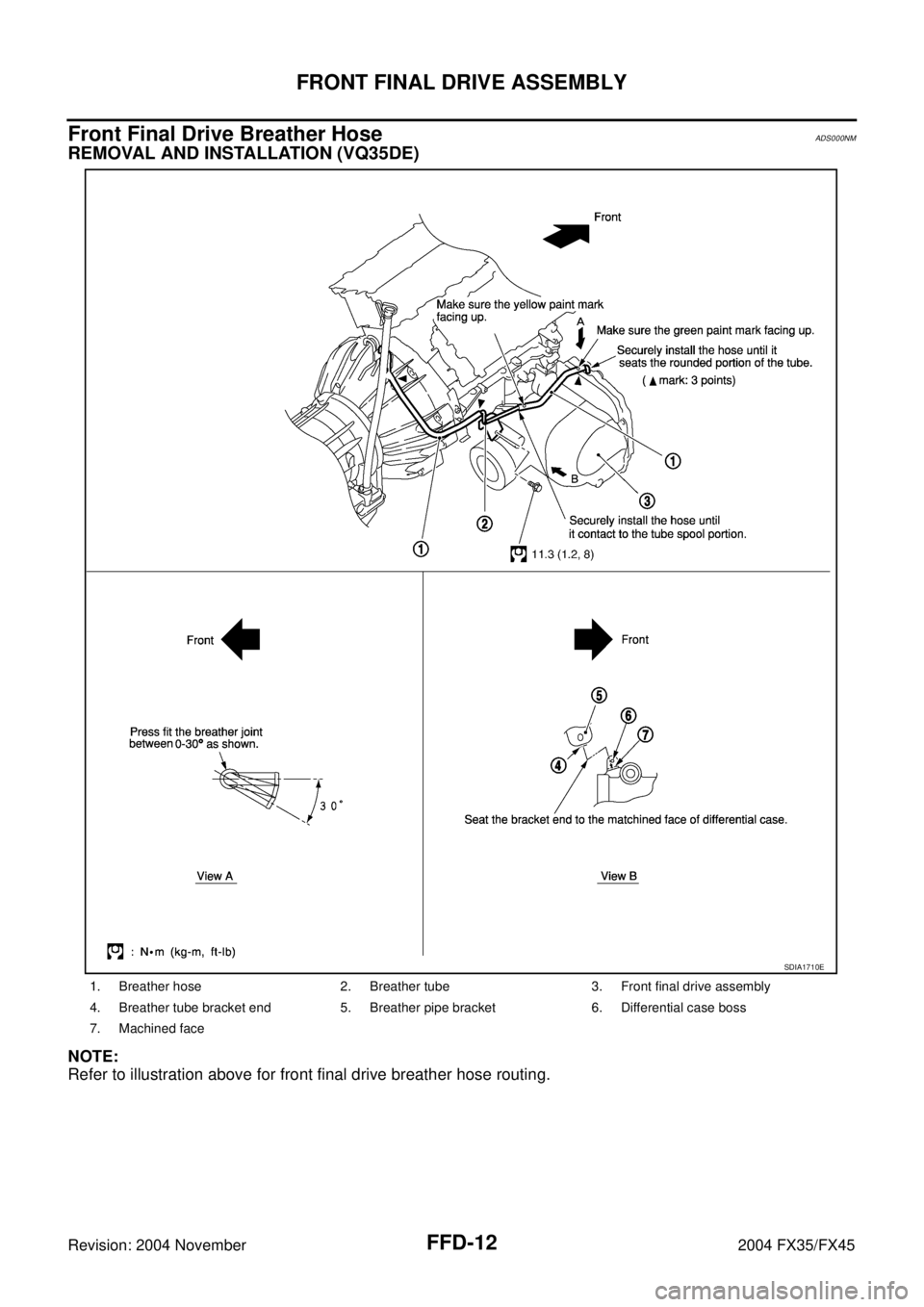

Front Final Drive Breather HoseADS000NM
REMOVAL AND INSTALLATION (VQ35DE)
NOTE:
Refer to illustration above for front final drive breather hose routing.
1. Breather hose 2. Breather tube 3. Front final drive assembly
4. Breather tube bracket end 5. Breather pipe bracket 6. Differential case boss
7. Machined face
SDIA1710E

FFD-22
FRONT FINAL DRIVE ASSEMBLY
Revision: 2004 November 2004 FX35/FX45
REMOVAL OF DRIVE PINION ASSEMBLY
1. Hold the companion flange using cam sprocket wrench or flange wrench, remove the pinion lock nut.
2. Remove the companion flange using puller.
3. Temporarily install drive pinion lock nut.
CAUTION:
Install the drive pinion lock nut until it flash with the drive
pinion end.
4. Remove the drive pinion from the carrier case.
5. Remove the bearing outer race by tapping the race evenly.
6. On companion flange side, remove the bearing outer race with
bearing and oil seal.
7. Press out the drive pinion bearing from the drive pinion using
puller.
DIFFERENTIAL CASE DISASSEMBLY
1. Remove side bearing inner race.
To prevent damage to bearing, engage puller jaws in groove.
CAUTION:

To prevent damage to the side bearing and drive gear,
place copper plates between these parts and vise.

If is not necessary to remove side bearing except it is
replaced.Tool number : KV40104000 ( – )
Tool number : ST30031000 (J22912–01 )
SDIA1658E
SDIA1663E
Tool number
A: ST3305S001 (−)
B: ST33061000(J8107−2)
SPD920
