CONTROLS AND EQUIPMENT1- 33
B261A02HP-EAT INDICATOR AND WARNING LIGHTS (Not all models) (PETROL ENGINE TYPE A)
11
23 4 5
6 7 8 91011 1213 14
15 1617
18
19
1. Turn Signal Indicator Light
2. ABS Service Reminder Indicator Light (Not all models)
3. Supplemental Restraint (AirBag) System Service Reminder lndicator (SRI) Light
4. Low Oil Pressure Warning Light
5. Parking Brake/Low Brake Fluid Level
Warning Light 6. Charging System Warning Light
7. A/T Oil Temperature Warning Light
(Not all models)
8. Overdrive Off Indicator Light (Not all models)
9. High Beam Indicator Light
10. Front Fog Indicator Light
11. Automatic Transmission Position Indicator Light (Not all models) 12. Cruise Indicator Light (Not all models)
13. 4WD Low Indicator Light
14. 4WD Engaged Indicator Light
15. Malfunction Indicator Light (MIL)
16. Hatchback Door Open Warning Light
17. Door Ajar Warning Light
18. Seat Belt Warning Light
19. Low Fuel Warning LightB260A01HP-E

CONTROLS AND EQUIPMENT
1- 34
B260A01HP-E-1

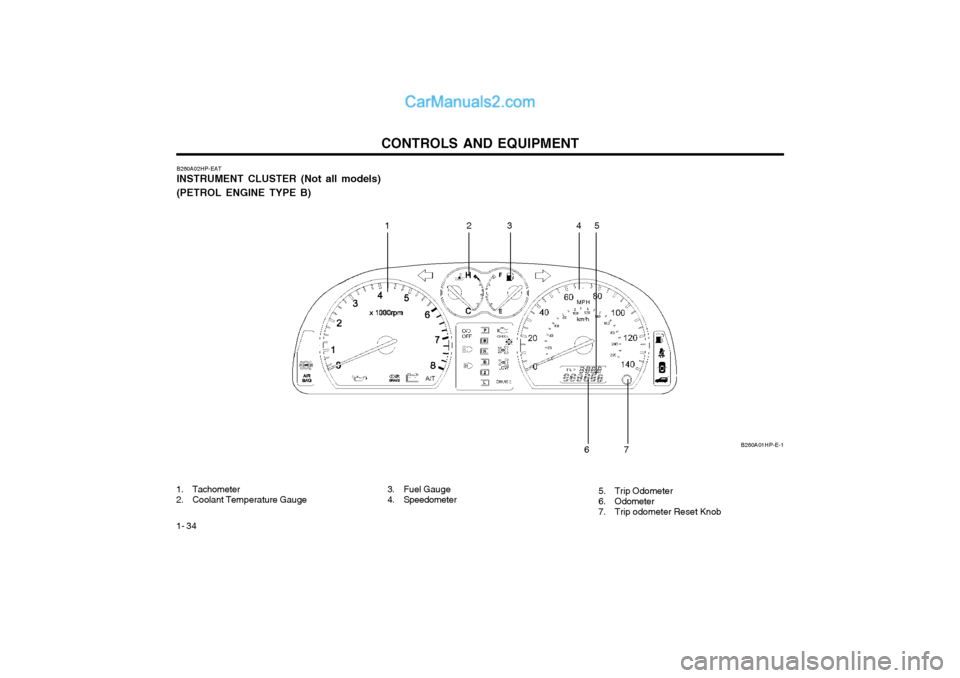

B260A02HP-EAT INSTRUMENT CLUSTER (Not all models) (PETROL ENGINE TYPE B)
1. Tachometer
2. Coolant Temperature Gauge
12 345
7
6
3. Fuel Gauge
4. Speedometer 5. Trip Odometer
6. Odometer
7. Trip odometer Reset Knob

CONTROLS AND EQUIPMENT1- 35
B261A02HP-EAT INDICATOR AND WARNING LIGHTS (Not all models) (PETROL ENGINE TYPE B)
11
23 4 5
6 7 8 91011 1213 14
15 1617
18
19
1. Turn Signal Indicator Light
2. ABS Service Reminder Indicator Light (Not all models)
3. Supplemental Restraint (AirBag) System Service Reminder lndicator (SRI) Light
4. Low Oil Pressure Warning Light
5. Parking Brake/Low Brake Fluid Level
Warning Light 6. Charging System Warning Light
7. A/T Oil Temperature Warning Light
(Not all models)
8. Overdrive Off Indicator Light (Not all models)
9. High Beam Indicator Light
10. Front Fog Indicator Light
11. Automatic Transmission Position Indicator Light (Not all models) 12. Cruise Indicator Light (Not all models)
13. 4WD Low Indicator Light
14. 4WD Engaged Indicator Light
15. Malfunction Indicator Light (MIL)
16. Hatchback Door Open Warning Light
17. Door Ajar Warning Light
18. Seat Belt Warning Light
19. Low Fuel Warning LightB260A01HP-E-1
Part-time 4WD :Full-time 4WD :

CONTROLS AND EQUIPMENT
1- 36
B260A03HP-E

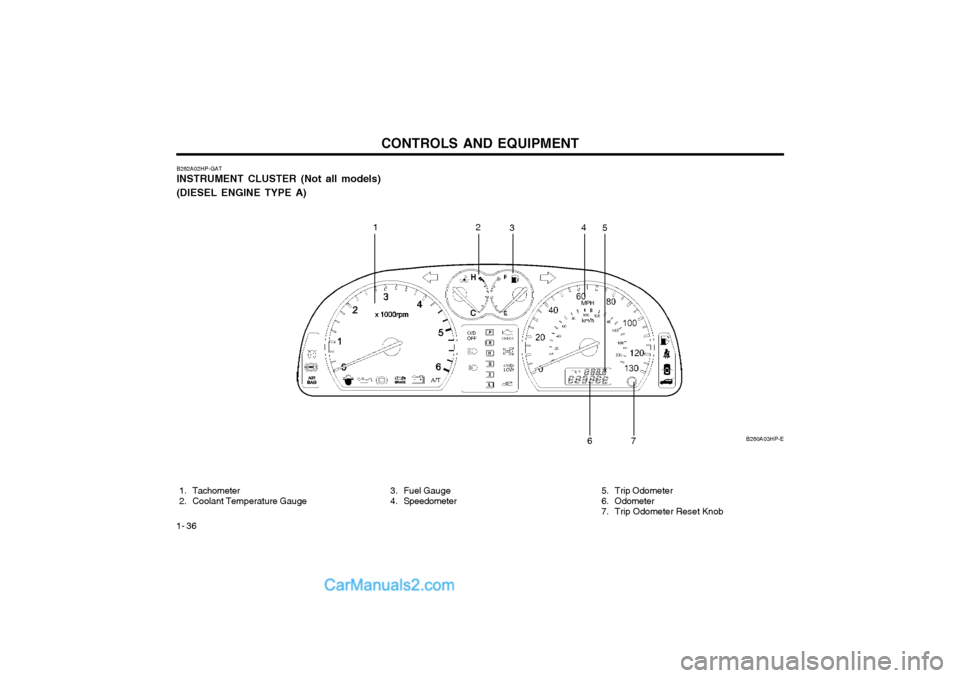

B262A02HP-GAT INSTRUMENT CLUSTER (Not all models) (DIESEL ENGINE TYPE A)
1. Tachometer
2. Coolant Temperature Gauge 3. Fuel Gauge
4. Speedometer
12
34
5
6
7
5. Trip Odometer
6. Odometer
7. Trip Odometer Reset Knob

CONTROLS AND EQUIPMENT1- 37
B260A03HP-E
B264A02HP-EAT INDICATOR AND WARNING LIGHTS (Not all models) (DIESEL ENGINE TYPE A)
1
2 34 5 6
7
8910111213 15 17
18 192021
1
22
1416
1. Turn Signal Indicator Light
2. Diesel Preheat Indicator Light
3. ABS Service Reminder Indicator Light(Not all models)
4. Supplemental Restraint (AirBag) System Service Reminder Indicator (SRI) Light
5. Fuel Filter Warning Light
6. Low Oil Pressure Warning Light
7. Brake Vacuum Warning Light 8. Parking Brake/Low Brake Fluid Level
Warning Light
9. Charging System Warning Light
10. A/T Oil Temperature Warning Light
(Not all models)
11. Overdrive Off Indicator Light (Not all models)
12. High Beam Indicator Light
13. Front Fog Indicator Light 14. Automatic Transmission Position Indicator
Light (Not all models)
15. Immobiliser Warning Light
16. 4WD Low Indicator Light
17. 4WD Engaged Indicator Light
18. Malfunction Indicator Light (MIL)
19. Hatchback Door Open Warning Light
20. Door Ajar Warning Light
21. Seat Belt Warning Light
22. Low Fuel Warning Light

CONTROLS AND EQUIPMENT
1- 38
B260A03HP-E-1
B262A02HP-GAT INSTRUMENT CLUSTER (Not all models) (DIESEL ENGINE TYPE B)
1. Tachometer
2. Coolant Temperature Gauge 3. Fuel Gauge
4. Speedometer
12
34
5
6
7
5. Trip Odometer
6. Odometer
7. Trip Odometer Reset Knob

CONTROLS AND EQUIPMENT1- 39
B260A03HP-E-1
B264A02HP-EAT INDICATOR AND WARNING LIGHTS (Not all models) (DIESEL ENGINE TYPE B)
1
2 34 6 7
8
910 11 12 13 14 17 18
19 202122
1
1516
1. Turn Signal Indicator Light
2. Diesel Preheat Indicator Light
3. ABS Service Reminder Indicator Light
(Not all models)
4. Supplemental Restraint (AirBag) System Service Reminder Indicator (SRI) Light
5. Immobiliser Warning Light (Not all models)
6. Fuel Filter Warning Light
7. Low Oil Pressure Warning Light 8. Brake Vacuum Warning Light
9. Parking Brake/Low Brake Fluid Level
Warning Light
10. Charging System Warning Light
11. A/T Oil Temperature Warning Light (Not all models)
12. Overdrive Off Indicator Light (Not all models)
13. High Beam Indicator Light
14. Front Fog Indicator Light 15. Automatic Transmission Position Indicator
Light (Not all models)
16. Cruise Idicator Light (Not all models)
17. 4WD Low Indicator Light
18. 4WD Engaged Indicator Light
19. Malfunction Indicator Light (MIL)
20. Hatchback Door Open Warning Light
21. Door Ajar Warning Light
22. Seat Belt Warning Light
23. Low Fuel Warning Light
5 23
Part-time 4WD : Full-time 4WD :

CONTROLS AND EQUIPMENT
1- 40 B260P02Y-EAT
ABS Service Reminder Indicator Light (Not all models)
When the key is turned to the "ON" position, the
Anti-Lock Brake System SRI will come on and then go off in a few seconds. If the ABS SRIremains on, comes on while driving, or does notcome on when the key is turned to the "ON"position, this indicates that there may be aproblem with the ABS.
If this occurs, have your vehicle checked by
your Hyundai dealer as soon as possible. Thenormal braking system will still be operational,but without the assistance of the anti-lock brakesystem.
WARNING:
If both ABS SRI and Parking Brake/Brakefluid level warning lights remain "ON" orcome on whilst driving, there may be a prob-
lem with E.B.D. (Electronic Brake Force Dis-tribution). If this occurs, avoid sudden stopsand have your vehicle checked by yourHyundai dealer as soon as possible. B260F01A-AAT
High Beam Indicator Light
The high beam indicator light comes on when-ever the headlights are switched to the highbeam or flash position.
B260D01A-AAT Turn Signal Indicator Lights
The blinking green arrows on the instrument
panel show the direction indicated by the turn signals. If the arrow comes on but does notblink, blinks more rapidly than normal, or doesnot illuminate at all, a malfunction in the turnsignal system is indicated. Your dealer shouldbe consulted for repairs. B260G01A-EAT
Low Oil Pressure Warning Light
CAUTION:
If the oil pressure warning light stays onwhilst the engine is running, serious enginedamage may result. The oil pressure warninglight comes on whenever there is insufficient oil pressure. In normal operation, it should come on when the ignition switch is turnedon, then go out when the engine is started. If the oil pressure warning light stays onwhilst the engine is running, there is a seri-ous malfunction. If this happens, stop the car as soon as it is safe to do so, turn off the engine and checkthe oil level. If the oil level is low, fill engineoil to the proper level and start the engineagain. If the light stays on with the enginerunning, turn the engine off immediately. Inany instance where the oil light stays onwhen the engine is running, the engineshould be checked by an authorized Hyundaidealer before the car is driven again.B260C01A-EAT
O/D OFF Indicator (Not all models)
When the overdrive switch is turned on, the overdrive off indicator will go out. This amberindicator will be illuminated when the overdriveswitch is turned off.
B260H02A-EAT
Parking Brake/Low Brake Fluid Level Warning Light
WARNING:
If you suspect brake trouble, have your brakes checked by a Hyundai dealer as soon aspossible. Driving your car with a problem ineither the brake electrical system or brakehydraulic system is dangerous, and couldresult in a serious injury or death.
Warning Light Operation The parking brake/brake fluid level warning light should come on when the parking brake isapplied and the ignition switch is turned to "ON"or "START". After the engine is started, the lightshould go out when the parking brake is re-leased.If the parking brake is not applied, the warninglight should come on when the ignition switch isturned to "ON" or "START", then go out whenthe engine starts. If the light comes on at anyother time, you should slow the vehicle andbring it to a complete stop in a safe location offthe roadway.
