2004 Hyundai Matrix Owner's Manual

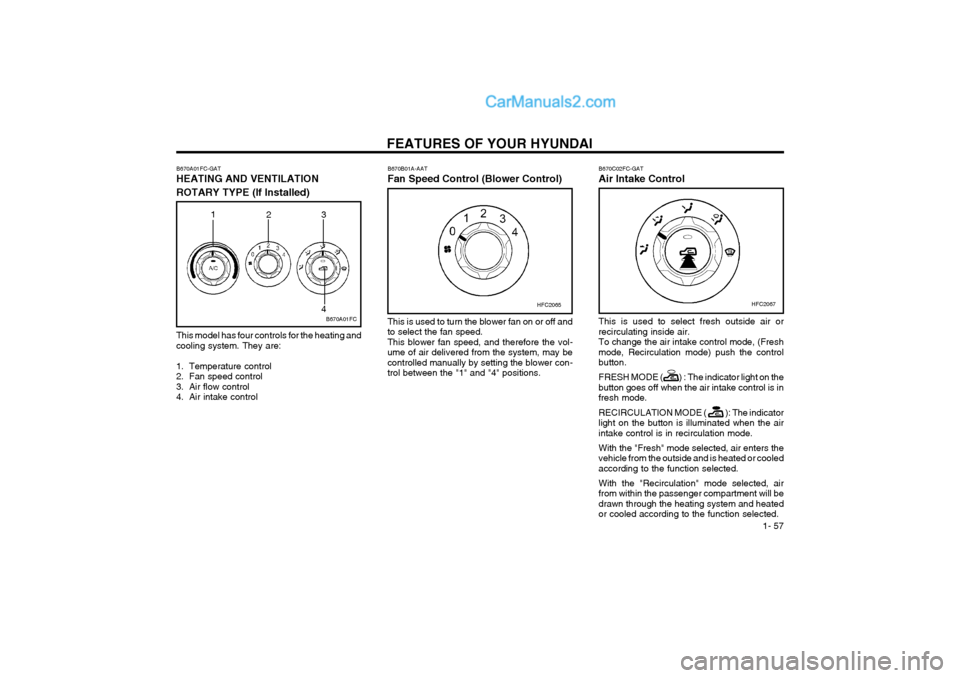

FEATURES OF YOUR HYUNDAI 1- 57
B670A01FC-GAT HEATING AND VENTILATION
ROTARY TYPE (If Installed)
B670A01FC
1
23
4
This model has four controls for the heating and cooling system. They are:
1. Temperature control
2. Fan speed control
3. Air flow control
4. Air intake control B670C02FC-GAT Air Intake Control
HFC2067
This is used to select fresh outside air or recirculating inside air.To change the air intake control mode, (Freshmode, Recirculation mode) push the controlbutton. FRESH MODE (
) : The indicator light on the
button goes off when the air intake control is in fresh mode. RECIRCULATION MODE (
): The indicator
light on the button is illuminated when the air intake control is in recirculation mode. With the "Fresh" mode selected, air enters the
vehicle from the outside and is heated or cooledaccording to the function selected. With the "Recirculation" mode selected, air from within the passenger compartment will bedrawn through the heating system and heatedor cooled according to the function selected.
B670B01A-AAT Fan Speed Control (Blower Control)
HFC2065
This is used to turn the blower fan on or off and to select the fan speed.This blower fan speed, and therefore the vol-ume of air delivered from the system, may becontrolled manually by setting the blower con-trol between the "1" and "4" positions.

FEATURES OF YOUR HYUNDAI
1- 58
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
NOTE:
o It should be noted that prolonged opera- tion of the heating in "Recirculation"mode will increase to fogging of thewindshield and side windows and the airwithin the passenger compartment willbecome stale. In addition, prolonged useof the air conditioning with the "Recircu-lation" mode selected may result in theair within the passenger compartmentbecoming excessively dry.
o When the ignition switch is turned "ON" the air intake control will change to " "mode (regardless of switch position).This is normal operation. B670D05A-AAT Air Flow Control
HFC2068
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, orwindshield. Five symbols are used to representFace, Bi-Level, Floor, Floor-Defrost and De-frost air position.
B670D01FC
B670D02FC
Bi-Level
Air is discharged through the face vents and the floor vents. This makes it possible to havecooler air from the dashboard vents and warmerair from the floor outlets at the same time.

FEATURES OF YOUR HYUNDAI 1- 59
B700A01S-AAT BI-LEVEL HEATING
This control is used to adjust the degree of heating or cooling desired. B690A02S-AAT HEATING CONTROLS For normal heating operation, set the air intake control to the "Fresh" position and the air flowcontrol to "Floor". For faster heating, the air intake control should be in the "Recirculation" position. If the windows fog up, move the air flow control to the "Def" (defroster) position. (The A/C willturn on automatically and "Fresh" mode will beactivated.) For maximum heat, move the temperature con- trol to "Warm".
HFC2066
B670E01A-AAT Temperature Control
Defrost-Level
Air is discharged through the windshield de- frost vents.If the "Defrost" mode is selected, the A/C willturn on automatically and "Fresh" mode will beactivated.
B670D05FC
Cool Warm
HFC2111
B670D03FC
B670D04FC
Floor-Level
Air is discharged through the floor vents.
Floor-Defrost Level
Air is discharged through the windshield de- frost vents and the floor vents.If the "Floor-Defrost" mode is selected, the A/Cwill be turn automatically and it will be changedto "Fresh" mode will be activated.

FEATURES OF YOUR HYUNDAI
1- 60 B730A01FC-GAT Operation Tips
o To keep dust or unpleasant fumes from
entering the car through the ventilation sys- tem, temporarily set the air intake control at"Recirculation". Be sure to return the controlto "Fresh" when the irritation has passed tokeep fresh air in the vehicle. This will helpkeep the driver alert and comfortable.
o Air for the heating/cooling system is drawn in through the grilles just ahead of the wind-shield. Care should be taken that these arenot blocked by leaves, snow, ice or otherobstructions.
o To prevent interior fog on the windshield, set the air intake control to the fresh air(
) position and fan speed to the desired
position.
To remove interior fog on the windshield;
o Set the air flow control to the defrost (
)
position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.
HFC2108
To remove frost or exterior fog on the wind- shield;
o Set the air flow control to the defrost (
)
position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".
NOTE: When the A/C is operated continuously onthe floor-defrost level (
) or defrost level
(), it may cause fog to form on the exterior
windshield. If this occurs, set the air flow control to the face level position (
)and fan
speed control to the low position.
Your Hyundai is equipped with bi-level heating controls. This makes it possible to have coolerair from the dashboard vents and warmer airfrom the floor outlets at the same time. To usethis feature:
o Set the air intake control to "Fresh" mode
(
).
o Set the air flow control at the "Bi-Level" position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
Use the heating/ventilation system to defrost or defog the windshield: B720A02FC-GAT DEFROSTING/DEFOGGING
HFC2107

FEATURES OF YOUR HYUNDAI 1- 61
B740C01FC-GAT Dehumidified Heating
B740C01FC
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator light should come onat the same time.
o Set the air intake control to "Fresh" mode (
).
o Set the air flow control to the desired posi- tion.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to provide the desired amount of warmth.
B740B01FC-GAT Air Conditioning Operation Cooling
B740B01FC
To use the air conditioning to cool the interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch by push- ing in on the switch. The air conditioningindicator light should come on at the sametime.
o Set the air intake control to "Fresh" mode (
).
o Set the temperature control to "Cool". ("Cool" provides maximum cooling. The tempera- ture may be moderated by moving the con-trol toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn the fan control toone of the higher speeds or temporarilyselect the "Recirculation" position on the airintake control.
B740A01S-AAT AIR CONDITIONING SYSTEM (If Installed)Air Conditioning Switch
The air conditioning is turned on or off by pushing the A/C button on the heating/air con-ditioning control panel. HFC2069

FEATURES OF YOUR HYUNDAI
1- 62
B760A01E
The air conditioner filter is located in front of the blower unit behind the glove box.It operates to decrease pollutants from enteringthe car and to filter the air. Replacement instructions:
1. Remove the adjusting pins on both sides of the glove box.
2. Remove the filter cover and replace the filler.
3. Installation is the reverse order of disas- sembly.
Evaporator coreBlower fan
Heater core
B760A01FC-GAT AIR CONDITIONER FILTER (IN FRONT OF BLOWER UNIT) (If Installed)
Outside air
Filter
Inside air
Inside air CAUTION:
o Replace the filter every 20,000 km (12,000
miles) or once a year. If the car is beingdriven in severe conditions such as dusty,rough roads, more frequent air condi-tioner filter inspections and changesare required.
o When the air flow rate is suddenly de- creased, it must be checked at an autho-rized dealer.
B740D01A-AAT Operation Tips
o If the interior of the car is hot when you firstget in, open the windows for a few minutes to expel the hot air.
o When you are using the air conditioning system, keep all windows closed to keep hotair out.
o When moving slowly, as in heavy traffic, shift to a lower gear. This increases enginespeed, which in turn increases the speed ofthe air conditioning compressor.
o On steep grades, turn the air conditioning off to avoid the possibility of the engine over-heating.
o During winter months or in periods when the air conditioning is not used regularly, run theair conditioning once every month for a fewminutes. This will help circulate the lubri-cants and keep your system in peak operat-ing condition.

FEATURES OF YOUR HYUNDAI 1- 63
FM broadcasts are transmitted at high fre- quencies and do not bend to follow the earth'ssurface. Because of this, FM broadcasts gen-erally begin to fade at short distances from thestation. Also, FM signals are easily affected bybuildings, mountains, or other obstructions.These can result in certain listening conditionswhich might lead you to believe a problemexists with your radio. The following conditionsare normal and do not indicate radio trouble:
Buildings
Obstructed area Iron bridges
Unobstructed area
FM radio station
SSAR012A
Mountains
Ionosphere
SSAR011A
AM reception
AM broadcasts can be received at greater distances than FM broadcasts. This is becauseAM radio waves are transmitted at low frequen-cies. These long, low frequency radio wavescan follow the curvature of the earth rather thantravelling straight out into the atmosphere. Inaddition, they curve around obstructions sothat they can provide better signal coverage.
B750A02A-AAT STEREO SOUND SYSTEM How Car Audio Works
Ionosphere
FM reception
SSAR010A
AM and FM radio signals are broadcast from transmitter towers located around your city.They are intercepted by the radio antenna onyour car. This signal is then received by theradio and sent to your car speakers.When a strong radio signal has reached yourvehicle, the precise engineering of your audiosystem ensures high quality reproduction. How-ever, in some cases the signal coming to yourvehicle may not be strong and clear. This canbe due to factors such as the distance from theradio station, closeness of other strong radiostations or the presence of buildings, bridgesand other large obstructions in the area.

FEATURES OF YOUR HYUNDAI
1- 64 B750B02Y-AAT Using a cellular phone or a two-way radio When a cellular phone is used inside the ve- hicle, noise may be produced from the audioequipment. This does not mean that somethingis wrong with the audio equipment. In such acase, use the cellular phone at a place as far aspossible from the audio equipment. CAUTION: When using a communication system suchas a cellular phone or a radio inside thevehicle, a separate external antenna mustbe fitted. When a cellular phone or a radioset is used with an internal antenna alone, itmay interfere with the vehicle's electricalsystem and adversely affect safe operationof the vehicle. WARNING: Don't use a cellular phone when you aredriving, you must stop at a safe place to usea cellular phone.
SSAR014A
o Station Swapping - As an FM signal weak- ens, another more powerful signal near the same frequency may begin to play. This isbecause your radio is designed to lock ontothe clearest signal. If this occurs, selectanother station with a stronger signal.
o Multi-Path Cancellation - Radio signals be- ing received from several directions cancause distortion or fluttering. This can becaused by a direct and a reflected signalfrom the same station, or by signals fromtwo stations with close frequencies. If thisoccurs, select another station until the con-dition has passed.SSAR013A
o Fading - As your car moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs,we suggest that you select another strongerstation.
o Flutter/Static - Weak FM signals or large obstructions between the transmitter andyour radio can disturb the signal causingstatic or fluttering noises to occur. Reducingthe treble level may lessen this effect untilthe disturbance clears.
