2004 Hyundai Matrix Owner's Manual

1- 51
CONTROLS AND EQUIPMENT
70 kg (154 lb)
EVENLY DISTRBUTED
HFC2106
B630A01FC-EAT ROOF RACK (Not all models) If your Hyundai has a roof rack, you can load things on top of your vehicle. Crossrails and fixing components to adapt the roof rack on your vehicle may be obtained from an autho- rized Hyundai dealer. CAUTION:
o The following specifications are recom-
mended when loading cargo or luggage.
ROOF RACK
o Loading cargo or luggage above 70 kg (154 lb) on the roof rack may damage your vehicle.When you carry large objects, never let them hang over the rear or the sides of your vehicle.
o To prevent damage or loss of cargo as you are driving, check frequently tomake sure the luggage carrier and cargo are still securely fastened.
o Always drive your vehicle at a moderate speed.
o To use the roof rails as a roof rack, you must fit the roof rails with two or more crossrails or equivalent before carrying cargo or lugguage on the roof.
o When crossrail is adapted, you can load things on the roof rack.
o Loading cargo or luggage over specifi- cation on the roof rack may damagestability of your vehicle.
B650A01FC-DAT CARGO AREA COVER
B640A01FC
Nothing should be carried on top of the lug- gage cover. Loose materials could result in injury to vehicle occupants during sudden brak- ing. B560B01O-GAT Auto Fuel Cut Switch (Gasoline Engine)HFC4001
The auto fuel cut switch is located on the driver's side of the engine compartment.In the event of a collision or sudden impact, the auto fuel cut device cuts off the fuel supply. If this device is activated, it must be reset by pressing in on the top of the switch before the engine can be restarted. WARNING: Before resetting the auto fuel cut switch, the fuel line should be checked for fuel leaks.
fcuk-1.p65 3/6/2007, 9:58 AM
51

CONTROLS AND EQUIPMENT
1- 52 B610A01S-DAT
HORN (With Airbag) Press the pad of the steering wheel to sound
the horn.
B580A01E-EAT SUN-VISOR Sun visors are fitted to both the driver and passenger side of the vehicle. Certain deriva- tives are equipped with a vanity mirror which is located on the back of the driver and passenger visor. The visor may be lowered to reduce the amount of glare from directly ahead, or may be moved towards the side window to reduce glare from the side of the vehicle, once the inner pivot has been unclipped from the bracket. NOTE: The Supplemental Restraint System (SRS) label containing useful information can be found on the back of each sun visor. WARNING: Do not place the sun-visor in such a man-ner that it obscures visibility of the road- way, traffic or other objects. SB520A1-F STEERING WHEEL TILT LEVER
HFC2099HFC2041HFC2094-D
Vanity mirror
To adjust the steering wheel:
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the
desired position.
3. After adjustment, securely tighten the lever
by pulling it upward
WARNING:Do not attempt to adjust the steering wheel while driving as this may result in loss of control of the vehicle and result in death or serious injury.
fcuk-1.p65 3/6/2007, 9:58 AM
52

1- 53
CONTROLS AND EQUIPMENT

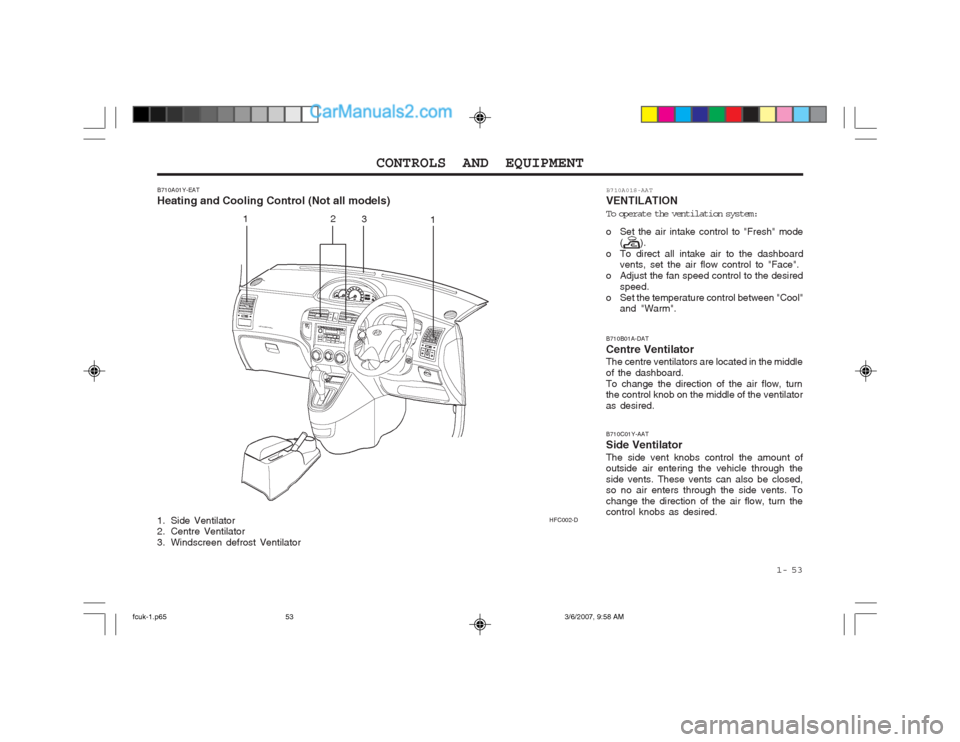

B710A01Y-EAT Heating and Cooling Control (Not all models)
1. Side Ventilator
2. Centre Ventilator
3. Windscreen defrost Ventilator B710B01A-DAT Centre Ventilator The centre ventilators are located in the middle of the dashboard.To change the direction of the air flow, turn the control knob on the middle of the ventilator as desired. B710C01Y-AAT Side VentilatorThe side vent knobs control the amount of outside air entering the vehicle through the side vents. These vents can also be closed, so no air enters through the side vents. To change the direction of the air flow, turn the control knobs as desired.
1
1
2
3 B710A01S-AAT
VENTILATION To operate the ventilation system:
o Set the air intake control to "Fresh" mode (
).
o To direct all intake air to the dashboard vents, set the air flow control to "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
HFC002-D
fcuk-1.p65 3/6/2007, 9:58 AM
53

CONTROLS AND EQUIPMENT
1- 54
B670A01FC-EAT HEATING AND VENTILATION ROTARY TYPE (Not all models)
B670A01FC
1
2 3 4
This model has four controls for the heating and cooling system. They are:
1. Temperature control
2. Fan speed control
3. Air flow control
4. Air intake control B670C02FC-EAT Air Intake Control
HFC2067
This is used to select fresh outside air or recirculation inside air. To change the air intake control mode, (Fresh mode, Recirculation mode) push the control button. FRESH MODE (
) : The indicator light on
the button goes off when the air intake control is in fresh mode. RECIRCULATION MODE (
): The indica-
tor light on the button is illuminated when the air intake control is in recirculation mode. With the "Fresh" mode selected, air enters the vehicle from the outside and is heated or cooled according to the function selected. With the "Recirculation" mode selected, air from within the passenger compartment will be drawn through the heating system and heated or cooled according to the function selected.
B670B01A-AAT Fan Speed Control (Blower Control)
HFC2065
This is used to turn the blower fan on or off and to select the fan speed. This blower fan speed, and therefore the volume of air delivered from the system, may be controlled manually by setting the blower control between the "1" and "4" positions.
fcuk-1.p65 3/6/2007, 9:58 AM
54

1- 55
CONTROLS AND EQUIPMENT
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
NOTE:
o It should be noted that prolonged op- eration of the heating in "Recirculation" mode will increase fogging of the windscreen and side windows and the air within the passenger compartment will become stale. In addition, prolonged use of the air conditioning with the "Recirculation" mode selected may re- sult in the air within the passenger com- partment becoming excessively dry.
o When the ignition switch is turned "ON"
the air intake control will change to "
"
mode (regardless of switch position). This is normal operation.
B670D05A-AAT Air Flow Control
HFC2068
This is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or windscreen. Five symbols are used to repre- sent Face, Bi-Level, Floor, Floor-Defrost and
Defrost air position.
HFC2046-D
HFC2047-D
HFC2048-D
HFC2049-D
Bi-Level
Air is discharged through the face vents and the floor vents. This makes it possible to have cooler air from the dashboard vents and warmer air from the floor outlets at the same time. Floor-Level
Air is discharged through the floor vents.
Floor-Defrost Level
Air is discharged through the windscreen de- frost vents and the floor vents.If the "Floor-Defrost" mode is selected, the A/C
will turn on automatically and "Fresh" mode will be activated.
fcuk-1.p65 3/6/2007, 9:58 AM
55

CONTROLS AND EQUIPMENT
1- 56
Defrost-Level
Air is discharged through the windscreen de- frost vents. If the "Defrost" mode is selected, the A/C willturn on automatically and "Fresh" mode will be activated.
HFC2050-D
B700A01S-AAT BI-LEVEL HEATING
This is used to turn the heating system on and off and to select the degree of heating de- sired. B690A02S-AAT HEATING CONTROLS For normal heating operation, set the air in- take control to the "Fresh" position and the air flow control to "Floor". For faster heating, the air intake control should be in the "Recirculation" position. If the windows fog up, move the air flow control to the "Def" (defroster) position. (The A/C will turn on automatically and "Fresh" mode will be activated.) For maximum heat, move the temperature control to "Warm".
HFC2066B670E01A-AAT Temperature Control Your Hyundai is equipped with bi-level heating controls. This makes it possible to have cooler air from the dashboard vents and warmer air from the floor outlets at the same time. To use this feature:
o Set the air intake control to "Fresh" mode
(
).
o Set the air flow control at the "Bi-Level" position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
Cool Warm Use the heating/ventilation system to defrost or defog the windscreen:B720A02FC-EAT
DEFROSTING/DEFOGGING
HFC2107
HFC2111
fcuk-1.p65 3/6/2007, 9:58 AM
56

1- 57
CONTROLS AND EQUIPMENT
B740A01S-EAT AIR CONDITIONING SYSTEM (Not all models)Air Conditioning Switch
To remove interior fog on the windscreen;
o Set the air flow control to the defrost ()
position. (The A/C will turn on automati- cally and "Fresh" mode will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.
HFC2108
To remove the frost or exterior fog on the windscreen;
o Set the air flow control to the defrost (
)
position. (The A/C will turn on automati- cally and "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4". The air conditioning is turned on or off bypushing the A/C button on the heating/air conditioning control panel.
HFC2069
B730A01FC-EAT
Operation Tips
o To keep dust or unpleasant fumes from entering the car through the ventilation system, temporarily set the air intake con- trol at "Recirculation". Be sure to return the control to "Fresh" when the irritation has passed to keep fresh air in the vehicle. This will help keep the driver alert and comfortable.
o Air for the heating/cooling system is drawn in through the grilles just ahead of thewindscreen. Care should be taken that these are not blocked by leaves, snow, ice or other obstructions.
o To prevent interior fog on the windscreen, set the air intake control to the fresh air(
) position and fan speed to the desired
position.
NOTE: When the A/C is operated continuously on
the floor-defrost level (
) or defrost level
(), it may cause fog to form on the exte-
rior windscreen. If this occurs, set the air flow control to the face level position (
)and
fan speed control to the low position.
fcuk-1.p65 3/6/2007, 9:58 AM
57

CONTROLS AND EQUIPMENT
1- 58 B740C01FC-GAT
Dehumidified Heating
B740C01FC
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator light should come onat the same time.
o Set the air intake control to "Fresh" mode (
).
o Set the air flow control to the desired position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to provide
the desired amount of warmth. B740D01A-AAT Operation Tips
o If the interior of the car is hot when you first
get in, open the windows for a few minutes to expel the hot air.
o When you are using the air conditioning system, keep all windows closed to keephot air out.
o When moving slowly, as in heavy traffic, shift to a lower gear. This increases enginespeed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air conditioning off to avoid the possibility of the engineover-heating.
o During winter months or in periods when the air conditioning is not used regularly,run the air conditioning once every month for a few minutes. This will help circulate the lubricants and keep your system in peak operating condition.
B740B01FC-GAT Air Conditioning Operation Cooling
B740B01FC
To use the air conditioning to cool the interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch by pushing in on the switch. The air condition- ing indicator light should come on at the same time.
o Set the air intake control to "Fresh" mode
(
).
o Set the temperature control to "Cool".
("Cool" provides maximum cooling. The temperature may be moderated by moving the control toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn the fan control toone of the higher speeds or temporarily select the "Recirculation" position on the air intake control.
fcuk-1.p65 3/6/2007, 9:58 AM
58
