2004 Hyundai Matrix Owner's Manual

1- 35
CONTROLS AND EQUIPMENT
The trip computer is the microcomputer-con- trolled driver information gauge that displays information related to driving, such as dis- tance to empty, average speed and drive time on the LCD.
B310B02FC
B400B01FC-EAT TRIP COMPUTER (Not all models)Reset switch
1. DISTANCE TO EMPTYDISTANCE TO EMPTY
AVERAGE SPEED
DRIVE TIME
Distance to empty symbol
Distance to empty (mile)
o This mode indicates the estimated dis- tance to empty from the current fuel in the fuel tank and distance to empty symbol.
o When refueling with more than 6.3 quarts, the trip computer will recognize refueling.
o When the battery has been reinstalled af-
ter being discharged or disconnected, drivemore than 20 miles for an accurate dis- tance to empty. NOTE:
o If the distance to empty is indicated "- -",
have the trip computer system checked by your authorized Hyundai dealer.
o The distance to empty can differ from the actual tripmeter according to driv- ing conditions.
o The distance to empty can vary accord- ing to the driving conditions, drivingpattern or vehicle speed.
2. AVERAGE SPEED
o This mode indicates the average speed travelled since the last average speed re- set.
o Pressing the reset switch for more than 1
second, when the average speed is being displayed, clears the average speed to zero.
Average speed symbol
Average speed (mph)
HFC2052 B400B02FC
TRIP B :
Second distance from the first des-tination to the final destination.
To shift from TRIP A to TRIP B, press thereset switch. When pressed for 1 second, it will reset to 0.
RESET SWITCH
o The reset switch is used to zero the multi- functional display mode.
o Pushing in the reset switch changes the display as follows;
fcuk-1.p65 3/6/2007, 9:58 AM
35

CONTROLS AND EQUIPMENT
1- 36 The vehicle sidelights and headlights are op- erated by rotating the end of the turn signal switch barrel. To operate the parking lights, rotating the switch to the first detent with ignition switch at the "OFF" position will cause the lights to illuminate. To operate the head- lights, the turn signal switch barrel should be rotated to the second detent. The headlights will only operate when the ignition switch is at the "On" position. If the ignition switch is turned to the "Off" position, only the parking lights will function. Sidelight auto cut (Not all models) If you do not turn the sidelight "OFF" after driving, the sidelight will automatically shut "OFF" when the driver's door is opened.To turn them "ON" again you must simply turn the ignition key to the "ON" position.
B340C01FC-EAT LIGHTING SWITCH
SB220A1-EMULTI FUNCTION SWITCH Turn Signal Operation To signal an intention to turn right, the switch lever should be pressed down. To signal an intention to turn left, the switch lever should be pushed upwards. In both instances, the turn signal lights on one side of the car will flash and the warning light located in the instrument cluster will flash in sympathy. Upon completion of the manoeuvre, the lever will, under normal circumstances, return to the "Off" position. However, if the manoeuvre involved only a small movement of the steering wheel, the signal may need to be cancelled manually. If either turn signal indicator flashes more rapidly than normal or refuses to flash at all, a mal- function of the turn signal system may exist. SB220B1-E
Lane Change Signal
To indicate an intention to change lanes,
moving the lever slightly towards the direction of the relevant turn signal will cause the turn signal lights to flash. When the lever is re- leased, it will return to the "off" position.
3. DRIVE TIME
Drive time symbol
Drive timeHFC2054
o This mode indicates the drive time trav- elled since the last drive time reset.
o Pressing the reset switch for more than 1 second, when the drive time is being dis- played, clears the drive time to zero. B340C01FC-D
B340B01FC-D
fcuk-1.p65
3/6/2007, 9:58 AM
36

1- 37
CONTROLS AND EQUIPMENT
The windscreen wiper switch, dependent upon model, has three operating positions.
1. Intermittent wiper operation.
(Not all models)
2. Low speed operation.
3. High speed operation. NOTE: To prevent damage to the wiper system,do not attempt to wipe away heavy accu- mulations of snow or ice. Accumulated snow and ice should beremoved manually. If there is only a light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.
SB230A1-E WINDSCREEN WIPER/WASHER SWITCH
SB220E1-E HEADLIGHT FLASH The headlights may be flashed by pulling the turn signal switch lever towards the steering wheel. The headlights will be extinguished when the switch is released.
SB220D1-E HIGH AND LOW BEAMTo turn on the headlight high beams, push the lever forward (away from you). For low beams, pull the lever back (toward you). The appropri- ate headlight beam indicator light will come on at the same time.
B340E01FC-D
B350A01O-D
(1)
(2)
(3)
B350B01O-EAT Windscreen Washer Operation To use the windscreen washer, pull the wiper/ washer lever toward the steering wheel. When the washer lever is operated, the wipers auto- matically make two passes across the windscreen. The washer continues to operate until the lever is released. NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen to the glass prior to operating the wipers.
o In areas where water freezes in winter, use windscreen washer antifreeze. B350B01O.DAG
fcuk-1.p65
3/6/2007, 9:58 AM
37

CONTROLS AND EQUIPMENT
1- 38 SB240A1-E HAZARD WARNING SYSTEM The hazard warning system should be used whenever it becomes necessary to stop the car in a hazardous location. The hazard warn- ing system is operated by depressing the switch at which time all turn signal lights will flash simultaneously and the turn signal warn- ing lights located within the instrument cluster will flash simultaneously. The hazard warning system may be turned off by depressing the switch again.
B350C01FC-DAT Adjustable Intermittent Wiper Operation To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this position, the interval between wipes can be varied from approximately 1 to 18 seconds by turning the interval adjuster barrel.
Mist Wiper Operation If a single wipe is desired in mist, push the windscreen wiper and washer control lever upwards. B350A01O-AAT Tail Gate Wiper And Washer Switch
1. : The washer fluid will be sprayed onto
the rear window and the wiper oper- ates while the rear window wiper bar- rel is placed in this position.
2.OFF
3.INT : To use the intermittent wiper feature,
place the rear window wiper barrel inthe "INT" position.
4.ON : When the point indicates "ON", the rear window wiper operates continu- ously.
B350B02O-DAG
B350C01O-DAG
B350D01O-DAG
HFC2078-D
fcuk-1.p65 3/6/2007, 9:58 AM
38

1- 39
CONTROLS AND EQUIPMENT

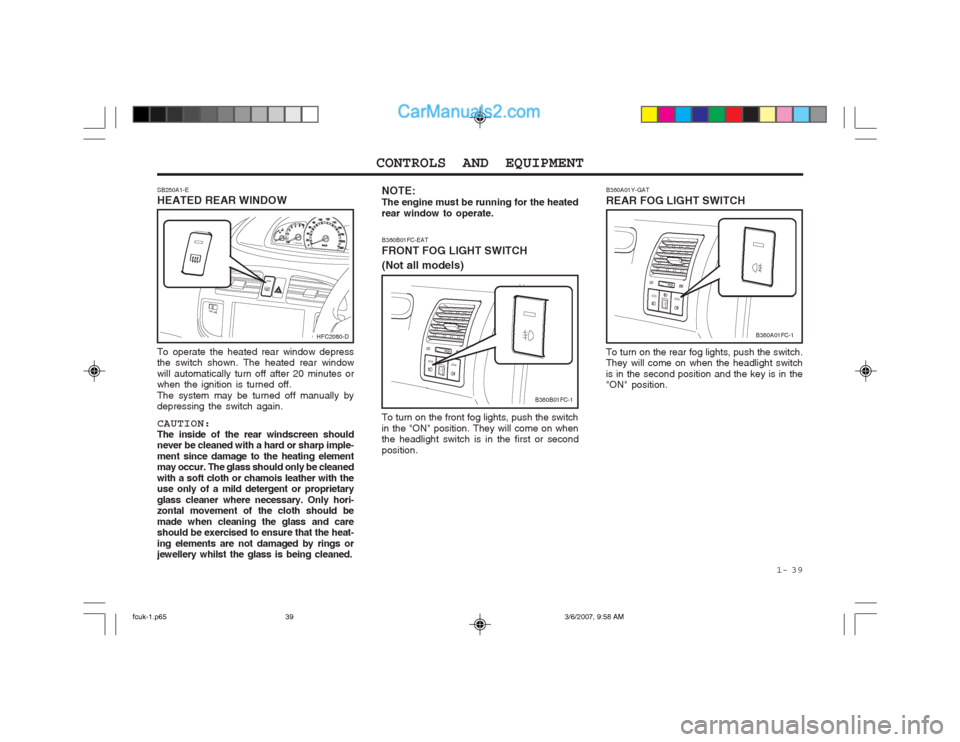

NOTE: The engine must be running for the heatedrear window to operate.
SB250A1-E HEATED REAR WINDOW To operate the heated rear window depress the switch shown. The heated rear window will automatically turn off after 20 minutes or when the ignition is turned off. The system may be turned off manually by depressing the switch again. CAUTION: The inside of the rear windscreen should never be cleaned with a hard or sharp imple- ment since damage to the heating element may occur. The glass should only be cleaned with a soft cloth or chamois leather with the use only of a mild detergent or proprietary glass cleaner where necessary. Only hori- zontal movement of the cloth should be made when cleaning the glass and care should be exercised to ensure that the heat- ing elements are not damaged by rings or jewellery whilst the glass is being cleaned. B360A01Y-GAT REAR FOG LIGHT SWITCH To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second position and the key is in the "ON" position.
HFC2080-D
B360B01FC-1
B360B01FC-EAT FRONT FOG LIGHT SWITCH (Not all models) To turn on the front fog lights, push the switch in the "ON" position. They will come on when the headlight switch is in the first or second position.
B360A01FC-1
fcuk-1.p65
3/6/2007, 9:58 AM
39

CONTROLS AND EQUIPMENT
1- 40 SB290A02-F
CIGAR LIGHTER
For the cigar lighter to work, the key must be in the "ACC" or the "ON" position. To use the cigar lighter, push the lighter all theway into its socket. When the element is heated, the lighter will pop out into the "ready" position.Do not hold the cigar lighter at the depressed position which may result in damage to the vehicle wiring or an electrical fire. If it is necessary to replace the cigarette lighter, use only a genuine Hyundai replace- ment part. CAUTION: Do not use electric accessories or equip- ment other than the Hyundai genuine parts in the socket. The front ashtray may be opened by pulling itup by its top edge. To remove the ashtray to empty or clean it, pull the cover up all the way out. The ashtray light will only illuminate when the external lights are on.
B430A01FC-GAT FRONT ASHTRAY
There are three control buttons for the digital clock. Their functions are: HOUR - Push "H" to advance the hour indicat-
ed. MIN - Push "M" to advance the minute indicat-
ed. RESET - Push "R" to reset minutes to ":00" to
facilitate resetting the clock to the correcttime. When this is done: Pressing "R" between 10 : 30 and 11 : 29 changes the readout to 11 : 00.Pressing "R" between 11 : 30 and 12 : 29 changes the readout to 12 : 00.
B400A01A-AAT DIGITAL CLOCK
B420A01FC-DHFC2091HFC2056-D
fcuk-1.p65
3/6/2007, 9:58 AM
40

1- 41
CONTROLS AND EQUIPMENT
The drink holder is used for holding cups or cans. To use the passenger's drink holder, push thedrink holder and pull it entirely. WARNING: Do not place objects other than cups or drinks in the drink holder. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.
B450A01FC-EAT DRINK HOLDER (Not all models)
B450B01FC-EAT REAR SEAT DRINK HOLDER (Not all models) The drink holder is located on the rear main console for holding cups or cans. The drink holder can be used by pushing the knob on the rear main console downward and then releasing it. CAUTION:
o To prevent damage, ensure that the rear
drink holder, located in the rear con-sole, is closed before folding the rear seatback and seat cushion.
o Place the drink holder in its original position while not in use.
HFC2097-D
Driver's Passenger's
HFC2098
B611A01FC-EAT REAR SEAT ARM REST (Not all models) This arm rest is located in the centre of the rear seat back with box. The drink holder in the box can be used byopening the lid of the arm rest. WARNING:
o Do not place objects other than cups or
cans in the drink holder. Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring the passengers in the vehicle.
o Be careful not to injure your fingers
when you open the lid of the arm rest.
B610A01FC
fcuk-1.p65 3/6/2007, 9:58 AM
41

CONTROLS AND EQUIPMENT
1- 42 SB330A1-E SUNROOF (Not all models)
To adjust the headlight beam level according to the number of the passengers and the loading weight in the luggage area, turn the beam leveling switch. The higher the number of the switch position,the lower the headlight beam level. Always keep the headlight beam at the proper level- ing position, or headlights may dazzle other road users. Listed below are the examples of recom-mended switch settings. For loading condi- tions other than those listed below, adjust the
switch position so that the beam level may be the nearest as the condition obtained accord- ing to the list.
Switch
PositionLoading Condition
Driver only
Driver + front passenger Full passengers (including driver)
Full passengers (including
driver) + Maximum permissibleloading Driver + Maximum permissible
loading 0 0 1 2 3
B340G01FC-EAT HEADLIGHT LEVELING DEVICE SYSTEM
The electrically operated sunroof may be used only whilst the ignition switch is at the "ON" position. The sunroof is equipped with a sun- shade which may be used whilst the sunroof is at the closed position to obscure incoming light.The sunshade is automatically opened when- ever the sunroof is opened but must be man- ually closed by sliding forward after the sunroof is closed. When the sunroof is opened, the wind deflec- tor will automatically rise to the upper position and will automatically retract when the sunroof is closed. To open the sunroof, depress and hold the button indicated. The button should be re- leased when the sunroof is at the fully open position. The sunroof may be closed by de- pressing and holding the button indicated. The button should be released when the sunroof is at the fully closed position.
HFC2021
B470A01FC
B340G01FC-1
fcuk-1.p65
3/6/2007, 9:58 AM
42
