2004 Hyundai Grandeur Owner's Manual

1- 84 FEATURES OF YOUR HYUNDAI
This control is used to adjust the degree of heating or cooling desired.B670E02A-AAT Temperature Control
HXG124
Cool
Warm B690A02S-AATHEATING CONTROLS
For normal heating operation, set the air intake control to the fresh air ( ) position and the air flow control to thefloor ( ) position. For faster heating, the air intake con- trol should be set in the recirculate ( ) position. If the windows fog up, set the air flow control to the "Def" (defroster) posi- tion. (The A/C will turn on automati-cally and "Fresh" mode will be acti- vated.) For maximum heat, move the tem- perature control to "Warm". HXG119
B700A01A-AAT BI-LEVEL HEATING Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash-board vents and warmer air from the floor outlets at the same time. To use this feature:
o Set the air intake control to the fresh
air ( ) position.
o Set the air flow control at the bi-level ( ) position.
o Set the temperature control between "Cool" and "Warm" B700A01L

FEATURES OF YOUR HYUNDAI 1- 85
To remove frost or exterior fog on the windshield:
o Set the air flow control to the defrost
( ) position. (The A/C will turn on automatically and "Fresh" mode willbe activated.)
o Set the temperature control to warm.
o Set the fan speed control to position
"3" or "4".
NOTE: When the A/C is operated continu-
ously on the floor-defrost level ( )
or defrost level ( ), it may cause fog to form on the exterior windshield. Ifthis occurs, set the air flow control to
the face level position ( ) and fan speed control to the low position.
B720A03FC-AAT DEFROSTING/DEFOGGING Use the heating/ventilation system to defrost or defog the windshield: To remove interior fog on the windshield:
o Set the air flow control to the defrost
( ) position. (The A/C will turn on automatically and "Fresh" mode willbe activated.)
o Set the temperature control to the
desired position.
o Set the fan speed control between "1" and "4" position. B720A01L
B720A04L
o To keep dust or unpleasant fumesfrom entering the car through the ventilation system, temporarily set the air intake control to the po-sition. Be sure to return the control to the position when the irritation has passed to keep fresh air in thevehicle. This will help keep the driver alert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just aheadof the windshield. Care should be taken that these are not blocked byleaves, snow, ice or other obstruc- tions.
B730A01L-AAT OPERATION TIPS
B730A01L

1- 86 FEATURES OF YOUR HYUNDAI
o To prevent interior fog on the wind-
shield, set the air intake control to the fresh air ( ) position, fan spe-ed to the desired position, turn on the air conditioning system, and adjust temperature control to desired tem-perature.
B740A01S-AAT AIR CONDITIONING SYSTEM Air Conditioning Switch The air conditioning is turned on or off by pushing the A/C button on the heat- ing/air conditioning control panel. B670C03LTo use the air conditioning to cool theinterior:
o Set the side vent control to "OFF",
to shut off the outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch
by pushing in on the switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control to the fresh air ( ) position.
B740B01L-GAT Air Conditioning Operation (If Installed)Cooling
HXG119o Set the temperature control to "Cool".
("Cool" provides maximum cooling. The temperature may be moderatedby moving the control toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn thefan control to one of the higher speeds or temporarily select therecirculate ( ) position on the air intake control.

FEATURES OF YOUR HYUNDAI 1- 87
B740C01A-AAT De-Humidified Heating For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch.
The air conditioning indicator lightshould come on at the same time.
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control to the face ( ) position.
o Adjust the fan control to the desired
speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to provide the desired amount of warmth.

1- 88 FEATURES OF YOUR HYUNDAI
B970A01Y-AAT AUTOMATIC HEATING AND COOLING CONTROL SYSTEM(If Installed) Your Hyundai is equipped with an au- tomatic heating and cooling control system controlled by simply setting the desired temperature. B970B01L-GAT Heating and Cooling Controls
1. Blower Fan Control Switch
2. AUTO (Automatic Control) Switch
3. OFF Switch
4. Display Window
5. Temperature Control Button
6. Defroster Switch HXG118-2
7. Air Conditioning Switch
8. Air Flow Control Switch
9. Air Intake Control Switch/Air Qual- ity System Switch (If installed)
10. Ambient Temperature Switch
11.Rear Window Defroster Switch
12.Rear Ventilator Switch

FEATURES OF YOUR HYUNDAI 1- 89
2. Push the "TEMP" button to set the
desired temperature. The temperature will increase to the maximum 32 C(90 F) by pushing on the button. Each push of thebutton will cause the temperature to increase by 0.5 C(1 F). The temperature will decrease tothe minimum 17 C(62 F) by push- ing on the button. Each push of the button will cause the tempera-ture to decrease by 0.5 °C(1 F).
NOTE: If the battery has been discharged or disconnected, the temperaturemode will reset to centigrade de- gree.
The FATC (Full Automatic Tempera- ture Control) system automatically controls the heating and cooling by doing as follows:

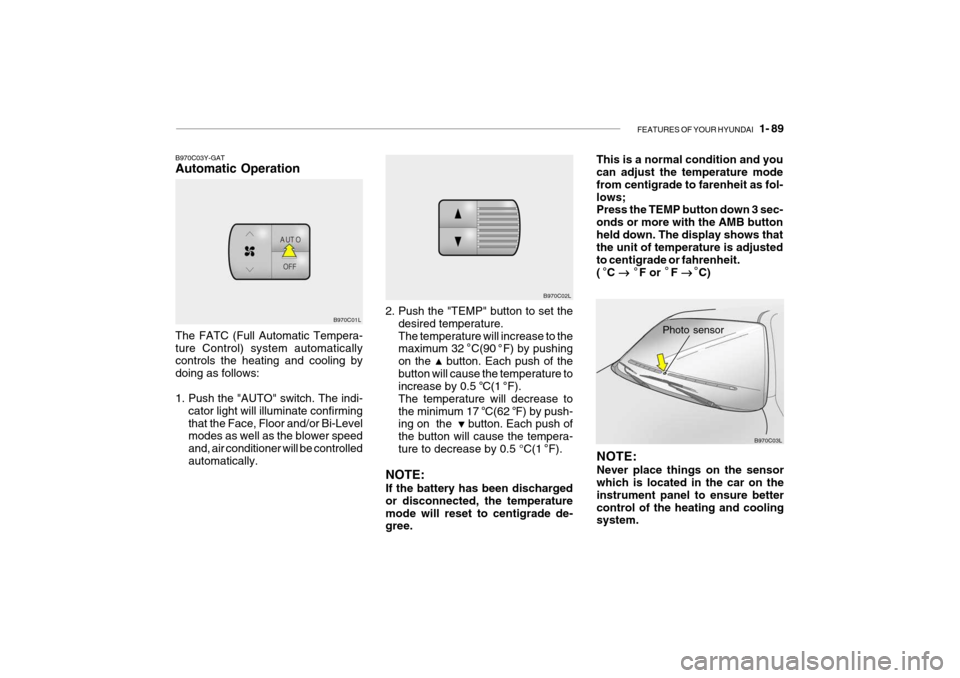

1. Push the "AUTO" switch. The indi- cator light will illuminate confirming that the Face, Floor and/or Bi-Level modes as well as the blower speed and, air conditioner will be controlledautomatically. Photo sensor
B970C01L
B970C03Y-GAT Automatic Operation
NOTE: Never place things on the sensor which is located in the car on the instrument panel to ensure bettercontrol of the heating and cooling system.
B970C02L
B970C03L
This is a normal condition and youcan adjust the temperature mode from centigrade to farenheit as fol-lows; Press the TEMP button down 3 sec- onds or more with the AMB buttonheld down. The display shows that the unit of temperature is adjusted to centigrade or fahrenheit.( C


F or F


C)

1- 90 FEATURES OF YOUR HYUNDAI
HXG506J
This is used to select fresh outside air or recirculate inside air automatically. : OFF
:ON
Fresh mode :
Air enters the vehicle from the outsideand is heated or cooled according to the function selected.
Recirculation mode :
Air from within the passenger com-partment will be drawn through the heating system and heated or cooledaccording to the function selected.
B980C02E-GAT Air Intake Control Switch (With A.Q.S) (If Installed)
B980B02Y-AAT Fan Speed Control

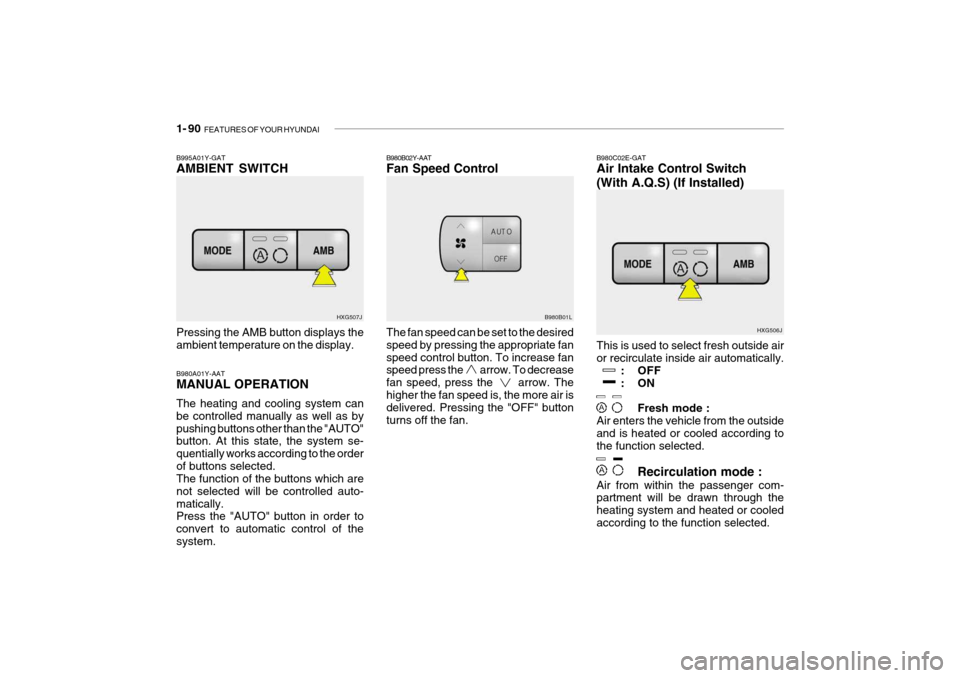

B995A01Y-GATAMBIENT SWITCH B980A01Y-AAT MANUAL OPERATION The heating and cooling system can be controlled manually as well as bypushing buttons other than the "AUTO" button. At this state, the system se- quentially works according to the orderof buttons selected. The function of the buttons which are not selected will be controlled auto-matically. Press the "AUTO" button in order to convert to automatic control of thesystem. HXG507J
Pressing the AMB button displays theambient temperature on the display. The fan speed can be set to the desiredspeed by pressing the appropriate fanspeed control button. To increase fan speed press the arrow. To decrease fan speed, press the arrow. Thehigher the fan speed is, the more air is delivered. Pressing the "OFF" button turns off the fan.B980B01L

FEATURES OF YOUR HYUNDAI 1- 91
Exhaust gas cutoff mode :
Air enters the vehicle from the outside. But if exhaust gas enters the vehicle from the outside, the exhaust gas cut-off mode ( ) is automatically con- verted to the ( ) mode, to prevent exhaust gas from entering the vehicle. NOTE:
o It should be noted that prolonged operation of the heating system in recirculation mode ( ) will give rise to misting of the winds- hield and side windows and theair within the passenger com- partment will become stale. In addition, prolonged use of theair conditioning with the recircu- lation mode ( ) selected may result in the air within the pas-senger compartment becoming excessively dry. B980D01Y-AAT Heating and Cooling System Off Press the "OFF" button to stop the operation of the heating and cooling system.
o When the ignition switch is turned
"ON", the air intake control will change to ( ) mode (regardless
of switch position). This is normal operation. The air intake control operates in "AUTO" mode whenturning the ignition to the ON po- sition if the "AUTO" mode was used before shutting off the en-gine.
CAUTION:
If the windows fog up with the Re- circulation or A.Q.S mode selected, set the air intake control to the Fresh air position or A.Q.S control to "OFF".
!
B980E01L-GAT Air Flow Control
HXG505J
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Four symbols are used to represent Face, Bi-Level,Floor and Floor-Defrost air position.
