2004 HONDA CIVIC Owners Manual

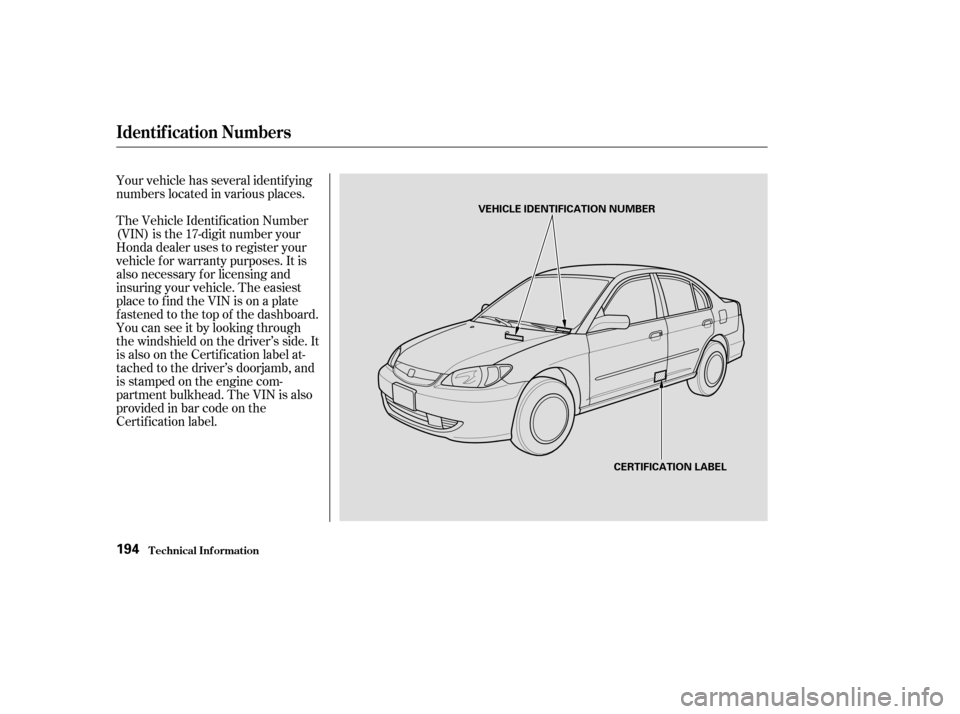

The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certif ication label.
Your vehicle has several identif ying
numbers located in various places.
Identif ication Numbers
T echnical Inf ormation194
VEHICLE IDENTIFICATION NUMBER
CERTIFICATION LABEL
——y
y
(y
y

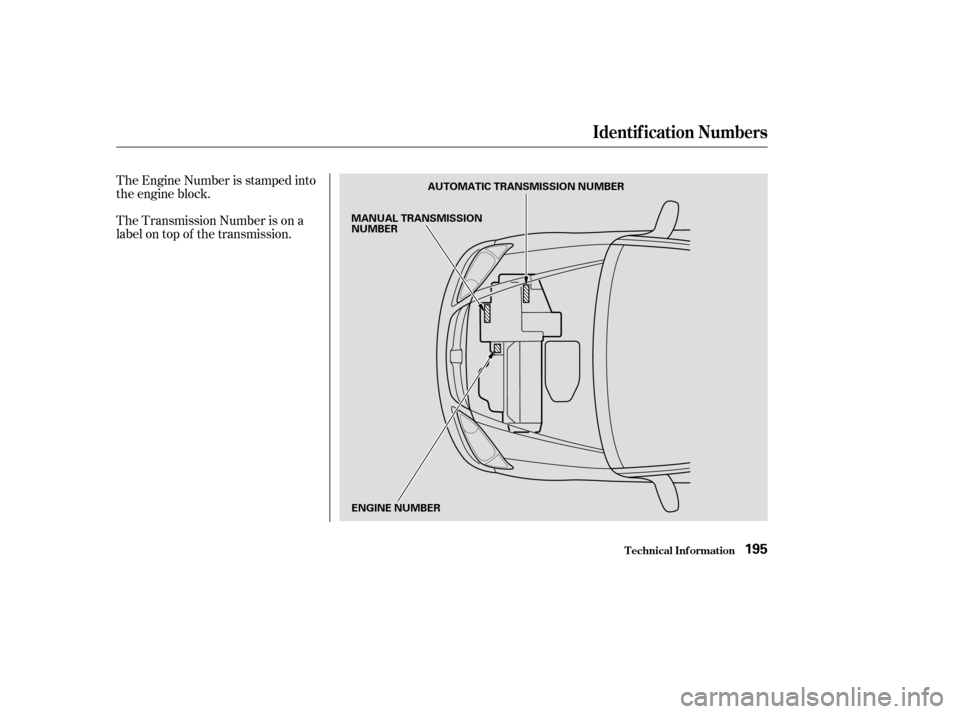

The Engine Number is stamped into
the engine block.
The Transmission Number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation195
AUTOMATIC TRANSMISSION NUMBER
MANUAL TRANSMISSION
NUMBER
ENGINE NUMBER
——y

y
(y
y

ÎÎÎ Î ÎÎÎÎ
Î Î
Î Î
Î Î ÎÎ
´ µ
Specif ications
T echnical Inf ormation196
Dimensions
Weights
Engine Capacities
174.6 in (4,435 mm)
67.3 in (1,710 mm)
56.9 in (1,445 mm)
103.1 in (2,620 mm)
57.9 in (1,470 mm)
57.9 in (1,470 mm)
2.95 x 3.72 in (75.0 x 94.4 mm) 13.2 US gal (50
)
1.03 US gal (3.9
)
102 cu-in (1,668 cm
)
9.5 9.9 1.06 US gal (4.0
)
1.35 US gal (5.1
)
1.32 US gal (5.0)
3.4 US qt (3.2
)
3.7 US qt (3.5)
3.2 US qt (3.0)
3.5 US qt (3.3)
4.4 US qt (4.2)
1.6 US qt (1.5)
1.7 US qt (1.6)
2.9 US qt (2.7)
6.2 US qt (5.9)
2.6 US qt (2.5
)
4.8 US qt (4.5)
0.11 US gal (0.4
)
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
Excluding the oil remaining in the engine.
Length
Width
Height
Wheelbase
Track
Gross vehicle weight ratingType
BorexStroke
Displacement
Compression ratio
Spark plugs
Fuel tank
Engine
coolant
Engine oil Automatic
transmission
fluid
Water cooled 4-stroke
SOHC , SOHC VTEC
4-cylinder gasoline engine
See the certification label attached
to the driver’s doorjamb.
PZFR6F-11PKJ20CR-M11
NGK:
DENSO:
0.04 in (1.1 mm)
FrontRear
Approx.
1:2: DX, LX
EX, Canadian Si
DX, LX
EX, Canadian Si
1: 2: 3:4:
Spark Plug Gap: Change
ManualAutomatic
Total
ManualAutomatic
Change
Without filter
Total
ChangeTotal
ChangeTotal
U.S. Vehicles
Canada Vehicles
Manual trans-
mission fluid Including filter
Windshield
washer reservoir
12
12 3434
1 2
0
0.1 mm
——y
y
(y
y

µµµ
Î Î µ
µ µµ µ µ µ µµµµµµµµ
ÎÎÎÎ Î
Î Î ÎÎÎ
ÎÎ
Î
Specif ications
T echnical Inf ormation197
Air Conditioning
Fuses
Alignment
Battery
Lights
Tires
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g) SP-10
12 V 60 W (HB3)
2°14’0°45’
0°
0.00 in (0.0 mm)
P185/65R15 86H P185/70R14 87S
0.08 in (2.0 mm)
Refrigerant type
Charge quantity
Lubricant oil type
Interior
Under-hood
Toe-in
CamberCaster
Capacity 12 V 36 AH/5 HR
Headlights
Front turn signal/side marker
lights
Rear turn signal lights
Stop/Taillights/Rear side
marker lights
Back-up lights
Taillights
High-mount brake light
License plate lights
Ceiling light
Front ceiling light
Spotlights
Trunk light 12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
5W
8W
5W
8W
3CP
21 W
3CP
21 W
21/5 W
21 W
27/8 W
60 psi (420 kPa , 4.2 kgf/cm
)
30 psi (210 kPa , 2.1 kgf/cm)
T125/70D15 95M
T115/70D14 88M
Size
Pressure See page 189 or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 188 or the fuse box
cover.
12 V 51 W (HB4)
5W P195/60R15 88H
1: 2: DX
Canadian LX
U.S.: DX, LX without ABS
U.S.: LX with ABS, EX
Canada: LX, Si
U.S.: EX
Canada: SiLX HighLow
Front/Rear
Spare
Front/Rear
Spare
FrontRear
FrontRear
Front
U.S.: LX, EX, Canada: Si
Canada: DX
1: 2:3:4: 5:
1 2 123
45
1
——y
y
(yy

µ
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear Traction AA, A, B, C
T echnical Inf ormation
DOT T ire Quality Grading (U.S. Vehicles)
198
——y
y
(y
y

µµ µ µ µ µ µ µ
µ µ µ µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger
vehicle tires must meet under the
Federal Motor Vehicle Saf ety
Standard No. 109. Grades B and A
represent higher levels of
perf ormance on the laboratory test
wheel than the minimum required by
law.
Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either separately or in combination, can
cause heat buildup and possible tire
f ailure.
Date of manuf acture.
Tire type code.
Manuf acturer’s
identification mark.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN.
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Load index (a numerical code
associated with the maximum
load the tire can carry).
Rim diameter in inches.
Tire construction code (R
indicates radial).
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
tire size with an explanation of what
each component means. Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire width in millimeters.
Vehicletype(Pindicates
passenger vehicle).
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below. P 225 55 R 16 94 V DOT B97R
FW6X 2202
Temperature A,B,C
Tire Labeling
DOT T ire Quality Grading (U.S. Vehicles), T ire L abeling
T ire Ident if icat ion Number
Tire Size
T echnical Inf ormation199
DOT B97R FW6X 2202
P225/55R 16 94V
——y
y
(yy

Some gasolines are being blended
with alcohol or an ether compound.
These gasolines, or oxygenated f uels
are used to meet clean air standards
in the United States and Canada to
help reduce emissions.
If you use an oxygenated f uel, be
sure it is unleaded and meets the
minimum octane rating requirement.
Trytoconfirmthefuel’scontents.
Some states/provinces require this
informationtobepostedonthepump.The f ollowing are the U.S. EPA and
Canadian CGSB approved
percentages of oxygenates:
(Methyl Tertiary Butyl
Ether)
You may use gasoline containing up
to 15 percent MTBE by volume. If you notice any undesirable
operating symptoms, try another
service station or switch to another
brand of gasoline.
Fuel system damage or perf ormance
problems resulting f rom the use of
an oxygenated f uel containing more
than the percentages of oxygenates
given above are not covered under
warranty.
(ethyl or grain alcohol)
You may use gasoline containing up
to 10 percent ethanol by volume.
Gasoline containing ethanol may be
marketed under the name ‘‘Gasohol.’’
(methyl or wood
alcohol)
Your vehicle was not designed to use
fuel that contains methanol.
Methanol can corrode metal parts in
the fuel system, and also damage
plastic and rubber components. This
damage would not be covered by
your warranties.
Oxygenated Fuels
MT BE
ET HA NOL
MET HA NOL
T echnical Inf ormation200
——y
y
(yy

If you are planning to take your
Honda outside the U.S. or Canada,
contact the tourist bureaus in the
areas you will be traveling in to f ind
out about the availability of unleaded
gasoline with the proper octane
rating.
If unleaded gasoline is not available,
be aware that using leaded gasoline
in your Honda will af f ect perf or-
mance and fuel mileage, and damage
its emissions controls. It will no
longer comply with U.S. and
Canadian emissions regulations, and
will be illegal to operate in North
America. To bring your vehicle back
into compliance will require the re-
placement of several components,
such as the oxygen sensors and the
three way catalytic converter. These
replacements are not covered under
warranty.
Driving in Foreign Countries
T echnical Inf ormation201
