2004 HONDA CIVIC Owners Manual

̵
µ
µ
µ
µ
µ
Your authorized Honda dealer
knows your vehicle best and can
provide competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
skilled person to keep your
warranties in ef f ect. Keep all the
receipts as proof of completion, and
have the person who does the work
f ill out the Maintenance Record.
Check your warranty booklet f or
more inf ormation.
We recommend the use of Honda
parts and f luids whenever you have
maintenance done.
U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, Honda
recommends that all maintenance
services be perf ormed at the
recommended time or mileage
period to ensure long-term reliability.
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the f luid level monthly. See page .
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page .
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page . 115
115
149 151
153
162
Maintenance Schedule
Maint enance
Servicing Your Vehicle
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.Owner’s Maintenance Checks
138
——y
y
(y

y

ÎÌ Ì
Ì
Î
Follow the Normal Maintenance
Schedule if the severe driving
conditions specif ied in the Severe
Conditions Maintenance Schedule on
the next page do not apply.
NOT E: If you only OCCASIONALLY
drive under a ‘‘severe’’ condition, you
should f ollow the Normal Conditions
Maintenance Schedule.
Maint enance
139
miles x 1,000
km x 1,000
Service the items listed at the indicated distance (or time, if given).
120,000 miles (192,000 km) or 10 years, then every60,000 miles (96,000 km) or 5 years
Every 3 years (independent of mileage)
((OOrreevveerryy77yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOrreevveerryy66yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOtthheerrwwiisseeaaddjjuussttoonnllyyiiffnnooiissyy))
Every 10,000 miles (16,000 km)((OOrreevveerryy11yyeeaarr,,wwhhiicchheevveerrccoommeessffiirrsstt))
Check inflation and condition once a month Check oil and coolant at each fuel stop
10 16
2032304840645080 609670
112 80
128 100160
90
144
((OOrreevveerryy22yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
110 176 120192130208 140224150240
Replace at 120,000 miles (192,000 km) or 6 years, then every 90,000 miles (144,000 km) or 5 years.
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page164)
Replace engine oil filter
Inspect front and rear brakes
Check parking brake adjustment
Visually inspect the following items:
Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect and adjust drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Inspect idle speed
Replace timing belt, and inspect auto-tensioner and
water pump
Replace engine coolant
Replace brake fluid
See information on maintenance and emission warranty on page .
((OOrreevveerryy11yyeeaarr,,wwhhiicchheevveerrccoommeessffiirrsstt))
1:: 138
1
Maintenance Schedule for Normal Conditions
——y
y
(y
y

Î ÎÎÌ
µ
ÌÌÎ
Î
ÌÎ
Follow the Severe Maintenance
Schedule if you drive your vehicle
MAINLY under one or more of the
f ollowing conditions:
Extensive idling or long periods of
stop and go driving, such as a taxi or
a delivery vehicle.
Driving with a roof rack, or driving
in mountainous conditions.
Driving less than 5 miles (8 km) per
trip or, in f reezing temperatures,
driving less than 10 miles (16 km)
per trip.
Driving in extremely hot [over 90°F
(32°C)] conditions.
Driving on muddy, dusty, or de-iced
roads.
Follow the
Maintenance Schedule f or Severe
Conditions.
commercial
Maint enance Canadian Owners140
miles x 1,000
km x 1,000
Every 3 years (independent of mileage)
120,000 miles (192,000 km) or 10 years, then every
60,000 miles (96,000 km) or 5 years
((OOrreevveerryy77yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOrreevveerryy33yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOtthheerrwwiisseeaaddjjuussttoonnllyyiiffnnooiissyy))
((OOrreevveerryy22yyeeaarrss,,wwhhiicchheevveerrccoommeessffiirrsstt))Every 15,000 miles (24,000 km) (Use normal schedule except in dusty condition)
10 16
203230484064 5080 70
112 80
128 100160
Check oil and coolant at each fuel stop 110176
6096 90
144 120192130208140224150240
Service the items listed at the indicated distance (or time, if given).
Every 10,000 miles (16,000 km)
Check inflation and condition once a month
Every 5,000 miles (8,000 km) or every 6 months,
whichever comes first
((OOrreevveerryy11yyeeaarr,,wwhhiicchheevveerrccoommeessffiirrsstt))
((OOrreevveerryy11yyeeaarr,,wwhhiicchheevveerrccoommeessffiirrsstt))
See information on maintenance and
emission warranty on page .
See timing belt on page for
replacement information under special
driving conditions.
Replace at 60,000 miles (96,000 km) or 3
years, then every 30,000 miles (48,000
km) or 2 years.
See dust and pollen filter on page for
replacement information under special
driving conditions.
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page164)
Replace engine oil filter
Inspect front and rear brakes
Lubricate all hinges, locks and latches
Visually inspect the following items:
Tie rod ends, steering gear box, and boots
Suspension components, Driveshaft boots
Check parking brake adjustment
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system , Fuel lines and connections
Lights and controls/vehicle underbody
Inspect and adjust drive belts
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace automatic transmission fluid
Replace manual transmission fluid
Inspect idle speed
Replace timing belt , inspect auto-tensioner and
water pump
Replace engine coolant
Replace brake fluid 1: 2:3:
: 159
150 138
1
2
,3
Maintenance Schedule for Severe Conditions
——y
y
(y
y

(f or Normal and Severe Schedules)Maintenance Record
Maint enance141
5,000 mi
10,000 mi
15,000 mi
20,000 mi
25,000 mi
30,000 mi
35,000 mi
40,000 mi45,000 mi
50,000 mi
55,000 mi
60,000 mi
65,000 mi
70,000 mi
75,000 mi
80,000 mi
8,000 km
16,000 km
24,000 km
32,000 km
(or 1 year)
40,000 km
48,000 km
56,000 km
64,000 km
(or 2 years) Signature or dealer stamp mi/km
Date
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate72,000 km
80,000 km
88,000 km
96,000 km
(or 3 years)
104,000 km
112,000 km
120,000 km
128,000 km
(or 4 years)Signature or dealer stamp mi/km
Date
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
You or the servicing dealer can record all completed maintenance here, whether you follow the sc
hedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle. 139
140
——y
y
(y
y

(f or Normal and Severe Schedules)Maintenance Record
Maint enance142
85,000 mi
90,000 mi
95,000 mi
100,000 mi
105,000 mi
110,000 mi
115,000 mi
120,000 mi125,000 mi
130,000 mi
135,000 mi
140,000 mi
145,000 mi
150,000 mi
155,000 mi
160,000 mi
136,000 km
144,000 km
152,000 km
160,000 km
(or 5 years)
168,000 km
176,000 km
184,000 km
192,000 km
(or 6 years) Signature or dealer stamp mi/km
Date
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate200,000 km
208,000 km
216,000 km
224,000 km
(or 7 years)
232,000 km
240,000 km
248,000 km
256,000 km
(or 8 years)Signature or dealer stamp mi/km
Date
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
mi/kmDate
——y

y
(y
y

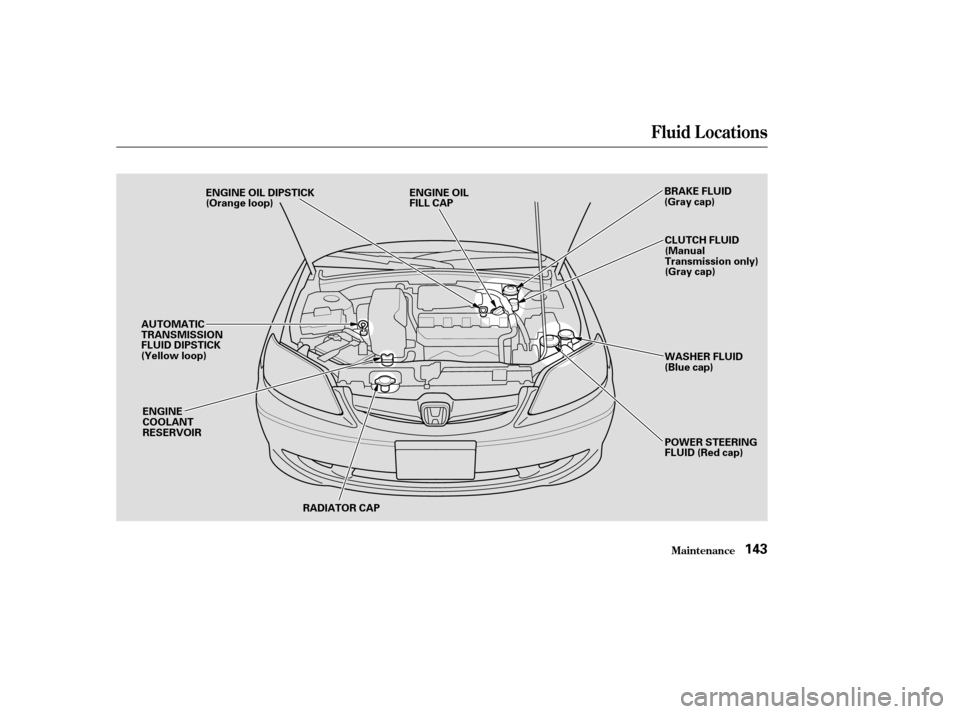

Fluid Locations
Maint enance143
RADIATOR CAP
ENGINE
COOLANT
RESERVOIR ENGINE OIL DIPSTICK
(Orange loop)
BRAKE FLUID
(Gray cap)
ENGINE OIL
FILL CAP
CLUTCH FLUID
(Manual
Transmission only)
(Gray cap)
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID (Red cap)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
——y

y
(y
y

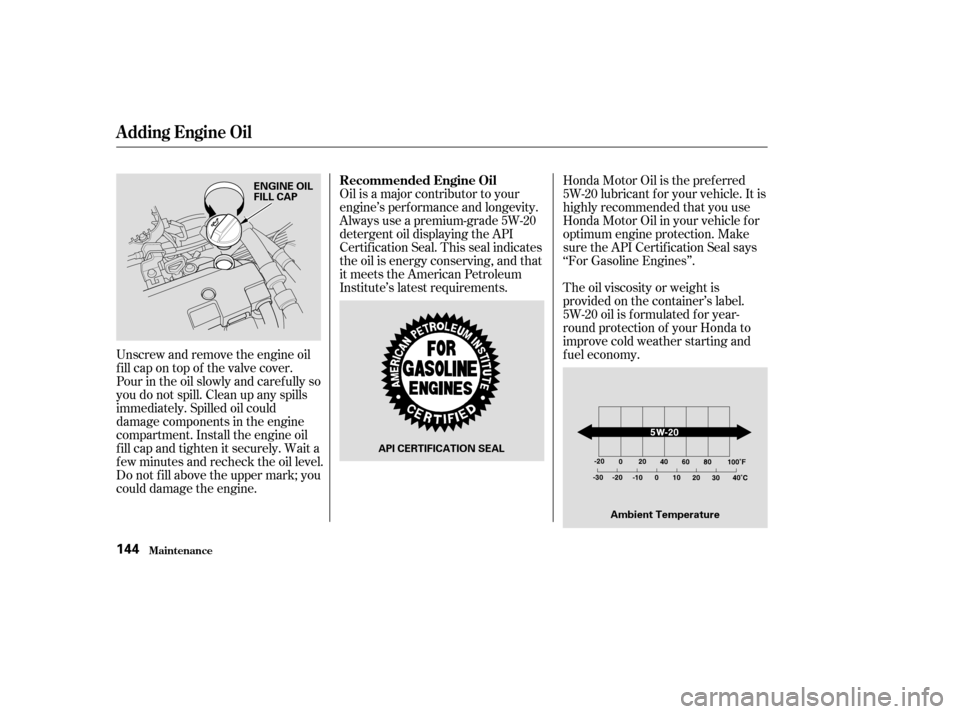

Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 5W-20
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.Honda Motor Oil is the pref erred
5W-20 lubricant f or your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle f or
optimum engine protection. Make
sure the API Certif ication Seal says
‘‘For Gasoline Engines’’.
The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is f ormulated f or year-
round protection of your Honda to
improve cold weather starting and
f uel economy.
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and caref ully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment. Install the engine oil
f ill cap and tighten it securely. Wait a
f ew minutes and recheck the oil level.
Do not f ill above the upper mark; you
could damage the engine.
A dding Engine Oil
Maint enance
Recommended Engine Oil
144
API CERTIFICATION SEAL
ENGINE OIL
FILL CAP
Ambient Temperature
——y
y
(y
y

Run the engine until it reaches
normal operating temperature,
then shut it off.
Open the hood and remove the
engine oil f ill cap. Remove the oil
drain bolt and washer f rom the
bottom of the engine. Drain the oil
into an appropriate container.
Always change the oil and f ilter
according to the recommendations in
the maintenance schedule. The oil
and f ilter collect contaminants that
can damage your engine if they are
not removed regularly.
Changing the oil and f ilter requires
special tools and access f rom
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lif t f or this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal
and it is the proper weight. You must
f ollow the oil and f ilter change
intervals given on the maintenance
schedule.
Your Honda does not require any oil
additives. Additives may adversely
af f ect your engine’s or transmission’s
perf ormance and durability.
1. 2.
Maint enance
Changing the Oil and Filter
Synthetic Oil
Engine Oil A dditives
A dding Engine Oil, Changing the Oil and Filter
145
DRAIN BOLT WASHER
——y
y
(y
y
