2004 HONDA CIVIC Owners Manual

Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), it will
light f or two seconds when you f irst
turn the ignition switch to ON (II),
andthenflashfortenseconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this light
will remain on as a constant
reminder.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages and .
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II).
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
not done by a Honda dealer, reset
the light as f ollows. Press and hold the Select/Reset
knob in the instrument panel, then
turn the ignition switch to ON (II).
Hold the knob f or about ten
seconds until the light goes of f .
Turn of f the engine.
1. 2. 3.
140
139
Maintenance Required Indicator
Inst rument s and Cont rols
Maintenance Required
Indicator
58
——y

y
(y
y

The odometer shows the total dis-
tance your vehicle has been driven.
It measures miles in the U.S. models
and kilometers in the Canadian
models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometersindicated.
The odometer and the trip meters
use the same display. Switch these
displays by pressing the Select/
Reset knob.
The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip Aand Trip B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
Odometer/T rip Meter Fuel Gauge
L X, U.S. EX, and Canadian Si models
Gauges
Inst rument s and Cont rols59

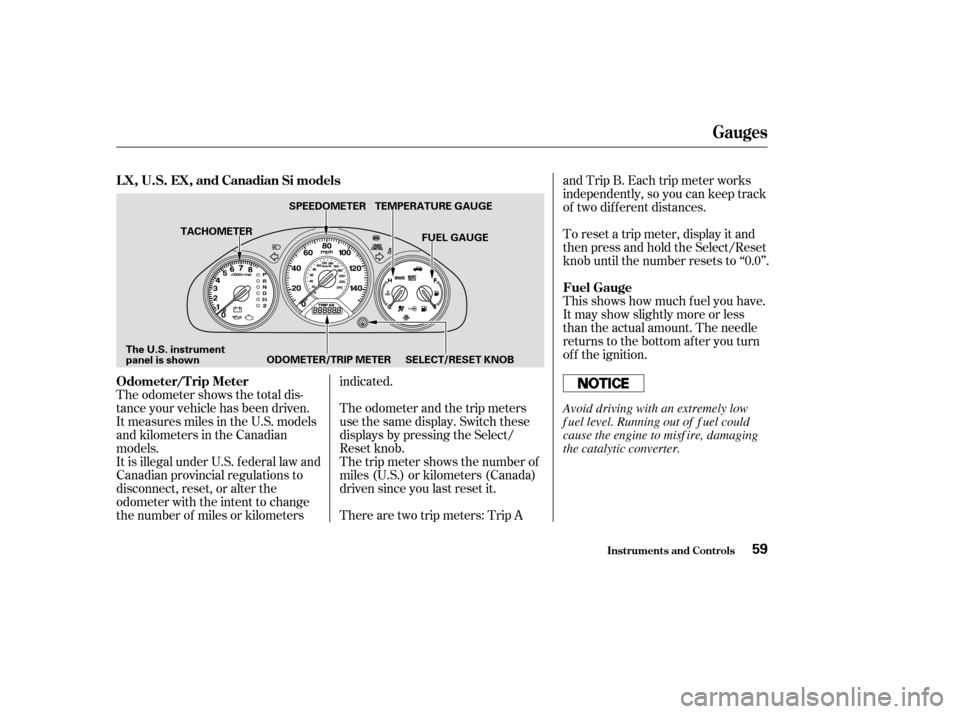

ODOMETER/TRIP METER SELECT/RESET KNOB
The U.S. instrument
panel is shown TACHOMETER
SPEEDOMETER TEMPERATURE GAUGE
FUEL GAUGE
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——y

y
(yy

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (Hot) mark, pull
safely to the side of the road. Turn to
page f or instructions and
precautions on checking the engine’s
cooling system.179
Gauges
Inst rument s and Cont rols
Temperature Gauge
Canadian DX model
U.S. DX model
60
ODOMETER/TRIP METER
TACHOMETER SPEEDOMETER
SELECT/RESET KNOBFUEL GAUGE
TEMPERATURE GAUGE ODOMETER/TRIP METERSPEEDOMETER
SELECT/RESET KNOB
FUEL GAUGE
TEMPERATURE GAUGE
——y
y
(yy

Î
Controls Near the Steering Wheel
Inst rument s and Cont rols61
MOONROOFHAZARD WARNING
LIGHTS
TILT ADJUSTMENT
MIRROR CONTROLS HEADLIGHTS/
TURN SIGNALS
CRUISE CONTROL
SWITCHESREAR WINDOW
DEFOGGER
WINDSHIELD
WIPERS/WASHERS
CRUISE CONTROL
MASTER SWITCH HORN
——y
y
(yy

µ
µ
µ µ
µ
µ
µ µ µ
MIST
OFF
INT Intermittent
LO Low
HI High
Windshield Washers Push the right lever up or down to
select a position.
The wipers are not activated.The wipers run at high
speed until you release the lever.
The wipers operate every
f ew seconds. In low speed and
high speed, the wipers run
continuously.
Vary the delay by turning the INT
TIME ring.
The wipers run at high speed.The wipers run at low speed. Pull the
wiper control lever toward you and
hold it. The washers spray until
you release the lever. The wipers
run at low speed, then complete
one more sweep af ter you release
the lever.
1.2.3.4.5.6.
On EX model in the U.S., and LX and Si models in Canada
Windshield Wipers and Washers
Inst rument s and Cont rols
OFF
MIST INT HI
LO Windshield Washer
62
——y
y
(yy

µµ µ
Turn Signal
Of f
Parking and interior lights
Headlight on
High beams
Flashhighbeams Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to
center when you release it or
complete a turn.
Rotating switch
on the lef t lever controls to the
‘‘ ’’ position turns on the parking
lights, taillights, instrument panel
lights, side-marker lights, and rear
license plate lights. Turning the
switch to the ‘‘ ’’ position turns
on the headlights. If you leave the
lights on with the key removed f rom
the ignition switch, you will hear a
reminder tone when you open the
driver’s door. To turn on, push
the lever f orward until you hear a
click. The blue high beam indicator
will light (see page ). Pull it back
to return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beams will stay on as long as you
hold the lever back.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch ON (II) and
release the parking brake. They
remain on until you turn the ignition
of f , even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
1.2.3.4.5.6. 56
Inst rument s and Cont rols
Turn Signal and Headlights Turn Signal
Headlights OnHigh Beams
Daytime Running L ights
(Canadian Models)
Turn Signal and Headlights
63
——y

y
(yy

The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.There are six brightness levels.
When you turn the knob, the
odometer/trip meter display
changes to circles that show you the
current level. You will hear a tone
when you reach the maximum or
minimum brightness.Adjust the brightness to the desired
level with the headlight switch of f ,
and also with the headlight switch on.
To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or . Turning the Select/
Reset knob f ully to the right will
return the instrument panel to the
brightness adjusted with the
headlight switch of f and a tone willsound.OnLX,USEX,andCanadianSimodels
Instrument Panel Brightness
Inst rument s and Cont rols64
SELECT/RESET KNOB
DX models KNOB LX, U.S. EX, and Canadian
Si models
——y
y
(yy

Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The def ogger and antenna wires on
the inside of the rear window can be
accidentally damaged. When
cleaning the glass, always wipe side
to side.
Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all f our outside turn signals
and both indicators in the instrument
panel to f lash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled. The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and of f . The light in the
button lights to show the def ogger is
on. If you do not turn it of f , the
def ogger will shut itself of f af ter
about15minutes.Italsoshutsoff
when you turn of f the ignition. You
have to turn it on again when you
restart the vehicle.
Hazard Warning L ight, Rear Window Def ogger
Hazard Warning Light Rear Window Def ogger
Inst rument s and Cont rols65
