2004 HONDA CIVIC COUPE Owners Manual

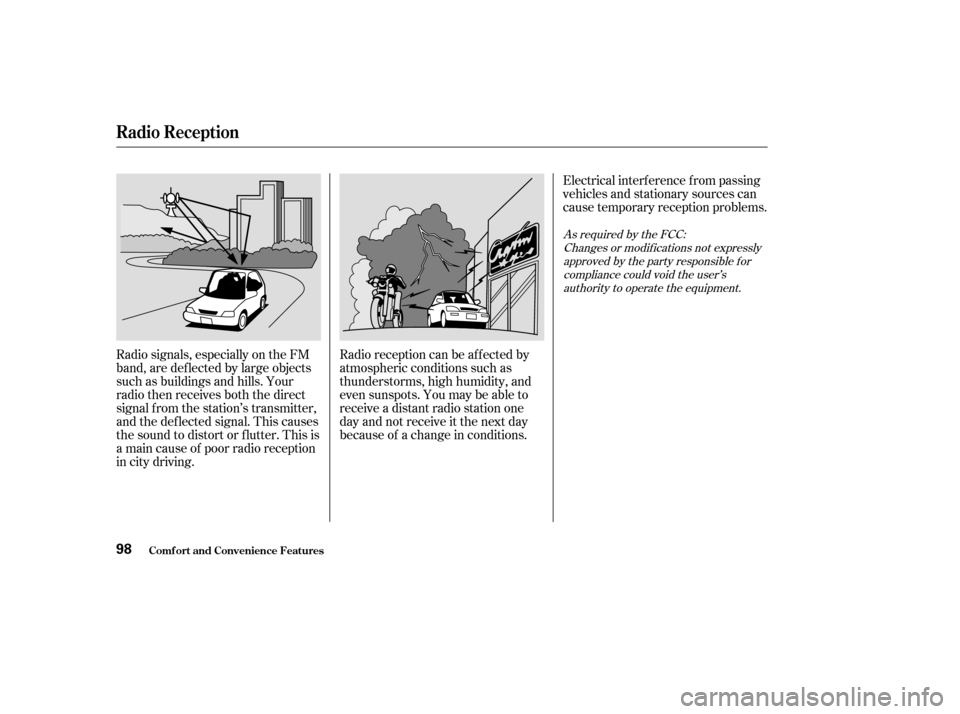

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Radio Reception
Comf ort and Convenience Feat ures98
——y
y
(%y

y

µ´

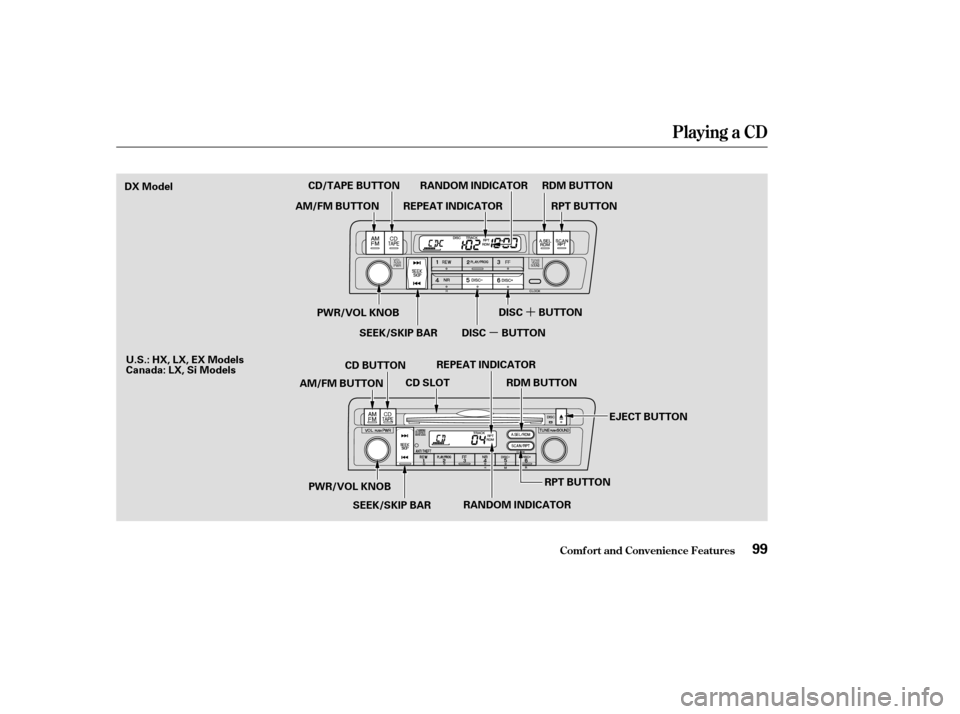

Playing a CD
Comf ort and Convenience Feat ures99
RPT BUTTON
CD/TAPE BUTTON
AM/FM BUTTON
SEEK/SKIP BAR DISC BUTTON RDM BUTTON
AM/FM BUTTON CD BUTTON
CD SLOTREPEAT INDICATOR
RANDOM INDICATOR RPT BUTTON
DX Model
EJECT BUTTON
RANDOM INDICATOR RDM BUTTON
REPEAT INDICATOR
DISC BUTTON
PWR/VOL KNOB PWR/VOL KNOB
SEEK/SKIP BAR
U.S.: HX, LX, EX Models
Canada: LX, Si Models
——y

y
(%y
y

µ´
µ
µ
With the ignition in the
ACCESSORY (I) or ON (II) position,
insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way and begin to play it.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,the CD will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a dif f erent CD, use the preset 5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot.
Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
A CD changer is available f or your
vehicle. It holds up to six CDs. You
operate the CD changer with the
same controls used f or the in-dash
CD player.
You operate the CD player with the
same controls used f or the radio.
The number of the track playing is
shown in the display. The system will
continuously play a CD until you
change modes.
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button. This f eature plays the
tracks in random order. To activate
Random Play, press and release the
RDM button. You will see RDM in
the display. This continues until you
press the RDM button again.
To continuously replay a track, press and release the RPT
button. You will see RPT in the
display. Press the RPT button again
to turn it off.
Each time you press and release , the player skips f orward to
the beginning of the next track.
Press and release to skip
backward to the beginning of the
previous track.
To move rapidly within a track, press
and hold the or . You will
see CUE or REW in the display.
Optional on DX model
Playing a CD, CD Changer
Comf ort and Convenience Feat ures
Operating the Optional CD
Changer
CD Player
To Stop Playing a CD
RANDOM
REPEAT
To Change Tracks (SKIP)
100
——y
y
(%y
y

When a CD is not being played, store
it in its case to protect it f rom dust
and other contamination. To prevent
warpage, keep CDs out of direct
sunlight and extreme heat.
To clean a CD, use a clean sof t cloth.
Wipe across the CD f rom the center
to the outside edge.
AnewCDmayberoughonthe
inner and outer edges. The small
plastic pieces causing this roughness
can f lake of f and f all on the re-
cording surf ace of the CD, causing
skipping or other problems. Remove
these pieces by rubbing the inner
and outer edges with the side of a
pencil or pen.
Never try to insert f oreign objects in
the CD player or the magazine.Handle a CD by its edges; never
touch either surf ace. Do not place
stabilizer rings or labels on the CD.
These, along with contamination
f rom f ingerprints, liquids, and f elt-tip
pens, can cause the CD to not play
properly, or possibly jam in the drive.
When using CD-R discs, use only
high quality CDs labeled f or audio
use.
When recording a CD-R, the
recording must be closed f or it to
be used by the CD players.
CD-RW discs will not work in this
unit.
Play only standard round CDs.
Odd-shaped CDs may jam in the
driveorcauseotherproblems.
Handle your CDs properly to
prevent damage and skipping.
Comf ort and Convenience Feat ures
General Inf ormation Protecting CDs
Protecting Your CDs
101
——y
y
(%y
y

If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error indication,
take your vehicle to a Honda dealer.Cause Solution
Error Message
FOCUS Error
Mechanical Error
High temperature. Press the EJECT button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out, or the error
message does not disappear after the CD is
ejected, see a Honda dealer.
Will disappear when the temperature returns to
normal.
CD Player Error Messages
Comf ort and Convenience Feat ures102
——y
y
(%y
y

If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error indication,
take your vehicle to a Honda dealer.Error MessageSolution
Cause
Press the magazine eject button and pull it out.
If the message does not disappear or the
magazine cannot be pulled out, see a Hondadealer.
Insert CD.
Press the magazine eject button and pull it out,
check for an error indication, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
see a Honda dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
FOCUS Error
No CD in the CD magazine
Mechanical Error
High temperature.
No CD magazine in the
CD changer.
Comf ort and Convenience Feat ures
CD Changer Error Messages
103
——y
y
(%y
y

Comf ort and Convenience Feat ures

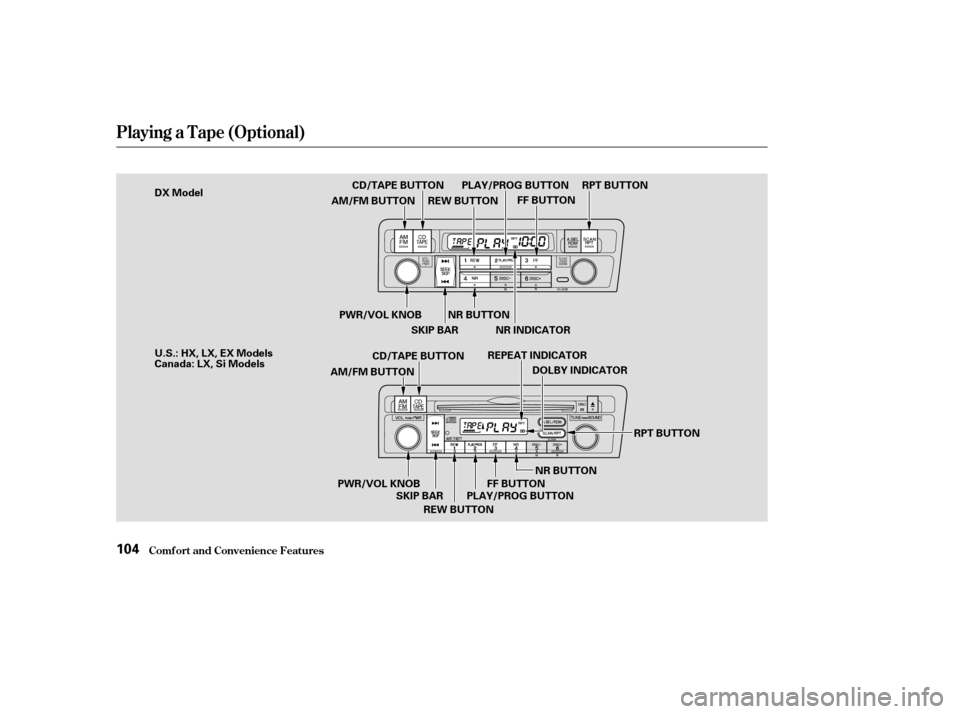

Playing a T ape (Opt ional)
104
FF BUTTON
REW BUTTON
CD/TAPE BUTTON
AM/FM BUTTON
PWR/VOL KNOB SKIP BARNR BUTTON
CD/TAPE BUTTON
NR BUTTON
SKIP BAR REW BUTTON FF BUTTON
PLAY/PROG BUTTON RPT BUTTON
REPEAT INDICATOR
DOLBY INDICATOR
DX Model
NR INDICATOR
PWR/VOL KNOB
AM/FM BUTTON PLAY/PROG BUTTON RPT BUTTON
U.S.: HX, LX, EX Models
Canada: LX, Si Models
——y
y
(%y
y

Î
ε
µ
Û Dolby noise reduction turns on
when you insert a tape. The
indicator will light in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
NR button. Dolby remains of f until
you press the NR button again.
To remove the tape, press the
EJECT button. If you want to turn
the player of f , press the PWR/VOL
knob or turn of f the ignition. The
tape will remain in the drive. When
youturnthesystembackon,the
tape will begin playing where it lef t
off. To switch to the radio or CD player
while a tape is playing, press the
AM/FM or CD/TAPE button. To
change back to the tape player, press
the CD/TAPE button.
To rewind the tape,
push the REW button. You will see
REW in the display. To f ast f orward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY/PROG button to
take the system out of rewind or fast
forward.
Press button to find
the beginning of the current song or
passage. Press button to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
The tape direction indicator will
come on to show you which side of
the tape is playing. The indicates
the side you inserted upward in now
playing. If you want to play the other
side, press the PLAY/PROG button.
When the player reaches the end of
the tape, it will automatically reverse
direction and play the other side.
The ignition switch must be in
ACCESSORY (I) or ON (II). Make
sure the open side of the tape is
facing right, then insert the tape
most of the way into the slot. The
system will pull the tape in the rest
of the way, and begin to play it.
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
CONT INUED
Tape player is optional
Comf ort and Convenience Feat ures
To Play a Tape
To Stop Playing a TapeT ape Search Functions
FF/REW
SK IP
Playing a T ape (Opt ional)
105
