2004 HONDA CIVIC COUPE Owners Manual

See page .
WhenyouturnontheHazard
Warning switch, both turn signal
lights blink. All turn signals on the
outside of the vehicle should f lash.This indicator comes on with the
high beam headlights. See page
f or inf ormation on the headlight
controls.
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
set the cruise control. See page f or inf ormation on operating the
cruise control. This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on as a
reminder that you must ref uel soon.
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling. This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
comes on (see page ).
73
196
166 65
110 156
Only on models equipped with Cruise
Control System Canadian models only
Malf unction Indicator
Lamp
Turn Signal and
Hazard Warning
Indicators High Beam Indicator
Cruise Control Indicator Trunk-open Indicator
Low Fuel Indicator
Washer Level Indicator
Inst rument s and Cont rols
Instrument Panel Indicators
58
——y
y
(%y
y

This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will go of f if you
have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).70Immobilizer System
Indicator
Inst rument s and Cont rols
Instrument Panel Indicators
59
——y
y
(%yy

The odometer shows the total dis-
tance your vehicle has been driven.
It measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.The trip meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
The odometer and the trip meters
use the same display. Switch
between these displays by pressing
the Select/Reset knob.
Gauges
Odometer/T rip Meter
Fuel Gauge
U.S.:HX,LX,EX,Canada:LX,Si
Inst rument s and Cont rols60
TEMPERATURE GAUGE
FUEL GAUGE
ODOMETER/TRIP METER
The U.S. instrument
panel is shown. TACHOMETER
SPEEDOMETER
SELECT/RESET KNOB
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
——y
y
(%yy

This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (Hot) mark, pull
safely to the side of the road. Turn to
page f or instructions and
precautions on checking the engine’s
cooling system.157
Gauges
Inst rument s and Cont rols
Temperature Gauge

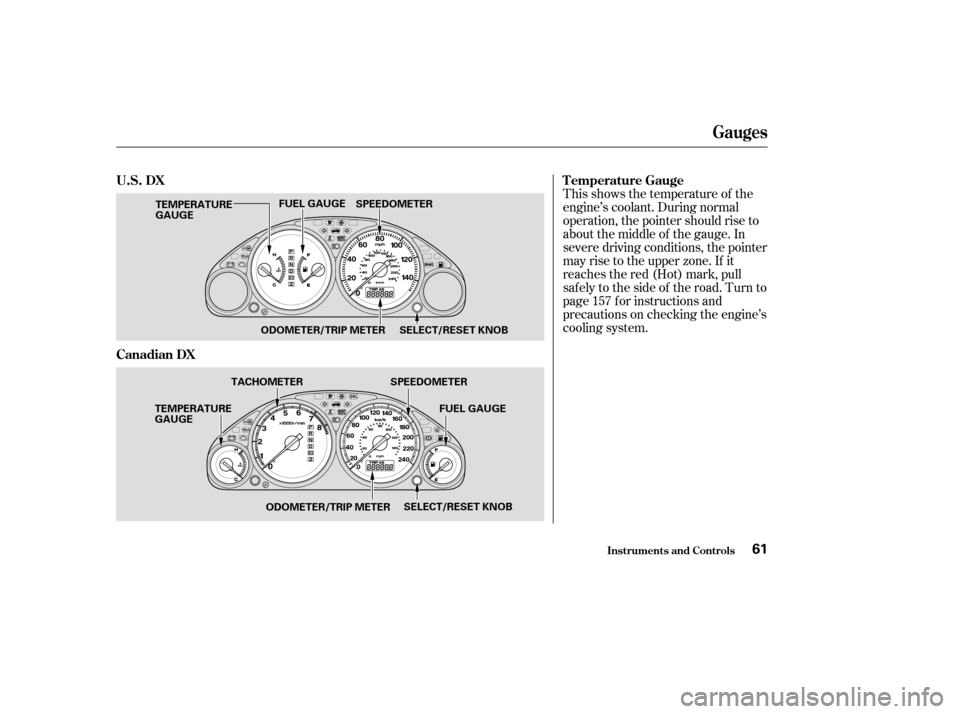

Canadian DX
U.S. DX
61
SPEEDOMETER
SELECT/RESET KNOB
TACHOMETER
TEMPERATURE
GAUGE
ODOMETER/TRIP METER FUEL GAUGE
FUEL GAUGE
SPEEDOMETER
TEMPERATURE
GAUGE
ODOMETER/TRIP METER SELECT/RESET KNOB
——y

y
(%yy

Press and hold the Select/Reset
knob in the instrument panel, then
turn the ignition switch to ON (II).
Hold the knob f or about ten
seconds until the light goes of f .
Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), this
indicator will light f or two seconds
when you first turn the ignition
switch to ON (II), and then flash for
ten seconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this
indicator will remain on as a constant
reminder.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
done by someone other than your
Honda dealer, reset the indicator as
f ollows.
Turn of f the engine.
This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving
Conditions on pages and .
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
two seconds when you turn the
ignition switch to ON (II).
1.2. 3.
145 147
Maintenance Required
Indicator
Inst rument s and Cont rols
Maintenance Required Indicator
62
——y
y
(%yy

Î
ÎTo use the horn, press the center pad of the steering wheel.

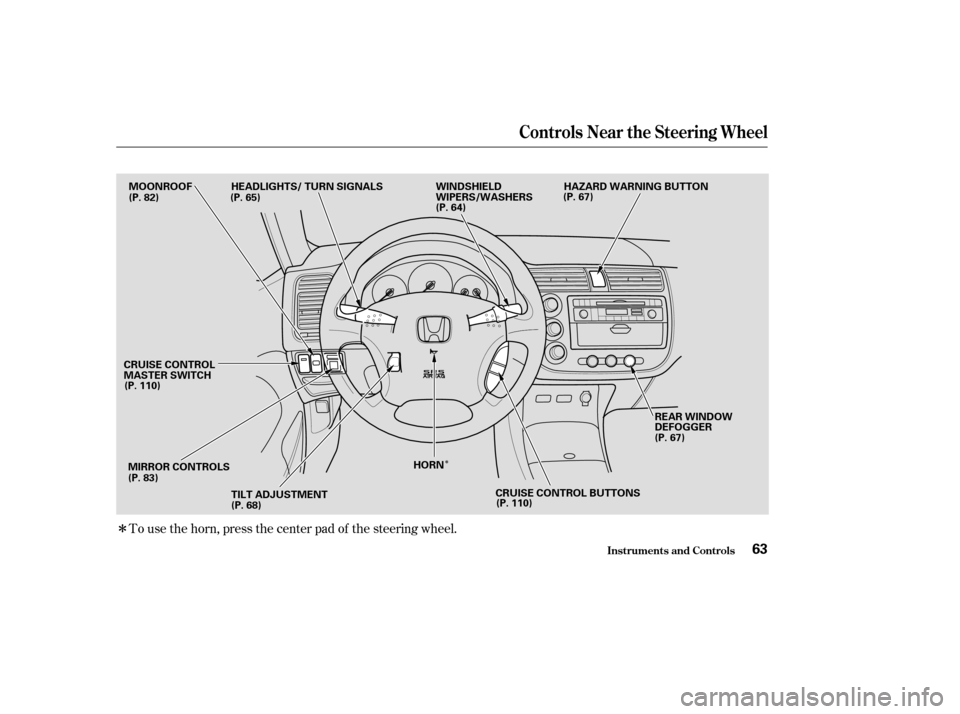

Controls Near the Steering Wheel
Inst rument s and Cont rols63
MOONROOF
MIRROR CONTROLS TILT ADJUSTMENT HORN REAR WINDOW
DEFOGGER
WINDSHIELD
WIPERS/WASHERS
HEADLIGHTS/ TURN SIGNALS
CRUISE CONTROL
MASTER SWITCH (P. 82) (P. 65)
(P. 64)(P. 67)
(P. 110) (P. 83) (P. 68) (P. 67)
CRUISE CONTROL BUTTONS (P. 110) HAZARD WARNING BUTTON
——y
y
(%yy

µ
µ
µ µ
µ µ
µ
µ
µ Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated.
Vary the delay by turning the INT
TIME ring. The wipers run at low speed.The length of the wipe
interval is varied automatically
according to vehicle’s speed.
The wipers run at high speed. Pull the
wiper control lever toward you and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
MIST
OFF
INT Intermittent
LO Low
HI High
Windshield Washers
1.2.3.4.5.6.
OnEXmodelinU.S.,andSimodelsin
Canada
Windshield Wipers and Washers
Inst rument s and Cont rols
MIST
OFF LO
INTHI Windshield Washer
64
——y
y
(%yy

µµµ
Push down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever in
the proper direction and hold it. The
lever will return to center when you
release it or complete a turn. To turn on, push
the lever f orward until you hear a
click. The blue high beam indicator
will light (see page ). Pull it back
to return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beams will stay on as long as you
hold the lever back.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch ON (II) and
release the parking brake. They
remain on until you turn the ignition
of f , even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
Rotating switch
on the lef t lever controls to the
‘‘ ’’ position turns on the parking
lights, taillights, instrument panel
lights, side-marker lights, and rear
license plate lights. Turning the
switch to the ‘‘ ’’ position turns
on the headlights. If you leave the
lights on with the key removed f rom
the ignition switch, you will hear a
reminder tone when you open the
driver’s door.
Turn Signal
Of f
Parking and indicator lights
Headlights on
High beams
Flashhighbeams
1.2.3.4.5.6. 58
Turn Signal High Beams
Daytime Running L ights
(Canadian Models)
Headlights On
Inst rument s and Cont rols
Turn Signal and Headlights
65
——y
y
(%yy
