2004 HONDA ACCORD COUPE Owners Manual

If the electric motor will not close
the moonroof , do the f ollowing:Check the f use f or the moonroof
motor (see page ). If the f use
is blown, replace it with one of the
same or lower rating.
Try closing the moonroof . If the
new f use blows immediately or the
moonroof motor still does not
operate, you can close the
moonroof manually.
Get the moonroof wrench out of
the tool kit in the trunk. Remove the wrench. Reinstall the
round plug.
If you need to close the moonroof
manually, it means your vehicle’s
moonroof opening/closing f unction
is developing a problem. Have your
vehicle checked by a Honda dealer.

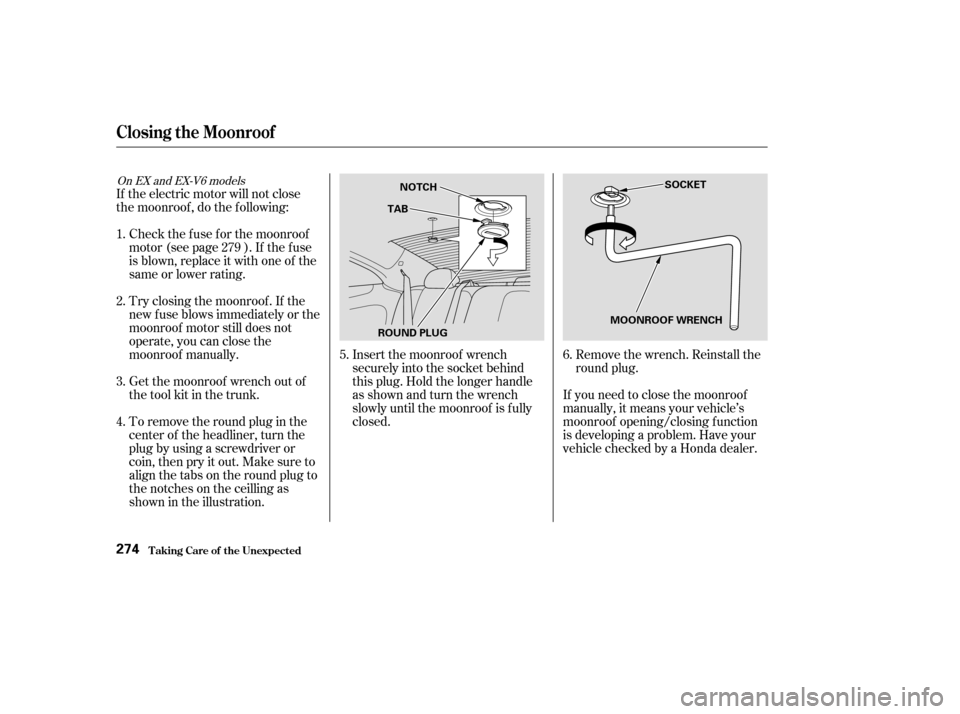

To remove the round plug in the
center of the headliner, turn the
plug by using a screwdriver or
coin, then pry it out. Make sure to
align the tabs on the round plug to
the notches on the ceilling as
shown in the illustration. Insert the moonroof wrench
securely into the socket behind
this plug. Hold the longer handle
as shown and turn the wrench
slowly until the moonroof is f ully
closed.
4.
3.
1. 2.
279
5. 6.
On EX and EX-V6 models
Closing t he Moonroof
T aking Care of t he Unexpect ed274
SOCKET
ROUND PLUG TAB
NOTCH
MOONROOF WRENCH
——y
y
(%
yy

The under-hood f use box is located
on the driver’s side. To open it, push
thetabsasshown.If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
f use box lid, which f use or f uses
control that device. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
the cause. Replace any blown f uses,
and check if the device works.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are off.
Remove the cover f rom the f use
box.
The vehicle’s f uses are located in
two f use boxes.
The interior f use box is on the
driver’s lower lef t side. To remove
the f use box lid, put your f inger in
the notch on the lid, and pull it
upward slightly, then pull it toward
you and take it out of its hinges. 1. 2.278 279
CONT INUED
Fuses
T aking Care of t he Unexpect ed
Checking and Replacing Fuses
275
INTERIOR
UNDER-HOOD
TAB
NOTCH
——y

y
(%
yy

Check each of the large f uses in
the under-hood f use box by
looking through the side window
atthewireinside.Removethe
screws with a Phillips-head
screwdriver.Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each f use with the f use
puller provided in the under-hood
fuse box.
3.
4.
Fuses
T aking Care of t he Unexpect ed276
BLOWNBLOWN
FUSE PULLER
——y
y
(%
yy

Look f or a burned wire inside the
f use. If it is burned, replace it with
oneof thesparefusesof thesame
rating or lower.If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits with
the f use puller provided in the under-
hood f use box. Make sure you can
do without that circuit temporarily
(such as the accessory power socket
or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit, and have your vehicle
checked by a qualif ied mechanic.
5. 6.
Fuses
T aking Care of t he Unexpect ed277
NOTICE:BLOWNReplacing a f use with one
that has a higher rating greatly
increases the chances of damaging the
electrical system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
——y
y
(%
yy

µµ
Î Î Î
´
Î
No. Amps. Circuits Protected No. Amps. Circuits Protected No. Amps. Circuits Protected
: 6-cylinder models
1 2345 10 A
(30A) 10 A
15 A
10 A Left Headlight Low Beam
(Rear Defroster Coil)
Left Headlight High Beam
Small Light
Right Headlight High Beam 6789
10 10 A
7.5 A 15 A
20 A Right Headlight Low Beam
Back Up
FI ECU
Condenser f an
Not Used 111112131415161717181819202122 23
20 A
30 A
7.5 A
20 A
40 A
40 A
15 A
30 A
30 A
20 A
40 A
40 A
(40 A) 40 A
100 A
50 A
50 A Cooling Fan
Cooling Fan
MG. Clutch
Horn, Stop
Rear Defroster
Back Up, ACC
Hazard
ABS Motor
TCS Motor
ABS F/S
TCS
Option
Option
Heater Motor
Battery
Not Used
BIG1Main
Power Window Main
Fuse Locations
T aking Care of t he Unexpect ed278
UNDER-HOOD FUSE/RELAY BOX
——y
y
(%
y
y

Î
µ µµ µ
µ µ µ
Î
No. Amps. Circuits Protected Amps. Circuits Protected
No. Circuits Protected
No. Amps.
: On Canadian models
1234567 (15 A)
15 A
(10 A) 15 A
10 A
7.5 A
10 A DBW
Ignition Coil
Daytime Running Light
Laf Heater
Radio
Interior Light
Back-Up Lights 20 A
15 A
7.5 A
30 A Door Lock
Front Accessory Sockets
IG OPDS (Occupant
Position Detection System)
IG Wiper
Not Used
Not Used
89
10 11 1213 Driver’s Power Seat Sliding
Heated Seats
Driver’s Power Seat
Reclining
Not Used
IG ACG
IG Fuel Pump
IG Washer
IG Meter
IG SRS
IGP (PGM-FI ECU)
Not Used
Not Used
Passenger’s Power Window
Driver’s Power Window
Moonroof
Not Used
IG HAC
Not Used
ACC
HAC OP
141516 17 18192021222324252627282930313233 (20 A)
(20 A)
(20 A)
15 A
15 A
7.5 A
7.5 A 10 A
7.5 A
20 A
20 A
(20 A)
7.5 A
7.5 A
7.5 A
Fuse Locations
T aking Care of t he Unexpect ed279
INTERIOR FUSE BOX
——y
y
(%
yy

280
——y
y
(%
yy

Thediagramsinthissectiongive
you the dimensions and capacities of
your Honda, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers . 282
Specif ications
..................
(4-cylinder Models) . 284
Specif ications ..................
(6-cylinder Models) . 286
DOT Tire Quality Grading .....................
(U.S.Vehicles) .288
.................................
Treadwear . 288
......................................
Traction . 288
.............................
Temperature . 289
.................................
Tire Labeling . 290 .........................
Oxygenated Fuels . 291
......
Driving in Foreign Countries . 292
.......................
Emissions Controls . 293
.....................
The Clean Air Act . 293
Crankcase Emissions Control
....................................
System . 293
Evaporative Emissions Control ....................................
System . 293
Onboard Ref ueling Vapor ................................
Recovery . 293
...
Exhaust Emissions Controls . 294
....................
PGM-FI System . 294
Ignition Timing Control
................................
System . 294
Exhaust Gas Recirculation ...................
(EGR) System . 294
Three Way Catalytic ...........................
Converter . 294
....................
Replacement Parts . 294
..
Three Way Catalytic Converter . 295
..............
State Emissions Testing . 296
....
Testing of Readiness Codes . 296
