DODGE SPRINTER 2004 1.G Owners Manual MAINTAININ G YOUR VEHICLE 233
7
BULB REPLA CEMENTSwitch the lights off to prevent short circuits.
Only touch new bulbs with a clean, lint-free cloth. Do
not touch bulbs with wet or greasy fingers.
Onl

Page 234 of 272

DODGE SPRINTER 2004 1.G Owners Manual 234 MAINTAINING YOUR VEHICLE1. Turn signal lamp and sidemarker lamp,
3457 NA – 12V 28 / 7.5W, yellow glass
2. Low beam headlamp, H7 – 12V 55W
3. Fog lamp, H1 – 12V 55W
4. Side and parking lamps,

Page 235 of 272

DODGE SPRINTER 2004 1.G Owners Manual MAINTAININ G YOUR VEHICLE 235
7

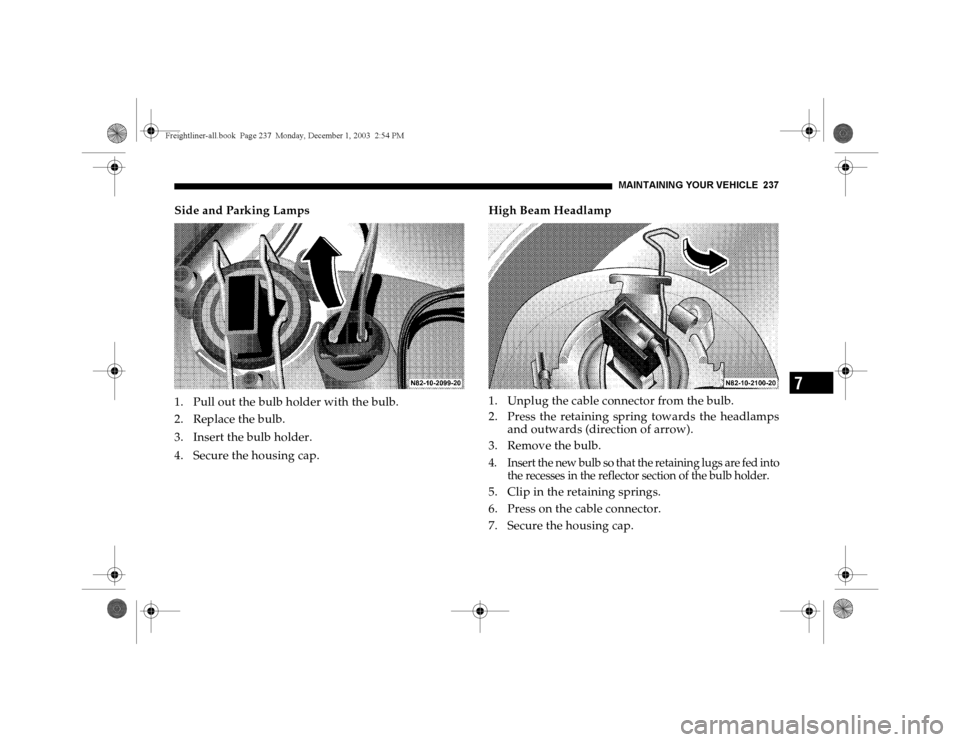

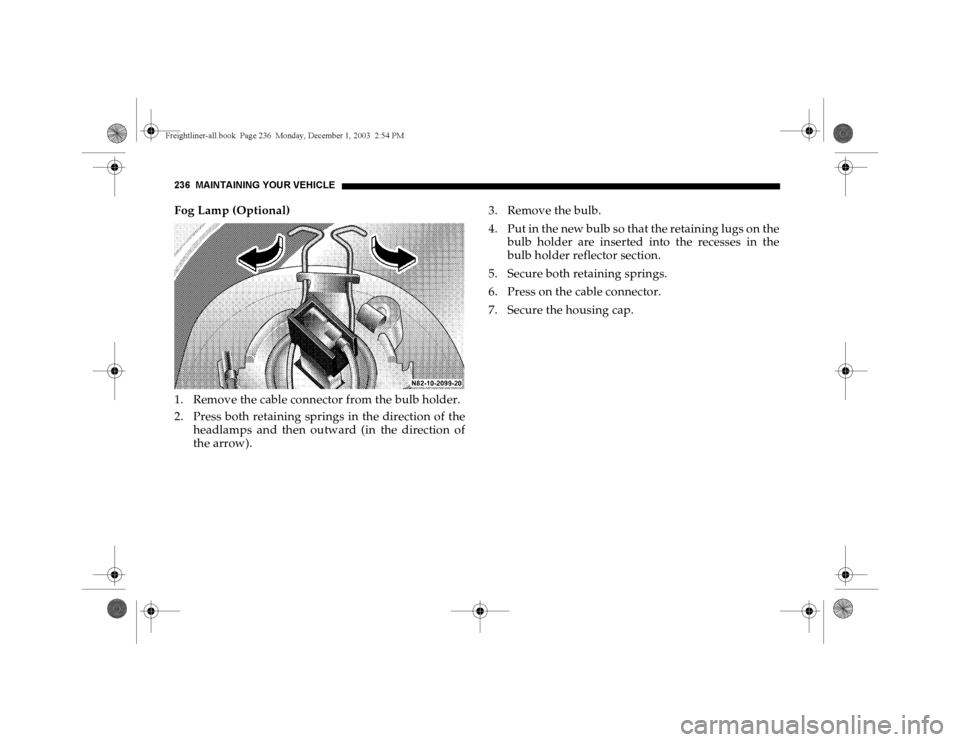

Low Beam Headlamps
1. Unplug the cable connector from the bulb.
2. Unclip in the retaining springs. Press the retaining
springs towards the headlamps and down
(directio

Page 236 of 272

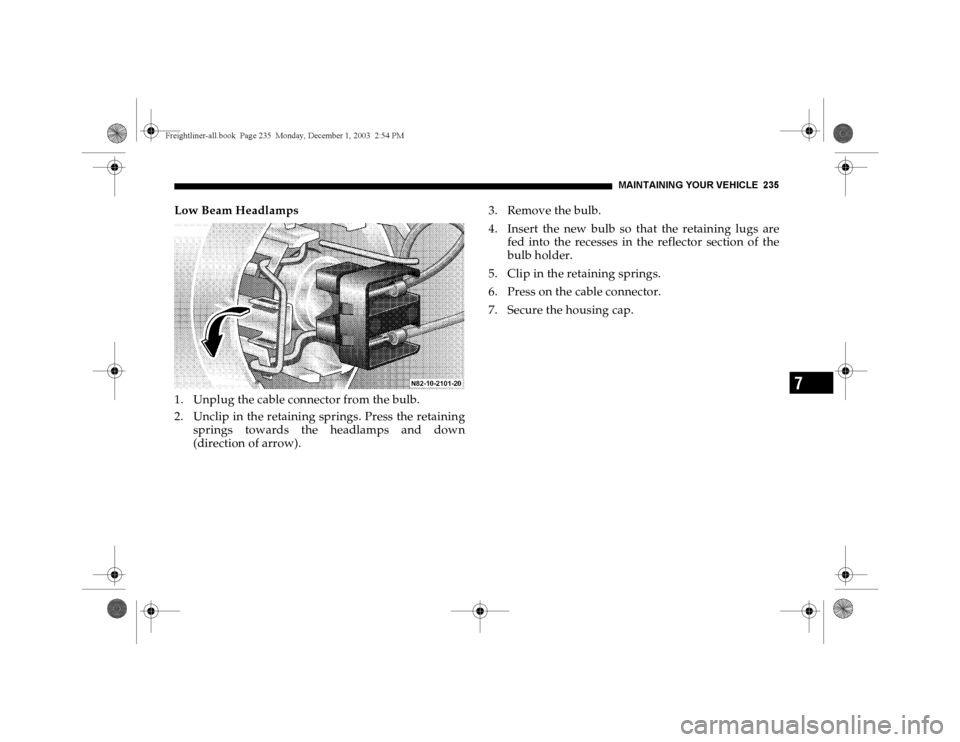

DODGE SPRINTER 2004 1.G Owners Manual 236 MAINTAINING YOUR VEHICLEFog Lamp (Optional)
1. Remove the cable connector from the bulb holder.
2. Press both retaining springs in the direction of the
headlamps and then outward (in the direction

Page 237 of 272

DODGE SPRINTER 2004 1.G Owners Manual MAINTAININ G YOUR VEHICLE 237
7
Side and Parking Lamps
1. Pull out the bulb holder with the bulb.
2. Replace the bulb.
3. Insert the bulb holder.
4. Secure the housing cap.High Beam Headlamp
1. Unplug

Page 238 of 272

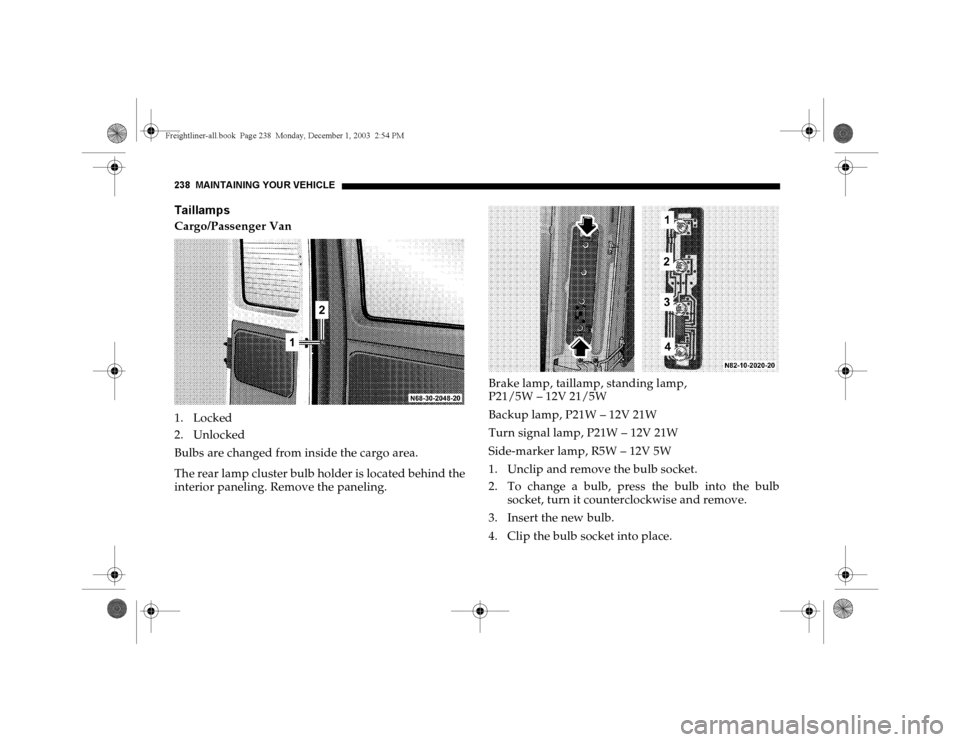

DODGE SPRINTER 2004 1.G Owners Manual 238 MAINTAINING YOUR VEHICLETaillampsCargo/Passenger Van
1. Locked
2. Unlocked
Bulbs are changed from inside the cargo area.
The rear lamp cluster bulb holder is located behind the
interior paneling.

Page 239 of 272

DODGE SPRINTER 2004 1.G Owners Manual MAINTAININ G YOUR VEHICLE 239
7
Chassis
Retaining screws
Clearance lamp, R5W - 12V 5W
Turn signal lamp, P21W - 12V 21W
Stop lamp, P21W - 12V 21W
Taillamp, R5W - 12V 5W
Backup lamp, P21W - 12V 21W
Lice

Page 240 of 272

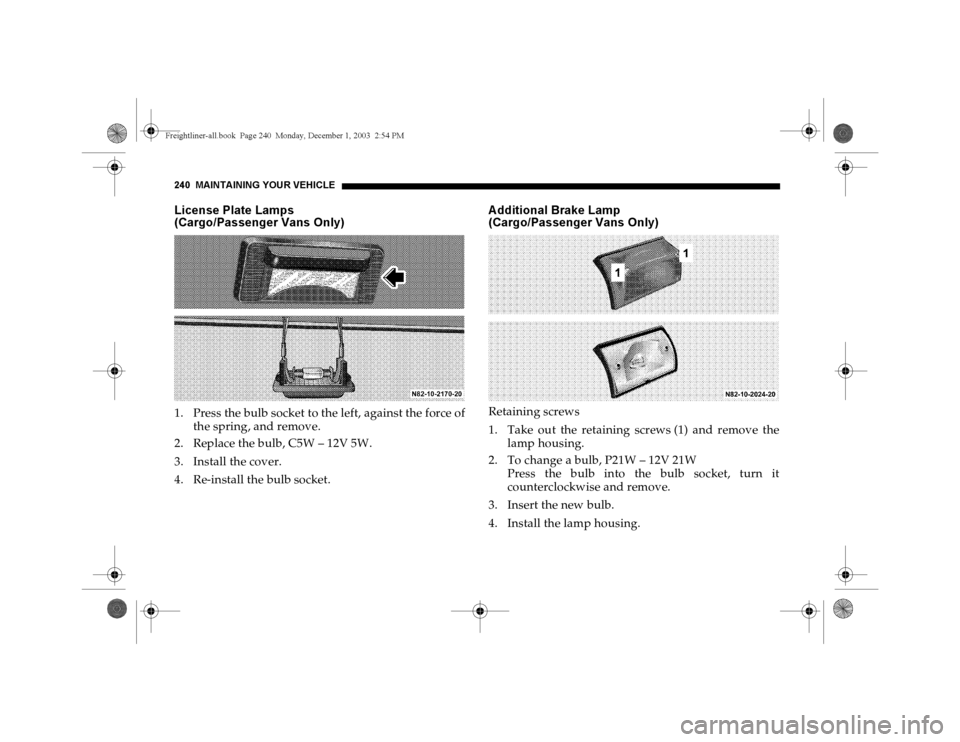

DODGE SPRINTER 2004 1.G Owners Manual 240 MAINTAINING YOUR VEHICLELicense Plate Lamps
(Cargo/Passenger Vans Only)1. Press the bulb socket to the left, against the force of
the spring, and remove.
2. Replace the bulb, C5W – 12V 5W.
3. In
