2004 BMW 545I SEDAN Owner's Manual

7

Reference
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

Service and warranty

We recommend that you read this publica-
tion thoroughly.
Your BMW is covered by the following war-
ranties:

>

New Vehicle Limited Warranty

>

Rust Perforation Limited Warranty

>

Federal Emissions System Defect
Warranty

>

Federal Emissions Performance
Warranty

>

California Emission Control System
Limited Warranty.
Detailed information about these warran-
ties is listed in the Service and Warranty
Information Booklet for US models or in the
Warranty and Service Guide Booklet for
Canadian models.

Reporting safety defects

The following only applies to vehicles
owned and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration NHTSA in addition to notify-
ing BMW of North America, LLC, P.O. Box
1227, Westwood, New Jersey 07675-
1227, Telephone (800) 831-1117.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual problems
between you, your dealer, or BMW of North
America, LLC.
To contact NHTSA, you may either call the
Auto Safety Hotline toll-free at
1-800-424-9393 (or 366-0123
in Washington, D.C. area) or write to:
NHTSA, U.S. Department of Transporta-
tion, Washington, D.C. 20590. You can also
obtain other information about motor vehi-
cle safety from the Hotline.

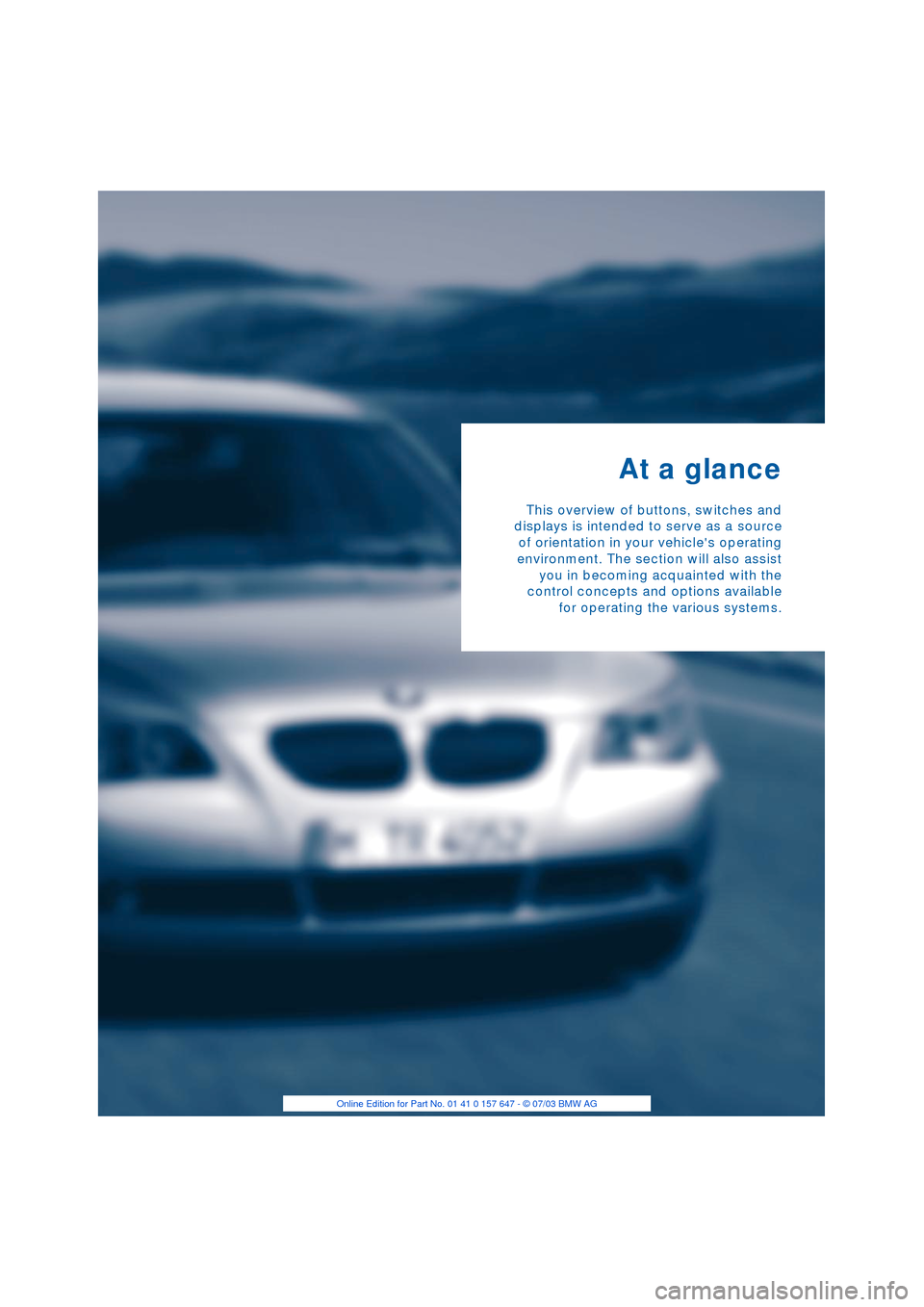

At a glance
This overview of buttons, switches and
displays is intended to serve as a source
of orientation in your vehicle's operating
environment. The section will also assist
you in becoming acquainted with the
control concepts and options available
for operating the various systems.

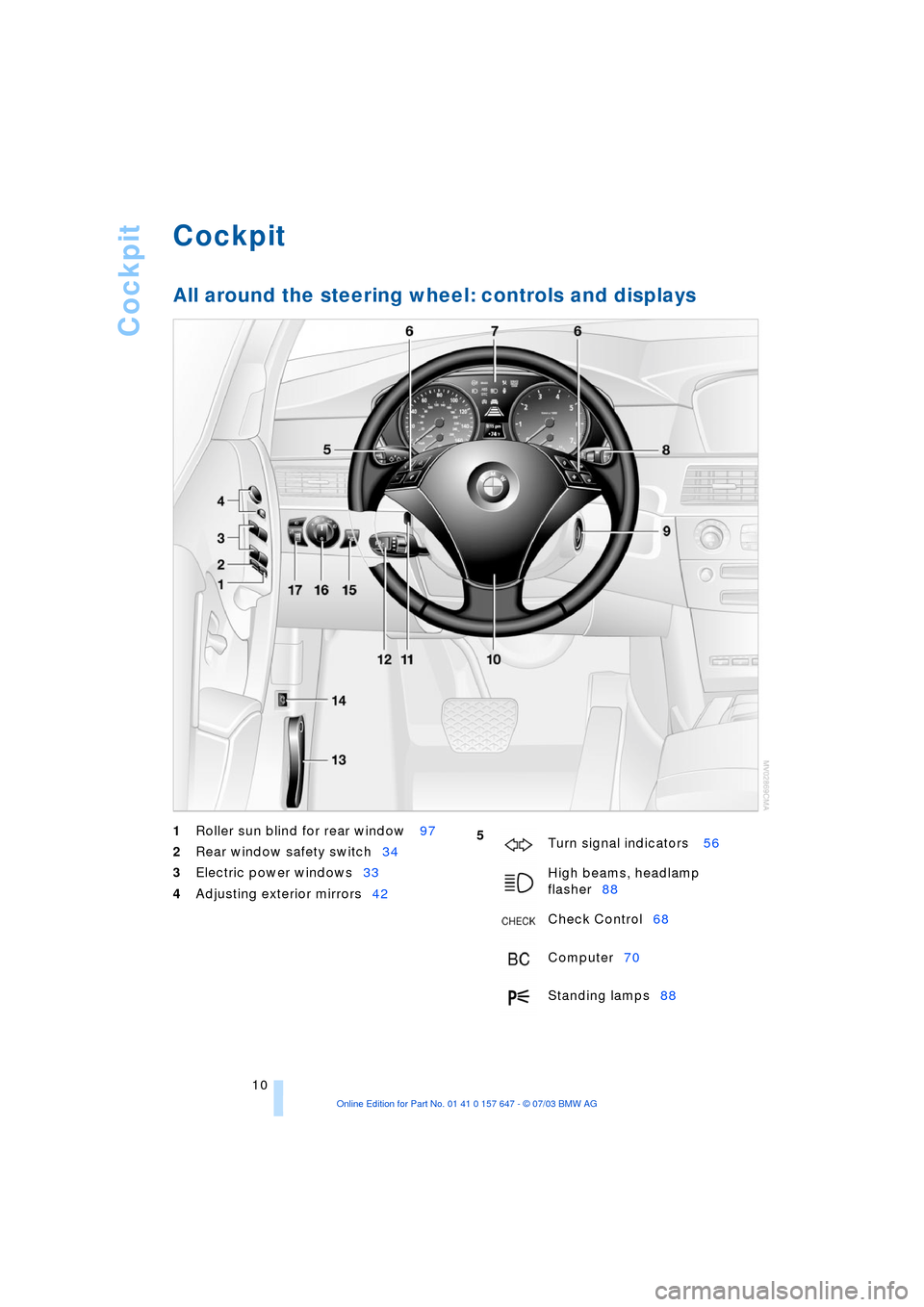

Cockpit

10

Cockpit
All around the steering wheel: controls and displays

1

Roller sun blind for rear window 97

2

Rear window safety switch34

3

Electric power windows33

4

Adjusting exterior mirrors42

5

Turn signal indicators 56
High beams, headlamp
flasher88
Check Control68
Computer70
Standing lamps88

At a glance

11

Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

6

Buttons on steering wheel
Portable phone

*
:

>

Accepting a call

>

Start calling

>

Ending call.
Volume
Voice command system.
Fast forward/reverse:

>

Radio
Press briefly: change station
Press longer: manual tuning or auto-
matic search scan

>

CD
Press briefly: select track
Press longer: fast forward/reverse.
Individually programmable, refer to
page 44.

>

Individually programmable, refer to
page 44

>

Voice instructions for navigation.

7

Instrument cluster12

9

Ignition lock49

10

Horn: the entire surface

13

Opening the hood177

14

Opening the luggage compartment
lid31

16

Parking lamps and low beams87

8

Windshield wipers57
Rain sensor57

11

Steering wheel heater44
Steering wheel adjustment43

12

Cruise control58
Active cruise control59

15

Head-Up Display85

17

Instrument lighting88
Front fog lamps89

Cockpit
12

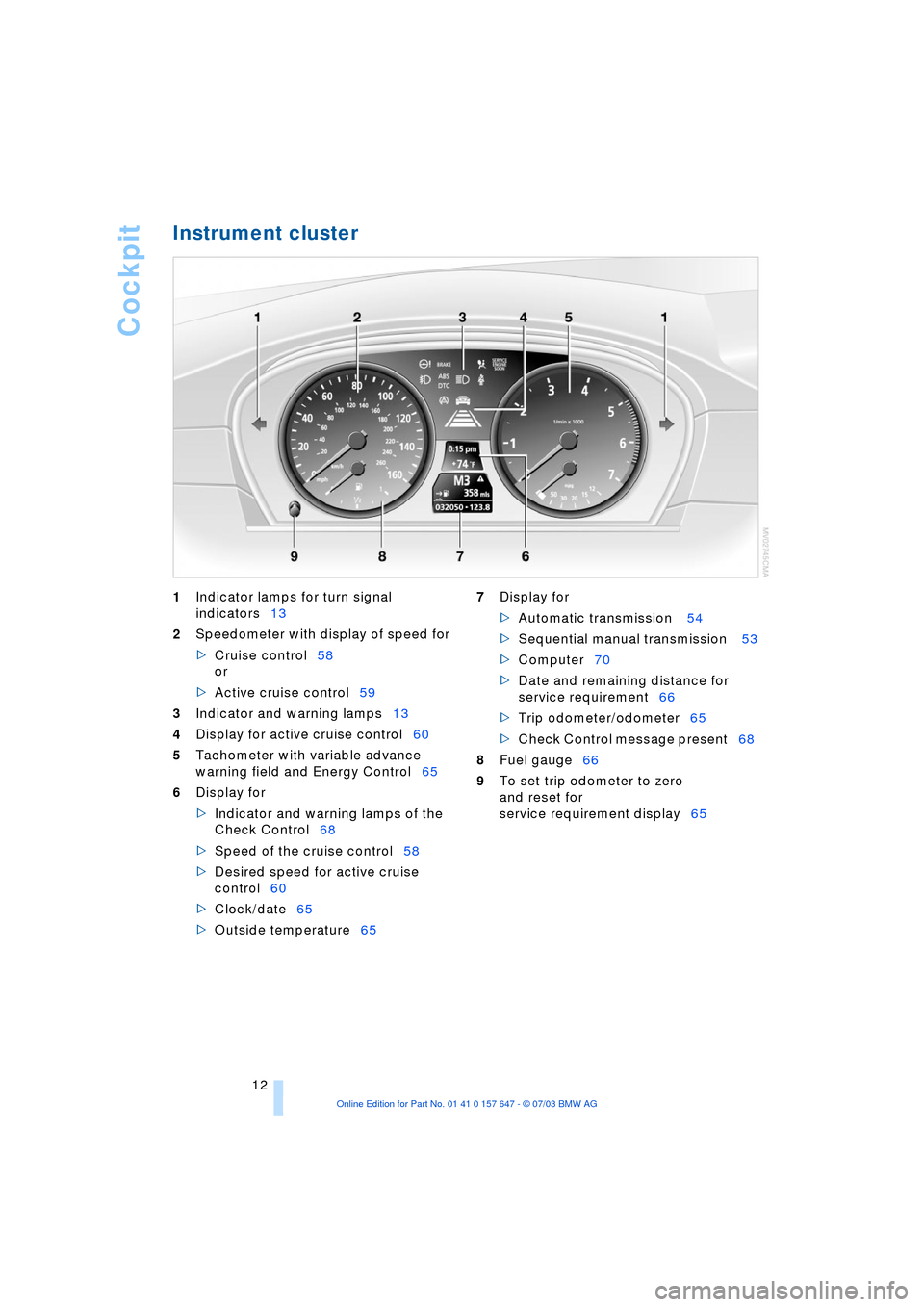

Instrument cluster
1Indicator lamps for turn signal
indicators13
2Speedometer with display of speed for
>Cruise control58
or
>Active cruise control59
3Indicator and warning lamps13
4Display for active cruise control60
5Tachometer with variable advance
warning field and Energy Control65
6Display for
>Indicator and warning lamps of the
Check Control68
>Speed of the cruise control58
>Desired speed for active cruise
control60
>Clock/date65
>Outside temperature65 7Display for
>Automatic transmission 54
>Sequential manual transmission 53
>Computer70
>Date and remaining distance for
service requirement66
>Trip odometer/odometer65
>Check Control message present68
8Fuel gauge66
9To set trip odometer to zero
and reset for
service requirement display65

At a glance
13Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Indicator and warning
lamps
Technology that monitors itself
The indicator and warning lamps identified
by the
+ symbol are subjected to an oper-
ation check each time you switch on the
ignition or start the engine. They each light
up once for different periods of time.
When a malfunction occurs in a monitored
system, the corresponding lamp will either
fail to go out when the engine is started, or
it will come on again during normal driving.
For information on how you should respond
when this happens, please refer to the
pages indicated.
Colors
The indicator and warning lamps can light
up in different colors and combinations.
The following section explains the signifi-
cance of the individual colors as well as
how you should respond when they
appear.
>Red:
Stop immediately
or
important reminder
>Red and yellow:
Continue driving moderately
>Yellow:
Have checked soon
or
for your information
>Green or blue:
For your information.
Indicator and warning lamps of the
Check Control
Other indicator and warning lamps appear
in display 6 of the instrument cluster as
necessary, accompanied by supplemen-
tary text on the Control Display, refer to
Check Control, page 68. Turn signal indicators 56
Active steering
+82
Handbrake/brake fluid, brake
hydraulics/DBC Dynamic Brake
Control
+50/ 180/ 79
Handbrake/brake fluid, brake
hydraulics/DBC Dynamic Brake
Control for Canadian models
Airbags
+83
Service Engine Soon
+183
If the indicator lamp comes on
either continuously or intermit-
tently, this indicates a fault in the
emissions-related electronic sys-
tems. Although the vehicle
remains operational, you should
have the systems checked by your
BMW center at the earliest possi-
ble opportunity.
Service Engine Soon indicator
lamp for Canadian models.
Front fog lamps 89
ABS Antilock Brake System
+77
DTC Dynamic Traction Control79
High beams/headlamp flasher 88
Please fasten safety belt
+40
DSC Dynamic Stability
Control
+78
Check Gas Cap168
lamp for US models

Cockpit
14

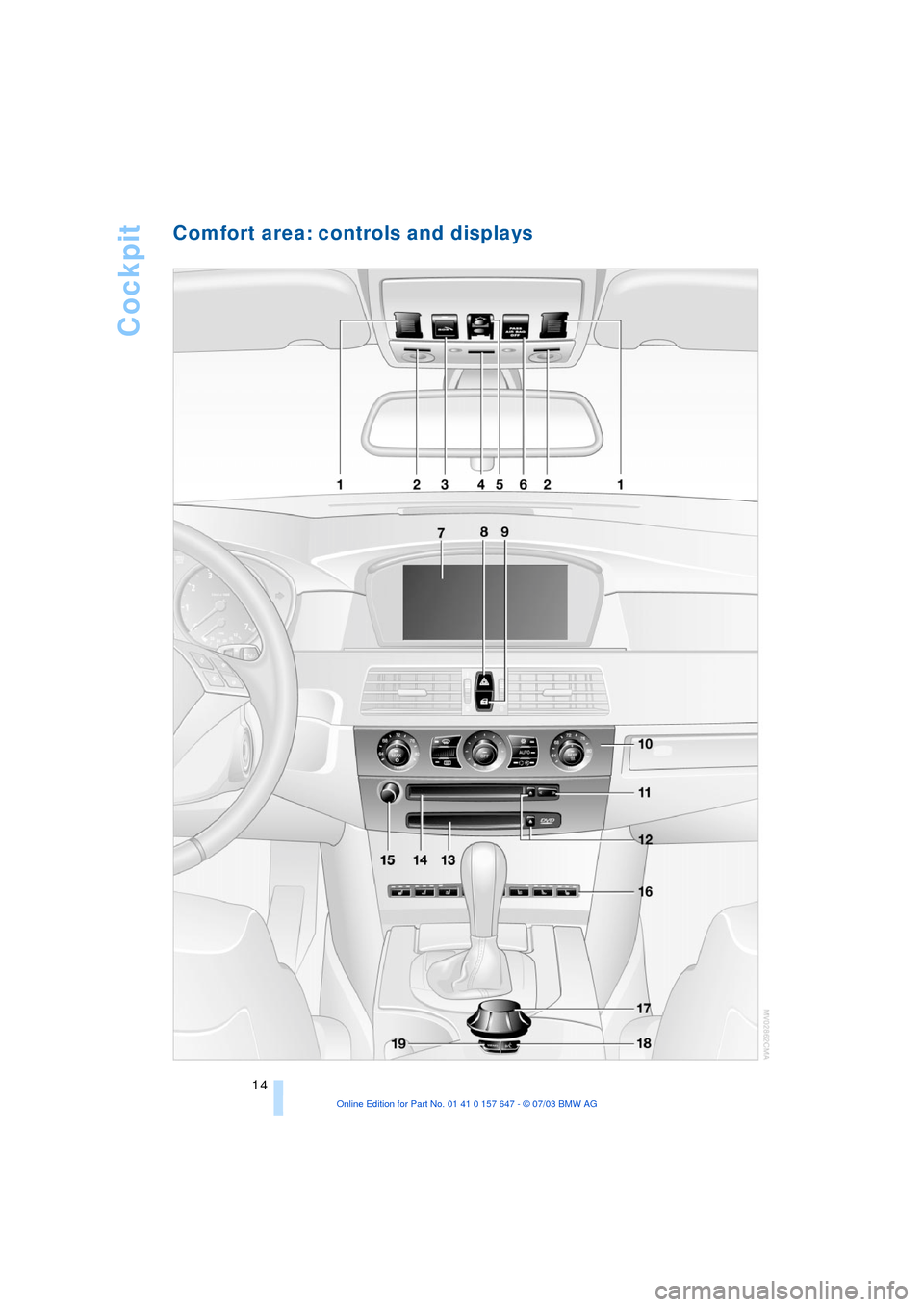

Comfort area: controls and displays
