1 - 19
GEN
INFO

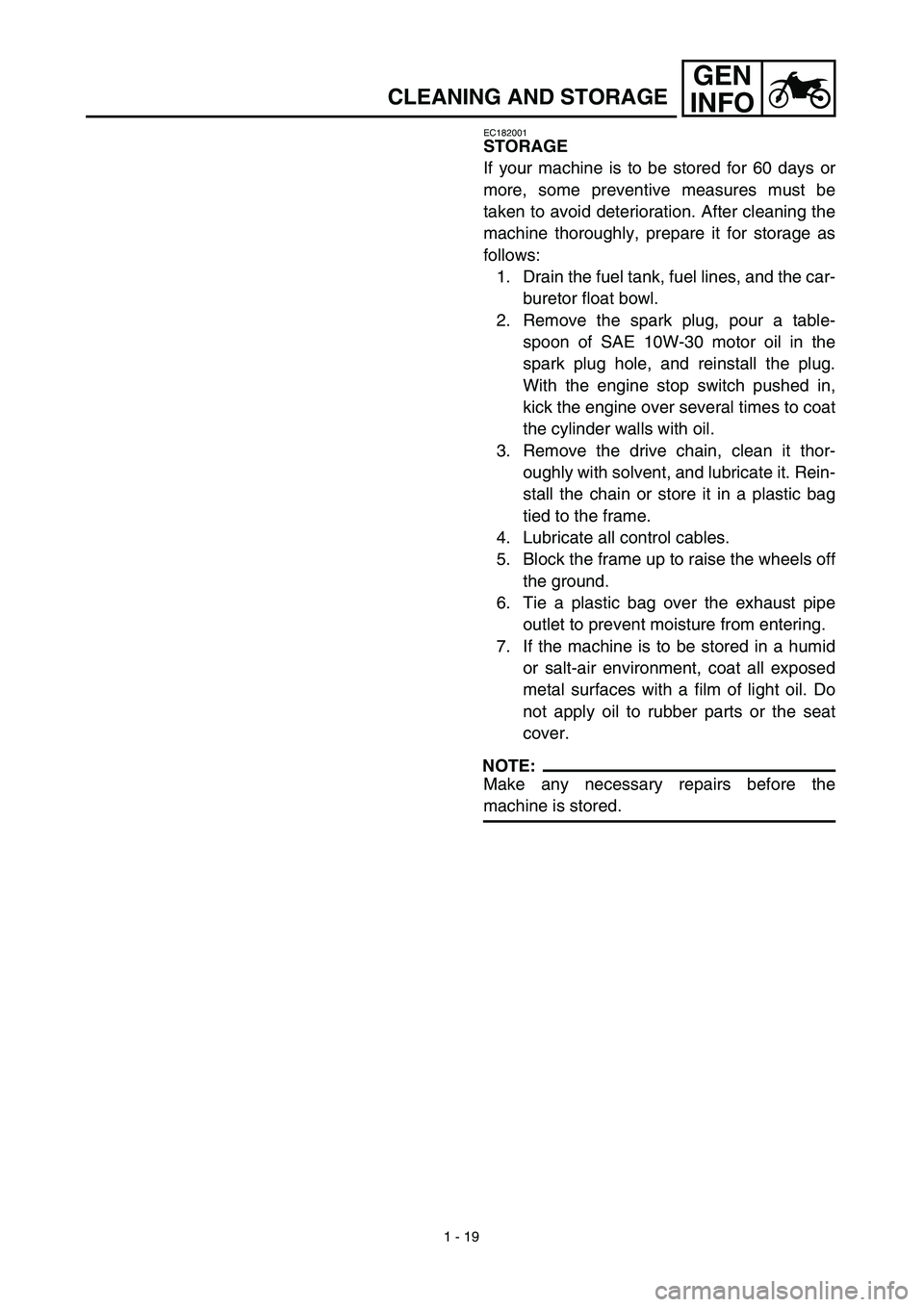

CLEANING AND STORAGE
EC182001
STORAGE
If your machine is to be stored for 60 days or
more, some preventive measures must be
taken to avoid deterioration. After cleaning the
machine thoroughly, prepare it for storage as
follows:
1. Drain the fuel tank, fuel lines, and the car-
buretor float bowl.
2. Remove the spark plug, pour a table-
spoon of SAE 10W-30 motor oil in the
spark plug hole, and reinstall the plug.
With the engine stop switch pushed in,
kick the engine over several times to coat
the cylinder walls with oil.
3. Remove the drive chain, clean it thor-
oughly with solvent, and lubricate it. Rein-
stall the chain or store it in a plastic bag
tied to the frame.
4. Lubricate all control cables.
5. Block the frame up to raise the wheels off
the ground.
6. Tie a plastic bag over the exhaust pipe
outlet to prevent moisture from entering.
7. If the machine is to be stored in a humid
or salt-air environment, coat all exposed
metal surfaces with a film of light oil. Do
not apply oil to rubber parts or the seat
cover.
NOTE:
Make any necessary repairs before the
machine is stored.

SPEC

2 - 1
GENERAL SPECIFICATIONS
EC200000
SPECIFICATIONS
EC211000
GENERAL SPECIFICATIONS
TT-R125E
Model name: TT-R125ER (USA, CDN, AUS, NZ)
TT-R125E (EUROPE, ZA)
Model code number: 5HPK (USA, AUS, NZ, EUROPE, ZA)
5HPL (CDN)
Dimensions: USA, AUS, NZ,
ZA, EUROPECDN
Overall length 1,830 mm (72.0 in) 1,865 mm (73.4 in)
Overall width 785 mm (30.9 in)
←
Overall height 1,055 mm (41.5 in)
←
Seat height 775 mm (30.5 in)
←
Wheelbase 1,250 mm (49.2 in)
←
Minimum ground clearance 265 mm (10.4 in)
←
Basic weight:
With oil and full fuel tank 90 kg (198.4 lb)
Engine:
Engine type Air cooled 4-stroke, SOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 124 cm
3

(7.57 cu.in)
Bore
×
stroke 54.0
×
54.0 mm (2.126
×
2.126 in)
Compression ratio 10.0:1
Starting system Kick and electric starter
Lubrication system: Wet sump
Oil type or grade:
Engine oil (For USA and CDN)
At –10 ˚C (10 ˚F) or higher
Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE motor oil
At 5 ˚C (40 ˚F) or higher
ı

Yamalube 4 (20W-40) or SAE 20W-40 type
SE motor oil
(Except for USA and CDN)
API “SE” or higher grade

SPEC

2 - 2
GENERAL SPECIFICATIONS
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Air filter: Wet type element
Fuel:
Type Unleaded gasoline only (USA, AUS, NZ)
Regular unleaded gasoline only
(CDN, EUROPE)
Regular gasoline (ZA)
Tank capacity 6.6 L (1.45 Imp gal, 1.74 US gal)
Reserve amount 1.9 L (0.42 Imp gal, 0.5 US gal)
Carburetor:
Type VM20SS
Manufacturer MIKUNI
Spark plug:
Type CR7HSA/U22FSR-U
Manufacturer NGK/DENSO
Gap 0.6 ~ 0.7 mm (0.02 ~ 0.03 in)
Clutch type: Wet, multiple-disc
Transmission:
Primary reduction system Gear
Primary reduction ratio 68/19 (3.579)
Secondary reduction system Chain drive
Secondary reduction ratio 49/13 (3.769)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 37/14 (2.643)
2nd 32/18 (1.778)
3rd 25/19 (1.316)
4th 23/22 (1.045)
5th 21/24 (0.875)
Chassis:
Frame type Diamond
Caster angle 28.7˚
Trail 93 mm (3.66 in)
Tire:
Type With tube
Size (front) 70/100-17 40M
Size (rear) 90/100-14 49M
Manufacturer (front and rear) CHENG SHIN
Tire pressure (front and rear) 100 kPa (1.00 kgf/cm
2

, 15 psi)
2

SPEC

2 - 4
GENERAL SPECIFICATIONS
TT-R125LWE
Model name: TT-R125LWER (USA, CDN, AUS, NZ)
TT-R125LWE (EUROPE, ZA)
Model code number: 5HPM (USA, AUS, NZ, EUROPE, ZA)
5HPN (CDN)
Dimensions: USA, AUS, NZ,
ZA, EUROPECDN
Overall length 1,885 mm (74.2 in) 1,890 mm (74.4 in)
Overall width 795 mm (31.3 in)
←
Overall height 1,085 mm (42.7 in)
←
Seat height 805 mm (31.7 in)
←
Wheelbase 1,270 mm (50.0 in)
←
Minimum ground clearance 295 mm (11.6 in)
←
Basic weight:
With oil and full fuel tank 90 kg (198.4 lb)
Engine:
Engine type Air cooled 4-stroke, SOHC
Cylinder arrangement Single cylinder, forward inclined
Displacement 124 cm
3

(7.57 cu.in)
Bore
×
stroke 54.0
×
54.0 mm (2.126
×
2.126 in)
Compression ratio 10.0:1
Starting system Kick and electric starter
Lubrication system: Wet sump
Oil type or grade:
Engine oil (For USA and CDN)
At –10 ˚C (10 ˚F) or higher
Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE motor oil
At 5 ˚C (40 ˚F) or higher
ı

Yamalube 4 (20W-40) or SAE 20W-40 type
SE motor oil
(Except for USA and CDN)
API “SE” or higher grade

SPEC

2 - 5
GENERAL SPECIFICATIONS
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Air filter: Wet type element
Fuel:
Type Unleaded gasoline only (USA, AUS, NZ)
Regular unleaded gasoline only
(CDN, EUROPE)
Regular gasoline (ZA)
Tank capacity 6.6 L (1.45 Imp gal, 1.74 US gal)
Reserve amount 1.9 L (0.42 Imp gal, 0.5 US gal)
Carburetor:
Type VM20SS
Manufacturer MIKUNI
Spark plug:
Type CR7HSA/U22FSR-U
Manufacturer NGK/DENSO
Gap 0.6 ~ 0.7 mm (0.02 ~ 0.03 in)
Clutch type: Wet, multiple-disc
Transmission:
Primary reduction system Gear
Primary reduction ratio 68/19 (3.579)
Secondary reduction system Chain drive
Secondary reduction ratio 54/13 (4.154)
Transmission type Constant mesh, 5-speed
Operation Left foot operation
Gear ratio: 1st 37/14 (2.643)
2nd 32/18 (1.778)
3rd 25/19 (1.316)
4th 23/22 (1.045)
5th 21/24 (0.875)
Chassis:
Frame type Diamond
Caster angle 28.5˚
Trail 107 mm (4.21 in)
Tire:
Type With tube
Size (front) 70/100-19 42M
Size (rear) 90/100-16 52M
Manufacturer (front and rear) INOUE RUBBER
Tire pressure (front and rear) 100 kPa (1.00 kgf/cm
2

, 15 psi)

SPEC

2 - 7
MAINTENANCE SPECIFICATIONS
EC212000
MAINTENANCE SPECIFICATIONS
EC212100
ENGINE
Item Standard Limit
Cylinder head:
Warp limit ---- 0.03 mm
(0.0012 in)
Cylinder:
Bore size 54.000 ~ 54.019 mm
(2.1260 ~ 2.1267 in)----
Out of round limit ---- 0.05 mm
(0.0020 in)
Camshaft:
Drive method Chain drive (left) ----
Cam dimensions
Intake“A”25.881 ~ 25.981 mm
(1.0189 ~ 1.0229 in)25.851 mm
(1.0178 in)
“B”21.195 ~ 21.295 mm
(0.8344 ~ 0.8384 in)21.165 mm
(0.8333 in)
Exhaust“A”25.841 ~ 25.941 mm
(1.0174 ~ 1.0213 in)25.811 mm
(1.0162 in)
“B”21.050 ~ 21.150 mm
(0.8287 ~ 0.8327 in)21.020 mm
(0.8276 in)
Camshaft runout limit ---- 0.03 mm
(0.0012 in)

SPEC

2 - 11
MAINTENANCE SPECIFICATIONS
Crankshaft:
Crank width “A”46.95 ~ 47.00 mm
(1.848 ~ 1.850 in)----
Runout limit “C”---- 0.03 mm
(0.0012 in)
Big end side clearance “D”0.15 ~ 0.45 mm
(0.0059 ~ 0.0177 in)0.5 mm
(0.02 in)
Clutch:
Friction plate thickness 2.92 ~ 3.08 mm
(0.115 ~ 0.121 in)2.8 mm
(0.110 in)
Quantity 5 ----
Clutch plate thickness 1.05 ~ 1.35 mm
(0.041 ~ 0.053 in)----
Quantity 4 ----
Warp limit ---- 0.2 mm
(0.008 in)
Clutch spring free length 33 mm (1.30 in) 31 mm
(1.22 in)
Quantity 4 ----
Clutch release method Inner push, cam push ----
Push rod bending limit ---- 0.5 mm
(0.020 in)
Shifter:
Shifter type Cam drum and guide bar ----
Kick starter:
Type Kick and mesh type ----
Kick clip friction force 6.4 ~ 13.2 N
(0.65 ~ 1.35 kg, 1.4 ~ 3.0 lb)----
Carburetor:
I.D. mark 5HP1 10 ----
Main jet (M.J) #105 ----
Main jet nozzle (N.J) N-6M ----
Main air jet (M.A.J)ø1.2 ----
Jet needle-clip position (J.N) 5HGM56-2 ----
Cutaway (C.A) 2.5 ----
Pilot air jet 1 (P.A.J.1) #80 ----
Pilot air jet 2 (P.A.J.2) #145 ----
Pilot outlet (P.O)ø1.05 ----
Pilot jet (P.J) #15 ----
Pilot air screw (example) (A.S) (2-1/2 ~ 3-1/2 turns out) ----
Bypass (B.P)ø1.0 ----
Needle valve seat size (V.S) 1.8 ----
Starter jet 1 (G.S.1) #22.5 ----
Starter jet 2 (G.S.2) #1.2 ----
Fuel level (F.L) 6.0 ~ 7.0 mm (0.24 ~ 0.28 in) ----
Engine idle speed 1,300 ~ 1,500 r/min ----Item Standard Limit

SPEC

2 - 13
MAINTENANCE SPECIFICATIONS
Part to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
Spark plug M10
×
1.0 1 13 1.3 9.4
Cylinder head bolt M8
×
1.25 4 22 2.2 16
Cylinder head bolt M6
×
1.0 2 10 1.0 7.2
Oil pressure check bolt M6
×
1.0 1 7 0.7 5.1
Cylinder head side cover M6
×
1.0 2 10 1.0 7.2
Tappet cover M45
×
1.5 2 18 1.8 13
Timing chain guide M6
×
1.0 1 10 1.0 7.2
Adjusting screw (valve) and locknut M5
×
0.5 2 8 0.8 5.8
Camshaft sprocket M8
×
1.25 1 20 2.0 14
Bearing plate cover (camshaft) M6
×
1.0 1 10 1.0 7.2
Timing chain tensioner cap bolt M6
×
1.0 1 8 0.8 5.8
Timing chain tensioner M6
×
1.0 2 10 1.0 7.2
Oil pump assembly M6
×
1.0 2 7 0.7 5.1
Oil pump cover M5
×
0.8 1 5 0.5 3.6
Engine oil drain bolt M12
×
1.5 1 20 2.0 14
Carburetor joint M6
×
1.0 2 10 1.0 7.2
Carburetor joint clamp (air filter) M4
×
0.7 1 2 0.2 1.4
Coasting enricher cover M4
×
0.7 2 2 0.2 1.4
Air filter case M6
×
1.0 3 7 0.7 5.1
Muffler M6
×
1.0 2 10 1.0 7.2
Muffler M10
×
1.25 1 60 6.0 43
Muffler M8
×
1.25 1 30 3.0 22
Muffler guard M6
×
1.0 7 10 1.0 7.2
Spark arrester M6
×
1.0 3 10 1.0 7.2
Crankcase M6
×
1.0 10 10 1.0 7.2
Left crankcase cover M6
×
1.0 7 10 1.0 7.2
Drive sprocket cover M6
×
1.0 2 12 1.2 8.7
Right crankcase cover M6
×
1.0 9 10 1.0 7.2
Lead guide (CDI magneto lead) M6
×
1.0 1 7 0.7 5.1
Timing mark accessing screw M14
×
1.5 1 7 0.7 5.1
Crankshaft end accessing screw M32
×
1.5 1 7 0.7 5.1
Kickstarter crank M12
× 1.0 1 50 5.0 36
Starter clutch M8 × 1.25 3 30 3.0 22
Plate (starter idle gear) M6 × 1.0 2 7 0.7 5.1
Primary drive gear M12 × 1.0 1 70 7.0 50
Clutch spring M5 × 0.8 4 6 0.6 4.3
Clutch boss M12 × 1.0 1 60 6.0 43
Adjusting screw (push rod) and locknut M6 × 1.0 1 8 0.8 5.8
Bearing plate cover (main axle) M6 × 1.0 2 7 0.7 5.1
Drive sprocket M5 × 0.8 2 6 0.6 4.3
Shift arm M6 × 1.0 1 10 1.0 7.2
Shift rod and shift pedal M6 × 1.0 1 7 0.7 5.1
Shift rod and shift arm M6 × 1.0 1 7 0.7 5.1
Shift pedal M6 × 1.0 1 12 1.2 8.7
