2003 VOLVO XC70 Owners Manual

2003 VOLVO XC70
WARNING!
The exhaust pipe will still be hot when the engine is turned off. Take c\
are that children do not burn
themselves when they get into or out of the car.
pg. 12 Child safety
Integrated booster cushions, outboard positions (optional)
Volvo's own integrated booster cushions have been specially designed to \
help safeguard a child seated in
the rear seat. When using an integrated booster cushion, the child must \
be secured with the vehicle's
three-point seat belt. This child seat is designed for use only by child\
ren who weigh between 33 and 80
lbs (15 and 36 kg) and whose height is between 38 and 54 in. (97 and \
137 cm).


Integrated booster cushion - outboard positions
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (2 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
Outboard integrated booster cushions - Raising
1. Pull the handle at the front of the cushion forward. 2. With both han\
ds push the cushion rearward. 3.
Push the cushion until it locks in place.

Integrated booster cushion - outboard positions
Outboard integrated booster cushions - Lowering
1. Pull the handle at the front of the cushion forward. 2. Push the cush\
ion forward/downward.
NOTE: The booster cushion must be completely lowered before the rear seat back\
rest can be folded
down.

pg. 13 Child safety


file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (3 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
The child should be properly seated on the booster cushion. The hip sect\
ion of the three-point seat belt
must fit snugly across the child's hips, not across the stomach. The sho\
ulder section of the three-point
seat belt should be positioned across the chest and shoulder (see illus\
tration). The shoulder belt must
never be placed behind the child's back or under the arm. WARNING!
l Failure to follow the manufacturer's instructions on the use of this chi\
ld restraint system can result
in your child striking the vehicle's interior during a sudden stop or cr\
ash.
l In the event of a collision while the integrated booster cushion was occ\
upied, the entire booster
cushion and seat belt must be replaced. The booster cushion should also \
be replaced if it is badly
worn or damaged in any way. This work should be performed by an authoriz\
ed Volvo retailer only.
The booster cushion should be cleaned while in place in the vehicle if p\
ossible. If not, please consult
your Volvo retailer.

pg. 14 Child safety
Keeping child seats in place (ALR/ELR*)
To make child seat installation easier, each seat belt (except for the \
driver's belt) is equipped with a
locking mechanism to help keep the seat belt taut.
When attaching the seat belt to a child seat:
l Attach the seat belt to the child seat according to the child seat manuf\
acturer's instructions.
l Pull the seat belt out as far as possible.
l Insert the seat belt latch plate into the buckle (lock) in the usual w\
ay.
l Release the seat belt and pull it taut around the child seat.
A sound from the seat belt retractor will be audible at this time and is\
normal.
The belt will now be locked in place.
This function is automatically disabled when the seat belt is unlocked a\
nd the belt is fully
retracted.
* Automatic Locking Retractor/Emergency Locking Retractor
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (4 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
Important!
Why Volvo believes no child should sit in the front seat of a car. It's quite simple really. A front air
bag is a very powerful device designed, by law, to help protect an adult\
. Because of the size of the air
bag and its speed of inflation, a child should never be placed in the fr\
ont seat, even if he or she is
properly belted or strapped into a child safety seat. Volvo has been an \
innovator in safety for over fifty
years, and we'll continue to do our part. But we need your help. Please \
remember to put your children in
the back seat, and buckle them up.
Volvo has some very specific recommendations:
l Always wear your seat belt.
l Air bags are a SUPPLEMENTAL safety device which, when used with a three-\
point seat belt can
help reduce serious injuries during certain types of accidents. Volvo re\
commends that you do not
disconnect the air bag system in your vehicle.
l Volvo strongly recommends that ALL children sit in the rear seat of any \
vehicle and that they be
properly restrained.
l A child should NEVER sit in the front passenger seat of any vehicle equi\
pped with a passenger-side
front airbag.
l Volvo recommends that ALL occupants (adults and children) shorter than\
four feet seven inches (140
cm) be seated in the back seat of any vehicle with a front passenger si\
de airbag.
Drive safely!
WARNING!
Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We also
recommend that children who have outgrown these devices sit in the rear \
seat with the seat belt
properly fastened.

pg. 15 Child safety


file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (5 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70

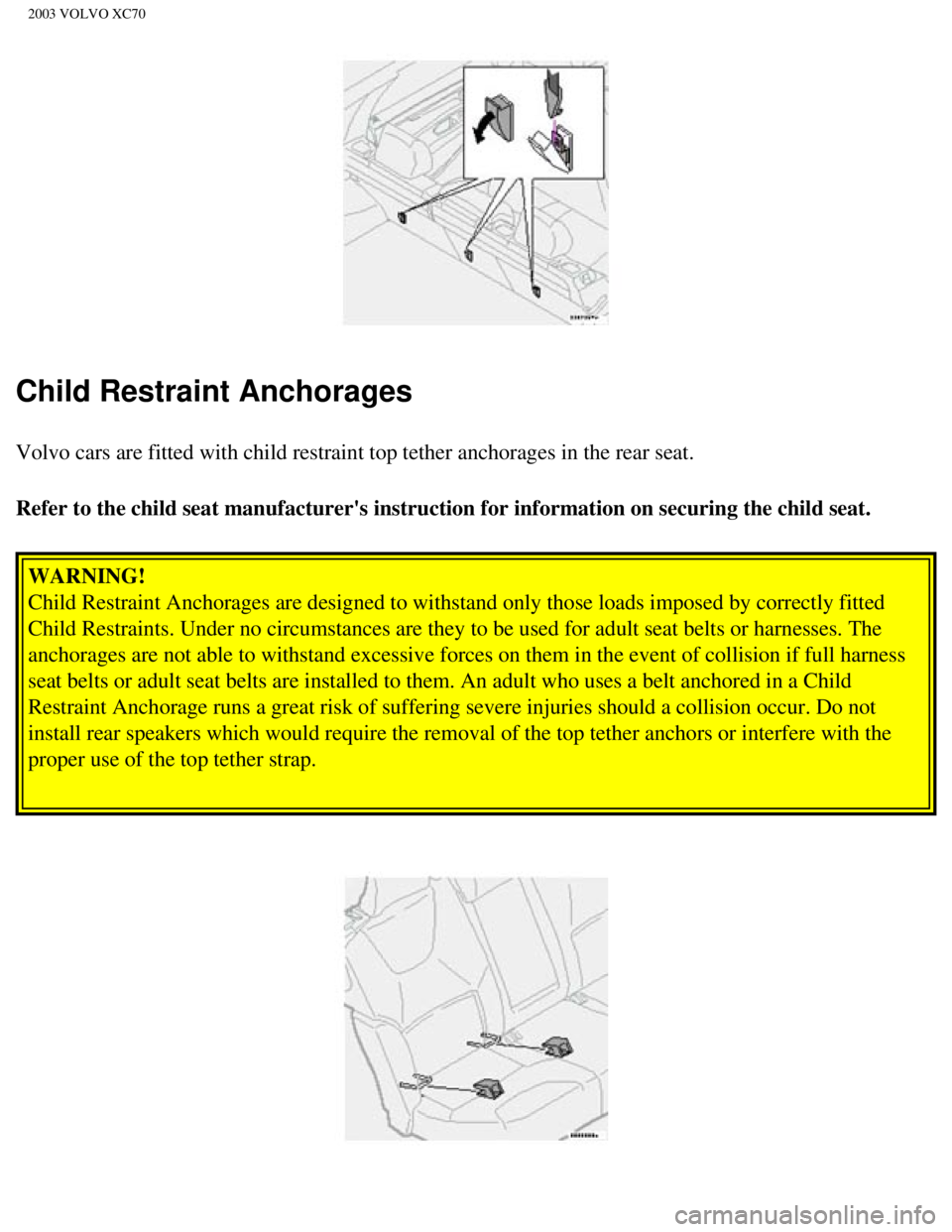

Child Restraint Anchorages
Volvo cars are fitted with child restraint top tether anchorages in the \
rear seat.
Refer to the child seat manufacturer's instruction for information on se\
curing the child seat. WARNING!
Child Restraint Anchorages are designed to withstand only those loads im\
posed by correctly fitted
Child Restraints. Under no circumstances are they to be used for adult s\
eat belts or harnesses. The
anchorages are not able to withstand excessive forces on them in the eve\
nt of collision if full harness
seat belts or adult seat belts are installed to them. An adult who uses \
a belt anchored in a Child
Restraint Anchorage runs a great risk of suffering severe injuries shoul\
d a collision occur. Do not
install rear speakers which would require the removal of the top tether \
anchors or interfere with the
proper use of the top tether strap.


file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (6 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
Isofix fasteners and Seat guides
The Isofix fasteners are installed in the outboard rear seat positions. \
One set of ISOFIX guides is also
provided. Consult your Volvo retailer for more information on child safe\
ty accessories.
pg. 16 Child safety
Child safety
Volvo recommends the proper use of restraint systems for all occupants i\
ncluding children. Remember
that, regardless of age and size, a child should always be properly rest\
rained in a car.
Your car is also equipped with ISOFIX attachments, which make it more co\
nvenient to install child seats
(see
page 15).
Restraint systems for children are designed to be secured in the vehicle\
by lap belts or the lap portion of
a lap-shoulder belt. Such child restraint systems can help protect child\
ren in cars in the event of an
accident only if they are used properly. However, children could be enda\
ngered in a crash if the child
restraints are not properly secured in the vehicle. Failure to follow th\
e installation instructions for your
child restraint can result in your child striking the vehicle's interior\
in a sudden stop.
Holding a child in your arms is NOT a suitable substitute for a child re\
straint system. In an accident, a
child held in a person's arms can be crushed between the vehicle's inter\
ior and an unrestrained person.
The child could also be injured by striking the interior, or by being ej\
ected from the vehicle during a
sudden maneuver or impact. The same can also happen if the infant or chi\
ld rides unrestrained on the
seat. Other occupants should also be properly restrained to help reduce \
the chance of injuring or
increasing the injury of a child.
All states and provinces have legislation governing how and where childr\
en should be carried in a car.
Find out the regulations existing in your state or province. Recent acci\
dent statistics have shown that
children are safer in rear seating positions than front seating position\
s when properly restrained. A child
restraint system can help protect a child in a vehicle. Here's what to l\
ook for when selecting a child
restraint system:
l It should have a label certifying that it meets applicable Federal Motor\
Vehicle Safety Standards
(FMVSS 213) - or in Canada, CMVSS 213.
l Make sure the child restraint system is approved for the child's height,\
weight and development - the
label required by the standard or regulation, or instructions for infant\
restraints, typically provide this
information.
l In using any child restraint system, we urge you to look carefully over \
the instructions that are
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (7 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
provided with the restraint. Be sure you understand them and can use the\
device properly and
safely in this vehicle. A misused child restraint system can result in i\
ncreased injuries for both the
infant or child and other occupants in the vehicle.
A child who has outgrown the child safety seat should use the rear seat \
with the standard seat belt
fastened. Place the child on an approved cushion so that the seat belt i\
s properly located on the child's
hips (see
page 13).Legislation in your state or province may mandate the use of a child \
seat or cushion in
combination with the seat belt, depending on the child's age and/or size\
. Please check local regulations.
A specially designed and tested booster cushion (not available in Canad\
a ) for children between 50 - 80
lbs (22.7 - 36 kg) and 38 -54 inches (97 - 137 cm) in height can be \
obtained from your Volvo retailer.
If necessary, an auxiliary seat for children is available for use in the\
luggage compartment of station
wagon models. This seat is designed for two children, each weighing betw\
een 50 - 88 lbs. (23 - 40 kg)
and up to 59 inches (150 cm) in height.
WARNING!
l When using the auxiliary seat for children, both sections of the rear se\
at backrest must be secured
in the upright position.
l Do not use a booster cushion or child seat in conjunction with the auxil\
iary seat.

pg. 17 Occupant safety

Seat belt maintenance
Check periodically that the seat belts are in good condition. Use water \
and a mild detergent for cleaning.
Check seat belt mechanism function as follows: Attach the seat belt and \
pull rapidly on the strap.
Volvo Concern for Safety
Safety is the cornerstone of Volvo. Our concern dates back to 1927 when \
the first Volvo rolled off the
production line. Three-point seat belts (a Volvo invention), safety ca\
ges, and energy-absorbing impact
zones were designed into Volvo cars long before it was fashionable or re\
quired by government
regulation. We will not compromise our commitment to safety. We continue\
to seek out new safety
features and to refine those already in our cars. You can help. We would\
appreciate hearing your
suggestions about improving automobile safety. We also want to know if y\
ou ever have a safety concern
with your car. Call us in the U.S. at: 800-458-1552 or in Canada at: 800\
-663-8255.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (8 of 14)12/30/200\
6 4:17:52 PM

2003 VOLVO XC70
Occupant safety
How safely you drive doesn't depend on how old you are but rather on:
l How well you see.
l Your ability to concentrate.
l How quickly you make decisions under stress to avoid an accident.
The tips listed below are suggestions to help you cope with the ever cha\
nging traffic environment.
l Never drink and drive.
l If you are taking any medication, consult your physician about its poten\
tial effects on your driving
abilities.
l Take a driver-retraining course
l Have your eyes checked regularly
l Keep your windshield and headlights clean.
l Replace wiper blades when they start to leave streaks.
l Take into account the traffic, road, and weather conditions, particularl\
y with regard to stopping
distance.
Reporting Safety Defects in the U.S.
If you believe that your vehicle has a defect which could cause a crash \
or could cause injury or death,
you should immediately inform the National Highway Traffic Safety Admini\
stration (NHTSA) in
addition to notifying Volvo Cars of North America. If NHTSA receives sim\
ilar complaints, it may open
an investigation, and if it finds that a safety defect exists in a group\
of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual pro\
blems between you,
your retailer, or Volvo Cars of North America. To contact NHTSA, you may\
either call the Auto Safety
Hotline toll-free at 1-800-424-9393 (or 202-366-0123 in Washington, D.C\
. area) or write to: NHTSA, U.
S. Department of Transportation, Washington D.C. 20590. You can also obt\
ain other information about
motor vehicle safety from the Hotline.
Volvo strongly recommends that if your vehicle is covered under a servic\
e campaign, safety or emission
recall or similar action, it should be completed as soon as possible. Pl\
ease check with your local retailer
or Volvo Cars of North America, LLC. if your vehicle is covered under th\
ese conditions.
NHTSA can be reached at:
Internet :
http://www.nhtsa.dot.gov
Telephone:
1-888-DASH-2-DOT (1-888-327-4236) (toll free)
1-800-424-9393 (toll free)
1-202-366-0123 (in Washington DC area)
file:///K|/ownersdocs/2003/2003_XC70/03xc70_01b.htm (9 of 14)12/30/200\
6 4:17:52 PM
