2003 VOLVO XC70 Owners Manual

2003 VOLVO XC70
Nylon cargo net (option on XC70)
The Volvo XC70 can be equipped with a cargo net made of strong nylon fab\
ric that can be installed with
the rear seat backrests in the upright position or folded down. The uppe\
r and lower rods of the cargo net
are hinged. If the cargo net is folded, fold the rods until they are str\
aight and lock in position.
l Insert the end of the upper rod in the bracket A, near the ceiling liner\
in the cargo area if the rear seat
backrests are up or in the brackets above the rear passenger doors if th\
e backrests are folded down.
l Insert the opposite side of the rod in the upper bracket on the opposite\
side.
l Attach the lower straps to the eyelets on opposite sides of the rear car\
go area (if the rear seat backrest
is upright), or to the eyelets near the base of the rear seat, D (if t\
he backrest sections are folded down and
the upper rod has been attached to the forward brackets). Adjust the st\
raps to pull the net taut.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (14 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
WARNING!
The nylon cargo net must not be used when the optional rear-facing auxil\
iary child seat in the cargo
area is in use.
When not in use, the cargo net should not be stored unattached in the ca\
r to prevent it from being
thrown forward in the event of a sudden stop, etc.
CAUTION:
l If the net is installed in the forward position and the rear seat cushio\
ns are folded forward, the net
should be positioned so that it is in front of the rear seat cushions bu\
t behind the front seat backrests (C).
l The eyelets on the floor of the car under the front seats must not be us\
ed to secure the lower straps of
the cargo net. If these eyelets are used and the front seats are moved b\
ack, the cargo net or upper
brackets may be damaged.
Folding and storing the cargo net
The cargo net can be folded and stored under the floor of the cargo area\
on cars not equipped with the
optional auxiliary rear-facing child seat or the optional bass speaker.
Press the buttons on the hinges at the center of the upper and lower rod\
s. This releases the hinges so that
the net can be folded.

pg. 71 Cargo area cover, Vanity mirrors

Cargo area cover
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (15 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
Withdraw the cargo area cover, pull it over the luggage compartment and \
hook it in the holes in the rear
cargo area pillars. Removing the cargo area cover:
l Press the end pieces of the cargo area cover inward, pull up and remove.\

l To fit in place: Press the end pieces of the cargo area cover down into \
the holders.

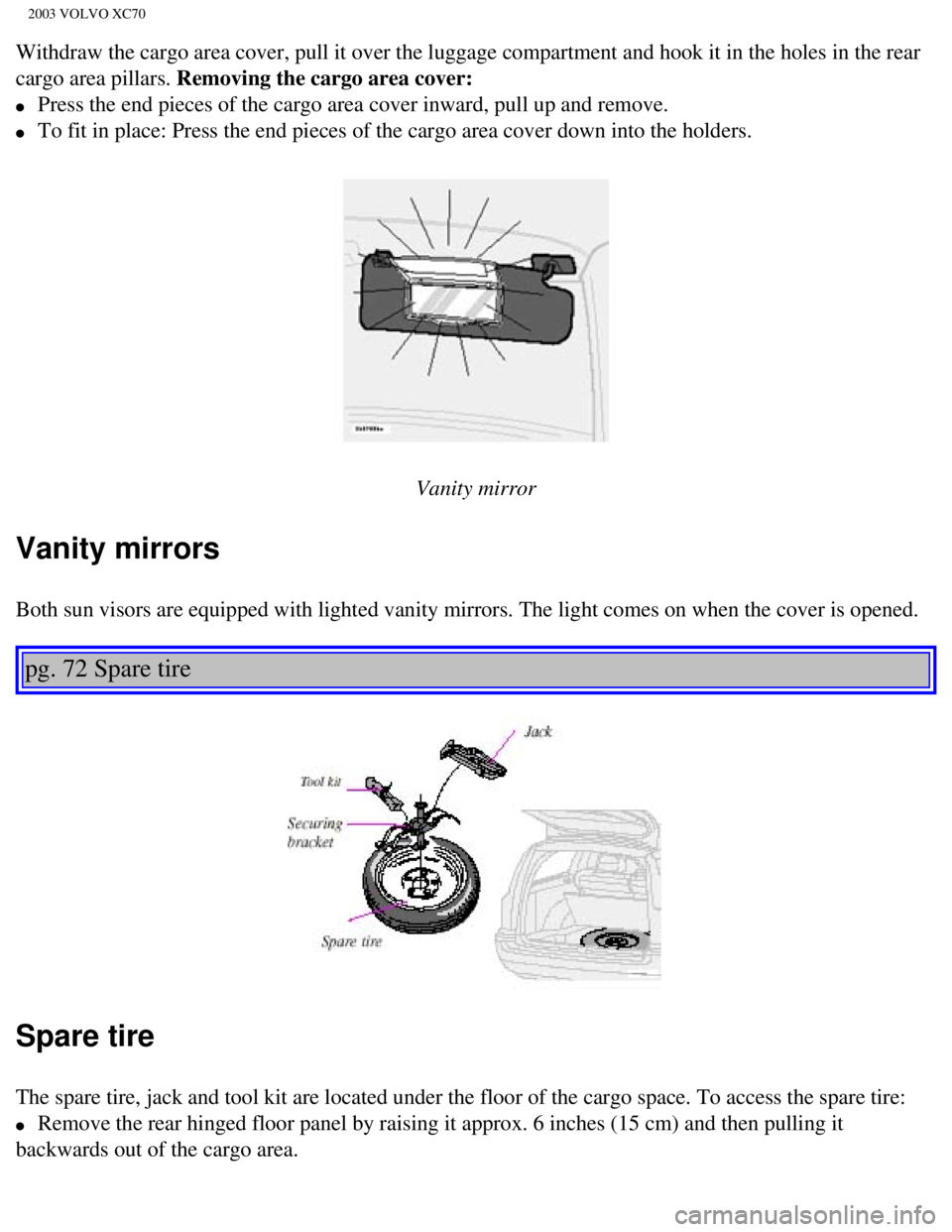

Vanity mirror
Vanity mirrors
Both sun visors are equipped with lighted vanity mirrors. The light come\
s on when the cover is opened.

pg. 72 Spare tire

Spare tire
The spare tire, jack and tool kit are located under the floor of the car\
go space. To access the spare tire:
l Remove the rear hinged floor panel by raising it approx. 6 inches (15 c\
m) and then pulling it
backwards out of the cargo area.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (16 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
l Unscrew and remove the accessory plastic floor tray (if fitted).
l Unstrap and lift out the jack and tool kit.
l Unscrew the securing bracket and remove the spare tire from the storage \
well.
l When putting the tire back into the well, perform these steps in reverse\
order. Make sure the spare
tire, jack and tool kit are properly secured.
WARNING!
Make sure that the spare tire, jack and tool kit are properly secured wi\
th the securing bracket and
strap to help keep these components in place in the event of a sudden st\
op.

Spare tire, tool kit, jack - cars with subwoofer (option)
The spare tire, jack and tool kit are located under the floor of the car\
go space in a compartment in front
of the spare tire. To access the spare tire:
l Remove the rear hinged floor panel by raising it approx. 6 inches (15 c\
m) and then pulling it
backwards out of the cargo area.
l Raise the other floor panel to upright position and lock it there.
l Remove the mat.
l Loosen the wheel and turn the clip 90°.
l Lift the subwoofer inwards-upwards with both hands and tilt it leftwards\
.
l Unstrap and lift out the jack and tool kit.
l Unscrew the securing bracket and remove the spare tire from the storage \
well.
l When putting the tire and subwoofer back into place, perform these steps\
in reverse order. Make sure
the spare tire, jack, tool kit and subwoofer are properly secured.

pg. 73 Auxiliary seat in cargo area, Extra handgrip - XC70

file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (17 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
Auxiliary seat (option)
If all the seats are occupied, a rear-facing auxiliary seat in the cargo\
area can be used. This seat is
designed for two children, each weighing between 50 - 88 lbs. (23 - 40 \
kg) with a total seat capacity of
176 lbs. (80 kg) and up to 55 inches (140 cm) in height.
Raising
Remove the cargo area cover, if installed, from the car. Raise the backr\
est section forward until it locks
in place.
Flip the seat cushion over.
Lowering
Flip the seat cushion back into storage position.
Pull the release handle and lower the backrest to storage position. WARNING!
l If your car is equipped with an auxiliary seat (option or accessory), \
the tailgate must be fitted with
a lock cylinder. Unlocking from the outside can then be carried out in t\
he usual way (key in driver's
door and/or remote control) and also by using the key in the tailgate. \
l Both rear seat backrests must be up when the auxiliary seat is being use\
d. Do not use a booster
cushion or child seat in conjunction with the auxiliary seat.
l The luggage net should be retracted and the child safety lock in the tai\
lgate should be open to allow
access to the cargo area.
NOTE: If you have locked the car with the remote control and if you then after\
wards use a key in the
tailgate's lock cylinder (certain models) to unlock the tailgate only,\
the alarm will sound. See
page 80 for
information on turning off a sounding alarm.
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (18 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
Extra handgrip
The Volvo XC70 is equipped with an extra handgrip on the front passenger\
's side. This handgrip can be
used for added support when travelling on unpaved roads, etc.

pg. 74 Interior lighting

Courtesy light
The courtesy light can be turned on or off by pressing the button. The l\
ight also has a timer function
which turns the light on for 30 seconds if:
l You unlock the car from the outside with the key or remote control.
l You switch off the ignition (turn the key to position 0).
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (19 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
The courtesy light stays on for 10 minutes if one of the doors is left o\
pen after the car is unlocked. The
courtesy light switches off if:
l The engine is started.
l The car is locked from the outside with the key or remote control.
The interior courtesy light can be switched on or off at any time by pre\
ssing the center button in the
panel above the rearview mirror. When switched on with the engine off, t\
he light will stay on for 10
minutes. When switched on with the engine running, the light will stay o\
n indefinitely. The light may be
switched off at any time by pressing the center button a second time.
The courtesy light timer periods can be changed. Consult your Volvo reta\
iler.
Overriding the Interior Courtesy Lights
Normally if a car door is left open with the engine turned off, the inte\
rior courtesy light will stay on for
10 minutes.
If a car door is left open or the interior courtesy lights are turned on\
while the engine is left running, the
interior courtesy lights will stay on indefinitely.
At times, you may wish to be assured that the courtesy lights will stay \
off regardless of door or tailgate
position.
To switch off the interior and tailgate courtesy lights indefinitely, pr\
ess and hold the center button in the
panel above the rearview mirror for 3 seconds. The courtesy lights will \
go off and remain off until the
center button is pressed again.

Rear reading lights
file:///K|/ownersdocs/2003/2003_XC70/03xc70_04b.htm (20 of 21)12/30/20\
06 4:17:57 PM

2003 VOLVO XC70
Reading lights - front/rear
The reading lights can be switched on or off by pressing the respective \
buttons. These lights switch off
automatically after 10 minutes if the engine is not running. If the engi\
ne is running, the lights stay on
indefinitely. The lights can be switched off at any time by pressing the\
button.
