2003 TOYOTA TACOMA Owners Manual (in English)

’03 Tacoma U (L/O 0209)
112003 MY TACOMA (OM35800U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK BUTTON
Move the lock button.
To lock: Push the button downward.
To unlock: Pull the button upward.
Closing the door with the lock button
pushed in will also lock the door. On ve-
hicles with power door lock system, the
doors cannot be locked if you leave the
key in the ignition switch.
Be careful not to lock your keys in the
vehicle.Driver’s side
Passenger’s side
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
All the doors lock or unlock simultaneous-
ly.
All the doors cannot be unlocked with the
power door lock switch by the following
cases:
Either front door is locked by the key.
Either front door is closed with the
inside door lock button pushed in.

’03 Tacoma U (L/O 0209)
122003 MY TACOMA (OM35800U)
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Pull up the switch.
Power windows

’03 Tacoma U (L/O 0209)
132003 MY TACOMA (OM35800U)
Automatic operation (to open only):
Push the switch completely down and then
release it. The window will fully open. To
stop the window partway, lightly pull the
switch up and then release it.
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger ’s
door or the switches on the driver ’s
door that control each passenger ’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.

’03 Tacoma U (L/O 0209)
142003 MY TACOMA (OM35800U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.
To open the quarter window, pull the
latch handle toward you and swing it
fully out.
When closing the window, make sure it is
completely closed.
Quarter windows
(xtracab models)

’03 Tacoma U (L/O 0209)
152003 MY TACOMA (OM35800U)
To unlock the rear window, pull the
latch handle toward you.
When closing the window, make sure it is
completely closed.To open the tailgate, pull the handle up.
The support cables will hold the tailgate
horizontal.
See “Luggage stowage precautions” in
Section 2 for precautions in loading lug-
gage.
After closing the tailgate, try pulling it to-
ward you to make sure it is securely
locked.
NOTICE
Avoid driving with the tailgate open.
To lower the tailgate fully, release the
support brackets from the lugs as
shown above.
NOTICE
Lower the tailgate gently when it is
unhooked.
 Make sure the tailgate is securely
caught by the support brackets be-
fore closing the tailgate.
Rear window Tailgate

’03 Tacoma U (L/O 0209)
162003 MY TACOMA (OM35800U)
To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is securely closed and locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
3. Hold the hood open by inserting the support rod into the slot.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
Hood

’03 Tacoma U (L/O 0209)
172003 MY TACOMA (OM35800U)
With tachometer
Without tachometer
This indicates that the fuel filler door
is on the left side of your vehicle.
Ty p e A
Ty p e B
Fuel tank cap

’03 Tacoma U (L/O 0209)
182003 MY TACOMA (OM35800U)
1. Type A—To open the fuel filler door, pull the
door toward out as shown.
Ty p e B —
To open the fuel filler door, insert
the key and turn it counterclockwise.
When refueling, turn off the engine.

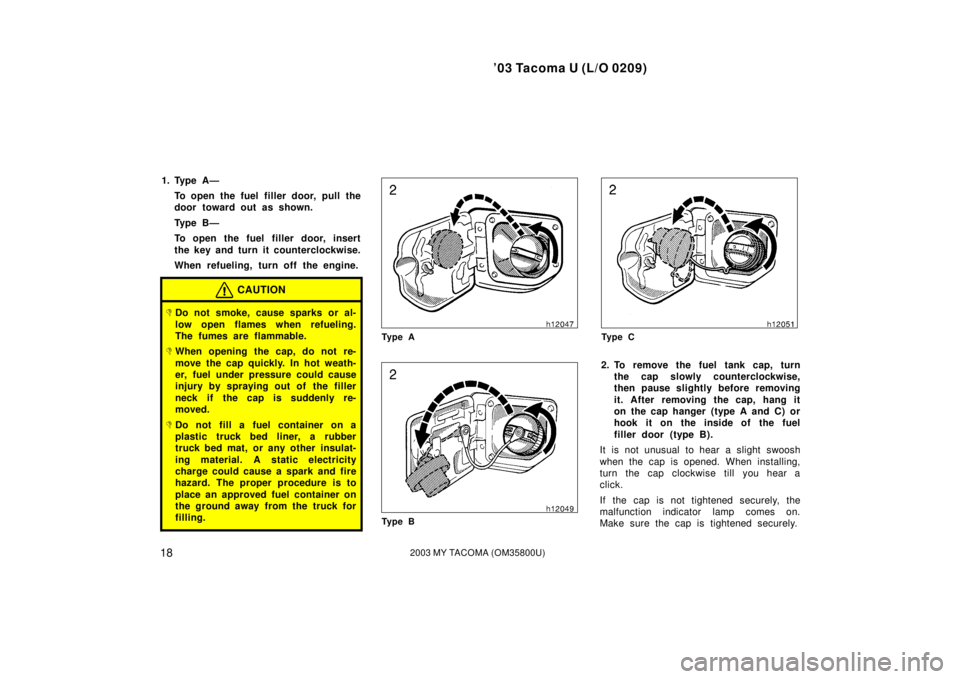

CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
Do not fill a fuel container on a
plastic truck bed liner, a rubber
truck bed mat, or any other insulat-
ing material. A static electricity
charge could cause a spark and fire
hazard. The proper procedure is to
place an approved fuel container on
the ground away from the truck for
filling.
Ty p e A
Ty p e B
Ty p e C
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger (type A and C) or
hook it on the inside of the fuel
filler door (type B).
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
