149.Engine compartment overview
1. Engine coolant reservoir
2. Fuse blocks
3. Brake fluid reservoir
4. Engine oil filler cap
5. Inverter reservoir tank
6. Windshield washer fluid tank
7. Radiator and condenser
8. Engine oil level dipstick
9. Auxiliary battery
81p001f

208
If you perform maintenance by yourself,
be sure to follow the correct procedure
given in this Section.
You should be aware that improper or in-
complete servicing may result in operating
problems.
Performing doityourself maintenance
during the warranty period may affect your
warranty coverage. Read the separate
Toyota Warranty statement for details and
suggestions.
This Section gives instructions only for
those items that are relatively easy for an
owner to perform. As explained in Section
7, there are still a number of items that
must be done by a qualified technician
with special tools.
For information on tools and parts for do
ityourself maintenance, see ”Parts and
tools” on page 211 in this Section.
Utmost care should be taken when work-
ing on your vehicle to prevent accidental
injury. Here are a few precautions that
you should be especially careful to ob-
serve:CAUTION
When the hybrid system is on, keep
hands, clothing, and tools away
from the moving fan and engine
drive belts. (Removing rings,
watches, and ties is advisable.)
Right after driving, the engine
compartment—the engine, radiator,
exhaust manifold and spark plug
boots, etc.—will be hot. So be care-
ful not to touch them. Oil, fluids
and spark plugs may also be hot.
If the hybrid system is hot, do not
remove the radiator cap or loosen
the drain plugs to prevent burning
yourself.
Do not smoke, cause sparks or al-
low open flames around fuel or the
batteries. Their fumes are flam-
mable.
When the hybrid system is operat-
ing with the “READY” light on, the
engine is automatically started in
some case. When you inspect the
engine compartment, be sure to
turn the ignition switch to “OFF”
position.
Do not get under your vehicle with
just the body jack supporting it. Al-
ways use automotive jack stands or
other solid supports.
Be sure that the ignition is off if
you work near the electric cooling
fans or radiator grille. With the
ignition on, the electric cooling fans
will automatically start to run if the
engine coolant temperature is high
and/or the air conditioning is on.
Use eye protection whenever you
work on or under your vehicle
where you may be exposed to fly-
ing or falling material, fluid spray,
etc.
Be extremely cautious when work-
ing on the batteries. It contains poi-
sonous and corrosive sulfuric acid
or strong alkali.
Warning: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to
the State of California to cause can-
cer and reproductive harm. Wash
hands after handling.
Doityourself service
precautions151.

211
153.Parts and tools
Here is a list of parts and tools you will
need on performing doityourself mainte-
nance. Remember all Toyota parts are de-
signed in metric sizes, so your tools must
be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):
Engine oil API grade SL “EnergyCon-
serving” or ILSAC multigrade having
viscosity proper for your climate
Tools:
Rag or paper towel
Funnel (only for adding oil)
CHECKING THE COOLANT LEVEL
Parts (if level is low):
”Toyota Genuine Long Life Coolant” or
equivalent
See page 217 in Section 82 for de-
tails about coolant type selection.
Demineralized or distilled water
Tools:
Funnel (only for adding coolant) CHECKING BRAKE FLUID
Parts (if level is low):
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
Tools:
Rag or paper towel
Funnel (only for adding fluid)
CHECKING AUXILIARY BATTERY CON-
DITION
Tools:
Warm water
Baking soda
Grease
Conventional wrench (for terminal
clamp bolts)
CHECKING AND REPLACING FUSES
Parts (if replacement is necessary):
Fuse with same amperage rating as
original
ADDING WASHER FLUID
Parts:
Water
Washer fluid containing antifreeze (for
winter use) Tools:
Funnel
REPLACING LIGHT BULBS
Parts:
Bulb with same number and wattage
rating as original (See charts in ”Re-
placing light bulbs–” on page 231 in
Section 83.)
Tools:
Screwdriver

227
DOITYOURSELF MAINTENANCE
168.Electrical components
Checking auxiliary battery c ondition 228
. . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary battery recharging precautions s229
. . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses 229
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Replacing light bulbs 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
SECTION 8– 3

228

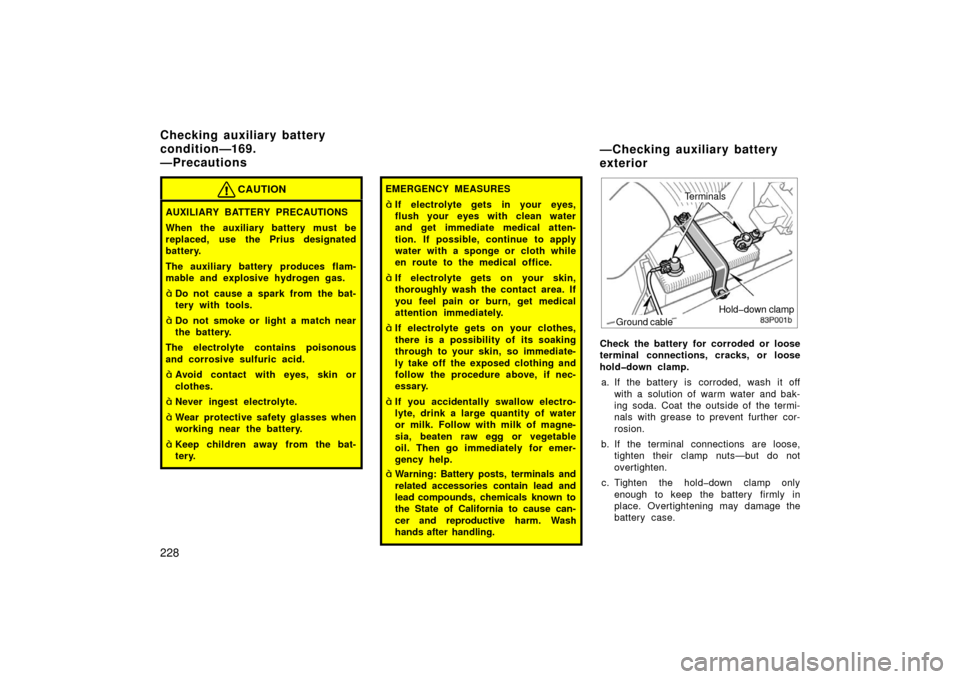

CAUTION
AUXILIARY BATTERY PRECAUTIONS
When the auxiliary battery must be
replaced, use the Prius designated
battery.
The auxiliary battery produces flam-
mable and explosive hydrogen gas.
Do not cause a spark from the bat-
tery with tools.
Do not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.
Avoid contact with eyes, skin or
clothes.
Never ingest electrolyte.
Wear protective safety glasses when
working near the battery.
Keep children away from the bat-
tery.
EMERGENCY MEASURES
If electrolyte gets in your eyes,
flush your eyes with clean water
and get immediate medical atten-
tion. If possible, continue to apply
water with a sponge or cloth while
en route to the medical office.
If electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burn, get medical
attention immediately.
If electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.
If you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Follow with milk of magne-
sia, beaten raw egg or vegetable
oil. Then go immediately for emer-
gency help.
Warning: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to
the State of California to cause can-
cer and reproductive harm. Wash
hands after handling.
Terminals
Ground cable
Holddown clamp
Check the battery for corroded or loose
terminal connections, cracks, or loose
holddown clamp.
a. If the battery is corroded, wash it off with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose, tighten their clamp nuts—but do not
overtighten.
c. Tighten the holddown clamp only enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
Checking auxiliary battery
condition—169.
—Precautions —Checking auxiliary battery
exterior

229
NOTICE
Be sure the hybrid system and all
accessories are off before perform-
ing maintenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“—” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Make sure the power switch on the recharger is off when connecting the
charger cables to the battery and when
disconnecting them.

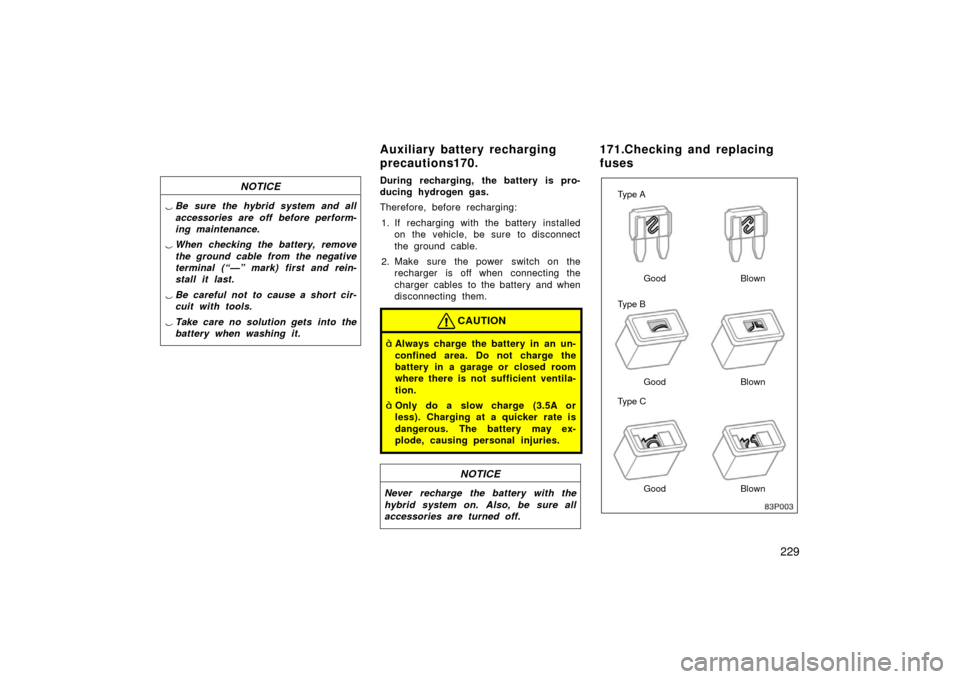

CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (3.5A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery with the
hybrid system on. Also, be sure all
accessories are turned off.
83p003
Type A
Type B
Type C Good Blown
Good Blown
Good Blown
Auxiliary battery recharging
precautions170.
171.Checking and replacing
fuses

239
174.SPECIFICATIONS
Specifications
Dimensions and weight240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Electric motor 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Enginee 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Fuel 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Hybrid vehicle battery 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Service specifications 241
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 243
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 244
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 9

241
Fuel type:Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
Fuel tank capacity, L (gal., lmp. gal.): 45 (11.9, 9.9)
179.Hybrid vehicle battery
Type: NickelMetal hydride battery
Voltage: 7.2 V
Capacity: 6.5 Ah (3HR)
Quantity: 38
Overall voltage: 273.6 V
180.Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):Intake 0.17—0.23 (0.007—0.009)
Exhaust 0.27—0.33 (0.011—0.013)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm (in.): 1.1 (0.043)
178.Fuel
