Emissions inspection and maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Toyota
dealer to check your vehicle’s emission
control system and OBD (OnBoard Diag-
nostics) system before taking your vehicle
for the inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 204
in Section 7.
(f) Master Warning Light
()
If the master warning light comes on, the
warning light for the faulty system is high-
lighted or the message such as “When
you park your car, make sure you shift to
Park P.” and “The batteries will not charge
if the shifter is in N” appears on the mul-
tiinformation display. (See “Service re-
minder indicators and warning buzzers—
—Multiinformation display” on page 100
in this section or “Precautions for use” on
page 12 in Section 12 or “Fuel gauge”
on page 89 in Section 24 for instruc-
tions.)(g) Output Control Warning Light
()
This light comes on when the ignition
switch is on. It goes off when the electric
motor is ready to run.
The warning light comes on when the hy-
brid vehicle battery temperature is low or
high, or the hybrid vehicle battery capacity
is decreased with the selector lever at “R”
during driving. If the light comes on, the
power will be limited. Drive your vehicle
without hard acceleration.
(h) Low Engine Oil Pressure Warning
Light
This light warns that the engine oil pres-
sure is too low.
If it flickers or stays on while you are
driving, pull off the road to a safe place
and stop the engine immediately. Call a
Toyota dealer or qualified repair shop for
assistance.
The light may occasionally flicker when
the engine is idling or it may come on
briefly after a hard stop. There is no
cause for concern if it then goes out when
the engine is accelerated slightly.
The light may come on when the oil level
is extremely low. It is not designed to
indicate low oil level, and the oil level
must be checked using the level dipstick.NOTICE
Do not drive the vehicle with the
warning light on—even for one block.
It may ruin the engine.
(i) “ABS” Warning Light
The light comes on when the ignition key
is turned to the “ON” position. If the anti
lock brake system works properly, the
light turns off after a few seconds. There-
after if the system malfunctions, the light
comes on again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
antilock brake system does not operate
so that the wheels could lock up during
a sudden braking or braking on slippery
road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible so
service the vehicle.

102
(a) Power Steering System WarningLight
This light comes on when the power
steering control system fails.
If the vehicle starts moving on the decline
before the ignition is turned on, turning
the ignition switch to “ON” will light up
this light. At this time, you may feel the
steering wheel heavy.
If this occurs, stop your vehicle complete-
ly, turn the ignition switch to “ACC” or
“LOCK” and start the hybrid system again.
CAUTION
If this light comes on, take your ve-
hicle to the Toyota dealer as soon as
possible. In this case, you may feel
the heavy steering wheel maneuver-
ing. Drive your vehicle while gripping
the steering wheel firmly.
(b) Hybrid Vehicle Battery Warning Light
This light comes on in the following
cases.
a. The hybrid vehicle battery voltage
drops with the running mode selector lever
left in “N” position.
The system works properly if you put the
running mode selector lever to “P” position
and the light goes off.
b. The fuel tank is completely empty. (See
“Fuel gauge” in this section for instruc-
tions.)
c. The hybrid vehicle battery is dis-
charged.
If this light comes on with the “READY”
light on in case of c., stop your vehicle
in a safe place and contact your Toyota
dealer. (c) Hybrid System Warning Light ()
This light comes on if there is a problem
in the electric motor, inverter unit, hybrid
vehicle battery, etc.
If this light is on, stop your vehicle in a
safe place immediately and contact your
Toyota dealer.
Even if the hybrid system warning light
comes on, you could increase the speed
a little temporarily by depressing the ac-
celerator pedal. Immediately pull up your
vehicle at a safe place and contact your
Toyota dealer.

105
25p001c
“START”—The hybrid system is ready
to operate.
Turn the key to the “START” position and
hold the ignition switch at this position for
about a few seconds until the “READY”
light comes on and a beep sounds. (If the
ambient temperature is low such as during
winter conditions, it may take time until
the “READY” light is on.” The key will
return to the “ON” position when released.
Being different from ordinary vehicles, you
cannot start your vehicle with the running
mode selector lever in “N” position.
“ON”—The hybrid system starts to run
when the accelerator pedal is depressed
with the “READY” light and all accesso-
ries on.This is the normal driving position.
“ACC”—Accessories such as the radio
operate, but the hybrid system is off.
If you leave your key in the “ACC” posi-
tion for a while, put the running mode
selector lever in “P” position.
If you leave the key in the “ACC” or
“LOCK” position and open the driver’s
door, a buzzer will remind you to remove
the key.
“LOCK”—The hybrid system is off and
the steering wheel is locked. The key
can be removed only at this position.
You must push in the key to turn it from
“ACC” to the “LOCK” position. The selec-
tor lever must be put in the “P” position
before pushing the key.
Vehicles with hybrid vehicle immobiliser
system–Once you remove the key, the hy-
brid vehicle immobiliser system is auto-
matically set. (See “Hybrid vehicle immobi-
liser system” on page 20 in Section 21.)
When starting the hybrid system, the key
may seem stuck at the “LOCK” position.
To free it, first be sure the key is pushed
all the way in, and then rock the steering
wheel slightly while turning the key gently.
NOTICE
Do not leave the key in the “ACC” or
“ON” position for a long time when
the hybrid system is off. The auxiliary
battery will discharge.
Ignition switch with steering
lock51.

108
If the driver ’s door is opened when the
the “READY” light is on and the the selec-
tor lever is at a position other than “P”
with the parking brake applied, you will
hear beeps to warn you to shift the selec-
tor lever to the “P” position.
CAUTION
While the vehicle is moving, never
attempt to move the running mode
selector lever into “P” position under
any circumstances. Serious mechani-
cal damage and loss of vehicle con-
trol may result.
NOTICE
Be sure to put the selector lever in
“P” position when parking. With the
selector lever in “N” position, the hy-
brid vehicle battery will not be
charged even the gasoline engine op-
erates. You cannot start your vehicle
if the selector lever is left in “N”
position for a long time because the
hybrid vehicle battery will discharge.
(f) Vehicle driving characteristics
Creeping
In order to hold the vehicle properly on an
incline and for better accelerator pedal
operation at starting, vehicle is designed
like an ordinary automatic transmission
vehicle which tends to move without de-
pressing the accelerator pedal with the
selector lever in a position other than “P”
or “N”.
With the selector lever in a position other
than “P” or “N”, depress the brake pedal
firmly even when stopped and apply the
parking brake as required.
When moving in a restricted area or dur-
ing traffic jam, it is an effective way to
control the speed using only the brake
pedal operation without depressing the ac-
celerator pedal.
Regenerative brake
When the accelerator pedal is released or
the brake pedal is depressed, the electric
motor acts as a generator and converts
kinetic energy to electric energy to provide
deceleration and recover the electric ener-
gy to charge the hybrid vehicle battery.
At this time, the electric motor running
noise becomes larger.The operation is the same as an ordinary
gasoline powered vehicle.
You may experience the following condi-
tions while braking. As they do not indi-
cate the malfunction, perform braking as
usual:
When you turn the ignition switch to
“ON” with the brake pedal depressed,
you may feel a little push from the
brake pedal.
When you turn the ignition switch to
“ACC” or “LOCK” from “ON”, the brake
pedal may move a little.

109
Hybrid driving
This vehicle runs in combination with the
gasoline engine and electric motor.
If the “READY” light is on, you can start
your vehicle even with the gasoline engine
stopped.
When the hybrid vehicle battery tempera-
ture is low or high, or the hybrid vehicle
battery capacity is decreased with the run-
ning mode selector lever at “R” during
driving, the output control warning light is
on and the output power may be limited.
If the output control warning light is on,
drive your vehicle without hard accelera-
tion. The output power will be limited par-
ticularly when backing up.
(g) If you cannot shift lever out of “P”position
If you cannot shift the selector lever from
the “P” position even though the brake
pedal is depressed, use the shift lock
override button. For instructions, see “If
you cannot shift running mode selector
lever” on page 188 in Section 5.
25p008
Vehicles sold in U.S.A.
25p009
Vehicles sold in Canada
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal while depressing the brake pedal.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Driving with the parking brake en-
gaged can reduce braking power.
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
53.Parking brake

11 8
—Trip information
26p038c
Energy monitor screen
Touch the “Energy” switch. Vehicle driving
condition, hybrid system operating condi-
tion and energy recovery condition are
shown.
1.Indicates the flow of energy by orange
arrows. While the energy is recovered,
the arrows change the pointing direc-
tion and turn green.
2. Indicates the remaining capacity of the
hybrid vehicle battery.
The screen display updates every 2 sec-
onds, so it may not coincide with the
actual status.
26p039b
Fuel consumption screen
Touch the “Consumption” switch. Average
fuel consumption, momentary fuel con-
sumption and recovered energy are
shown.
1. Indicates the past momentary fuel con-
sumption every 5 minutes.
2. Indicates the energy recovered for 5
minutes with symbols. One symbol re-
fers to 50 Wh or the energy by which
a 50 W bulb illuminates for an hour.
Up to 4 symbols will be shown.
3. Indicates the current momentary fuel
consumption. 4.
Indicates the average fuel consumption
after being reset. To reset, touch the
“Reset” switch.

125
26p003a

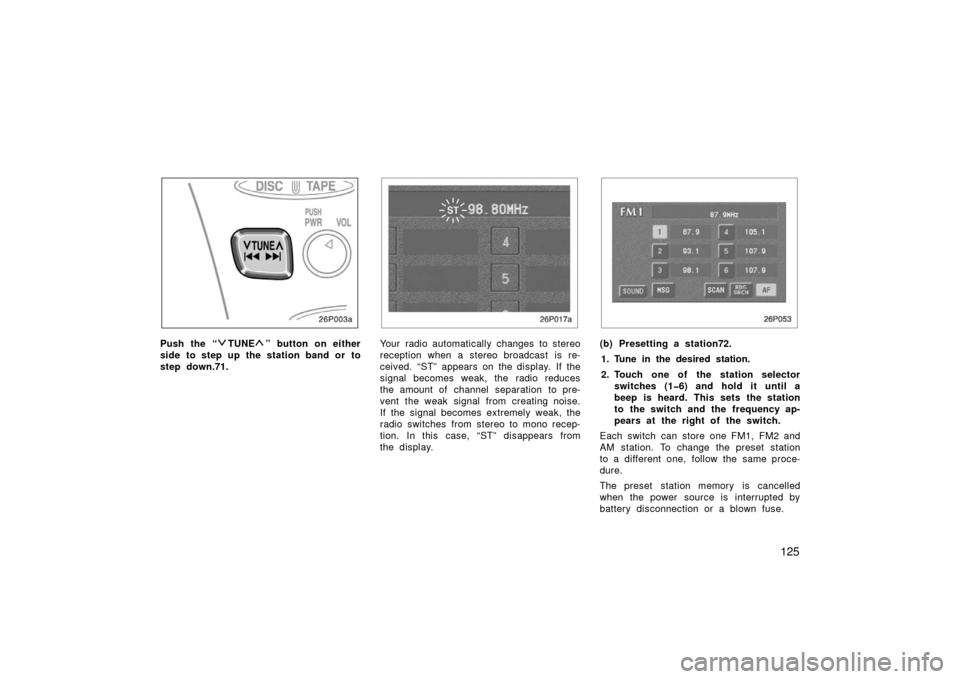

Push the “TUNE” button on either
side to step up the station band or to
step down.71.
26p017a
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to pre-
vent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion. In this case, “ST” disappears from
the display.
26p053
(b) Presetting a station72.
1. Tune in the desired station.
2. Touch one of the station selector switches (16) and hold it until a
beep is heard. This sets the station
to the switch and the frequency ap-
pears at the right of the switch.
Each switch can store one FM1, FM2 and
AM station. To change the preset station
to a different one, follow the same proce-
dure.
The preset station memory is cancelled
when the power source is interrupted by
battery disconnection or a blown fuse.

144
96.Clock
28p009c
The digital clock indicates the time.
The key must be in the “ACC” or “ON”
position.
To set the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced.
97.Power outlet
28p010
The power outlet is designed for power
supply for car accessories.
The key must be in the “ACC” or “ON”
position for the power outlet to be used.
NOTICE
To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
 To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the hybrid system is not operating.
Close the power outlet lid when the
power outlet is not in use. Inserting
a foreign object other than the ap-
propriate plug that fits the outlet,
or allowing any liquid into the out-
let may cause electrical failure or
short circuits.
