2003 TOYOTA PRIUS battery

12
The hybrid system automatically con-
trols the level of electrical power re-
maining in the hybrid vehicle battery.
With the selector lever in a position
other than “N”, electricity is generated
and charging occurs when the level of
electrical power in the hybrid vehicle
battery decreases. It is unnecessary to
charge the hybrid vehicle battery from
outside.
INFORMATION:
The gasoline engine starts and stops
automatically. (It stops during a low
load driving, deceleration or when the
vehicle stopped.)
If the “READY” light remains on, you
can start your vehicle using the electric
motor even with the gasoline engine
stopped.
The gasoline engine may not stop auto-
matically in the following conditions:
 During under gasoline engine warm
up
 During hybrid vehicle battery charg-
ing
 When the air conditioning is used in
the “MAX” mode, the gasoline engine
is frequently used. If the output control warning light ()
comes on in the instrument cluster, the
hybrid vehicle battery temperature is
low or high, or the hybrid vehicle bat-
tery capacity is decreased with the se-
lector lever at “R” during driving. As it
does not indicate the failure of the sys-
tem, you can continue driving but avoid
hard acceleration because the power is
insufficient (which is caused by the bat-
tery power deterioration).
The vehicle runs in combination with
the gasoline and electric power. Pay
special attention to the following items.
Be careful of a high voltage and high
temperature.
Your vehicle is equipped with the orange
colored cables connected to the hybrid
vehicle battery which contain a high volt-
age (about 300 V) and to other high volt-
age parts.
CAUTION
Do not touch or come in contact with
orange cables or battery terminals.
Electric shock may cause serious in-
jury or death. Read all caution labels.
A electric motor, coolant radiator and
some other parts reach high temperature
when you are driving. Caution labels are
applied to these parts. Carefully observe
the instructions on these caution labels.
10.Precautions for use

13
CAUTION
Never remove or disassemble the
high voltage parts, high voltage
cables (orange color) and their con-
nectors. It may cause death or seri-
ous injury.
12p007d
Inverter unitHybrid vehicle battery
Service
plug
High volt-
age cables
Do not touch the service plug.
The service plug is installed in the left
side trim of the trunk. It is provided to
shut out high voltage current of the hybrid
vehicle battery when the vehicle is in
need of repairs at a Toyota dealer.
CAUTION
The shaded parts in the illustration
are subjected to a high voltage.
Inappropriate handling may cause
an electric shock resulting in seri-
ous injury or death. Never touch
any item in shaded area.
Keep your hybrid vehicle’s driving char-
acteristics in mind.
As the vehicle runs with both the gaso-
line engine and electric motor, you may
hear a motor sound coming from the
engine compartment.
When the ignition switch is turned to
on or off, you may hear a sound com-
ing from the hybrid vehicle battery in
the trunk. However, this does not indi-
cate any trouble.
If the “READY” light is on, you can
start even with the gasoline engine
stopped.
When the hybrid vehicle battery tem-
perature is low or high, or the hybrid
vehicle battery capacity is decreased
with the selector lever at “R” during
driving, the output control warning light
comes on and the output might be lim-
ited for longer battery charge life.
If the output control warning light is on,
drive your vehicle without hard accel-
eration. The output power will be limit-
ed particularly when backing up.

14
When you put the running mode selec-
tor lever in “B” position and release
your foot from the accelerator pedal,
engine braking will be applied. Howev-
er, during the high speed driving you
may feel that deceleration by engine
braking is less than that of ordinary
vehicle.
Drive your vehicle without hard accel-
eration if the output control warning
light
() is on.
The hybrid vehicle battery temperature is
low or high, or the hybrid vehicle battery
capacity is decreased with the selector
lever at “R” during driving. If this occurs,
the output control warning light comes on.
If the output control warning light is on,
the hybrid system output is limited. Drive
your vehicle without hard acceleration.
Vehicle performance might be reduced sig-
nificantly especially when backing up.
Be sure to put the running mode selec-
tor lever in “P” position when parking.
With the selector lever in “N” position, the
hybrid vehicle battery assembly is not
charged, even if the gasoline engine is
operating. You cannot run your vehicle if
the selector lever is left in “N” position for
a long time because the hybrid vehicle
battery assembly will be discharged. When you leave your vehicle, apply the
parking brake with the running mode
selector lever in “P” position and be
sure to remove the key and lock all the
doors.
When you leave the the ignition key in the
“ACC” or “ON” position if the hybrid sys-
tem is not operating, the hybrid system
may not start because the auxiliary bat-
tery will be discharged.
CAUTION
When you leave your vehicle, be
sure to shut off the hybrid system.
Be sure to put the running mode
selector lever in “P” position be-
cause the vehicle can start with the
“READY” light on and the engine
stopped (no engine sound and
vibration). When the “READY” light
is on, if you leave your vehicle with
the running mode selector lever in
a position other than “P” and “N”,
the vehicle will creep and start
abruptly with the accelerator pedal
being depressed by mistake. It may
cause death or serious injury.
12p008a
If the multiinformation display shows
a message, the master warning light
() comes on in the instrument clus-
ter. Read the message and follow the
instruction.
When you leave your vehicle, or stop
or park for a while, put the selector
lever in “P”.
Charging is necessary. With the selec-
tor lever in “N” position, charging will
not be applied. The electric generator
operates in “P”, “D” or “B” position. If
you continue driving, put the selector
lever in “D” or “B” position and depress
the accelerator pedal. Do not leave it
in “N” position. When driving in traffic
jam, run in “D” position.

15
12p009c
Do not put the luggage on the package
tray behind the rear seatback.
An air vent is provided on the package
tray behind the rear seatback to cool
the hybrid vehicle battery. If this vent
is covered with something, the hybrid
vehicle battery will overheat resulting in
a reduction of the output performance
of the hybrid system.
Do not apply water or put foreign ob-
jects over the air vent. Otherwise, it
may affect the hybrid vehicle battery
adversely and cause damage.
You may hear a cooling fan noise from
the air vent.For vehicle repairs or maintenance, be
sure to consult your Toyota dealer.
If your vehicle is beyond repair because
of accident or something, be sure to
consult your Toyota dealer.
As sealed NickelMetal hydride batteries
are used, be sure to consult your Toyota
dealer when disposing of your vehicle.
CAUTION
If you are involved in an accident,
follow these precautions.
Move the vehicle to a safe place
and perform the followings to re-
duce the risk of high voltage elec-
tricity leakage.
 Depress the brake pedal and put the
selector lever in “P” position.
 Apply the parking brake.
 Turn the ignition switch to “LOCK”
and remove the key.
If your vehicle has experienced ma-
jor damage, you may get an electric
shock. To prevent this, never touch
the high voltage parts (hybrid ve-
hicle battery assembly, etc.) or
cables (orange color) connecting
these parts. If some exposed elec-
tric wiring is protruding inside or
outside of the vehicle, an electric
shock may also occur. Never touch
them.
If the fluid leaks or gets in some
part of the vehicle, never touch it
because it may be electrolyte
(strong alkali) from the hybrid ve-
hicle battery. If it gets on your skin
or eyes, wash off immediately with
a large amount of water, if possible,
with boric acid solution, and get
immediate medical attention in or-
der to help avoid serious injury.
If a vehicle fire occurs, extinguish
it using a fire extinguisher for the
exclusive use on electric fires. As
a small amount of water may be
dangerous, use a large amount of
water, for example from a fire hy-
drant, or wait for a firefighting
team arrival.

25
To unlock: Push the “UNLOCK” switch
once to unlock the only driver’s door.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, the
parking lights, side marker lights, license
plate lights and tail lights will flash twice.
When the “UNLOCK” switch is pressed
the interior light comes on. The lights re-
mains on for about 15 seconds unless
either door is opened then and closed.
(For further information, see “Interior light”
on page 85 in Section 23.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.
21p015
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will have for one minute. To
stop alarm midway, push the “PANIC” or
“UNLOCK” switch once again, unlock any
door with the key or transmitter, or turn
the ignition key from the “LOCK” to “ON”
position.
The “PANIC” mode does not work when
the ignition key is in the “ON” position.WIRELESS REMOTE CONTROL TRANS-
MITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance.
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “REPLACING
TRANSMITTER BATTERY” on page 27.

27

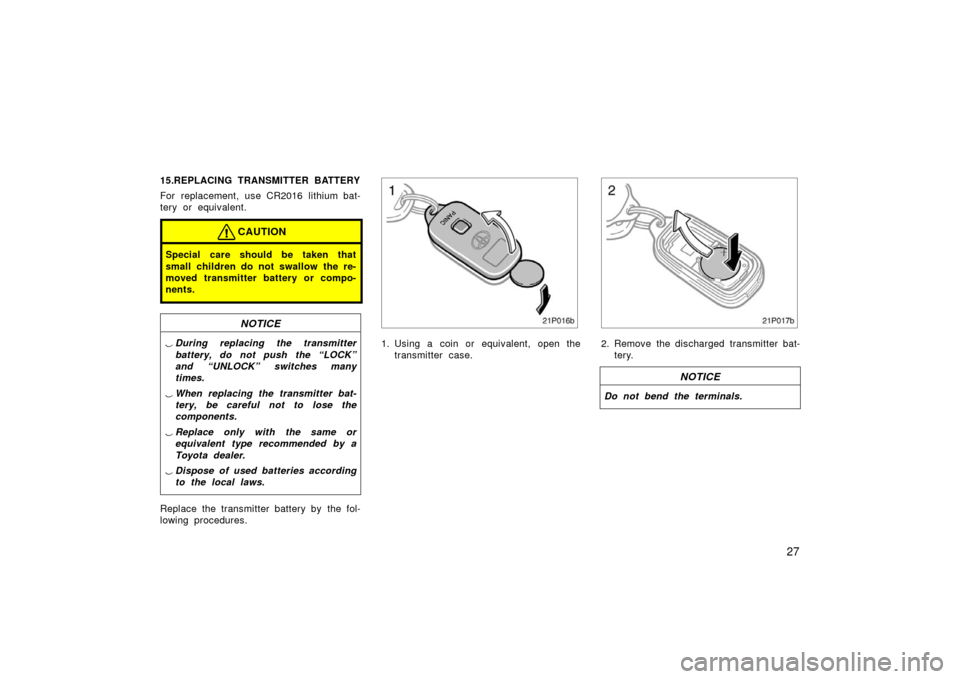

15.REPLACING TRANSMITTER BATTERY
For replacement, use CR2016 lithium bat-
tery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
 When replacing the transmitter bat-
tery, be careful not to lose the
components.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by the fol-
lowing procedures.
21p016b
1. Using a coin or equivalent, open the
transmitter case.
21p017b
2. Remove the discharged transmitter bat-tery.
NOTICE
Do not bend the terminals.

28
21p018b
3. Put a new transmitter battery with posi-tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
21p019
The windows can be operated with the
switch on each door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation : If both front doors are
closed, they work for 45 seconds even
after the ignition switch is turned off. They
stop working when either front door is
opened.
OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation : The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
16.Power windows

34
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod
inserted into the slot could cause the
hood to bend.
19.Theft deterrent system
21p028
To deter the vehicle theft, the system
is designed to give an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
21p029a
SETTING THE SYSTEM1. Turn the ignition key to the ”LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See ”Hybrid vehicle immobiliser
system” on page 20 for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will come on when all
the doors, trunk and hood are closed and
locked.
