2.Instrument panel overview
1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Running mode selector lever
6. Power door lock switches
7. Power window switches
8. Glove box
9. Auxiliary boxes
10. Tilt steering lock release lever 11. Hood lock release lever
12. Parking brake pedal
13. Window lock switch
11p003b
6
Tail light indicator light
Output control warning light
∗1
Cruise control indicator light∗3
Running mode position indicator light
Driving ready light
Hybrid system warning light
∗2
Power steering warning light∗2
Hybrid vehicle battery warning light∗2
∗1: For details, see ”Service reminder indicators and warning
buzzers— —Instrument cluster” on page 92 in Section 2 4.
∗2: For details, see “Service reminder indicators and warning
buzzers— —Multi information display” on page 99 in Section
2 4.
∗3: If this light flashes, see ”Cruise control” on page 109 in
Section 2 5.
38
OPERATION OF INSTRUMENTS AND
CONTROLS
21.Seats, Seat belts, Steering wheel and mirrors
Seats39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Front seats s39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Head restraints 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Seat belts 42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
SRS driver and front passenger airbags 50
. . . . . . . . . . . . . . . . . . . . . . . .
SRS side airbags 57
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Child restraint 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Tilt steering wheel 77
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Outside rear view mirrors 78
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti glare inside rear view mirror 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirror 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
SECTION 2– 2
39
While the vehicle is being driven, all ve-
hicle occupants should have the seatback
upright, sit well back in the seat and prop-
erly wear the seat belts provided.
CAUTION
Do not drive the vehicle unless the
occupants are properly seated. Do
not allow passengers to sit on top
of a folded down seatback, or in
the luggage compartment or cargo
area. Persons not properly seated
and/or properly restrained by seat
belts can be severely injured in the
event of emergency braking or a
collision.
During driving, do not allow pas-
sengers to stand up or move
around between seats. Otherwise,
severe injuries can occur in the
event of emergency braking or a
collision.
Driver seat
CAUTION
The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if
the driver is very close to the airbag.
The National Highway Traffic Safety
Administration “NHTSA” advises:
Since the risk zone for driver airbag
is the first 50 75 mm (2 3 in.) of
inflation, placing yourself 250 mm (10
in.) from your diver airbag provides
you with a clear margin of safety.
This distance is measured from the
center of the steering wheel to your
breastbone. If you sit less than 250
mm (10 in.) away now, you can
change your driving position in sever-
al ways:
Move your seat to the rear as far
as you can while still reaching the
pedals comfortably.
Slightly recline the back of the
seat. Although vehicle designs vary,
many drivers can achieve the 250
mm (10 in.) distance, even with the
driver seat all the way forward, sim-
ply by reclining the back of the
seat somewhat. If reclining the back
of your seat makes it hard to see
the road, raise yourself by using a
firm, non slippery cushion, or raise
the seat if your vehicle has that
feature.
If your steering wheel is adjustable,
tilt it downward. This points the air-
bag toward your chest instead of
your head and neck.
The seat should be adjusted as rec-
ommended by NHTSA above, while
still maintaining control of the foot
pedals, steering wheel, and your view
of the instrument panel controls.
22.Seats 23.Front seats—
—Front seat precautions
(on vehicles with SRS front
airbags)
50
22p013
The SRS (Supplemental Restraint Sys-
tem) front airbags are designed to pro-
vide further protection for the driver
and front passenger in addition to the
primary safety protection provided by
the seat belts.
In response to a severe frontal impact,
the SRS front airbags work together with
the seat belts to help reduce injury by
inflating. The SRS front airbags help to
reduce injuries mainly to the driver ’s or
front passenger ’s head or chest directly
hitting the steering wheel or dashboard.
The front passenger airbag is activated
even with no passenger in the front seat.
Be sure to wear your seat belt properly.Your vehicle is equipped with a crash
sensing and diagnostic module, which will
record the use of the seat belt restraint
system by the driver and pass
enger when
the SRS airbags are inflated.
CAUTION
A driver or front passenger who is
too close to the steering wheel or
dashboard during airbag deployment
can be killed or seriously injured.
Toyota strongly recommends that:
The driver sit as far back as pos-
sible from the steering wheel while
still maintaining control of the ve-
hicle.
The front passenger sit as far back
as possible from the dashboard.
All vehicle occupants be properly
restrained using the available seat
belts.
22p010
This indicator comes on when the igni-
tion key is turned to the “ACC” or
“ON” position. It goes off after about
6 seconds. This means the SRS front
airbags are operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side airbag sensors, front seat belt
pretensioner assemblies, warning light, in-
terconnecting wiring and power sources.
(For details, see “Service reminder indica-
tors and warning buzzers” on page 93 in
Section 2 4.)
26.SRS driver and front
passenger airbags
52
22p017a
The SRS airbag system mainly consists of
the following components and their loca-
tions are shown in the illustration.1. Front airbag sensors
2. SRS warning light
3. Airbag module for front passenger (air- bag and inflator)
4. Airbag sensor assembly
5. Airbag module for driver (airbag and inflator)
The airbag sensor assembly consists of a
safing sensor and airbag sensor. The airbag sensors constantly monitor the
forward deceleration of the vehicle. If an
impact results in a forward deceleration
beyond the designed threshold level, the
system triggers the airbag inflators. At this
time a chemical reaction in the inflators
very quickly fills the air
bags with non tox-
ic gas to help restrain the froward motion
of the occupants. The airbags then quickly
deflate, so that there is no obstruction of
the driver ’s vision should it be necessary
to continue driving.
When the airbags inflate, they produce a
loud noise and release some smoke and
residue along with non toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can physically and
safely exit the vehicle after a collision,
you should do so at the first opportunity. Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, primarily to the head and chest, it
may also cause other, less severe injuries
to the face, chest, arms and hands. These
are usually in the nature of minor burns
or abrasions and swelling, but the force of
a deploying airbag can cause more seri-
ous injuries, especially if an occupant’s
hands, arms, chest or head are in close
proximity to the airbag module at the time
of deployment. This is why it is important
for the occupant to: avoid placing any
object or part of the body between the
occupant and the airbag module; sit
straight and well back into the seat; wear
the available seat belt properly; and sit as
far as possible from the airbag module,
while still maintaining control of the ve-
hicle.
Parts of the airbag module (steering wheel
hub, airbag cover and inflator) may be hot
for several minutes after deployment, so
do not touch! The airbags inflate only
once. The windshield may be damaged by
absorbing some of the force of the inflat-
ing airbag.
55

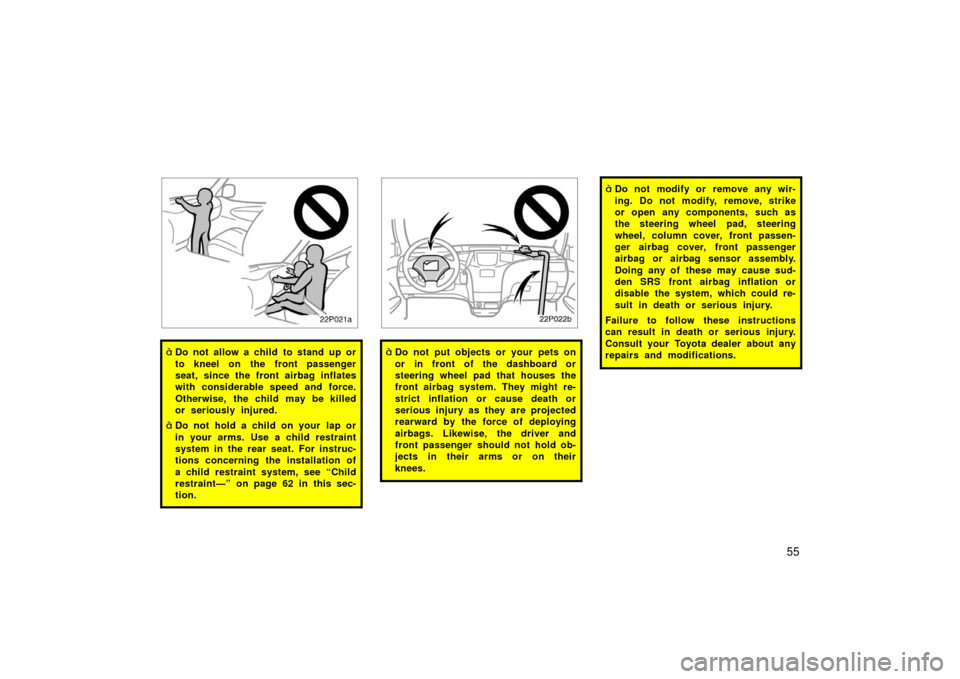

22p021a
Do not allow a child to stand up or
to kneel on the front passenger
seat, since the front airbag inflates
with considerable speed and force.
Otherwise, the child may be killed
or seriously injured.
Do not hold a child on your lap or
in your arms. Use a child restraint
system in the rear seat. For instruc-
tions concerning the installation of
a child restraint system, see “Child
restraint—” on page 62 in this sec-
tion.
22p022b
Do not put objects or your pets on
or in front of the dashboard or
steering wheel pad that houses the
front airbag system. They might re-
strict inflation or cause death or
serious injury as they are projected
rearward by the force of deploying
airbags. Likewise, the driver and
front passenger should not hold ob-
jects in their arms or on their
knees.
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components, such as
the steering wheel pad, steering
wheel, column cover, front passen-
ger airbag cover, front passenger
airbag or airbag sensor assembly.
Doing any of these may cause sud-
den SRS front airbag inflation or
disable the system, which could re-
sult in death or serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repairs and modifications.
56
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS front airbag system in some
cases.
Installation of electronic devices
such as a mobile two way radio,
cassette tape player or compact
disc player
Modification of the suspension sys-
tem
Modification of the front end struc-
ture
Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
22p010
This SRS front airbag system has a ser-
vice reminder indicator to inform the driver
of operating problems. If either of the fol-
lowing conditions occurs, this indicates a
malfunction of the airbags. Contact your
Toyota dealer as soon as possible to ser-
vice the vehicle.
The light does not come on when the
ignition key is turned to the “ACC” or
“ON” position, or the light remains on.
The light comes on while driving.
22p023a
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an acci dent
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
