2003 TOYOTA PRIUS steering

169
Do not use your parking brake when
there is a possibility it could freeze.
When parking, put the selector lever into
“P” and block the rear wheels. Do not use
the parking brake, or snow or water accu-
mulated in and around the parking brake
mechanism may freeze, making it hard to
release.
Keep ice and snow from accumulating
under the fenders.
Ice and snow built up under your fenders
can make steering difficult. During bad
winter driving, stop and check under the
fenders occasionally.
Depending on where you are driving,
we recommend you carry some emer-
gency equipment.
Some of the things you might put in the
vehicle are tire chains, window scraper,
bag of sand or salt, flares, small shovel,
jumper cables, etc.
40p050
Your vehicle is not designed to be
dinghy towed (with four wheels on the
ground) behind a motorhome.NOTICE
Do not tow your vehicle with four
wheels on the ground. This may
cause serious damage to your ve-
hicle.
40p003a
Toyota does not recommend towing a
trailer with your Toyota. It is not de-
signed for trailer towing.
125.Dinghy towing Trailer towing126.

170
Improving fuel economy is easyjust take
it easy. It will help make your vehicle last
longer, too. Here are some specific tips
on how to save money on both fuel and
repairs:
Keep your tires inflated at the cor-
rect pressure. Underinflation causes
tire wear and wastes fuel. See page
221 in Section 82 for instructions.
Do not carry unneeded weight in
your vehicle. Excess weight puts a
heavier load on the engine, causing
greater fuel consumption.
Accelerate slowly and smoothly.
Avoid jackrabbit starts.
Avoid continuous speeding up and
slowing down. Stopandgo driving
wastes power.
Avoid unnecessary stopping and
braking. Maintain a steady pace. Try
to time the traffic signals so you only
need to stop as little as possible or
take advantage of through streets to
avoid traffic lights. Keep a proper dis-
tance from other vehicles to avoid sud-
den braking. This will also reduce wear
on your brakes.
Avoid heavy traffic or traffic jams
whenever possible.
Do not rest your foot on brake ped-
al. This causes premature wear, over-
heating and poor fuel economy.
Maintain a moderate speed on high-
ways. The faster you drive, the greater
the fuel consumption. By reducing your
speed, you will cut down on fuel con-
sumption.
Keep the front wheels in proper
alignment. Avoid hitting the curb and
slow down on rough roads. Improper
alignment not only causes faster tire
wear but also puts an extra load on
the engine, which, in turn, wastes fuel.
Keep the bottom of your vehicle free
from mud, etc. This not only lessens
weight but also helps prevent corro-
sion.
Keep your vehicle tunedup and in
top shape . A dirty air cleaner, improp-
er valve clearance, dirty plugs, dirty oil
and grease, brakes not adjusted, etc.
all lower engine performance and con-
tribute to poor fuel economy. For longer
life of all parts and lower operating
costs, keep all maintenance work on
schedule, and if you often drive under
severe conditions, see that your ve-
hicle receives more frequent mainte-
nance.
CAUTION
Never turn off the hybrid system to
coast down hills. Your power steering
and brake booster will not function
without the hybrid system running.
Also, the emission control system op-
erates properly only when the hybrid
system is running.
How to save fuel and make
your vehicle last longer,
too127.

176
If your hybrid system stalls while driving...1. Reduce your speed gradually, keeping a straight line. Move cautiously off the
road to a safe place.
2. Turn on your emergency flashers.
3. Turn the ignition switch to ”OFF” posi- tion, and try starting the hybrid system
again.
If the hybrid system will not start, see “If
your vehicle will not start” on page 172.
CAUTION
If the hybrid system is not operating,
the power assist for the brakes and
steering will not work so steering and
braking will be much harder than usu-
al.
If your high coolant temperature warn-
ing light comes on, if you experience a
loss of power, or if you hear a loud
knocking or pinging noise, the hybrid
system has probably overheated. You
should follow this procedure... 1. Pull safely off the road, stop the ve- hicle and turn on your emergency
flashers. Put the transmission in “P”
and apply the parking brake. Turn off
the air conditioning if it is being used.
2. If coolant or steam is boiling out of the radiator or reservoir, stop the hybrid
system. Wait until the steam subsides
before opening the hood. If there is no
coolant boiling over or steam, leave the
hybrid system running and make sure
the electric cooling fan is operating. If
it is not, turn the ignition off.
CAUTION
To help avoid personal injury, keep
the hood closed until there is no
steam. Escaping steam or coolant is
a sign of very high pressure.
3. Look for obvious coolant leaks from theradiator, hoses, and under the vehicle.
However, note that water draining from
the air conditioning is normal if it has
been used.
CAUTION
When the hybrid system is running,
keep hands and clothing away from
the moving fan and engine drive
belts.
4. If the coolant is leaking, stop the hy-brid system immediately. Call a Toyota
dealer for assistance.
5. If there are no obvious leaks, check the coolant reservoir. If it is dry, add
coolant to the reservoir while the hy-
brid system is running. Fill it about half
full.
CAUTION
Do not attempt to remove the radiator
cap when the hybrid system and ra-
diator are hot. Serious injury could
result from scalding hot fluid and
steam blown out under pressure.
If your hybrid system stalls
while driving130. 131.If your vehicle overheats

186
50p035a
Front
50p028b
Rear
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to emergency towing eyelet in-
side of front bumper. Use extreme
caution when towing vehicles.
The front towing eyelet is provided in the
trunk. (For the front towing eyelet storage
location, see “—Required tools and spare
tire” on page 179.)
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hardsurfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing
vehicles. Avoid sudden starts or er-
ratic driving maneuvers which
would place excessive stress on the
emergency towing eyelet and towing
cable or chain. The eyelet and tow-
ing cable or chain may break and
cause serious injury or damage.
In case of installing the front eyelet
on the vehicle, be sure to tighten
in the front eyelet securely. If the
tightening is loose, it may come off
when towing and result in death or
serious injury to the passenger in
the front vehicle or damage to that
vehicle.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the selector lever in “N”. The key
must be in “ACC” (hybrid system off) or
“ON” (hybrid system on).
135.—Emergency towing

187
CAUTION
If the hybrid system is not running,
the power assist for the brakes and
steering will not work so steering and
braking will be much harder than usu-
al.

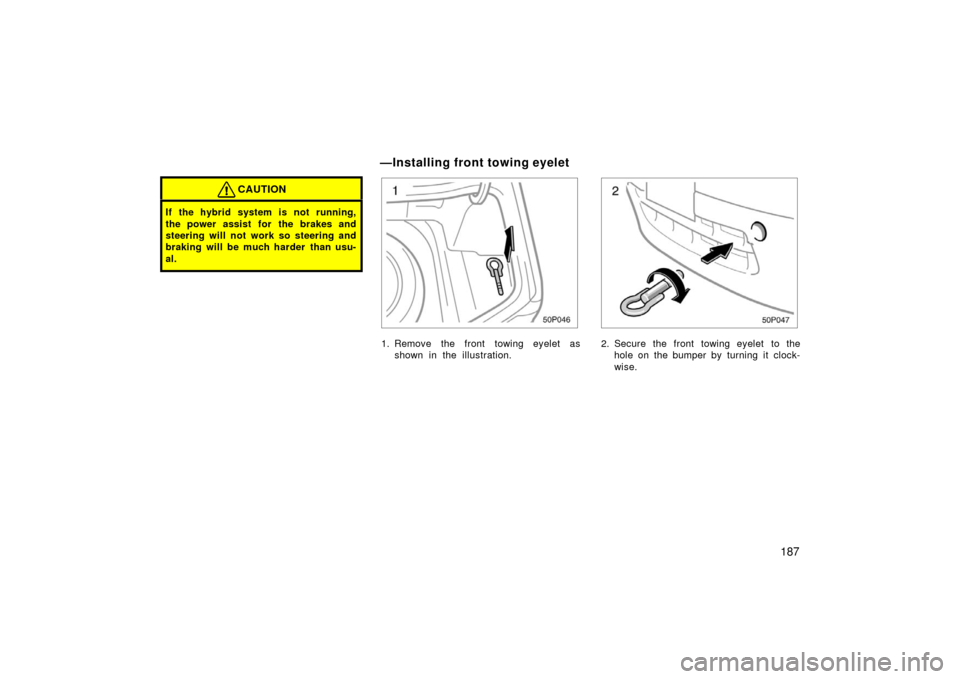

50p046
1. Remove the front towing eyelet asshown in the illustration.
50p047
2. Secure the front towing eyelet to thehole on the bumper by turning it clock-
wise.
—Installing front towing eyelet

202
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraint move up and down smooth-
ly and that the locks hold securely in any
latched position.Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
At a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Hybrid transaxle ”Park” mechanism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in ”P” position and all brakes re-
leased.
IN THE ENGINE COMPARTMENT
Items listed below should be checked
from time to time, e.g. each time when
refueling.
Washer fluid
Make sure there is sufficient fluid in the
tank. See page 231 in Section 83 for
additional information.
Coolant level
Make sure the coolant level is between
the ”FULL” and ”LOW” lines on the see
through reservoir when the hybrid system
is cold. See page 216 in Section 82 for
additional information.
Radiator, condenser and hoses
Check that the front of the radiator and
condenser are clean and not blocked with
leaves, dirt, or insects. See page 218 in
Section 82 for additional information.

243
HYBRID TRANSAXLE
Fluid capacity, L (qt., Imp. qt.):4.6 (4.9, 4.1)
Fluid type: “Toyota Genuine ATF Type TIV” or
equivalent BRAKES
Minimum pedal clearance when depressed
with the force of 196 N (20 kgf, 44 lbf)
with the traction motor running, mm (in.):
80 (3.15)
Pedal free play, mm (in.): 1 6 (0.04 0.24)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66 lbf): 5 8 clicks
Fluid type: SAE J1703 or FMVSS No. 116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
182.Tires
Tire size and pressure:Tire size kPa (kgf/cm2 or bar, psi)
Standard
Front P175/65R14 84S 240 (2.4, 35)
Rear
P175/65R14 84S 230 (2.3, 33)
Spare
T125/70D16 96M 420 (4.2, 60)
Wheel size: Standard 14 x 5 1/2JJ
Spare 16 x 4T
Wheel nut torque, N·m (kgf·m, ft·lbf): 103 (10.5, 76)
NOTE: For a complete information on tires (e.g. replacing tires or replacing
wheels), see ”Checking tire pres-
sure” through ”Aluminum wheel
precautions”, page 221 through
226 in Section 82.

245
90p008a
Trunk
17. DOME 15 A: Audio system, multiinfor-
mation display, interior light, trunk light,
power window system, wireless remote
control system
18. TURNHAZ 10 A: Turn signal lights,
Emergency flasher
19. PANEL 5 A: Audio system, ashtray
light, headlight beam level control sys-
tem, emergency flasher
20. GAUGE 10 A: Gauge and meter, emer-
gency flasher, rear window defogger,
service reminder indicator and warning
buzzers, backup light, power window
system, air c onditioning system 21. HTR 10 A:
Air conditioning system
22. TAIL 7.5 A: Parking lights, tail lights,
license plate lights, side marker lights
23. ECUIG 5 A: Air conditioning system,
antilock brake system, electric power
steering, daytime running light system
24. STOP 15 A: Stop lights, high mounted
stoplights, antilock brake system
25. ACC 10 A: Antilock brake system
warning light, clock, audio system, mul-
tiinformation display, shift lock system
26. WIPER 30 A: Windshield wiper
27. ECUB 7.5 A: Air conditioning system,
daytime running light system, electric
power steering system, hybrid vehicle
immobiliser system
28. CIG 15 A: Power outlet
29. WASHER 15 A: Washer
30. DOOR 30 A: Power door lock system
31. SRS ACC 10 A: SRS airbags, seat
belt pretensioners
32. OBD II 7.5 A: No circuit
33. PWR1 20 A: Power window system
34. AM1 5 A: “ACC”, “CIG”, “SRS ACC”,
“WASHER”, “HTR”, “WIPER”, “ECUIG”
and “GAUGE” fuses
35. DC/DCS 5 A: Inverter and converter 36. HTR NO.3 50 A:
Air conditioning sys-
tem
37. EMPS 50 A: Electric power steering
38. ABS NO.1 40 A: Antilock brake sys-
tem
39. MF HEAD 30 A: Daytime running light
system
40. HTR 50 A: Air conditioning system
41. RDI 30 A: Electric cooling fan
42. ABS NO.2 30 A: Hydraulic brake
booster
