2003 TOYOTA PRIUS glove box

2

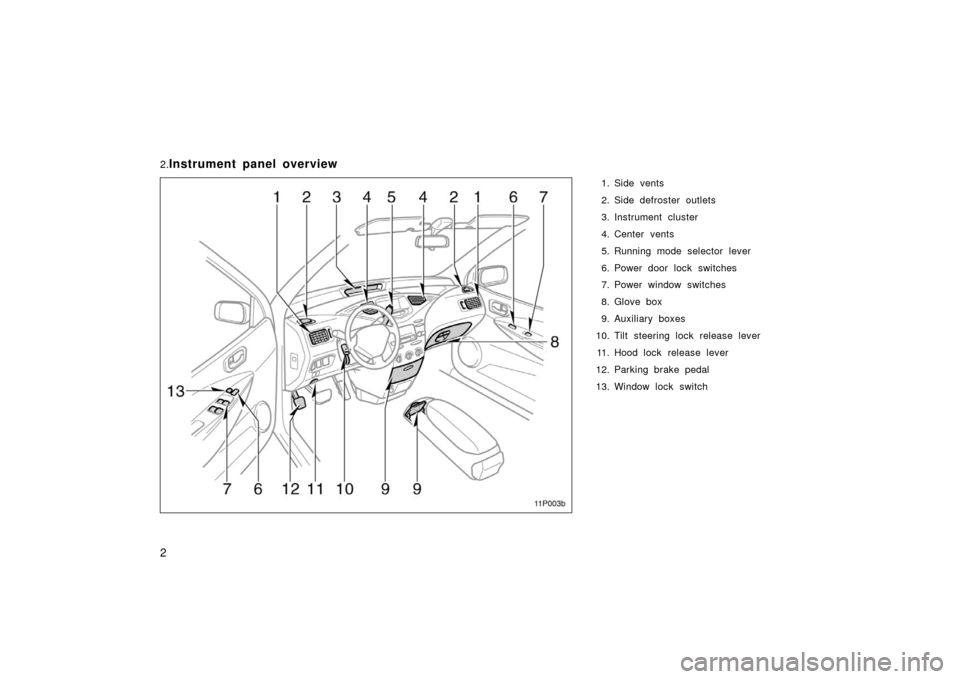

2.Instrument panel overview
1. Side vents
2. Side defroster outlets
3. Instrument cluster
4. Center vents
5. Running mode selector lever
6. Power door lock switches
7. Power window switches
8. Glove box
9. Auxiliary boxes
10. Tilt steering lock release lever 11. Hood lock release lever
12. Parking brake pedal
13. Window lock switch
11p003b

143
OPERATION OF INSTRUMENTS AND
CONTROLS
95.Other equipment
Clock144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Power outlet t 144. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Rear console box 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . .
Glove box 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Auxiliary boxes 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Cup holders 146
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Floor mat 147
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 2– 9

145

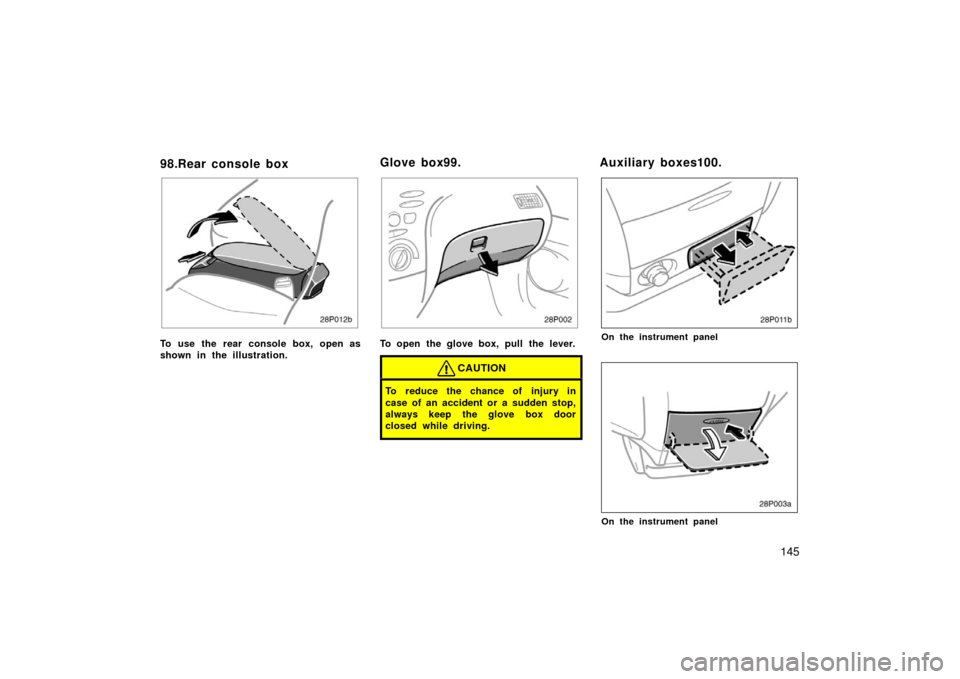

98.Rear console box
To use the rear console box, open as
shown in the illustration.
28p002
To open the glove box, pull the lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
On the instrument panel
28p003a
On the instrument panel
Glove box99.Auxiliary boxes100.

219
NOTICE
If you spill the fluid, be sure to wipe
it off to prevent it from damaging the
parts or painting.
82p006a
The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows become to fog up easily.
The air conditioning filter is set behind the
glove box.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. (For scheduled maintenance informa-
tion, please refer to the “Owner ’s Manual
Supplement/Scheduled Maintenance”.)
27p007
1. Open the glove box. Turn and pullout 2 pins located on both sides.
Pull down the glove box.
Checking and replacing the
air conditioning filter161.
