GENERAL INFORMATION 0B-3
662LA MB
W4A040 3.871 2.247 1.4361.0005.5865.38
9 - 9.5
Auto Transmission (MB)
Application
Maker
Type or Model
Gear Ratio : 1st 2nd3rd 4th Reverse
Final Drive RatioOil Capacity (L)
2.3L DOHC MB
W4A040 3.871 2.247 1.4361.0005.5864.27
9 - 9.5 3.2L DOHC
MB
W4A040 3.871 2.247 1.4361.0005.5863.73
9 - 9.5
661LA
BTRA
M74 4WD
2.741 1.508 1.0000.7082.429
5.38 9
Auto Transmission (BTRA)
Application
Maker
Type or Model
Gear Ratio : 1st 2nd 3rd 4thReverse
Final Drive RatioOil Capacity (L)662LA BTRA
M74 4WD
2.741 1.508 1.0000.7082.429
4.89 9 2.3L DOHC
BTRA
M74 4WD
2.741 1.508 1.0000.7082.429
5.86 9 3.2L DOHC
BTRA
M74 4WD
2.741 1.508 1.0000.7082.429
4.89 9
Tire and Wheel
Specifications
P235/75 R15, 255/70 R15 7JJ × 15
30 Psi 30 Psi 30 Psi 30 Psi
Application
Standard Tire SizeStandard Wheel SizeInflation Pressure At Full Lode
P235 / 75 : FrontRear
P255 / 75 : Front Rear
Application
Booster Size Master Cylinder Diameter (mm) Booster Ratio
Front Brake : Disc Type
Rear Brake : Disc Type
Specifications 8inch + 9inch 7inch + 8inch 8inch + 9inch
25.4
5.6 : 1
Ventilated
Solid
Brake
non-ABS ABS 5.0ABS 5.3
GENERAL INFORMATION 0B-7
MAINTENANCE AND REPAIR
MAINTENANCE AND LUBRICATION
Fuel Filter Replacement
Replace the engine fuel filter every.
Gasoline Engine : 60,000km (36,000 miles)
Diesel Engine : 45,000km (24,000 miles)
Spark Plug Replacement Replace spark plugs with same type.
Type : BOSCH : F8DC4
BERU : 14F-8DU4
Champion : C11YCC
Gap : 0.8 ± 0.1 mm
Spark Plug Wire Replacement Clean wires and inspect them for burns, cracks or other damage. Check the wire boot fit at the Distributor and at the spark plugs. Replace the wires as needed. Brake System Service Check the disc brake pads or the drum brake linings.
Check the pad and the lining thickness carefully. Tire and Wheel Inspection and Rotation
Check the tires for abnormal wear or damage. To equalize wear and obtain maximum tire life, rotate the tires. If irregular or premature wear exists, check the wheel alignment and check for damaged wheels. Whilethe tires and wheels are removed, inspect the brakes.
NORMAL VEHICLE USE The maintenance instructions contained in the maintenance schedule are based on the assumption that the vehicle will be used for the following reasons:
To carry passengers and cargo within the limitation
of the tire inflation prassure. Refer to “Tire and Wheel” in section 2E.
To be driven on reasonable road surfaces and withinlegal operating limits.
EXPLANATION OF SCHEDULED MAINTENANCE SERVICES The services listed in the maintenance schedule are
further explained below. When the following maintenance services are performed, make sure all the parts are replaced and all the necessary repairs are done before driving the vehicle. Always use the proper fluid and lubricants. Engine Oil and Oil Filter Change Always use above the API SH grade or recommended engine oil. Engine Oil Viscosity Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operation. Lower viscosity engine oils can provide better fuel economy and cold
weather performance; however, higher temperatureweather conditions require higher viscosity engine oils for satisfactory lubrication. Using oils of any viscosity other than those viscosities recommended could result in engine damage. Cooling System Service Drain, flush and refill the system with new coolant. Refer to “Recommended Fluids And Lubricants” in this section. Air Cleaner Element Replacement
Clean the air cleaner element every.
Gasoline Engine : 15,000km (10,000 miles)
Diesel Engine : 10,000km (6,000 miles)
Replace the air cleaner element every .
Gasoline Engine : 60,000km (36,000 miles)
Diesel Engine : 30,000km (18,000 miles)
Replace the air cleaner more often under dusty conditions.
Tire Rotation (Left - Hand Drive Type)
DescriptionAlumimun7JJ X 15
Radial Tire
P215 / 75R 15 - 30psi P235 / 75R 15 - 30psiP255 / 70R 15 - 30psi
Application
Wheel SECTION 2E
TIRES AND WHEELS
TABLE OF CONTENTS
SPECIFICATIONS
GENERAL SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONS
Application
Wheel Bolt
N
m
80 - 120
110 - 130
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2E-1 General Specifications . . . . . . . . . . . . . . . . . . 2E-1
Fastener Tightening Specifications . . . . . . . . . 2E-1
Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . 2E-2 Wear Pattern Diagnosis . . . . . . . . . . . . . . . . . 2E-2
Identification . . . . . . . . . . . . . . . . . . . . . . . . . 2E-3 Radial Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 2E-3Wheel Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . 2E-3
Component Locator . . . . . . . . . . . . . . . . . . . 2E-4 Wheel and Tire . . . . . . . . . . . . . . . . . . . . . . . . 2E-4
Maintenance and Repair . . . . . . . . . . . . . . . 2E-5
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . 2E-5 Wheels and Tires . . . . . . . . . . . . . . . . . . . . . . 2E-5
Material Size
Tire Type Size and Tire Pressure
Steel Alumimum
TRANSFER CASE (TOD) 5D2-19
ClassificationEngine Type
Transmission/Vehicle Type Axle Ratio
Tire Size
Coding Required

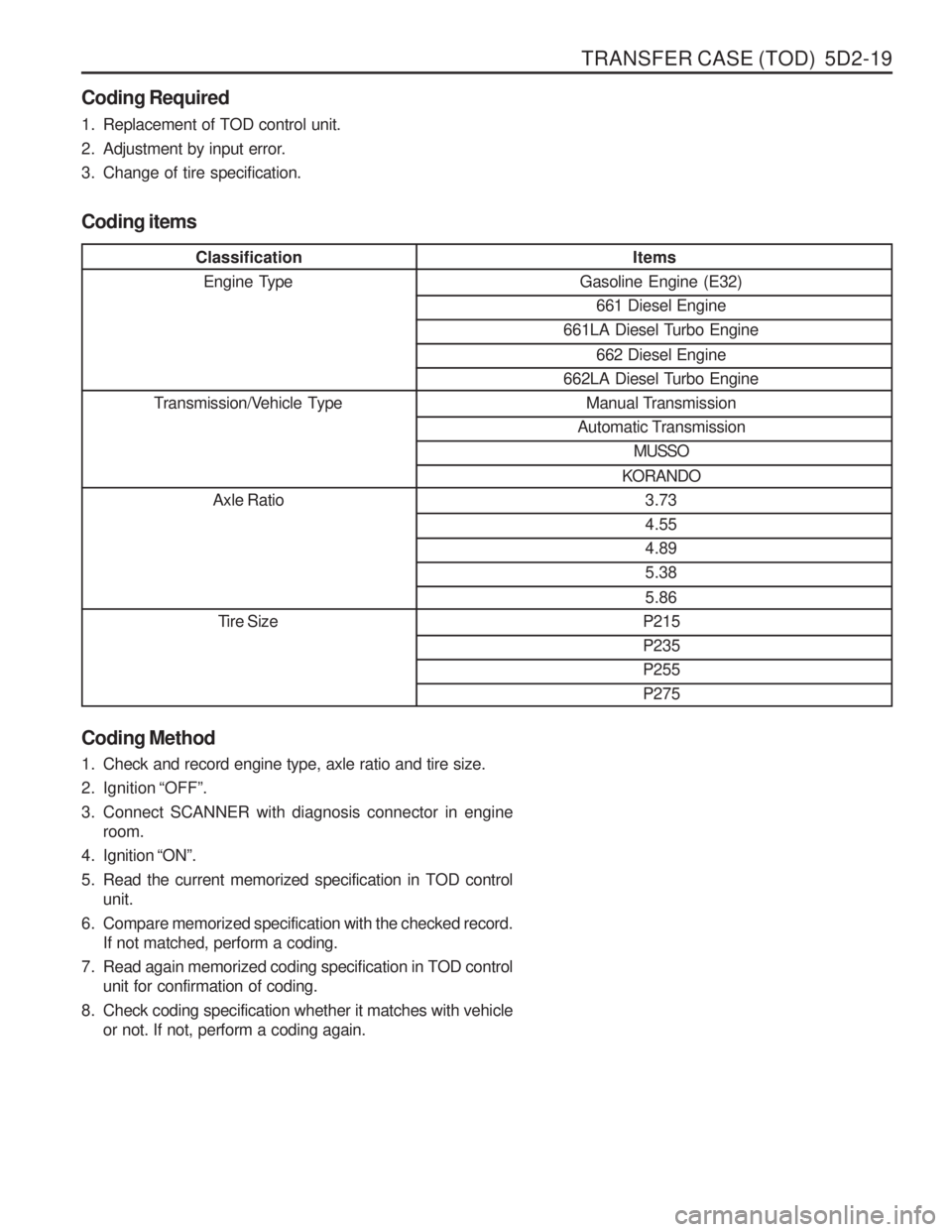

1. Replacement of TOD control unit.
2. Adjustment by input error.
3. Change of tire specification.
Items
Gasoline Engine (E32) 661 Diesel Engine
661LA Diesel Turbo Engine
662 Diesel Engine
662LA Diesel Turbo Engine Manual Transmission
Automatic Transmission MUSSO
KORANDO 3.734.554.895.38 5.86
P215 P235P255P275
Coding Method
1. Check and record engine type, axle ratio and tire size.
2. Ignition “OFF ”.
3. Connect SCANNER with diagnosis connector in engine room.
4. Ignition “ON ”.
5. Read the current memorized specification in TOD control unit.
6. Compare memorized specification with the checked record. If not matched, perform a coding.
7. Read again memorized coding specification in TOD control unit for confirmation of coding.
8. Check coding specification whether it matches with vehicle or not. If not, perform a coding again.
Coding items
