CLUTCH 5C-15
CLUTCH PEDAL
1 Snap Pin................................................ Replace
2 Clevis Pin ...................................... Apply Grease
3 Master Cylinder Push Rod
4 Gasket
5 Nut ....................................................... 16-22 Nm
6 Spring washer
7 Bolt ........................................................ 8-18 Nm
8 Fulcrum Pin 9 Turn Over Spring
..........................Apply Grease
10 Bushing ......................... Replace, Apply Grease
11 Full Stroke Stopper Contact Pad
12 Clutch Pedal
13 Pedal Pad
14 Pedal Mounting Bracket
15 Stopper Bolt .......................................... 21-25Nm
16 Clutch Interlock Switch
Notice
Assembly should follow the disassembly procedure in the reverse order.
Grease specification : Long - term grease (T/Mn DBL6611.00)

5C-16 CLUTCH
Inspection Procedure
1. Pedal Stroke (A).Notice
To adjust the pedal stroke, loosen the lock nut (H) of the
interlock switch (G) and turn the two lock auto until the stroke is correct.
Max. Stroke 158 mm
2. Pedal Height (B). Notice
To adjust the pedal height, loosen the lock nut (C) of the
stopper bolt(D) and turn the stopper bolt until the height iscorrect.
Height (From the Floor Carpet) 147 - 187 mm
3. Pedal Free Play (E). Notice
To adjust the pedal free play, loosen the lock nut (F) of the
master cylinder and turn the push rod until the free play is correct.
4. Check the fulcrum pin and the bushing for wear, the pedal for bending and the spring for damage.
Free Play 5 - 10 Nm

CLUTCH 5C-17

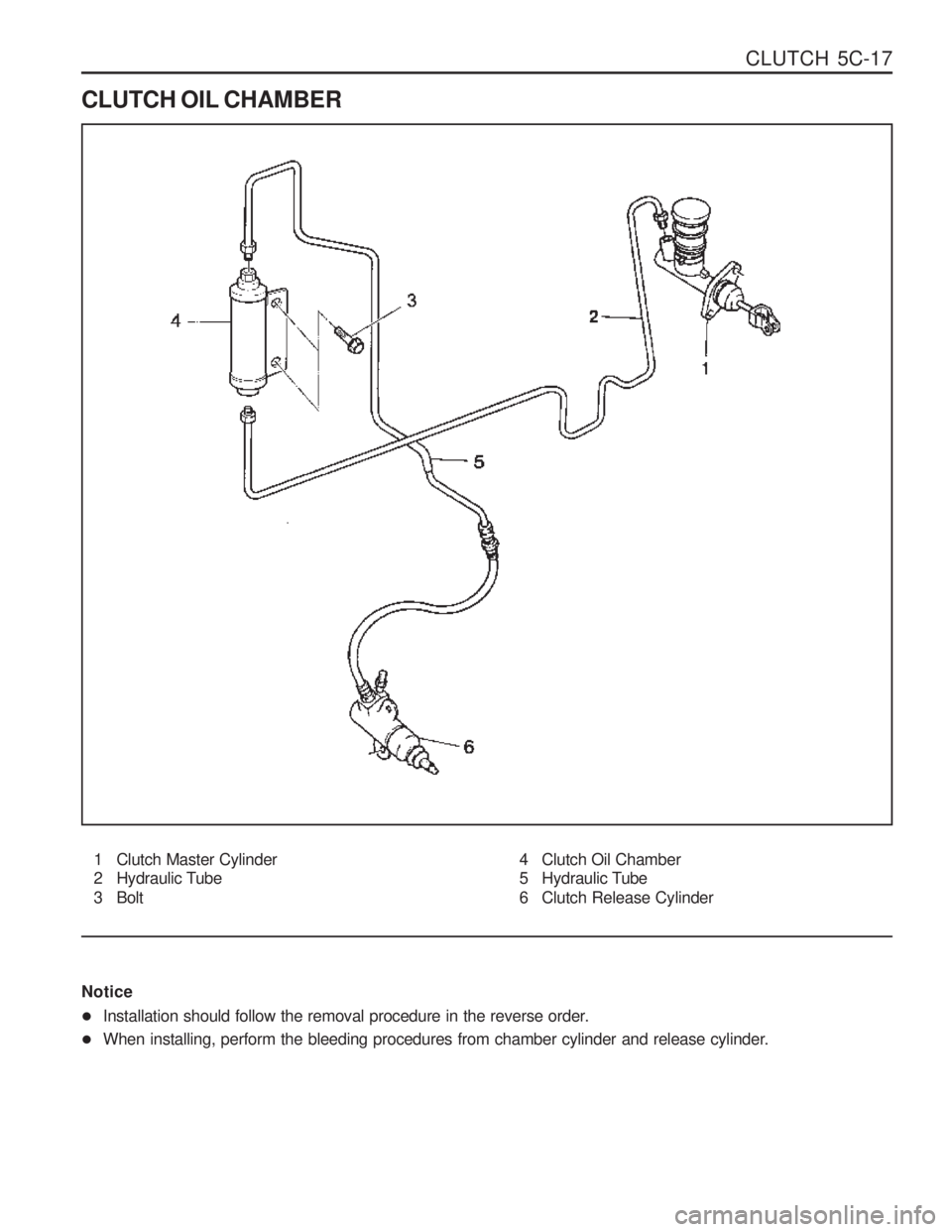

CLUTCH OIL CHAMBER
1 Clutch Master Cylinder
2 Hydraulic Tube
3 Bolt 4 Clutch Oil Chamber
5 Hydraulic Tube
6 Clutch Release Cylinder
Notice
Installation should follow the removal procedure in the reverse order.
When installing, perform the bleeding procedures from chamber cylinder and release cylinder.

TRANSFER CASE (PART TIME 4408) 5D1-3
Cannot Front Wheel Drive when Shifted 4H,4LDIAGNOSIS
Electric Shift Problems
Action
Overhaul and check, replace if necessary. Overhaul and check for wear and damage.
Replace if necessary.
Check sliding parts, replace if necessary.
Checks
Faulty or Damaged TCCU, Speed Sensor, Motor, Clutch or Internal Wirings Damaged or Worn Shift Cam, Hub, Fork and Rail Shift Binding Shift Fork, Hub Collar or Gear
Checks
Broken Drive Chain Action
Check sliding parts, replace if necessary.
Noise in 4WD Operation
Checks
Improper or low oil Loosened bolts or mounted partsNoisy T/C bearing Noisy gears Action
Drain and replace with specified oil. Retighten as specified.Disassemble bearings and parts and check for wear or
damage. Replace if necessary. Check for wear and damage including speedometer
gear, replace if necessary.
Noise in 4H or 4L
Checks
Worn or Damaged Sprockets or Drive Chain
Incorrect Tire Pressure Action
Disassemble and check for wear and damage, replace
if necessary. Adjust tire pressure.
Transfer Case Oil Leakage
Action
Replace the case. Clean case and parts and check for leakage.
Remove breather hose and clean, replace if necessary.Use specified oil and adjust oil level.Retighten Use specified sealant and retighten. Replace
Checks
Cracked Transfer CaseLeakage from Other PartsBreather CloggingImproper or too much OilLoosened Sealing Bolts Improperly Applied Sealant Worn or Damaged Oil Seal

5D1-4 TRANSFER CASE (PART TIME 4408)SELF-DIAGNOSIS
SYSTEM DESCRIPTION
1. TCCU detects transfer case system malfunctions and indicates malfunctioning part(s) through flashing 4H,4L indicator lights.
Using a service connector, connect it to the diagnosis box in the engine room and read the flashing of the ‘4WD
CHECK ’ indicator light.
The flashing indicator light will show you defective code(s).
2. Identify 7 defective codes after reading the flashing indicator light.
TCCU
Shift motor
Magnetic synchronizer clutch
Speed sensor
Hub solenoid
Selector switch
Motor position sensor
3. Transfer case system is malfunctioning when: 4H ,4L indicator lights are remain on after 0.6 second when turning the ignition switch ‘ON ’
4H,4L indicator lights are continuously come on during driving.
4. If only 1 part is malfunctioning, ‘4WD CHECK ’ indicator light
will display defective code 3 times continuously.
5. If more then 2 part is malfunctioning, the first malfunctioning part will be displayed 3 times and following malfunctioningparts will be displayed .
6. To read defective code, connect the service connector and turn the ignition switch 'ON'.
7. After repairing, eliminate the defective code stored in the TCCU. NoticeBefore replacing the malfunction parts with defective code, check the wires and connectors for proper condition.

5D1-6 TRANSFER CASE (PART TIME 4408)
Diagnostic Table
Connect a service connector. If turn the ignition switch ‘ON ’
‘ 4WD CHECK ’ indicator light will come on for 0.6 second and
turn off for 3 seconds and then display a defective code 3
times continuously.
No. Defective Code
Malfunctioning Part
1
2 3 4
5 TCCU
Shift Motor
Synchronizer Clutch
Speed SensorHub Solenoid
4WD CHECK Light ON OFF
Defective Code
4WD CHECK Light ON OFF
Defective Code
4WD CHECKLight ONOFF
Defective Code
4WD CHECKLight ONOFF
Defective Code
4WD CHECK Light ONOFF
Defective Code

TRANSFER CASE (PART TIME 4408) 5D1-15
1 Nut
2 Spring Washer
3 Oil Seal
4 Companion Flange
5 Snap Ring
6 Torsional Damper
7 Pipe Plug
8 Bolt
9 Bolt
10 Speed Sensor and Harness
Bracket
11 Speed Sensor Assembly
12 Speed Sensor
13 O-Ring
14 Locking Clip
15 Connector
16 Motor Assembly
17 Oil Seal
18 Bearing
19 Bolt
20 Tag
21 Decal
22 Wiring Harness Clip
23 Bolt
24 Cover Assembly
25 Nut
26 Snap Ring
27 Bearing
28 Needle Bearing
29 Cover
30 Clutch Coil Assembly
31 Speed Gear
32 Oil Seal
33 Return Spring
34 Magnet
35 Clutch Housing 36 Lock-up Assembly
37 Snap Ring
38 Lock-up Hub
39 Sleeve Return Spring
40 Lock-up Collar
41 Rail Shaft
42 Lock-up Fork
43 Snap ring
44 Spacer
45 Driven Sprocket
46 Driven Sprocket
47 Drive Chain
48 Shaft and Pump Assembly
49 Screw
50 Pump Housing
51 Pump Gear Set
52 Pump Cover
53 Spring Pin
54 Hose Clamp
55 Hose Coupling
56 Oil Strainer
57 Output Shaft
58 Reduction Hub
59 Shift Fork Assembly
60 Shift Fork Facing
61 Pin, Roller and Retainer
62 Pin
63 Cam Roller
64 Retainer
65 Reduction Shift Fork
66 Nut
67 Plane Washer
68 Oil Seal
70 Companion Flange
71 Spacer
72 Front Output Assembly 73 Breather Hose
74 Bolt
75 Front Adapter Assembly
76 Snap Ring
77 Oil Seal
78 Spiral Pin
79 Front Adapter
80 Snap Ring
81 Bearing
82 Input Shaft Assembly
83 Sleeve Assembly
84 Needle Bearing
85 Input Shaft
86 Thrust Washer
87 Retaining Ring
88 Thrust Plate
89 Sun Gear
90 Gear Carrier Assembly
91 Planet Carrier
92 Pinion Shaft
93 Thrust Washer
94 Pinion Gear
95 Needle Roller Bearing
96 Pinion Needle Spacer
97 Electric Shift Cam
98 Torsion Spring
99 Spacer
100 Shift Shaft
101 Case Assembly
102 Oil Seal
103 Snap Ring
104 Bearing
105 Dowel Pin
106 Ring Gear
107 Case

TRANSFER CASE (PART TIME 4408) 5D1-17
1. Remove the 9 bolts, wiring harness clip andidentification tag. Notice Identification tag has information required for ordering replacement parts, so be careful not to lose it.
2. Using a ‘-‘ driver, pry and disconnect the sealant
bond of the cover and required case.
3. Remove the oil seal, bearing, 3 nuts and clutch coil assembly of the electric shift unit.

14 Bolt
15 Wiring Clip
16 Identification Tag
17 Cover Assembly
18 Oil Seal
19 Bearing
20 Nut
21 Clutch Coil Assembly
22 Snap Ring
23 Ball Bearing 4. Remove the snap ring and pull out the ball bearing
from the cover to remove the speed gear.
5. Pull out the needle bearing from the cover.
6. Pull out the oil seal from the slot in cover.
7. Remove the magnet form the slot in case.
8. Remove the return spring from the rail shaft.
9. Be careful not to damage the metal surface when removing the sealant of the cover and case.
24 Needle Bearing
25 Cover
26 Magnet
27 Speed Gear
28 Oil Seal
29 Return Spring
38 Rail Shaft
55 Output Shaft
111 Transfer Case
