2003 Peugeot 206 Dag Owner's Manual

26-05-2003
YOUR 206 IN DETAIL99
REAR QUARTER LIGHTS (3 DOOR)
To partially open the rear windows,
tilt lever then push the window.

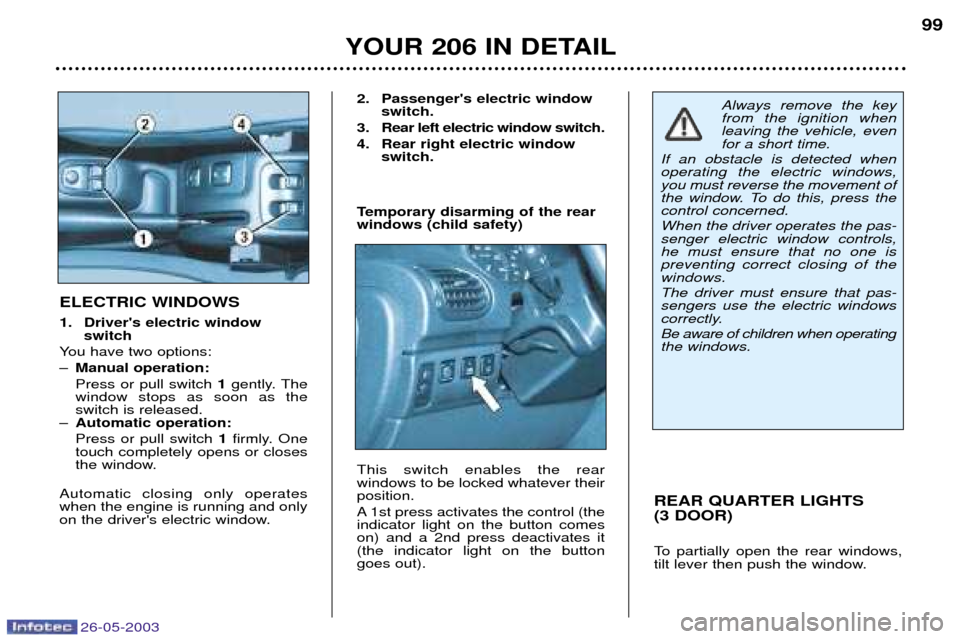

ELECTRIC WINDOWS
1. Driver's electric window switch
You have two options: Ð Manual operation:Press or pull switch 1gently. The
window stops as soon as the switch is released.
Ð Automatic operation: Press or pull switch 1firmly. One
touch completely opens or closes
the window.
Automatic closing only operateswhen the engine is running and only
on the driver's electric window. 2. Passenger's electric window
switch.
3. Rear left electric window switch.
4. Rear right electric window switch.
Temporary disarming of the rear windows (child safety) This switch enables the rear windows to be locked whatever theirposition.
A 1st press activates the control (the indicator light on the button comeson) and a 2nd press deactivates it(the indicator light on the buttongoes out).
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
If an obstacle is detected whenoperating the electric windows,you must reverse the movement of
the window. To do this, press thecontrol concerned. When the driver operates the pas- senger electric window controls,he must ensure that no one ispreventing correct closing of thewindows. The driver must ensure that pas- sengers use the electric windows
correctly. Be aware of children when operating the windows.

26-05-2003
YOUR 206 IN DETAIL
Manual interior mirror The interior mirror has two positions:
Ð day (normal),
Ð night (anti-dazzle).
To change from one to the other, push or pull the lever on the lower
edge of the mirror.Manual exterior mirrors Move the lever in all four directions to adjust. When the vehicle is parked, the exterior mirrors can be folded back
manually.
ELECTRIC EXTERIOR MIRRORS
Turn knob
1to the right or to the left
to select the corresponding mirror. Move knob 1in all four directions to
adjust. Fold-back electric mirrors With the ignition on, turn knob 1to
position A.
The outside of the mirror on the driver's side is convex (area at edge defined by dotted line) in order to eliminate the "blind spot". Furthermore, objects observed in the driver's and passenger's mir-
rors are in reality closer than they appear.
This must be taken into account to judge correctly the distance of vehiclesapproaching from behind.
100

26-05-2003
Rear courtesy light (206 SW)Comes on when a door, the tailgate or the rear screen isopened. In this position thecourtesy light flashes whiledriving if an access is not
closed correctly.
Off Permanently on when the key is in the accessoriesposition or with the ignitionon.
YOUR 206 IN DETAIL
102
COURTESY LIGHTS
Front courtesy light (button A)Comes on when a door, the tailgate (206 SW) or therear screen (206 SW) isopened. In this position thecourtesy light flashes whiledriving if an access is not
closed correctly.
Off
Permanently on when the key is in the accessories positionor with the ignition on.
SUN VISOR The sun visors are fitted with a van-
ity mirror, with a concealing flap onthe driver's side.
AREAS FOR TOLL CARDS/
CAR PARK TICKETS
The athermic windscreen has two non-reflective zones located either
side of the base of the interior mirror.
They are intended for affixing toll cards and/or car park tickets.
Map-reading light With the key in the accessories or ignition on position, turn button Bto
the left or to the right.

26-05-2003
YOUR 206 IN DETAIL
101
HEADLAMP ADJUSTMENT Depending on the load in your vehi- cle, it is recommended that theheadlamp beam is adjusted. 0-1 or 2 people in the front seats.
Ð- 3 people.
1- 5 people.
2- 5 people + maximum authorised load.
3- Driver + maximum authorisedload.
Initial setting is position 0.STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the handle to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel. HORN
Press one of the spokes orthe centre of the steeringwheel.

26-05-2003
YOUR 206 IN DETAIL
103

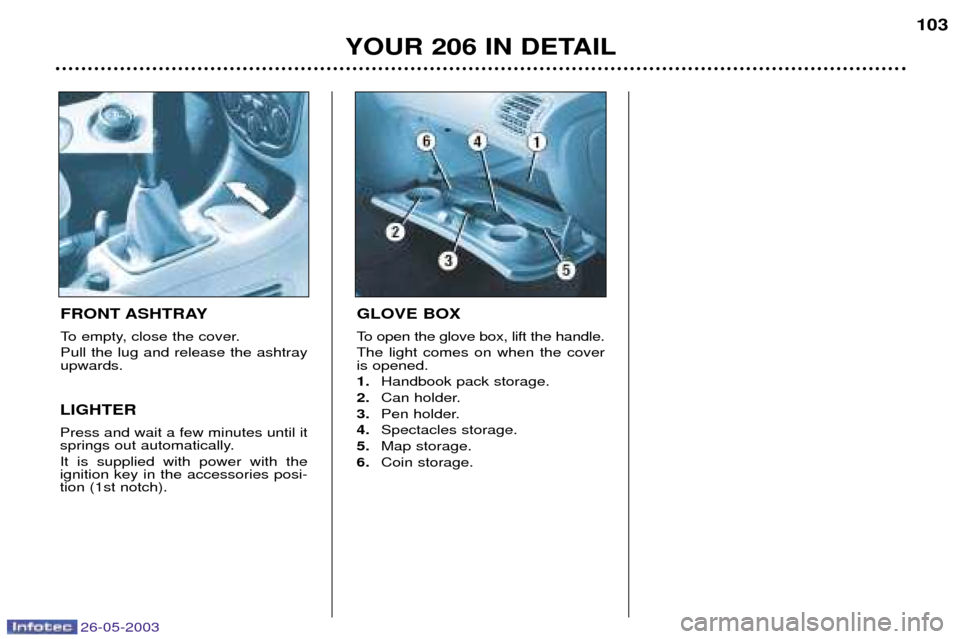

FRONT ASHTRAY
To empty, close the cover. Pull the lug and release the ashtray upwards.
LIGHTER Press and wait a few minutes until it
springs out automatically. It is supplied with power with the ignition key in the accessories posi-tion (1st notch).GLOVE BOX
To open the glove box, lift the handle. The light comes on when the cover is opened. 1. Handbook pack storage.
2. Can holder.
3. Pen holder.
4. Spectacles storage.
5. Map storage.
6. Coin storage.

26-05-2003
YOUR 206 IN DETAIL
104
Stowing rings Use the stowing rings on the boot floor and on the back of the rear seatto secure your luggage. Luggage retaining net Hooked onto the stowing rings, this enables your luggage to be secured.
BOOT LAYOUT (SALOON)
Retaining strap
A strap secured to the side of the boot enables you to secure variousobjects (cans, first aid kit etc.).
Rear parcel shelf
To remove the shelf:
Ð unhook the two strings 1,
Ð slightly raise the shelf, then remove it.
There are several options for storing the shelf:
Ð either behind the front seats,
Ð or behind the rear seat using theluggage retaining net,
Ð or flat in the boot.

26-05-2003
YOUR 206 IN DETAIL
106

26-05-2003
YOUR 206 IN DETAIL
107

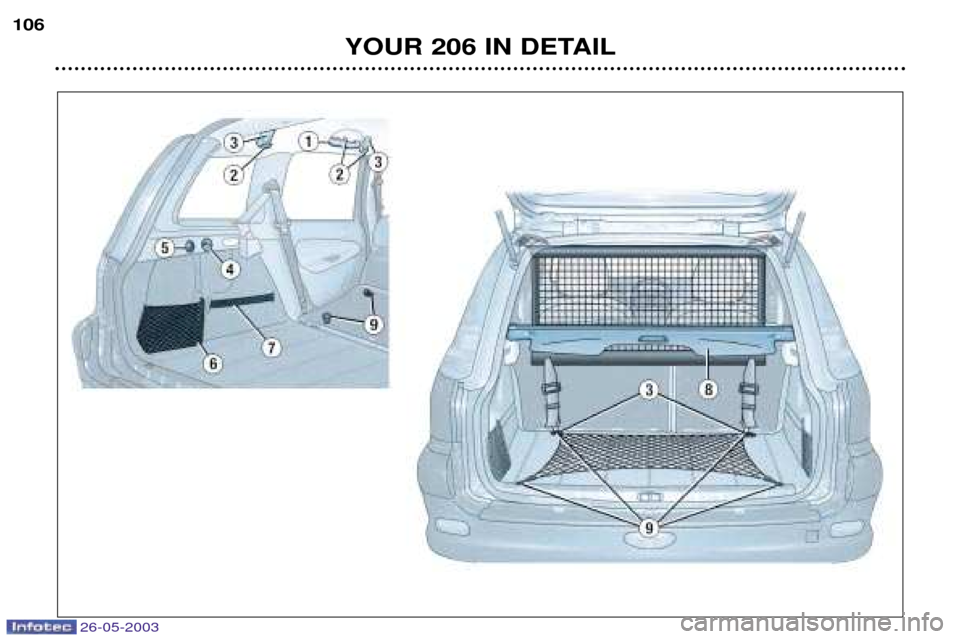

BOOT LAYOUT (206 SW)
1. Grab handles and coat hooks
2. Coat hooksThere are six hooks to accommodate coats.
3. High load retaining net fastenings The high load retaining net can be installed behind the front seats or behind the rear seat. Open the covers of the corresponding upper fastenings.
Install one end of the metal bar in one of the two fastenings, compress the bar, then install the other end and release.
Secure the two net strap hooks behind the front seats, with the rear seat folded down, or in the stowing rings on the floor.The rings are located directly below the corresponding upper fastenings.Pull the two straps taut.
4. Hooks
There are two side hooks on which to hang light bags.
5. 12 V Socket for accessories This is a 12 volt socket (lighter type) installed on the the rear left trim and supplied from the accessories position(1st notch).
6. Storage nets There are two nets (which cannot be removed) which can contain the luggage retaining net, a first aid kit etc.
7. Retaining straps There are two straps for securing various objects: cans etc.
8. Load space cover Note: release the rear seat back to make installation and removal of the load space cover easier.
To install it: Ð position one end of the roller in one of the two supports, Ð compress the opposite end of the roller and position it,Ð release it to allow it to engage,Ð unroll the cover as far as the boot pillars,Ð insert the cover guides in the rails in the pillars.
To remove it: Ð remove the cover guides from the pillar rails,
Ð return the cover into its roller, compress it and remove it from its support.
9. Stowing rings There are eight stowing rings for securing the luggage retaining net: four on the rear seat back and four on the boot floor(two of which are under the carpet, at the far end of the boot).
Warning triangle The tailgate has a location intended for a warning triangle.
