2003 Peugeot 206 Dag Owner's Manual

26-05-2003
YOUR 206 IN DETAIL
92
BONNET STRUT Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is locked.
FILLING THE FUEL TANK The tank must be filled with fuel with the engine switched off
.
Insert the key then turn it to the left. Remove the cap.
A label indicates which type of fuel to use. If you fill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehiclemalfunctions. The capacity of the tank is approximately 50 litres. OPENING THE BONNET Inside the vehicle: pull the handle
on the left-hand side, under the fascia. Outside the vehicle: lift the catch
and raise the bonnet.
Always remove the key from the ignition whenleaving the vehicle, evenfor a short time.
If an obstacle is detected whenoperating the roof, you mustreverse the movement of the roof.
To do this, press the control con-cerned. When the driver operates the roof control, he must ensure that noone is preventing correct closingof the roof. The driver must ensure that pas-
sengers use the sunroof correctly. Be aware of children when operating the roof.

26-05-2003
YOUR 206 IN DETAIL93
THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights Dipped/main beam headlamps
Automatic switchingon of lights Vehicles fitted with a rear foglamp (ring B)
Rear fog lamp
This only operates with the dipped/main beam headlamps. Note: when the lights are switched
off automatically, the rear fog lamp and the dipped headlamps willremain on (turn the ring backwards
to switch off the rear fog lamp. Thedipped headlamps and side lights
will then be switched off). Vehicles fitted with front foglamps and a rear fog lamp (ring C)
Front fog lamps (first rotation of the ring forwards)
The front fog lamps operate with theside lights and the dipped headlamps. When the main beam headlamps are switched on, the front fog lamps
are switched off. They are switchedon again when the main beam head-
lamps are switched off. Front and rear foglamps (2nd rotation ofthe ring forwards).
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ringbackwards twice in succession. Note: when the lights are switched
off automatically or when the dipped
headlamps are switched off manually,the front fog lamps, the rear foglamp and the side lights will remainon (turn the ring backwards to
switch off the front fog lamps. The
side lights will then be switched off).
Dipped/Main beam change Pull the stalk towards you.Note: with the ignition off, when the
driver's door is opened, a buzzer sounds if you have left your lights on. Front fog lamps and rear fog lamp Rotate the ring forwards to switch on
and backwards to switch off. Thestatus is confirmed by the indicatorlight on the instrument panel.

26-05-2003
YOUR 206 IN DETAIL
94
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
Ð Place the key in the accessories position (1st notch),
Ð Press the end of the lights stalk for more than four seconds.
The brightness sensor, coupled
with the rain sensor, is locatedin the centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights. Operating check Activation Activation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
Direction indicators (flashers)
Left:downwards.
Right: upwards.
"Follow me home" lighting In poor light or at night, if you leave your vehicle, the side lights anddipped headlamps can be left on forapproximately one minute.
To do this:
Ð place the key in the
STOPposition,
Ð place the lights stalk in the 0 position,
Ð flash the headlamps,
Ð get out of the vehicle and lock it.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.

26-05-2003
YOUR 206 IN DETAIL
94
AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
Ð Place the key in the accessories position (1st notch),
Ð Press the end of the lights stalk for more than four seconds.
The brightness sensor, coupled
with the rain sensor, is locatedin the centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights. Operating check Activation Activation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily
disarmed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
Direction indicators (flashers)
Left:downwards.
Right: upwards.
"Follow me home" lighting In poor light or at night, if you leave your vehicle, the side lights anddipped headlamps can be left on forapproximately one minute.
To do this:
Ð place the key in the
STOPposition,
Ð place the lights stalk in the 0 position,
Ð flash the headlamps,
Ð get out of the vehicle and lock it.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.

26-05-2003
YOUR 206 IN DETAIL95

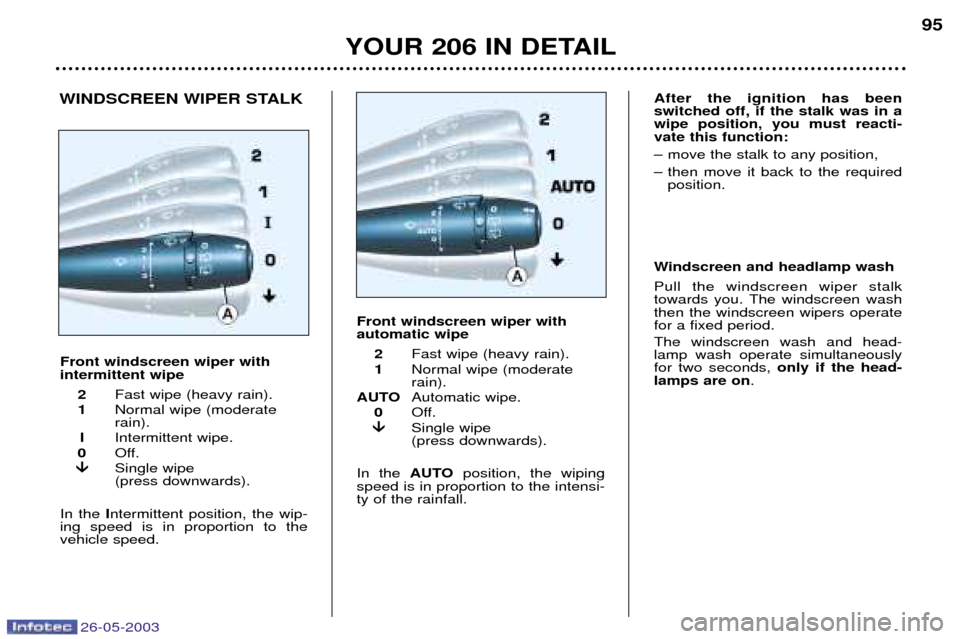

Front windscreen wiper with intermittent wipe 2 Fast wipe (heavy rain).
1 Normal wipe (moderaterain).
I Intermittent wipe.
0 Off.


Single wipe (press downwards).
In the Intermittent position, the wip-
ing speed is in proportion to thevehicle speed.
Windscreen and headlamp wash Pull the windscreen wiper stalk
towards you. The windscreen washthen the windscreen wipers operatefor a fixed period. The windscreen wash and head- lamp wash operate simultaneouslyfor two seconds, only if the head-
lamps are on .
WINDSCREEN WIPER STALK
Front windscreen wiper with automatic wipe2 Fast wipe (heavy rain).
1 Normal wipe (moderaterain).
AUTO Automatic wipe.
0 Off.


Single wipe (press downwards).
In the AUTOposition, the wiping
speed is in proportion to the intensi-ty of the rainfall.After the ignition has been switched off, if the stalk was in awipe position, you must reacti-vate this function:
Ð move the stalk to any position,
Ð then move it back to the required position.

26-05-2003
YOUR 206 IN DETAIL
96
Automatic timed windscreen wipers In the AUTOposition, the wind-
screen wipers operate automatically and adapt their speed to the inten-
sity of the rainfall .
Operating check Activation When the function is activated, the message "Automatic wiping
active" appears on the multifunc-
tion display. In the event of malfunction , the
driver is informed by an audible sig- nal and the message "Auto wiper
fault" on the multifunction display.
In the event of malfunction in the
AUTO position, the windscreen
wiper will operate in intermittentmode.
Contact a PEUGEOT dealer to havethe system checked.
Do not cover the rain sen- sor located on the wind-screen behind the interior
mirror.
When using an automatic carwash, switch off the ignition orcheck that the wiper stalk is not inthe automatic position.
In winter, it is advisable to wait forthe windscreen to completelyclear of ice before operating theautomatic wipe.Rear screen wiper
Turn ring Ato the first
notch for intermittent wiping.
Rear screen wash Turn ring Apast the first
notch; the screen wash then the wiper operate fora fixed period.
206 SW: the rear screen wiper and
rear screen wash functions are dis-armed when the rear screen isopen.

26-05-2003
YOUR 206 IN DETAIL97
TRIP COMPUTER Pressing the button on the end of the wash/wipe stalkenables the following data to
be displayed:
Display B
Ð the range
Ð the distance travelled
Ð the average consumption
Ð the current consumption
Ð the average speed Zero reset Press the stalk for more than two seconds. Display C
Ð the current consumption and the range,
Ð the average consumption, the distance travelled and the
average speed calculated over a period "1",
Ð the average consumption, the distance travelled and the average speed calculated over a period "2".
Periods "1"and "2"are defined by the frequency of the
zero reset. They allow, for instance, daily calculations over period "1"and monthly calculations over period "2".
Zero reset When the required period is displayed, press the stalk for more than two seconds.

YOUR 206 IN DETAIL
98
Range The display shows the distance that can still be covered with the fuelremaining in the tank. Note: this figure may rise if there is
a change in driving style or road sur- face, causing a significant drop incurrent fuel consumption. If there are less than 3 litres of fuel in the tank, only three segments willbe displayed.
Current fuel consumption This gives the fuel consumption recorded during the last two sec-
onds. This function is only displayedwhen the vehicle is travelling atmore than 12 m.p.h. (20 km/h). Average consumption This is the ratio between the amount of fuel consumed and the distancetravelled since the computer waslast reset to zero.
Average speed This is obtained by dividing the dis- tance travelled by the period of timethe vehicle has been in use (with theignition on), since the computer waslast reset to zero. Distance travelled This shows the distance travelled since the computer was last reset tozero. After the trip computer has been reset to zero, the range databecomes meaningful only after thevehicle has been in use for a certainperiod. If horizontal segments are displayed instead of figures when driving, con-
tact a PEUGEOT dealer.
