Page 145 of 168
26-05-2003
PRACTICAL INFORMATION133
Rear lights (saloon, 206 RC) Unclip the boot side trim.Remove the wing bolt.Release the light unit.Press the lug
Aand disconnect the
connector.Remove the foam.Move aside the tabs Band remove
the bulb holder.Change the faulty bulb.When refitting, ensure that the bulb holder and the light are repositioned
correctly.
Saloon, 206 RC 206 SW
1. Direction indicators P 21 W.
2. Reversing lights P 21 W.
3. Brake lights/side lights P 21/5 W.Rear lights (206 SW) Unclip the top of the boot trim using a coin. Unscrew the two wing bolts using
the wheelbrace if necessary. Release the light unit.
Disconnect the connector. Move aside the tabs 1and remove the
bulb holder 2.
Change the faulty bulb. When refitting, refit the boot trim by engaging it from the bottom thenclipping the top.
Page 146 of 168
26-05-2003
PRACTICAL INFORMATION
134

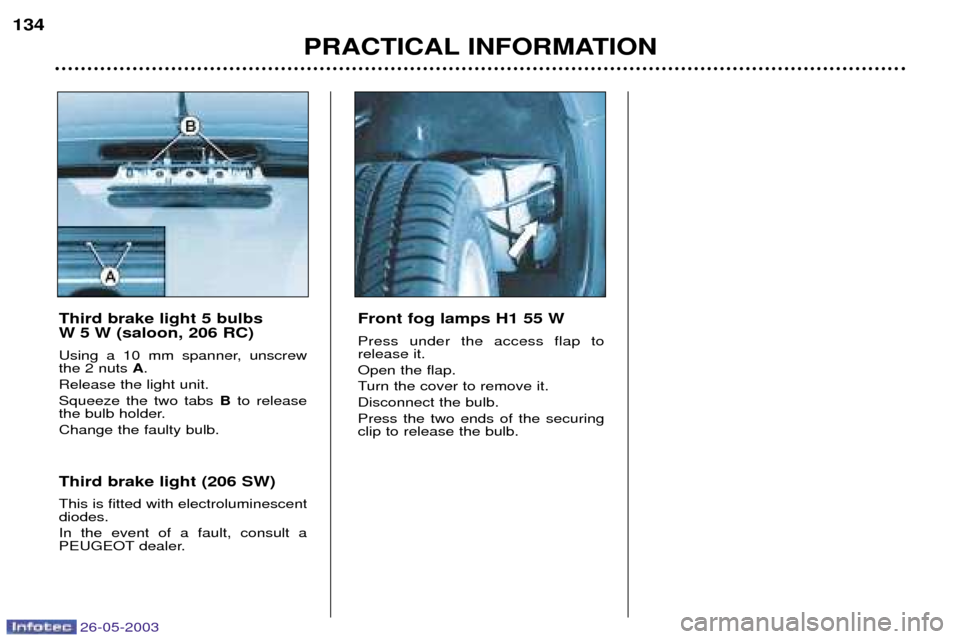

Front fog lamps H1 55 W Press under the access flap to release it. Open the flap.
Turn the cover to remove it.Disconnect the bulb.Press the two ends of the securing clip to release the bulb.
Third brake light 5 bulbs
W 5 W (saloon, 206 RC)
Using a 10 mm spanner, unscrew the 2 nuts A.
Release the light unit. Squeeze the two tabs Bto release
the bulb holder.Change the faulty bulb. Third brake light (206 SW) This is fitted with electroluminescent diodes. In the event of a fault, consult a
PEUGEOT dealer.
Page 147 of 168
26-05-2003
PRACTICAL INFORMATION135
Rear fog lamp P 21 W Unclip the lamp and release the
assembly.
Turn the pin connector a quarter turn and remove it. Change the bulb. Number plate lights W 5 W Insert a thin screwdriver into one of the outer holes of the transparent
cover. Push it outwards to unclip it.
Remove the transparent cover.Change the faulty bulb.
Page 148 of 168
26-05-2003
CHANGING A FUSE The fuse boxes are located under the fascia and in the engine com-partment. Fascia fuse box Unscrew the catch a quarter turn using a coin then remove the coverto gain access to the fuses. The spare fuses and the pliers Aare
secured on the inside of the fascia
fuse box cover.
PRACTICAL INFORMATION
136
Removing and fitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Use the pliers A.
Always replace a faulty fuse (identification according to fuse) with a fuse of the same rating.
Correct
Pliers A Incorrect
Page 149 of 168

26-05-2003
PRACTICAL INFORMATION
138
The electrical circuit of your vehicle is designedto operate with standardor optional equipment.
Before installing other electricalequipment or accessories in yourvehicle, consult a PEUGEOT deal-
er. Some electrical accessories or the way in which they are fitted mayhave an adverse effect on the oper-ation of your vehicle (its electroniccontrol circuits, the audio circuit andthe electrical charging circuit). PEUGEOT declines any responsi- bility for expenses incurred throughthe repair of your vehicle or for anymalfunctions resulting from theinstallation of auxiliary accessories,not supplied and not recommendedby PEUGEOT and not installed inaccordance with PEUGEOT'sinstructions, in particular for anyequipment the power consumptionof which exceeds 10 milliamps.
* The maxi fuses provide additional protection for the electrical systems. Any work on these fuses must be carried out by a PEUGEOT dealer.
Fuse N¡ Rating Functions
1* 20 A Fan unit
2* 60 A ABS/ESP
3* 30 A ABS/ESP
4* 70 A Built-in systems interface supply
5* 70 A Built-in systems interface supply
6* Ð Not used
7* 30 A Ignition switch supply
8* Ð Not used
Engine compartment fuse box
To gain access to the box in the engine compartment (next to the battery), unclip
the cover.
After carrying out work, close the cover very carefully.
or
Page 150 of 168

26-05-2003
PRACTICAL INFORMATION139
Fuse N¡ Rating
Functions
1 10 A Pre-heat unit (diesel) - Water in diesel sensor - Reversing lights switch - Speed sensor - Air flow sensor (diesel)
2 15 A Canister solenoid valve - Fuel pump
3 10 A ABS/ESP engine control unit - ESP stop switch
4 10 A Automatic gearbox control unit - Engine control unit
5 Ð Not used
6 15 A Front fog lamps
7 20 A Headlamp wash pump
8 20 A Fan assembly relay - Engine control unit - Diesel injection pump - Diesel high pressure regulator - Engine management solenoid valve
9 15 A Left-hand dipped beam
10 15 A Right-hand dipped beam 11 10 A Left-hand main beam
12 15 A Right-hand main beam
13 15 A Horns
14 10 A Front and rear windscreen wash pumps
15 30 A Throttle housing heater - Diesel injection pump - Oxygen sensor - Engine control unit - Air flow sensor - Ignition coil - Engine management solenoid valve - Diesel heater - Injectors -
Variable engine timing solenoid valve (206 RC) - Variable engine air intake solenoid valve (206 RC)
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan
Page 151 of 168
26-05-2003
CHANGING A FUSE The fuse boxes are located under the fascia and in the engine com-partment. Fascia fuse box Unscrew the catch a quarter turn using a coin then remove the coverto gain access to the fuses. The spare fuses and the pliers Aare
secured on the inside of the fascia
fuse box cover.
PRACTICAL INFORMATION
136
Removing and fitting a fuse
Before changing a fuse, the cause of the fault must be found and remedied. The fuse numbers are indicated on the fuse box. Use the pliers A.
Always replace a faulty fuse (identification according to fuse) with a fuse of the same rating.
Correct
Pliers A Incorrect
Page 152 of 168

26-05-2003
PRACTICAL INFORMATION137
Fuse Rating
Functions
1 15 A Heated seat - Alarm
4 20 A Multifunction display - Navigation control unit - Boot lighting - Audio equipment
5 15 A Automatic gearbox diagnostics
6 10 A Coolant level - Automatic gearbox - Audio equipment - Steering wheel angle sensor (ESP)
7 15 A Driving school accessory - Alarm fitted as an accessory
9 30 A Rear electric windows
10 40 A Rear screen and mirror demisting
11 15 A Rear windscreen wiper
12 30 A Front electric windows - Sunroof
14 10 A Engine fuse box - Air bags - Steering wheel controls - Rain sensor
15 15 A Instrument panel - Multifunction display - Navigation control unit - Air conditioning - Audio equipment
16 30 A Locking/unlocking controls for doors, bonnet and boot
20 10 A Right-hand brake light
21 15 A Left-hand brake light - 3rd brake light
22 20 A Front courtesy light and rear courtesy light (206 SW) - Map reading light - Glove box lighting - Lighter - Rear 12 volts socket (206 SW)
S1 Shunt PARC shunt
