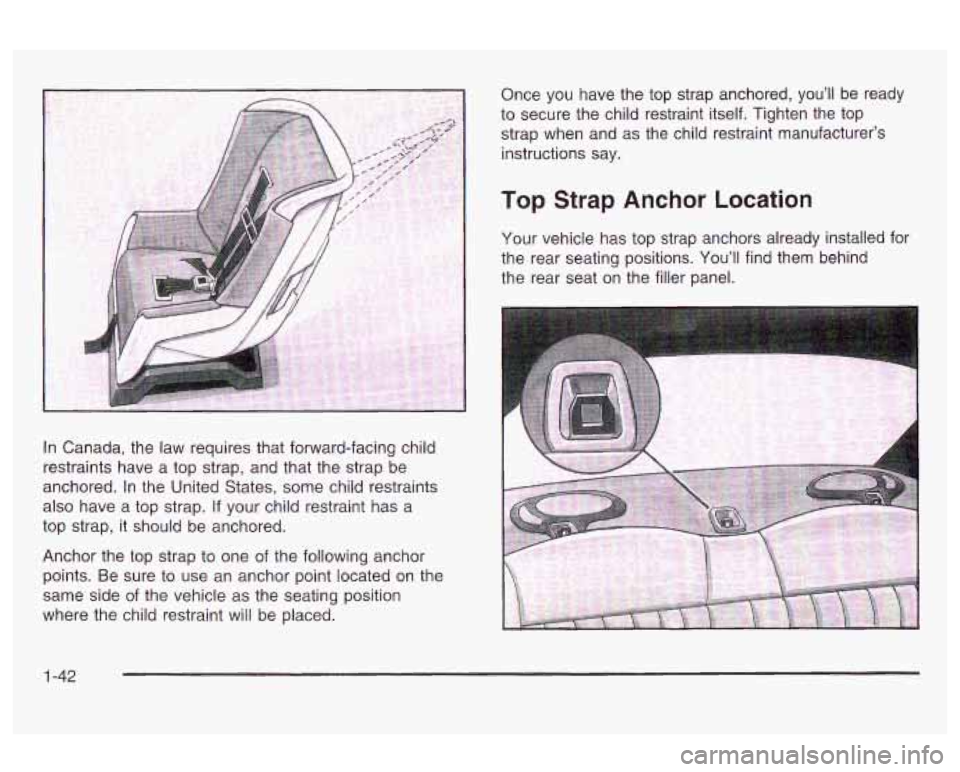

In Canada, the law requires that forward-facing child
restraints have a top strap, and that the strap be
anchored. In the United States, some child restraints
also have a top strap.
If your child restraint has a
top strap,
it should be anchored.
Anchor the top strap to one of the following anchor
points. Be sure to use an anchor point located on the
same side of the vehicle as the seating position
where the child restraint will be placed. Once you have the
top strap anchored, you’ll be ready
to secure the child restraint itself. Tighten the top
strap when and as the child restraint manufacturer’s
instructions say.
Top Strap Anchor Location
Your vehicle has top strap anchors already installed for
the rear seating positions. You’ll find them behind
the rear seat on the filler panel.
1-42

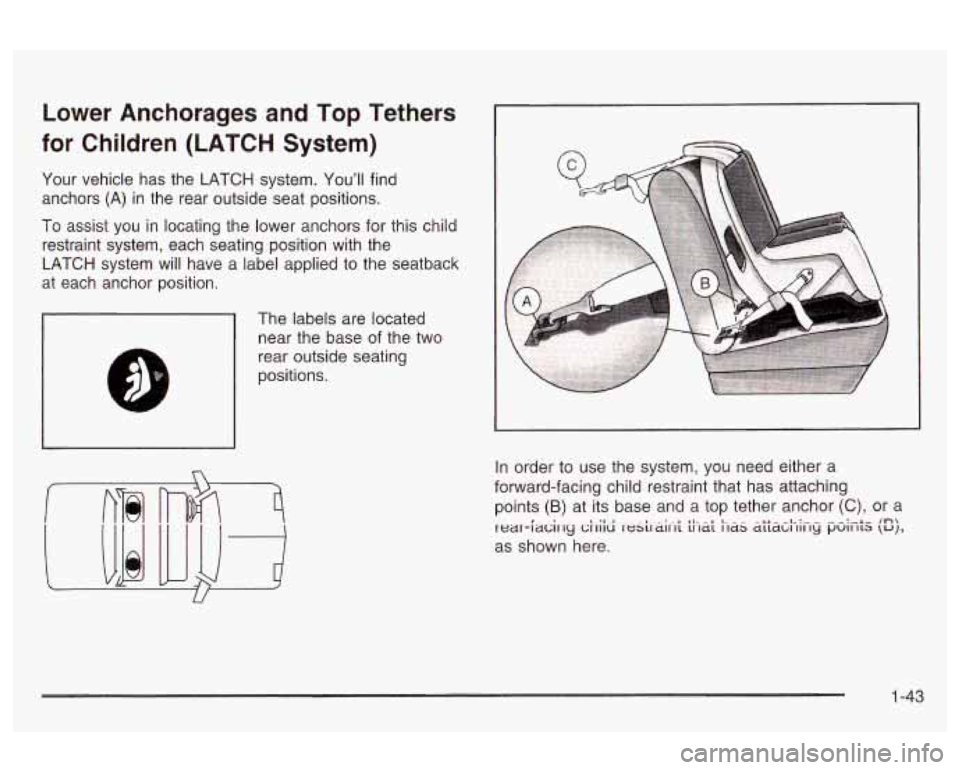

Lower Anchorages and Top Tethers
for Children (LATCH System)
Your vehicle has the LATCH system. You’ll find
anchors
(A) in the rear outside seat positions.
To assist you in locating the lower anchors for this child
restraint system, each seating position with the
LATCH system will have a label applied to the seatback
at each anchor position.
The labels are located near the base
of the two
rear outside seating
positions.
In order to use the system, you need either a
forward-facing child restraint that has attaching
points
(B) at its base and a top tether anchor (C), or a
as shown here. . I. !I -1 .- - 1..- ... I II- _I I- - - -.I- -I-!.- I --:.-a- lr) re~r-(ac%1y GI IIIU Iesuall 11 11 lat I lab at~ac;~ III IY pull 113 (uj,
1-43

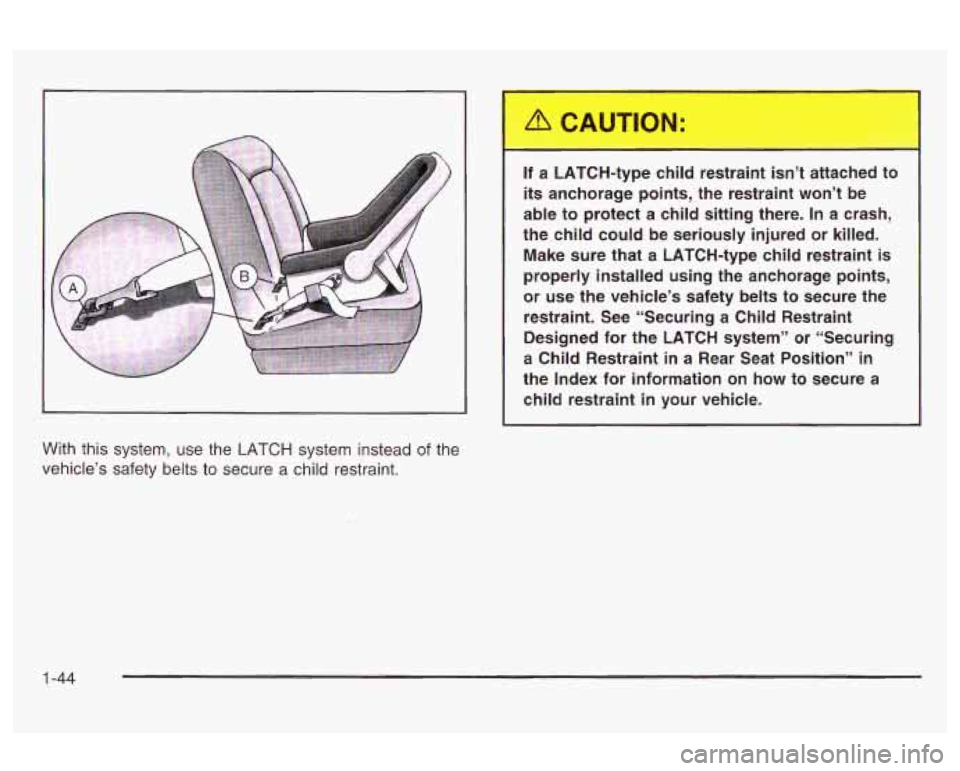

With this system, use the LATCH system instead of the
vehicle’s safety belts to secure
a child restraint. If a LATCH-type child restraint
isn’t attached to
its anchorage points, the restraint won’t
be
able to protect a child sitting there. In a crash,
the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is
properly installed using the anchorage points,
or use the vehicle’s safety belts to secure the restraint. See “Securing a Child Restraint
Designed for the LATCH system’’ or “Securing
a Child Restraint in a Rear Seat Position’’
in
the Index for information on how to secure a
child restraint in your vehicle.
1 -44

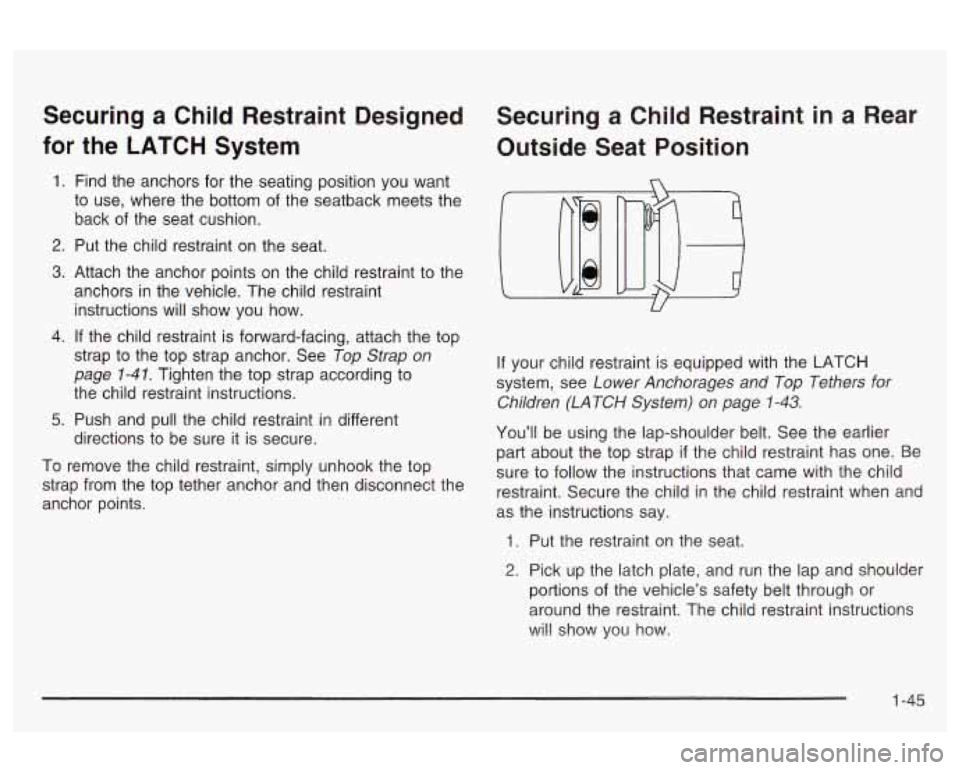

Securing a Child Restraint Designed
for the LATCH System
1. Find the anchors for the seating position you want
to use, where the bottom of the seatback meets the
back of the seat cushion.
2. Put the child restraint on the seat.
3. Attach the anchor points on the child restraint to the
anchors in the vehicle. The child restraint
instructions will show you how.
4. If the child restraint is forward-facing, attach the top
strap to the top strap anchor. See
Top Strap on
page
1-41. Tighten the top strap according to
the child restraint instructions.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
strap from the top tether anchor and then disconnect the
anchor points.
Securing a Child Restraint in a Rear
Outside Seat Position
If your child restraint is equipped with the LATCH
system, see
Lower Anchorages and Top Tethers for
Children (LATCH System) on page 1-43.
You’ll be using the lap-shoulder belt. See the earlier
part about the top strap if the child restraint has one. Be
sure to follow the instructions that came with the child
restraint. Secure the child in the child restraint when and
as the instructions say.
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
wi!! show you how.
1 -45

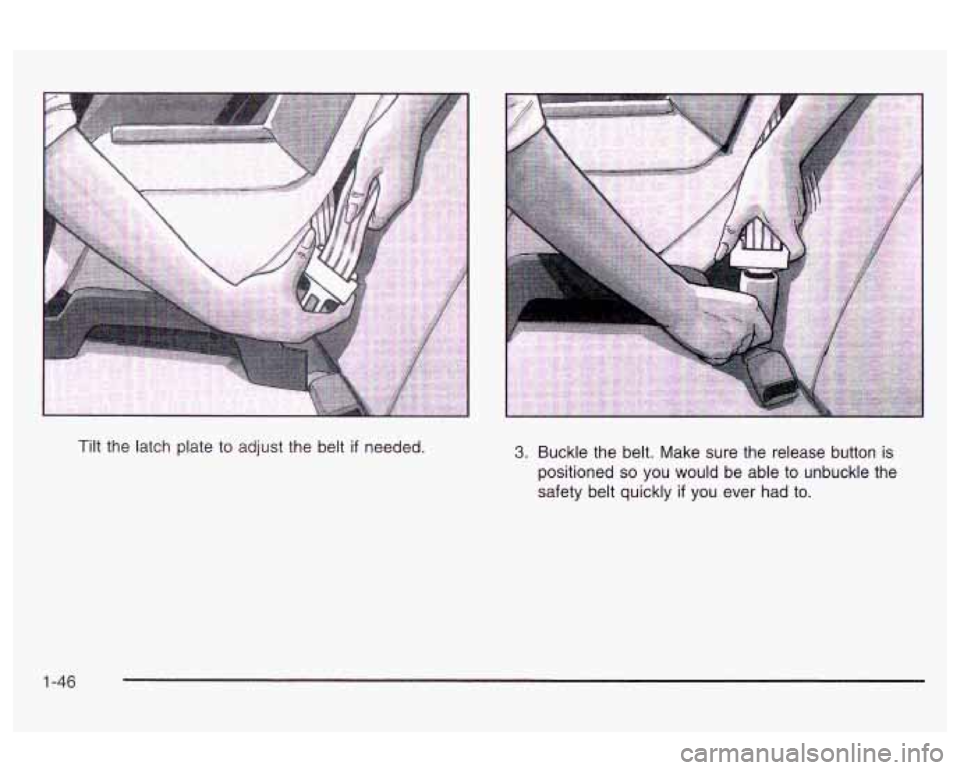

Tilt the latch plate to adjust the belt if needed. 3. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
1-46

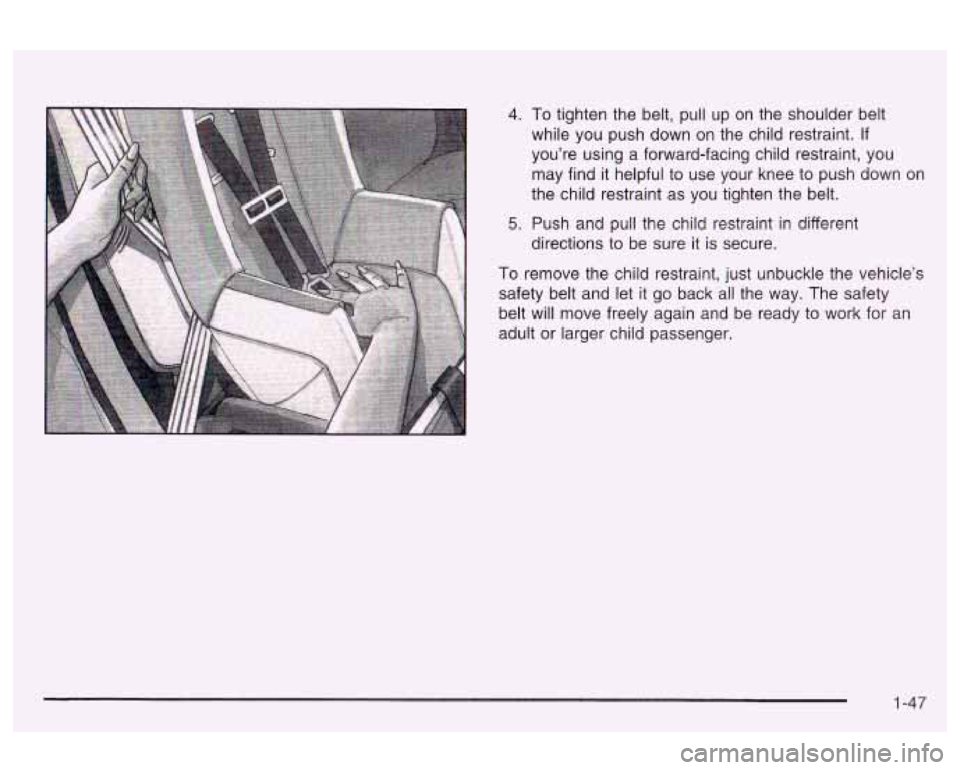

4. To tighten the belt, pull up on the shoulder belt
while you push down on the child restraint.
If
you’re using a forward-facing child restraint, you
may find it helpful to use your knee to push down on
the child restraint as you tighten the belt.
5. Push and pull the child restraint in different
directions to
be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it
go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-47

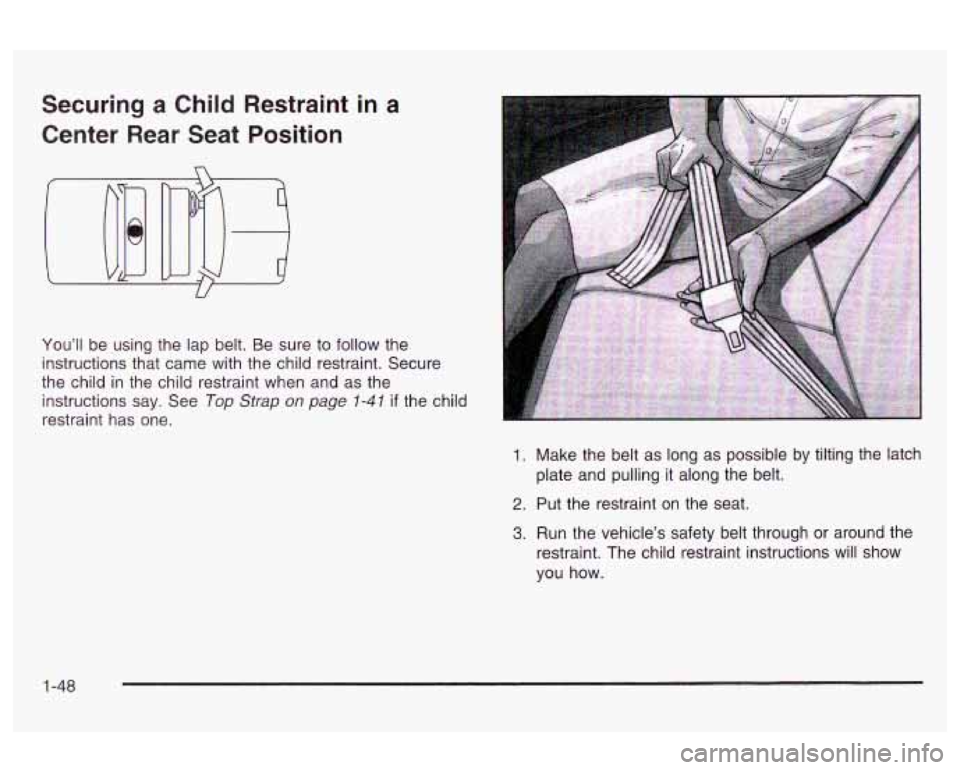

Securing a Child Restraint in a
Center Rear Seat Position
You’ll be using the lap belt. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say. See
Top Strap on page 1-41 if the child
restraint has one.
1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the restraint on the seat.
3. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.
1-48

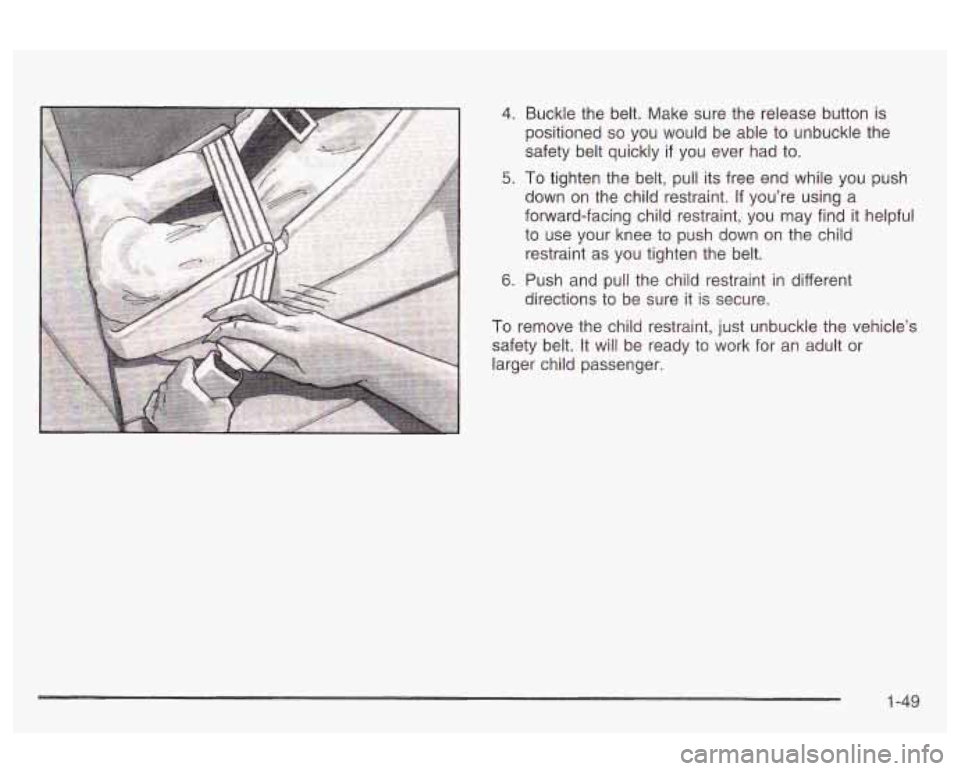

4. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly
if you ever had to.
5. To tighten the belt, pull its free end while you push
down on the child restraint.
if you’re using a
forward-facing child restraint, you may find it helpful
to use your knee to push down on the child
restraint as
you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It will be ready to work for an adult or
larger child passenger.
1 -49
