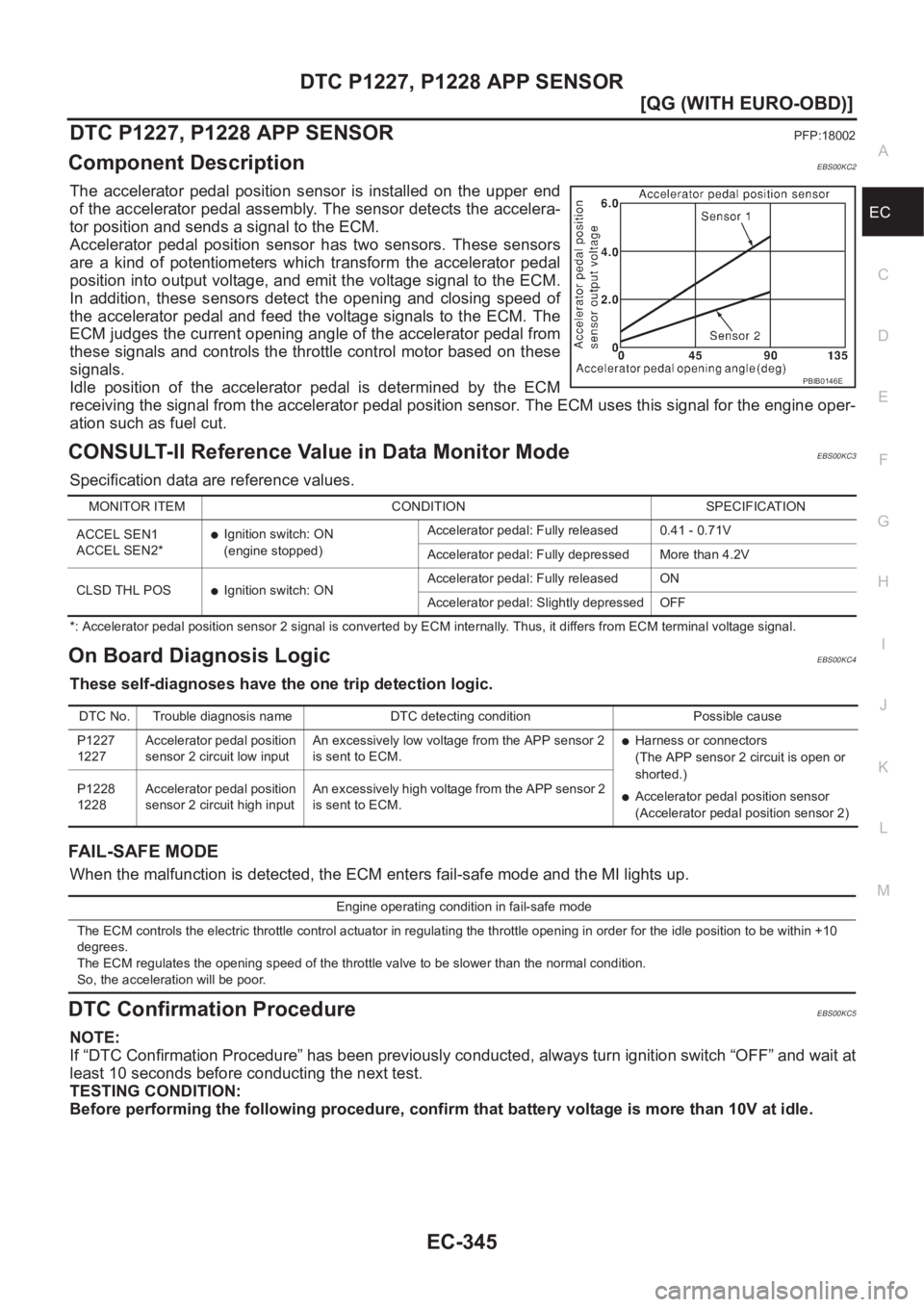

2003 NISSAN ALMERA N16 Engine control circuit

DTC P1227, P1228 APP SENSOR
EC-345
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P1227, P1228 APP SENSORPFP:18002
Component DescriptionEBS00KC2
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeEBS00KC3
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicEBS00KC4
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00KC5
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
PBIB0146E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN1
ACCEL SEN2*
●Ignition switch: ON
(engine stopped)Accelerator pedal: Fully released 0.41 - 0.71V
Accelerator pedal: Fully depressed More than 4.2V
CLSD THL POS
●Ignition switch: ONAccelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1227
1227Accelerator pedal position
sensor 2 circuit low inputAn excessively low voltage from the APP sensor 2
is sent to ECM.
●Harness or connectors
(The APP sensor 2 circuit is open or
shorted.)
●Accelerator pedal position sensor
(Accelerator pedal position sensor 2) P1228
1228Accelerator pedal position
sensor 2 circuit high inputAn excessively high voltage from the APP sensor 2
is sent to ECM.
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

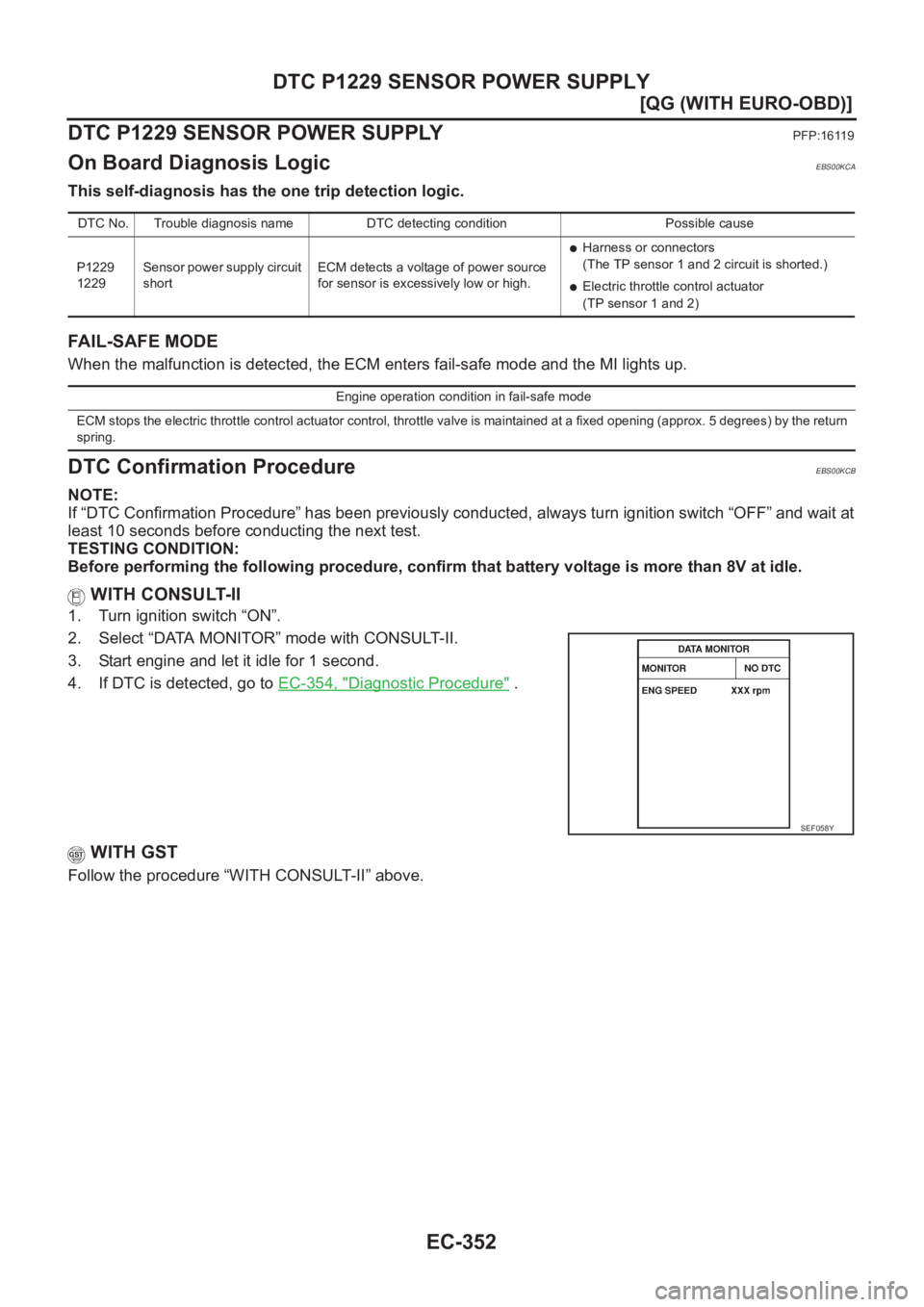

EC-352
[QG (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
DTC P1229 SENSOR POWER SUPPLY
PFP:16119
On Board Diagnosis LogicEBS00KCA
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00KCB
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF” and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-354, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1229
1229Sensor power supply circuit
shortECM detects a voltage of power source
for sensor is excessively low or high.
●Harness or connectors
(The TP sensor 1 and 2 circuit is shorted.)
●Electric throttle control actuator
(TP sensor 1 and 2)
Engine operation condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y

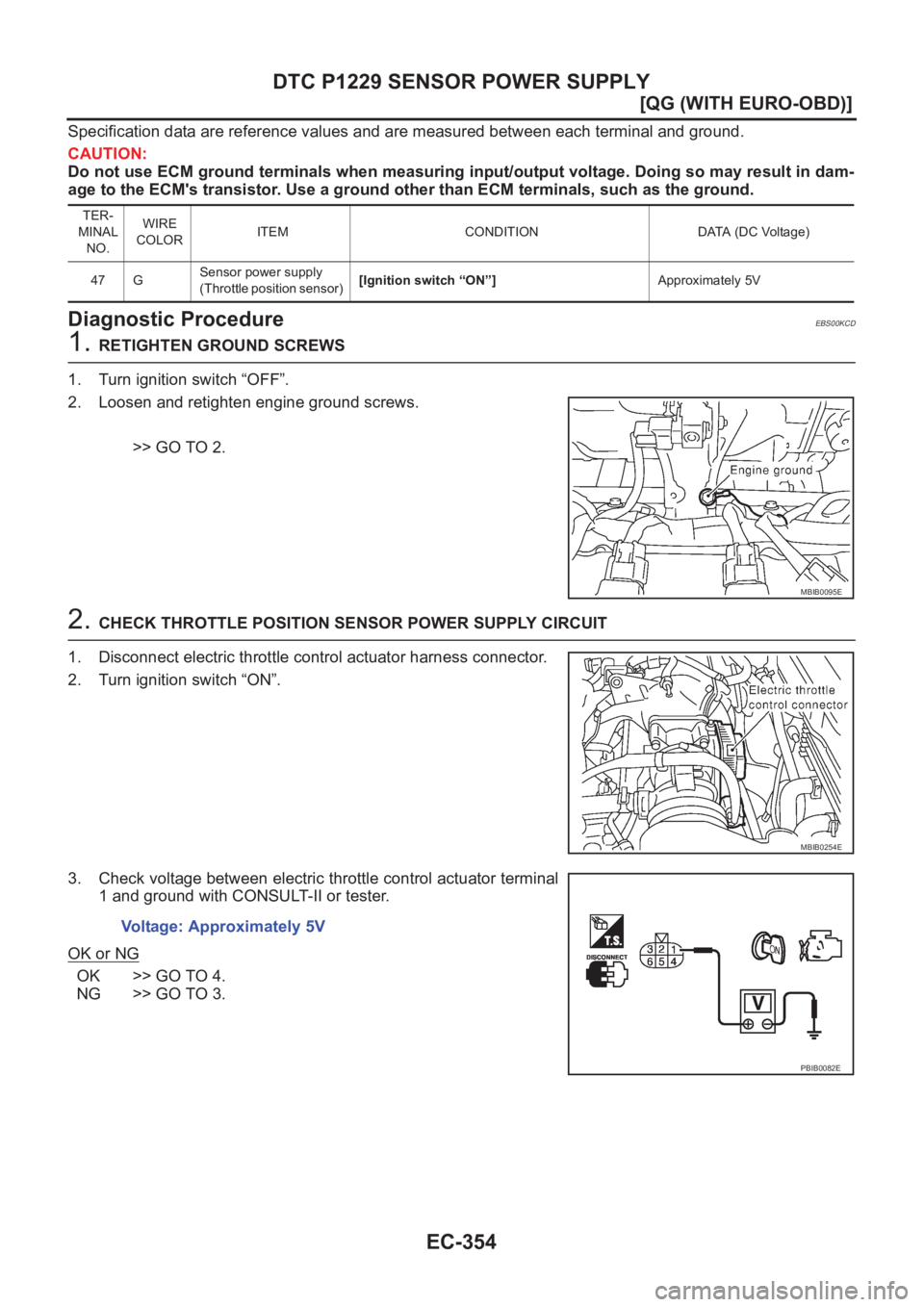

EC-354
[QG (WITH EURO-OBD)]
DTC P1229 SENSOR POWER SUPPLY
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS00KCD
1. RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 2.
2. CHECK THROTTLE POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch “ON”.
3. Check voltage between electric throttle control actuator terminal
1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
47 GSensor power supply
(Throttle position sensor) [Ignition switch “ON”]Approximately 5V
MBIB0095E
MBIB0254E
Voltage: Approximately 5V
PBIB0082E

EC-360
[QG (WITH EURO-OBD)]

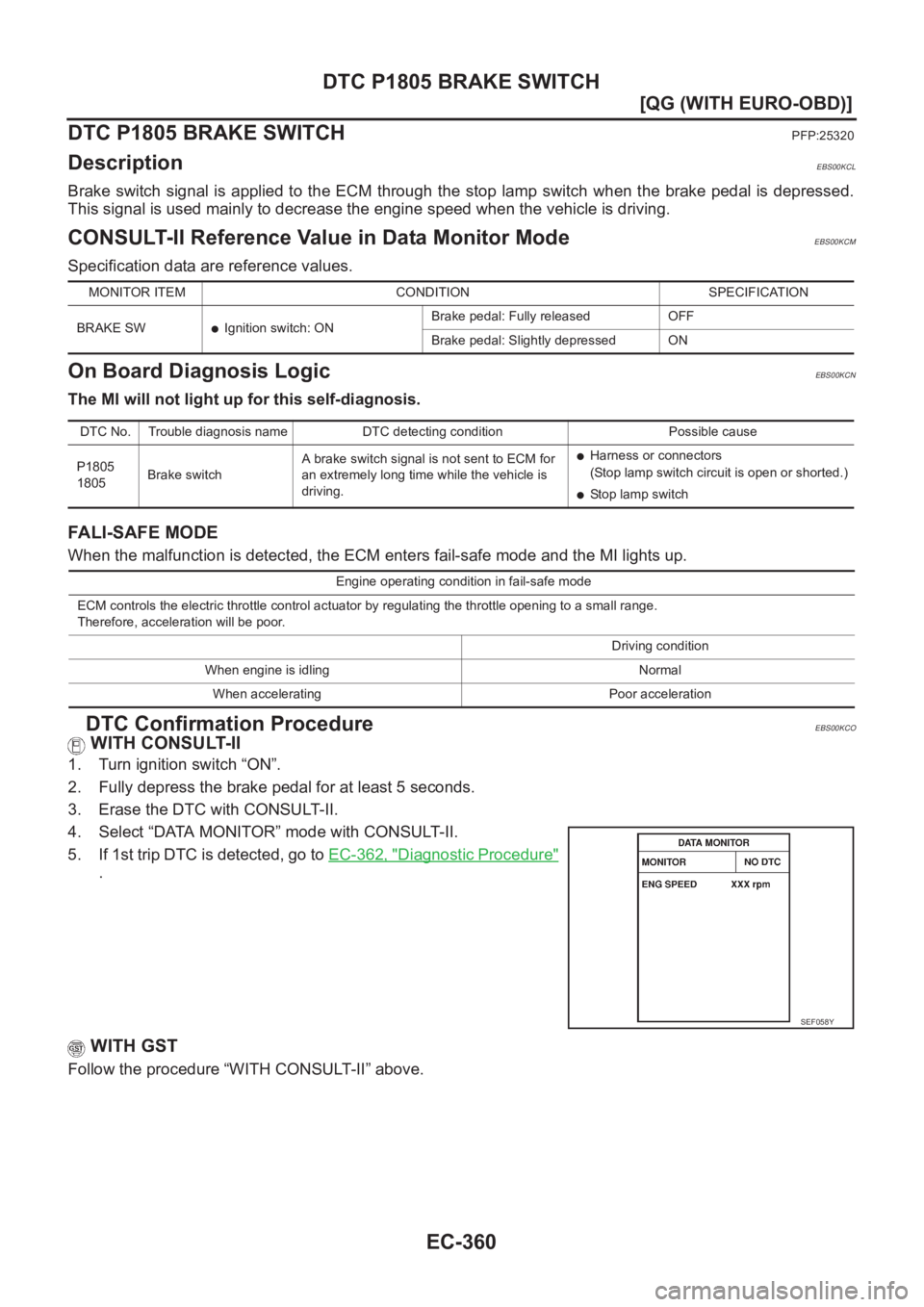

DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCH
PFP:25320
DescriptionEBS00KCL
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-II Reference Value in Data Monitor ModeEBS00KCM
Specification data are reference values.
On Board Diagnosis LogicEBS00KCN
The MI will not light up for this self-diagnosis.
FALI-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS00KCO
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-II.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. If 1st trip DTC is detected, go to EC-362, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW
●Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805
1805Brake switchA brake switch signal is not sent to ECM for
an extremely long time while the vehicle is
driving.
●Harness or connectors
(Stop lamp switch circuit is open or shorted.)
●Stop lamp switch
Engine operating condition in fail-safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.
Therefore, acceleration will be poor.
Driving condition
When engine is idling Normal
When accelerating Poor acceleration
SEF058Y

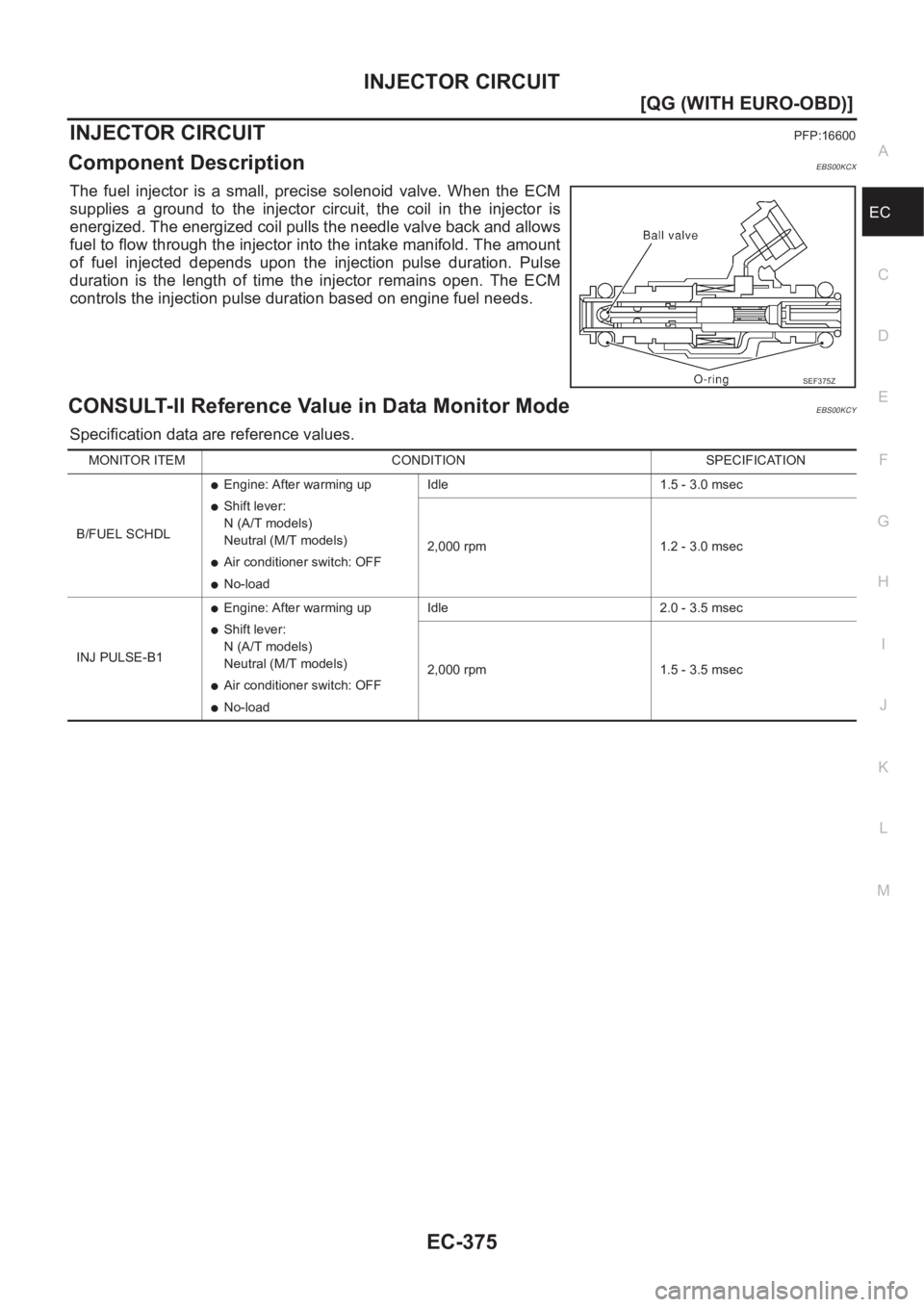

INJECTOR CIRCUIT
EC-375
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00KCX
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and allows
fuel to flow through the injector into the intake manifold. The amount
of fuel injected depends upon the injection pulse duration. Pulse
duration is the length of time the injector remains open. The ECM
controls the injection pulse duration based on engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeEBS00KCY
Specification data are reference values.
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 1.5 - 3.0 msec
2,000 rpm 1.2 - 3.0 msec
INJ PULSE-B1
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 2.0 - 3.5 msec
2,000 rpm 1.5 - 3.5 msec

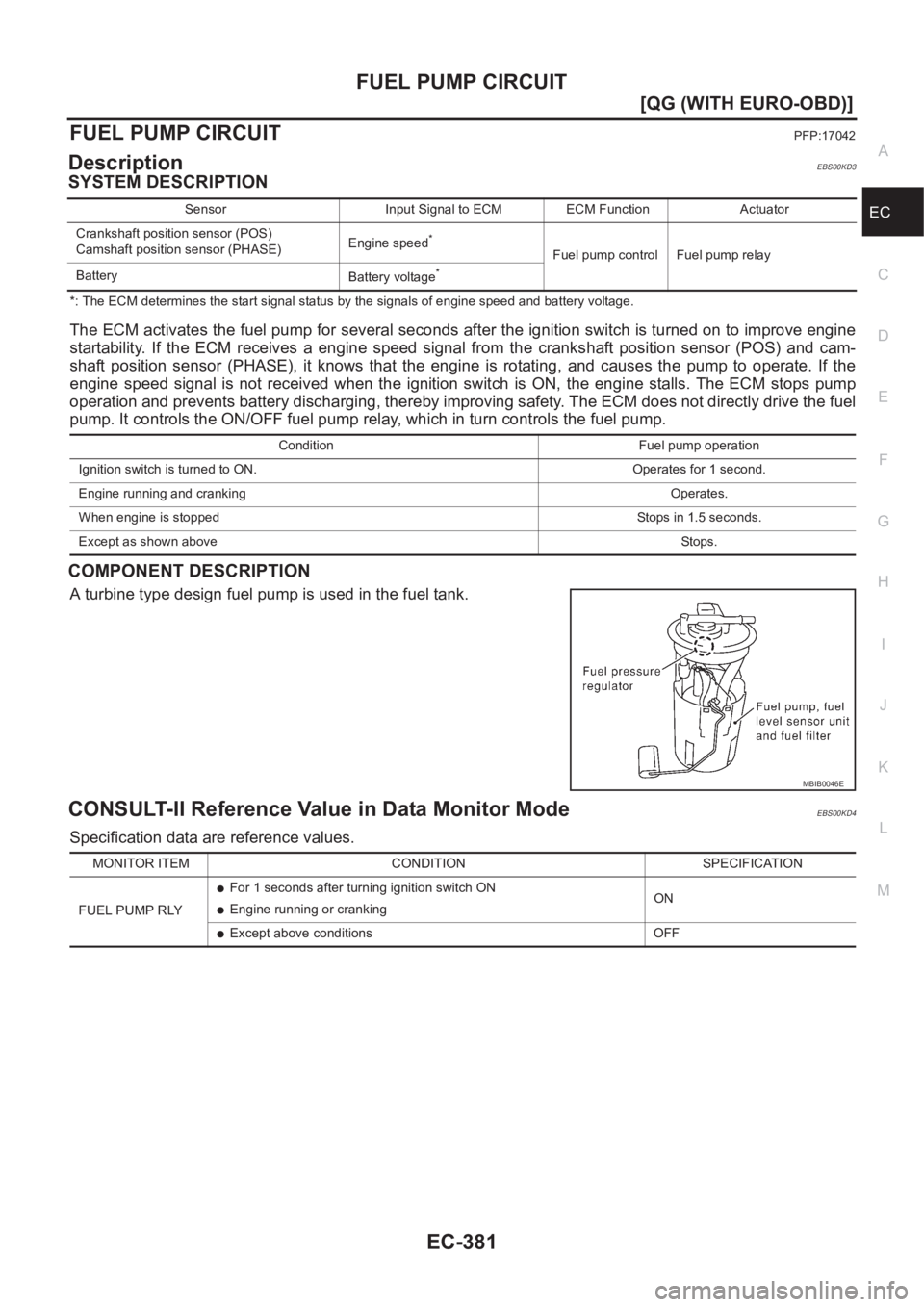

FUEL PUMP CIRCUIT
EC-381
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
FUEL PUMP CIRCUITPFP:17042
DescriptionEBS00KD3
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for several seconds after the ignition switch is turned on to improve engine
startability. If the ECM receives a engine speed signal from the crankshaft position sensor (POS) and cam-
shaft position sensor (PHASE), it knows that the engine is rotating, and causes the pump to operate. If the
engine speed signal is not received when the ignition switch is ON, the engine stalls. The ECM stops pump
operation and prevents battery discharging, thereby improving safety. The ECM does not directly drive the fuel
pump. It controls the ON/OFF fuel pump relay, which in turn controls the fuel pump.
COMPONENT DESCRIPTION
A turbine type design fuel pump is used in the fuel tank.
CONSULT-II Reference Value in Data Monitor ModeEBS00KD4
Specification data are reference values.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
*
Fuel pump control Fuel pump relay
Battery
Battery voltage
*
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and crankingOperates.
When engine is stoppedStops in 1.5 seconds.
Except as shown aboveStops.
MBIB0046E
MONITOR ITEM CONDITION SPECIFICATION
FUEL PUMP RLY
●For 1 seconds after turning ignition switch ON
●Engine running or crankingON
●Except above conditions OFF

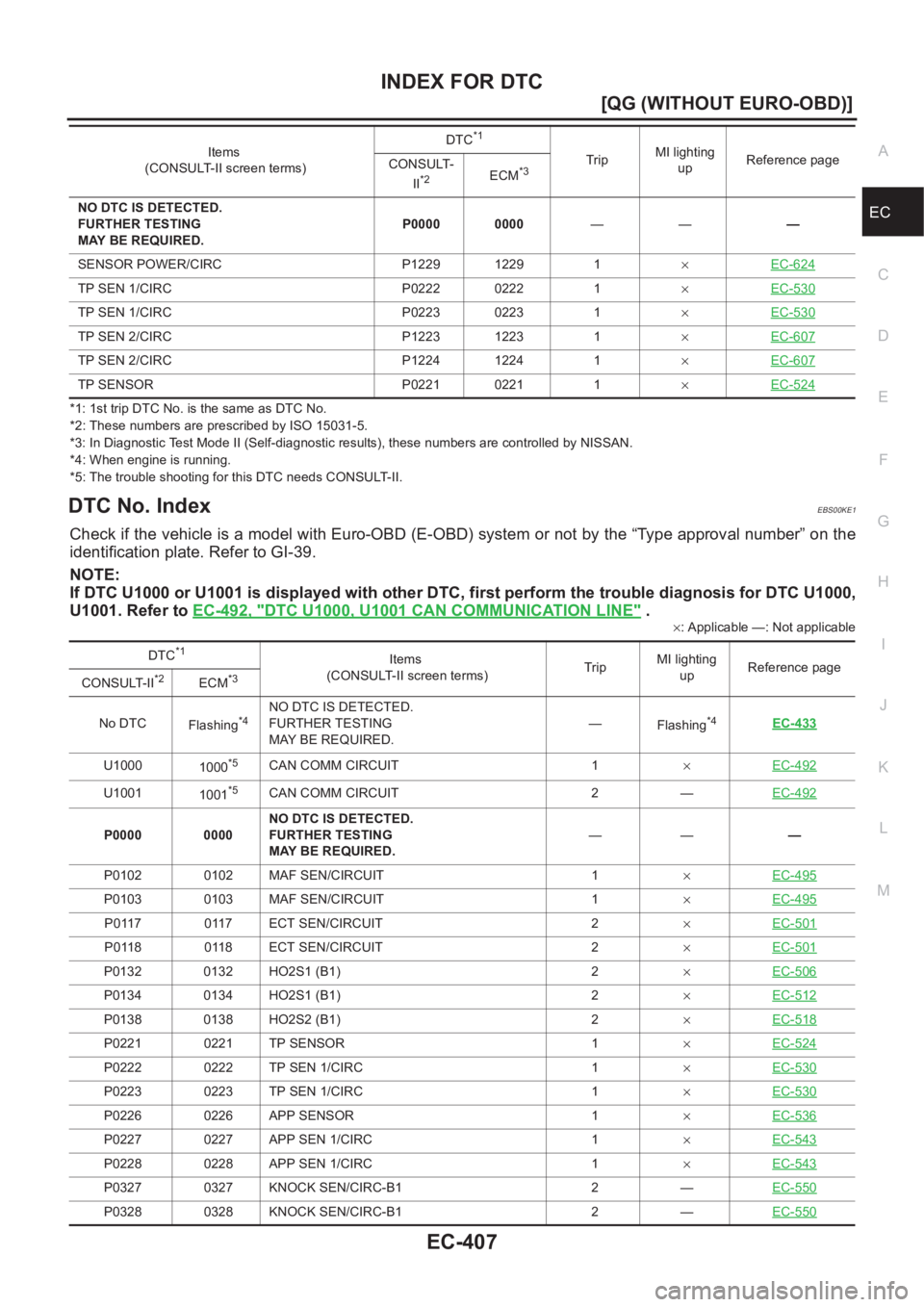

INDEX FOR DTC
EC-407
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
*1: 1st trip DTC No. is the same as DTC No.
*2: These numbers are prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*4: When engine is running.
*5: The trouble shooting for this DTC needs CONSULT-II.
DTC No. IndexEBS00KE1
Check if the vehicle is a model with Euro-OBD (E-OBD) system or not by the “Type approval number” on the
identification plate. Refer to GI-39.
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-492, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
×: Applicable —: Not applicable NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.P0000 0000———
SENSOR POWER/CIRC P1229 1229 1×EC-624
TP SEN 1/CIRC P0222 0222 1×EC-530
TP SEN 1/CIRC P0223 0223 1×EC-530
TP SEN 2/CIRC P1223 1223 1×EC-607
TP SEN 2/CIRC P1224 1224 1×EC-607
TP SENSOR P0221 0221 1×EC-524
Items
(CONSULT-II screen terms)DTC
*1
TripMI lighting
upReference page
CONSULT-
II
*2ECM*3
DTC*1Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
*2ECM*3
No DTC
Flashing*4NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.—
Flashing*4EC-433
U1000
1000*5CAN COMM CIRCUIT 1×EC-492
U1001
1001*5CAN COMM CIRCUIT 2 —EC-492
P0000 0000NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED.———
P0102 0102 MAF SEN/CIRCUIT 1×EC-495
P0103 0103 MAF SEN/CIRCUIT 1×EC-495
P0117 0117 ECT SEN/CIRCUIT 2×EC-501
P0118 0118 ECT SEN/CIRCUIT 2×EC-501
P0132 0132 HO2S1 (B1) 2×EC-506
P0134 0134 HO2S1 (B1) 2×EC-512
P0138 0138 HO2S2 (B1) 2×EC-518
P0221 0221 TP SENSOR 1×EC-524
P0222 0222 TP SEN 1/CIRC 1×EC-530
P0223 0223 TP SEN 1/CIRC 1×EC-530
P0226 0226 APP SENSOR 1×EC-536
P0227 0227 APP SEN 1/CIRC 1×EC-543
P0228 0228 APP SEN 1/CIRC 1×EC-543
P0327 0327 KNOCK SEN/CIRC-B1 2 —EC-550
P0328 0328 KNOCK SEN/CIRC-B1 2 —EC-550

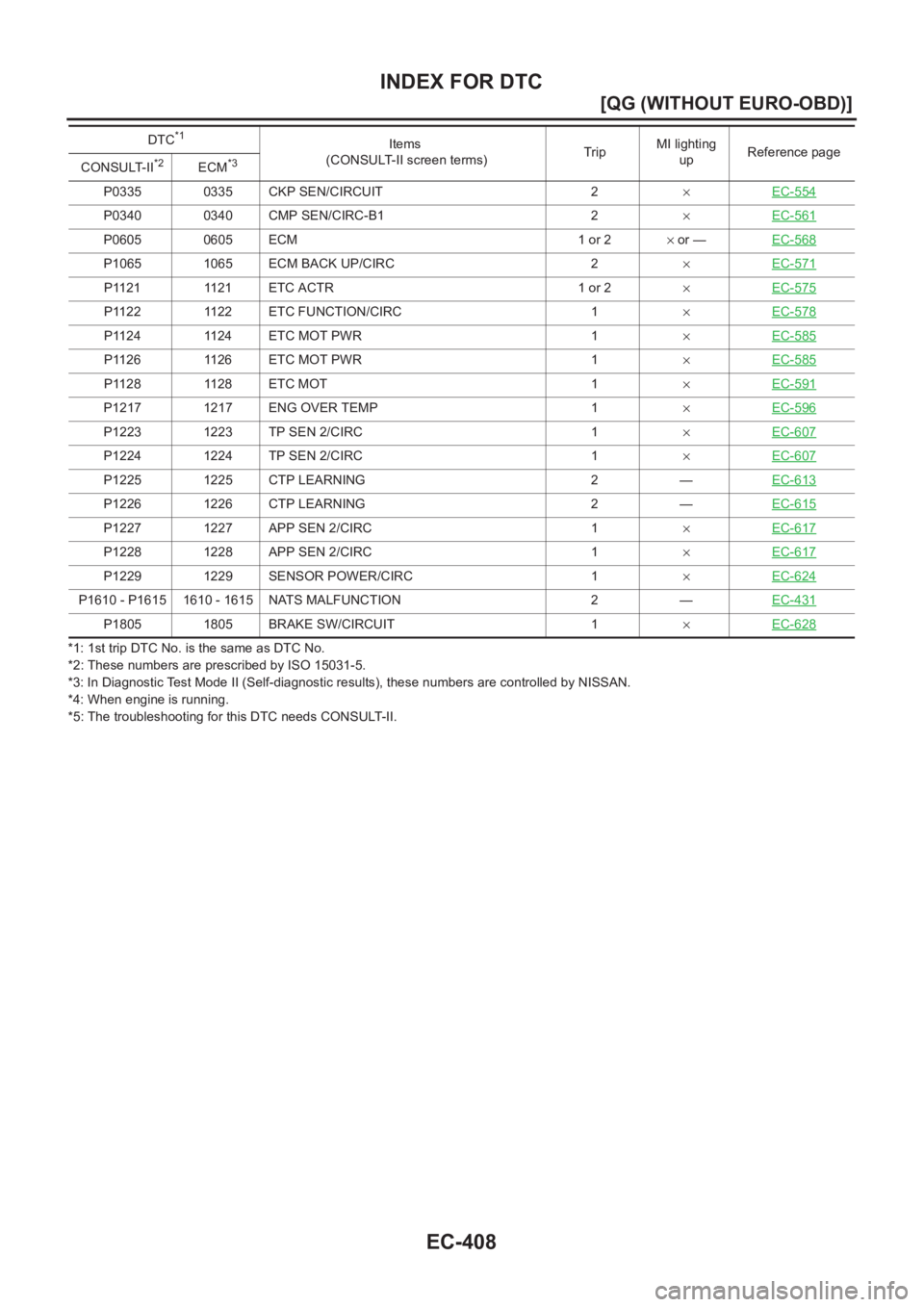

EC-408
[QG (WITHOUT EURO-OBD)]
INDEX FOR DTC
*1: 1st trip DTC No. is the same as DTC No.
*2: These numbers are prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diagnostic results), these numbers are controlled by NISSAN.
*4: When engine is running.
*5: The troubleshooting for this DTC needs CONSULT-II.P0335 0335 CKP SEN/CIRCUIT 2×EC-554
P0340 0340 CMP SEN/CIRC-B1 2×EC-561
P0605 0605 ECM 1 or 2× or —EC-568
P1065 1065 ECM BACK UP/CIRC 2×EC-571
P1121 1121 ETC ACTR 1 or 2×EC-575
P1122 1122 ETC FUNCTION/CIRC 1×EC-578
P1124 1124 ETC MOT PWR 1×EC-585
P1126 1126 ETC MOT PWR 1×EC-585
P1128 1128 ETC MOT 1×EC-591
P1217 1217 ENG OVER TEMP 1×EC-596
P1223 1223 TP SEN 2/CIRC 1×EC-607
P1224 1224 TP SEN 2/CIRC 1×EC-607
P1225 1225 CTP LEARNING 2 —EC-613
P1226 1226 CTP LEARNING 2 —EC-615
P1227 1227 APP SEN 2/CIRC 1×EC-617
P1228 1228 APP SEN 2/CIRC 1×EC-617
P1229 1229 SENSOR POWER/CIRC 1×EC-624
P1610 - P1615 1610 - 1615 NATS MALFUNCTION 2 —EC-431
P1805 1805 BRAKE SW/CIRCUIT 1×EC-628
DTC*1Items
(CONSULT-II screen terms)TripMI lighting
upReference page
CONSULT-II
*2ECM*3
