DESCRIPTIONMANUAL

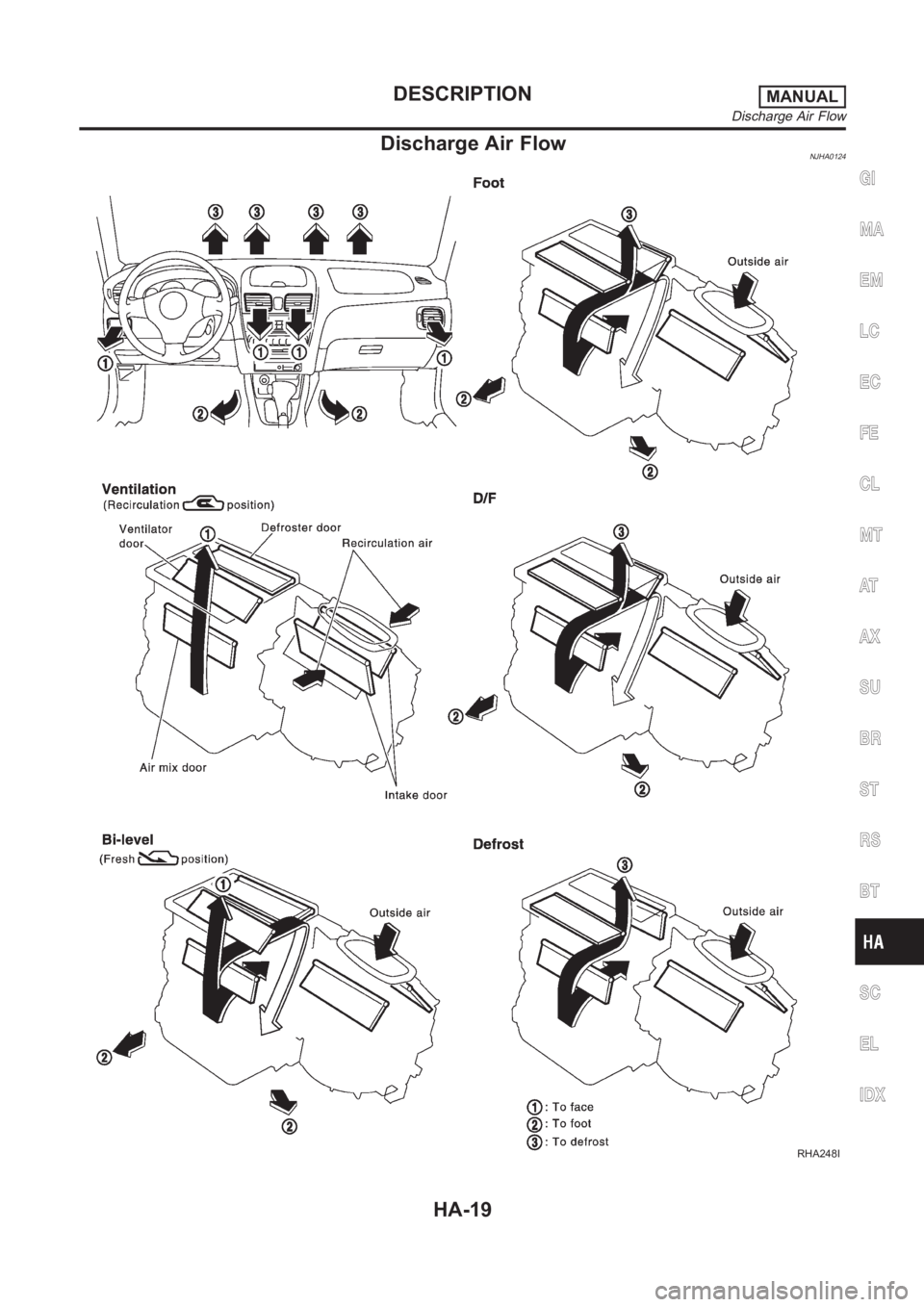

Discharge Air Flow
HA-19

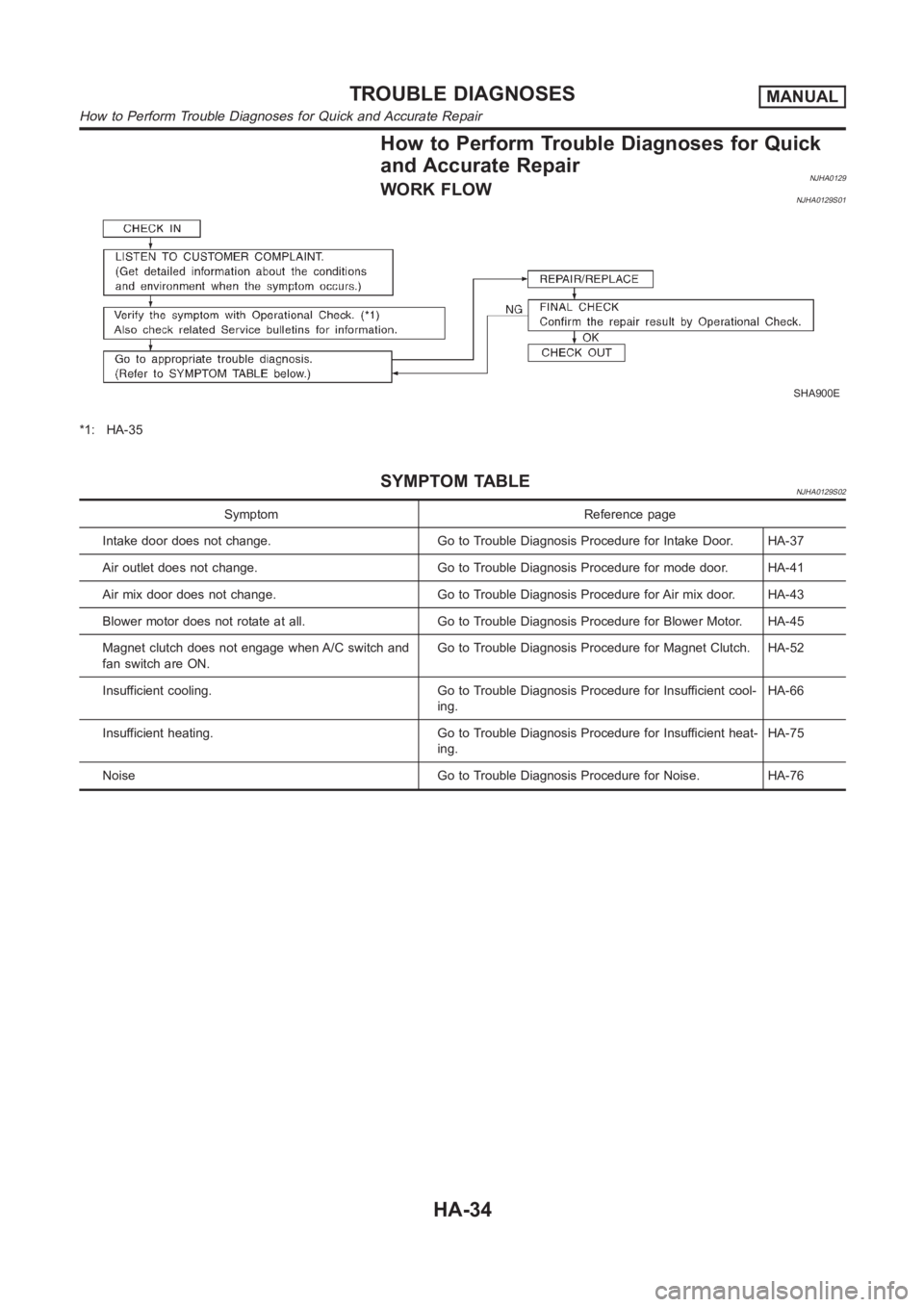

How to Perform Trouble Diagnoses for Quick
and Accurate Repair
NJHA0129WORK FLOWNJHA0129S01
SHA900E
*1: HA-35
SYMPTOM TABLENJHA0129S02
Symptom Reference page
Intake door does not change. Go to Trouble Diagnosis Procedure for Intake Door. HA-37
Air outlet does not change. Go to Trouble Diagnosis Procedure for mode door. HA-41
Air mix door does not change. Go to Trouble Diagnosis Procedure for Air mix door. HA-43
Blower motor does not rotate at all. Go to Trouble Diagnosis Procedure for Blower Motor. HA-45
Magnet clutch does not engage when A/C switch and
fan switch are ON.Go to Trouble Diagnosis Procedure for Magnet Clutch. HA-52
Insufficient cooling. Go to Trouble Diagnosis Procedure for Insufficient cool-
ing.HA-66
Insufficient heating. Go to Trouble Diagnosis Procedure for Insufficientheat-
ing.HA-75
Noise Go to Trouble Diagnosis Procedure for Noise. HA-76
TROUBLE DIAGNOSESMANUAL
How to Perform Trouble Diagnoses for Quick and Accurate Repair
HA-34

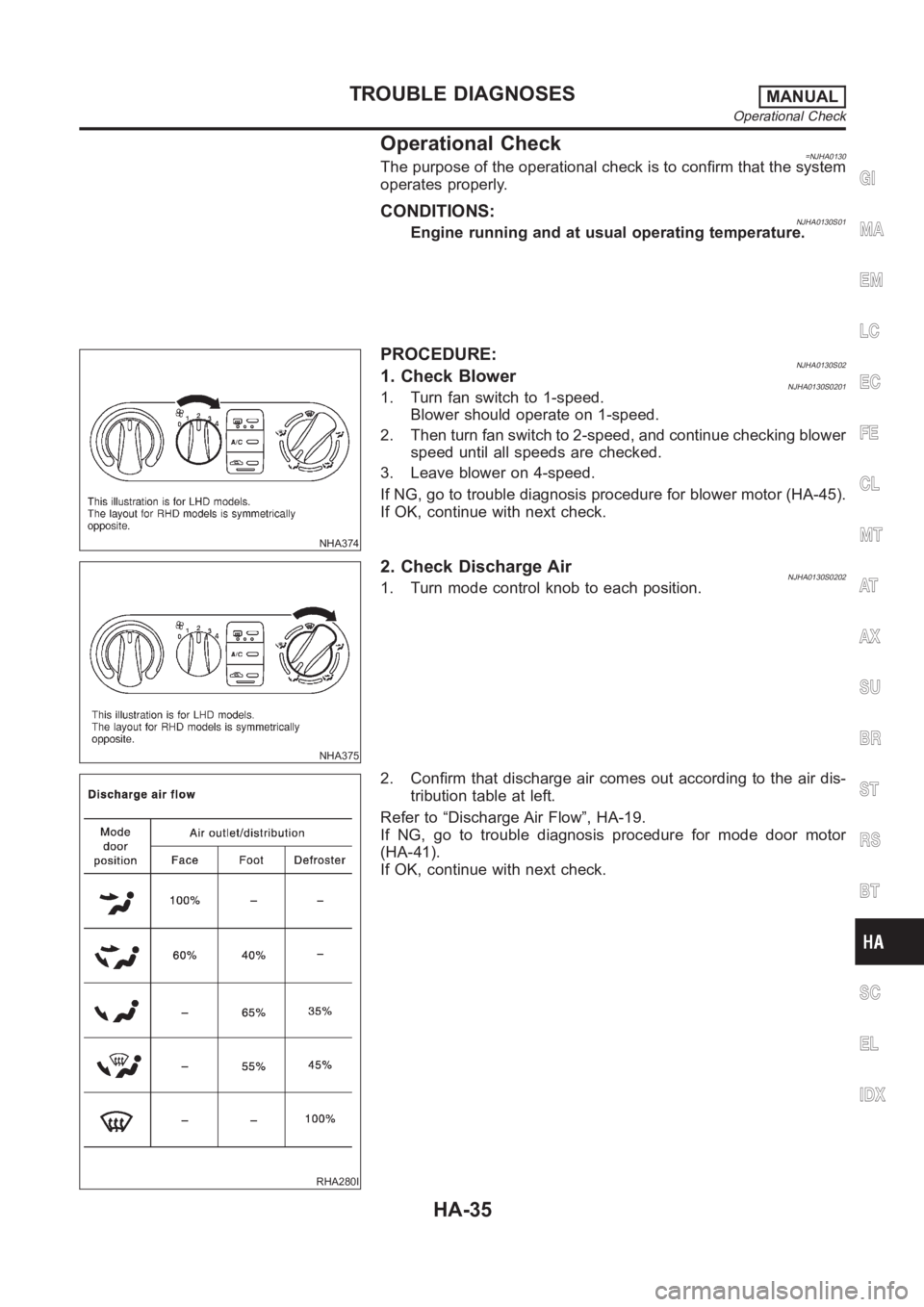

Operational Check=NJHA0130The purpose of the operational check is to confirm that the system
operates properly.
CONDITIONS:NJHA0130S01Engine running and at usual operating temperature.
NHA374
PROCEDURE:NJHA0130S021. Check BlowerNJHA0130S02011. Turn fan switch to 1-speed.
Blower should operate on 1-speed.
2. Then turn fan switch to 2-speed, and continue checking blower
speed until all speeds are checked.
3. Leave blower on 4-speed.
If NG, go to trouble diagnosis procedure for blower motor (HA-45).
If OK, continue with next check.
NHA375
2. Check Discharge AirNJHA0130S02021. Turn mode control knob to each position.
RHA280I
2. Confirm that discharge air comes out according to the air dis-
tribution table at left.
Refer to “Discharge Air Flow”, HA-19.
If NG, go to trouble diagnosis procedure for mode door motor
(HA-41).
If OK, continue with next check.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Operational Check
HA-35

Intake Door

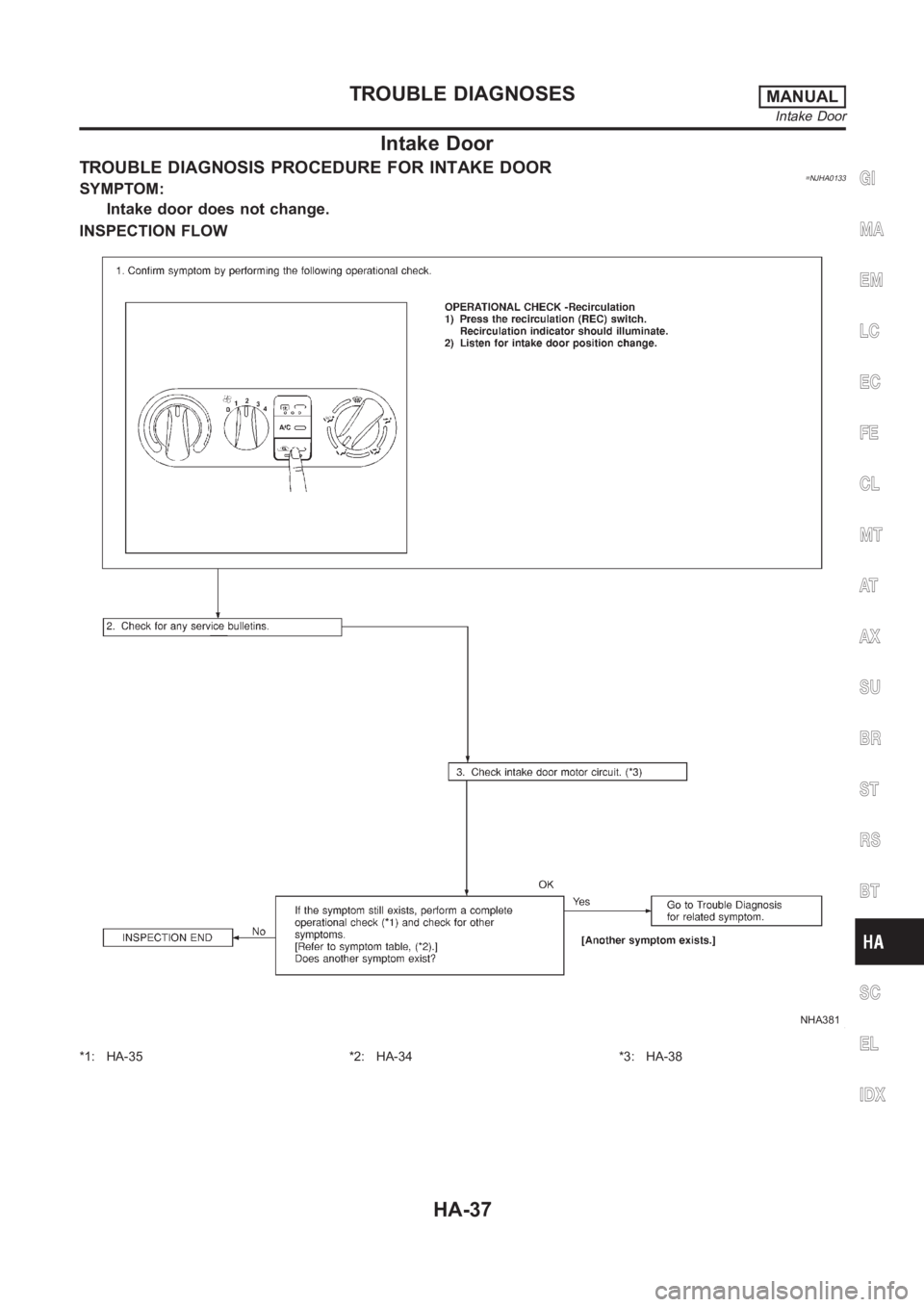

TROUBLE DIAGNOSIS PROCEDURE FOR INTAKE DOOR=NJHA0133SYMPTOM:
Intake door does not change.
INSPECTION FLOW
NHA381
*1: HA-35 *2: HA-34 *3: HA-38
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Intake Door
HA-37

Mode Door

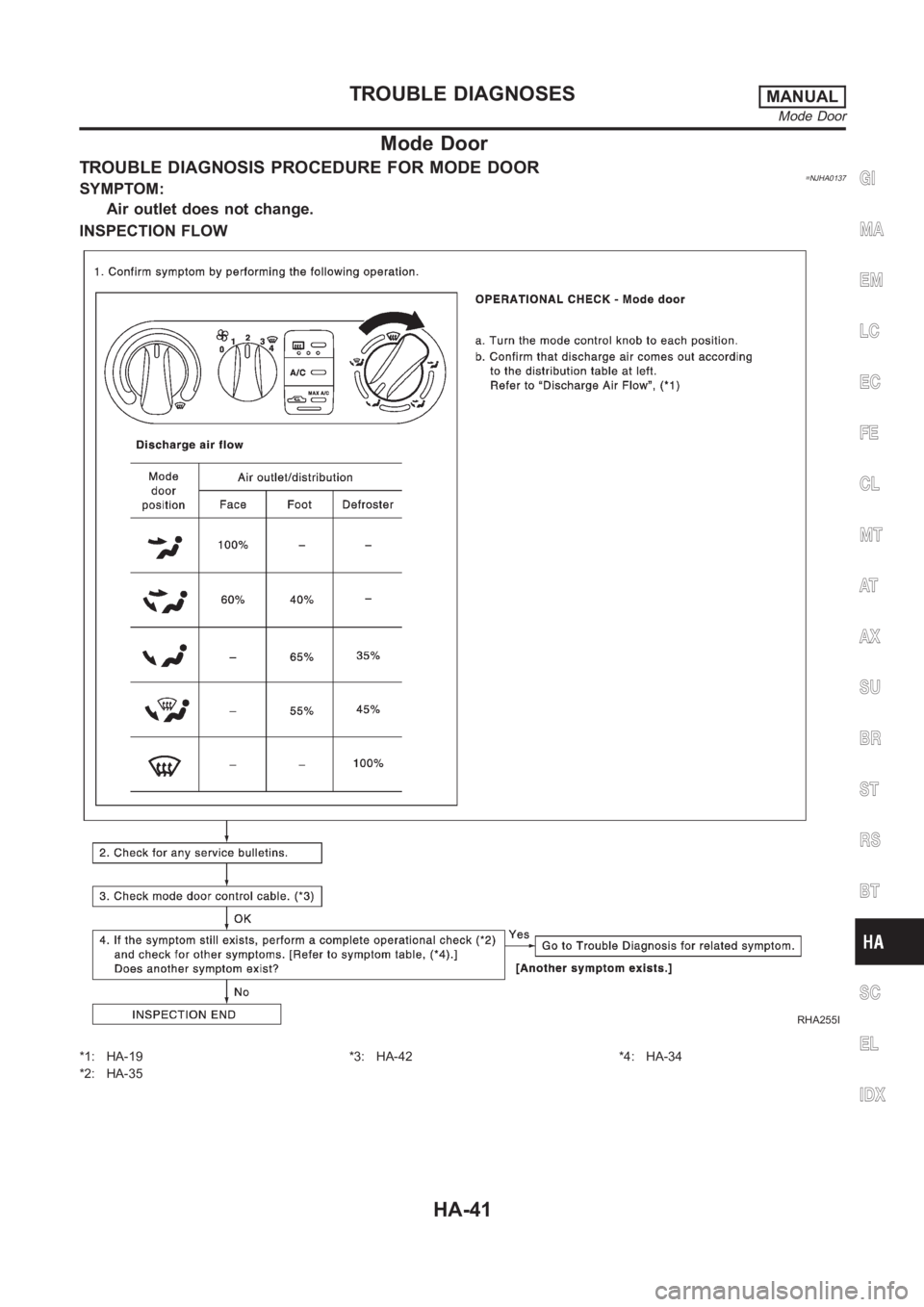

TROUBLE DIAGNOSIS PROCEDURE FOR MODE DOOR=NJHA0137SYMPTOM:
Air outlet does not change.
INSPECTION FLOW
RHA255I
*1: HA-19
*2: HA-35*3: HA-42 *4: HA-34
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Mode Door
HA-41

Air Mix Door

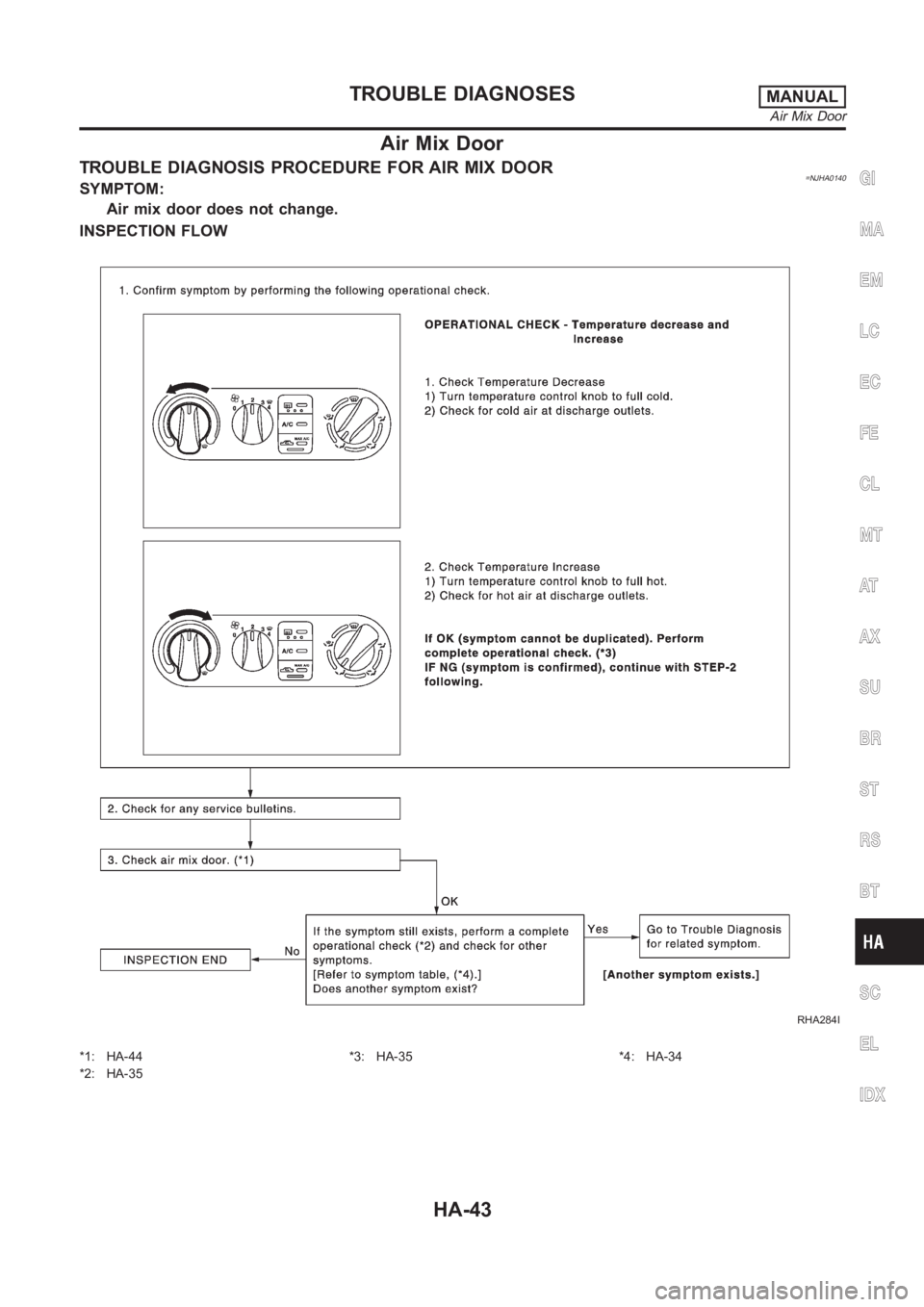

TROUBLE DIAGNOSIS PROCEDURE FOR AIR MIX DOOR=NJHA0140SYMPTOM:
Air mix door does not change.
INSPECTION FLOW
RHA284I
*1: HA-44
*2: HA-35*3: HA-35 *4: HA-34
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Air Mix Door
HA-43

Blower Motor

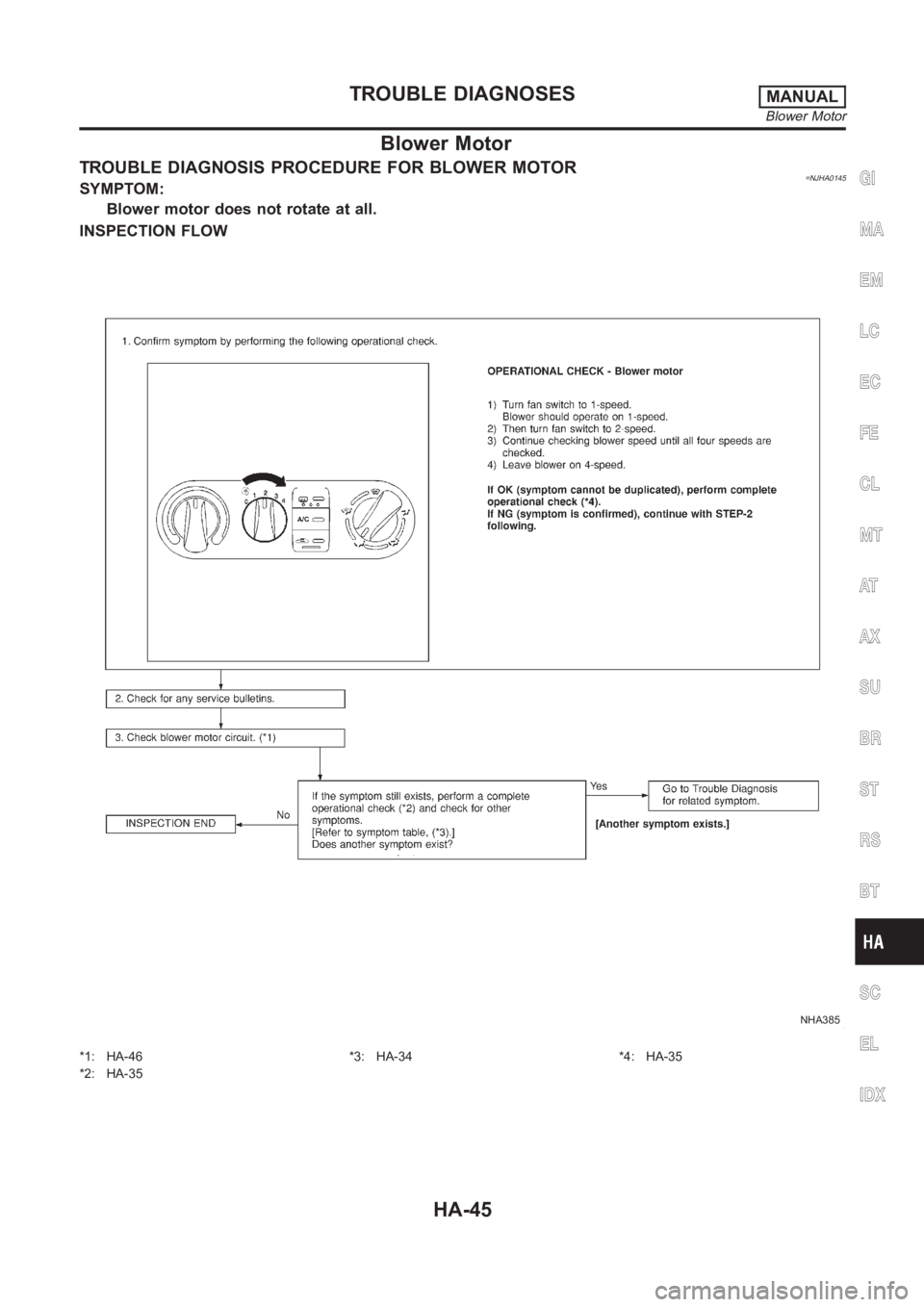

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR=NJHA0145SYMPTOM:
Blower motor does not rotate at all.
INSPECTION FLOW
NHA385
*1: HA-46
*2: HA-35*3: HA-34 *4: HA-35
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Blower Motor
HA-45

Magnet Clutch

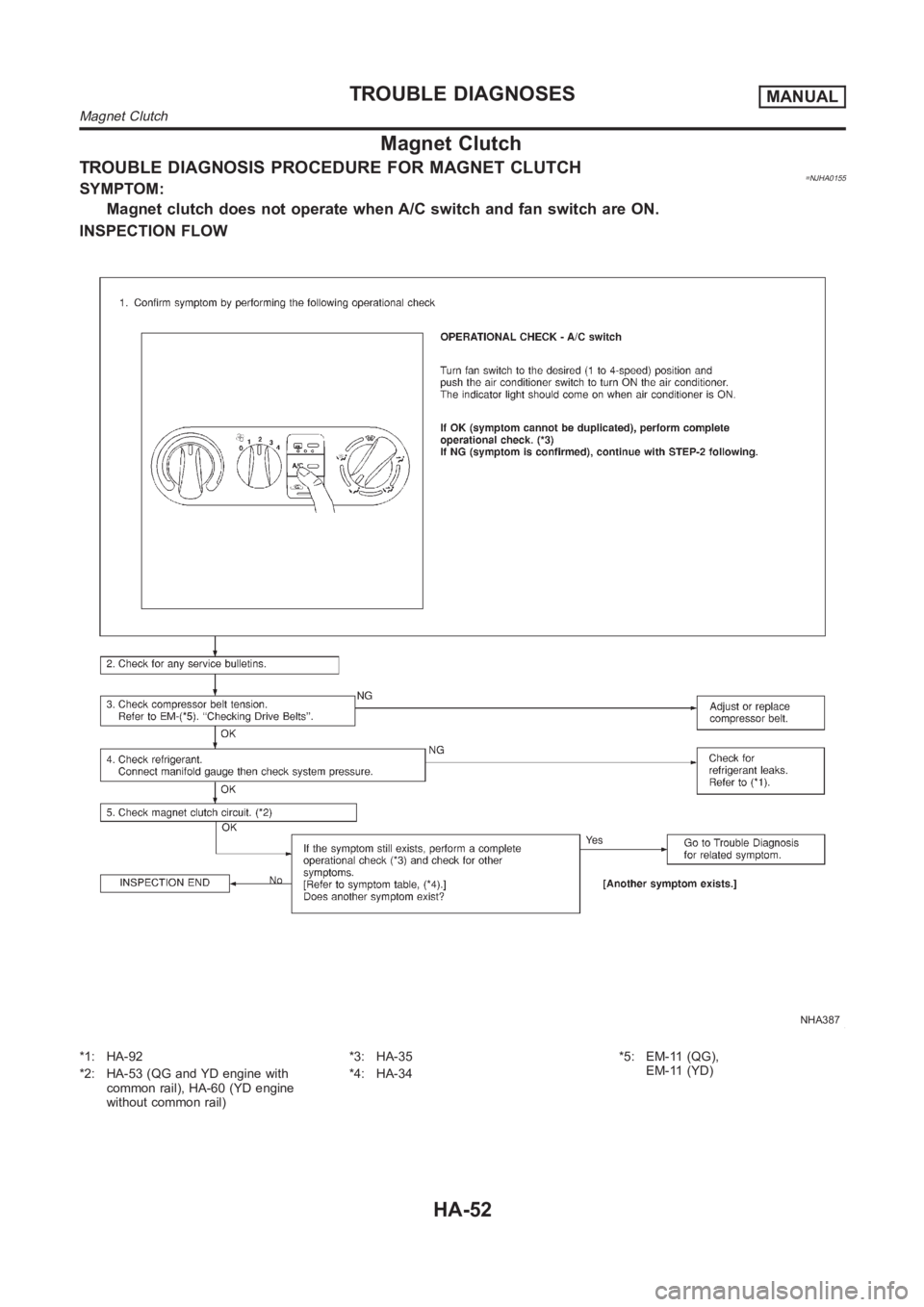

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH=NJHA0155SYMPTOM:
