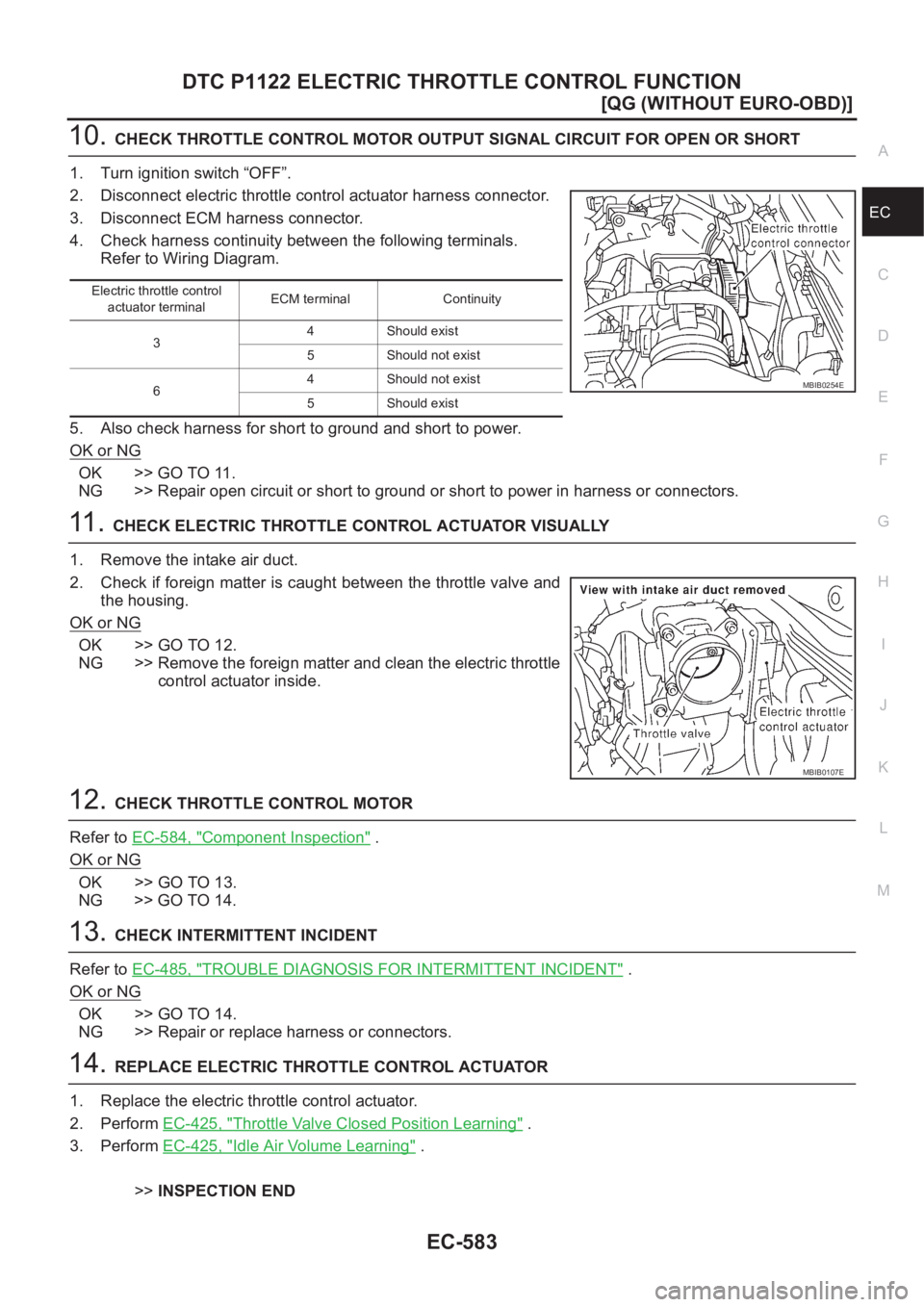

2003 NISSAN ALMERA N16 DIAGRAM

DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-583
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
10.CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch “OFF”.
2. Disconnect electric throttle control actuator harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 11.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 12.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
12.CHECK THROTTLE CONTROL MOTOR
Refer to EC-584, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> GO TO 14.
13.CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 14.
NG >> Repair or replace harness or connectors.
14.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-425, "
Throttle Valve Closed Position Learning" .
3. Perform EC-425, "
Idle Air Volume Learning" .
>>INSPECTION END
Electric throttle control
actuator terminalECM terminal Continuity
34 Should exist
5 Should not exist
64 Should not exist
5 Should exist
MBIB0254E
MBIB0107E

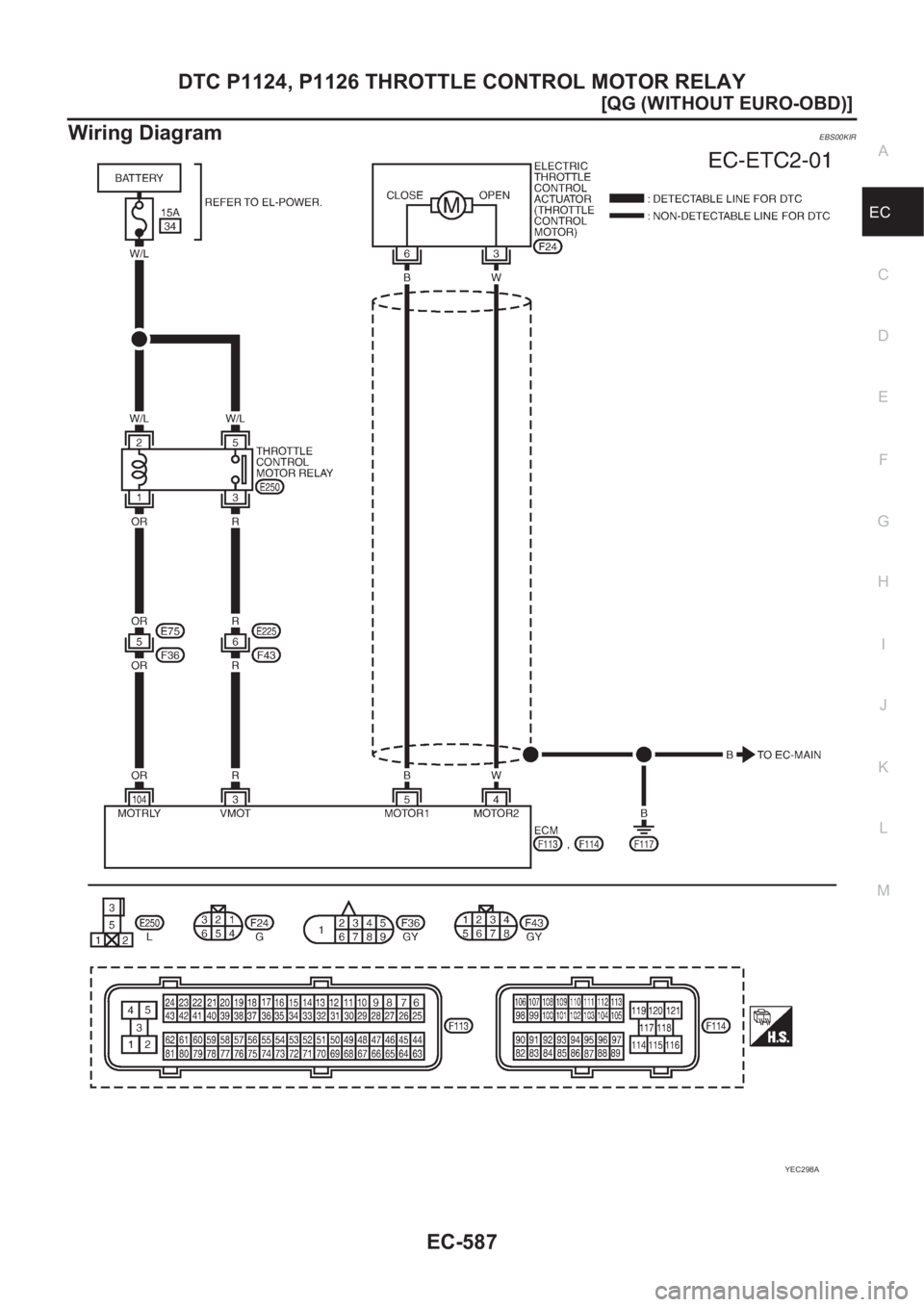

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-587
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KIR
YEC298A

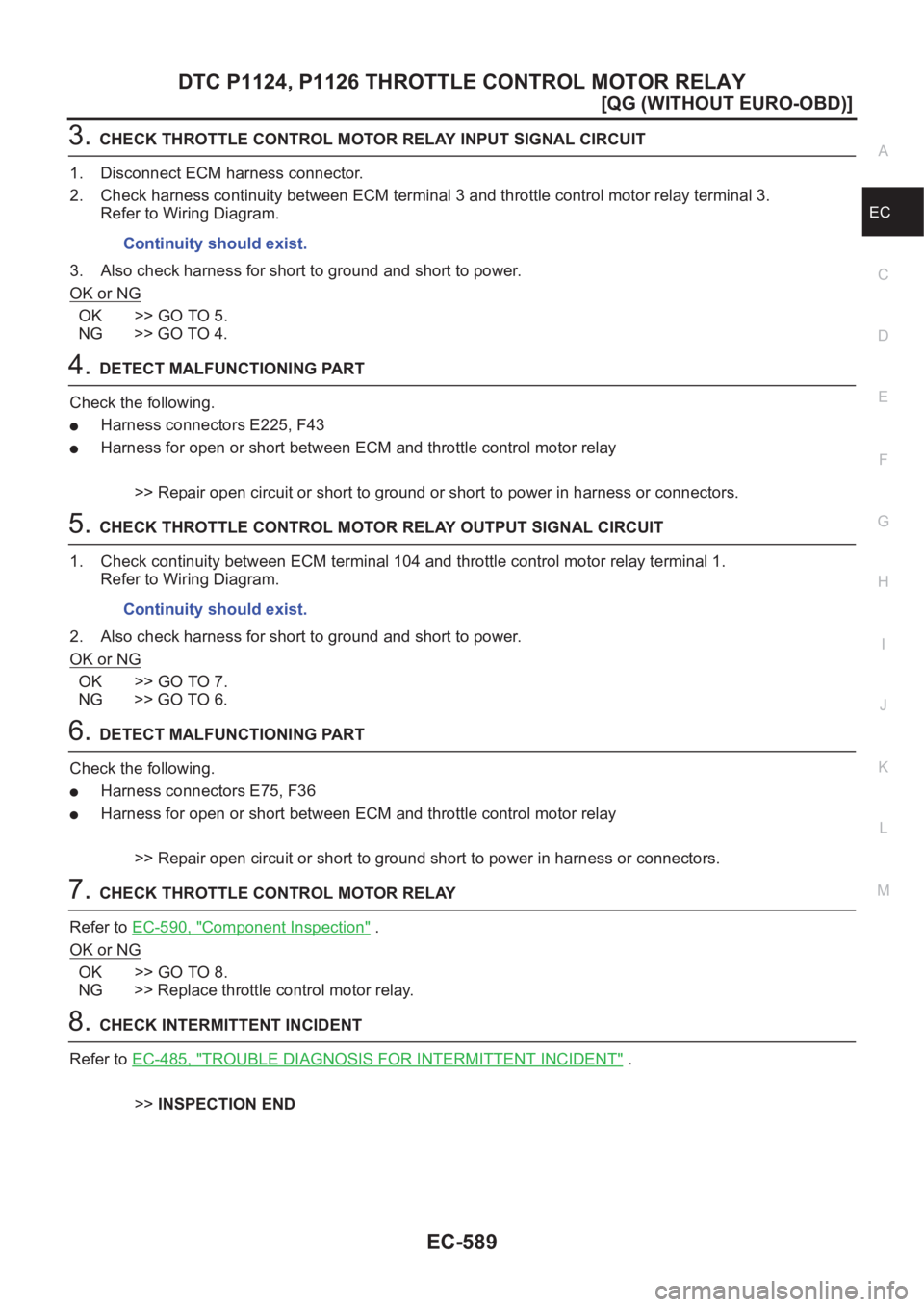

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-589
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
3.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 3 and throttle control motor relay terminal 3.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E225, F43
●Harness for open or short between ECM and throttle control motor relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK THROTTLE CONTROL MOTOR RELAY OUTPUT SIGNAL CIRCUIT
1. Check continuity between ECM terminal 104 and throttle control motor relay terminal 1.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E75, F36
●Harness for open or short between ECM and throttle control motor relay
>> Repair open circuit or short to ground short to power in harness or connectors.
7.CHECK THROTTLE CONTROL MOTOR RELAY
Refer to EC-590, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace throttle control motor relay.
8.CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

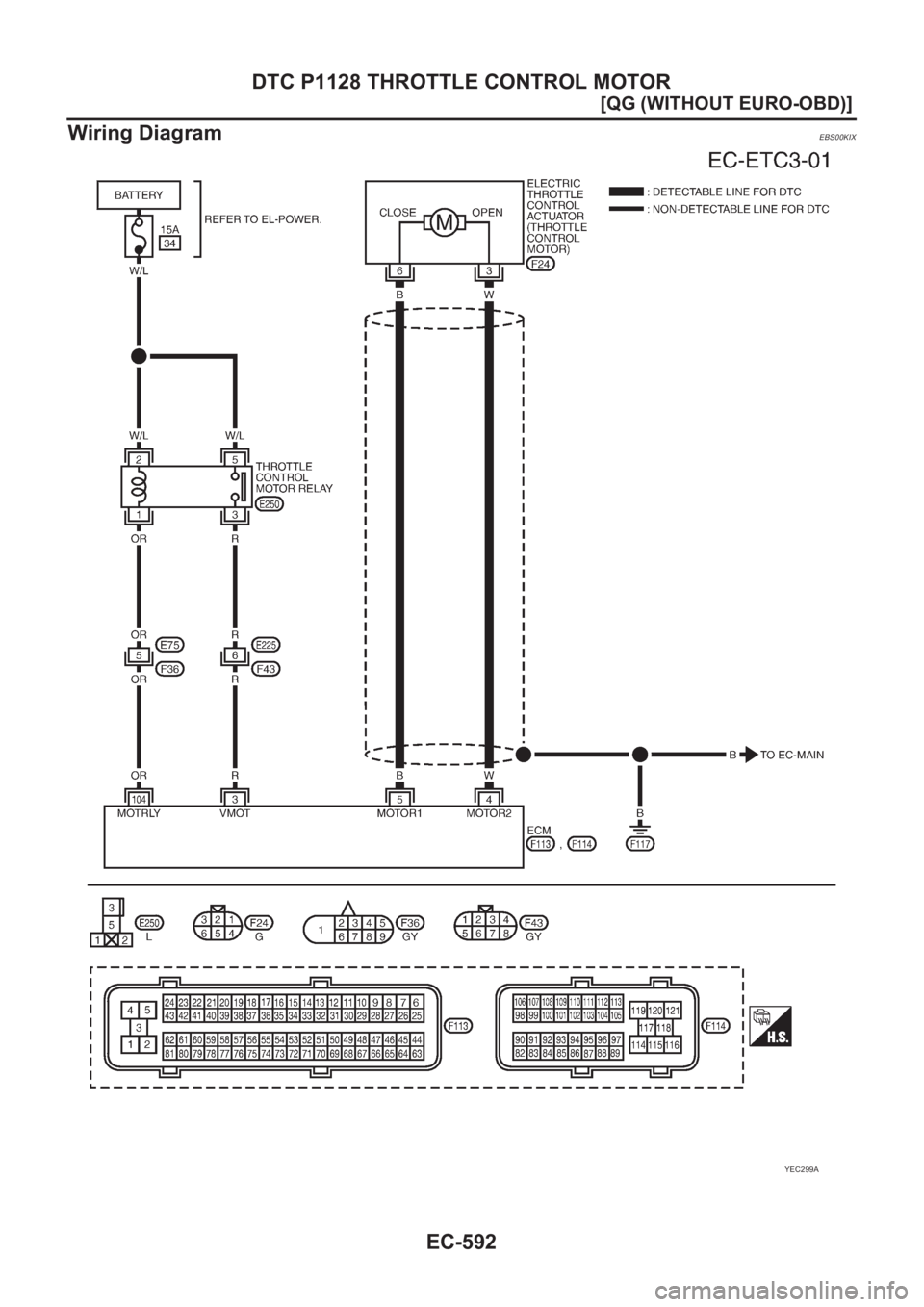

EC-592
[QG (WITHOUT EURO-OBD)]
DTC P1128 THROTTLE CONTROL MOTOR
Wiring Diagram
EBS00KIX
YEC299A

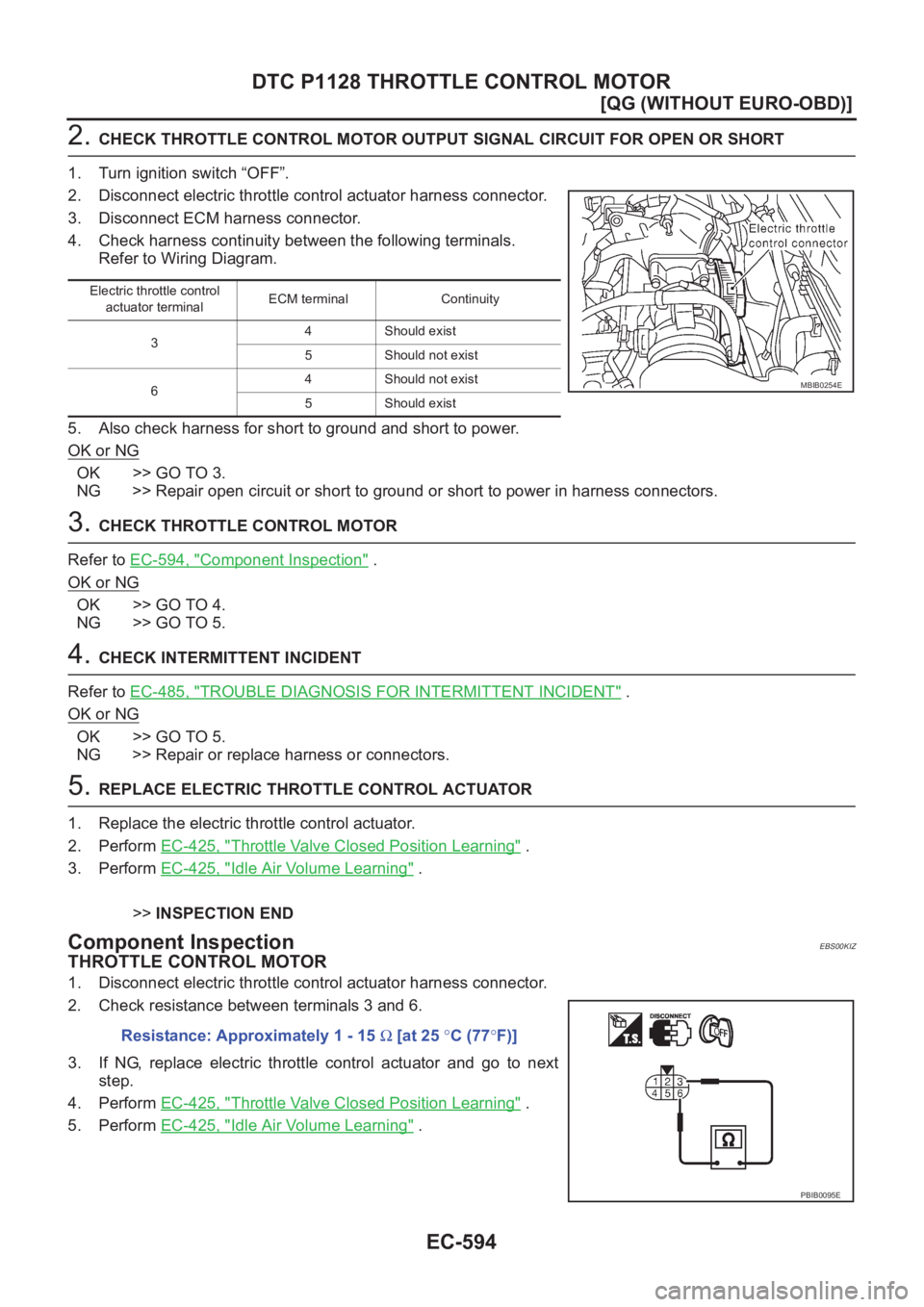

EC-594
[QG (WITHOUT EURO-OBD)]
DTC P1128 THROTTLE CONTROL MOTOR
2. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT
1. Turn ignition switch “OFF”.
2. Disconnect electric throttle control actuator harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness connectors.
3. CHECK THROTTLE CONTROL MOTOR
Refer to EC-594, "
Component Inspection" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4. CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace harness or connectors.
5. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-425, "
Throttle Valve Closed Position Learning" .
3. Perform EC-425, "
Idle Air Volume Learning" .
>>INSPECTION END
Component InspectionEBS00KIZ
THROTTLE CONTROL MOTOR
1. Disconnect electric throttle control actuator harness connector.
2. Check resistance between terminals 3 and 6.
3. If NG, replace electric throttle control actuator and go to next
step.
4. Perform EC-425, "
Throttle Valve Closed Position Learning" .
5. Perform EC-425, "
Idle Air Volume Learning" .
Electric throttle control
actuator terminalECM terminal Continuity
34 Should exist
5 Should not exist
64 Should not exist
5 Should exist
MBIB0254E
Resistance: Approximately 1 - 15 Ω [at 25 °C (77°F)]
PBIB0095E

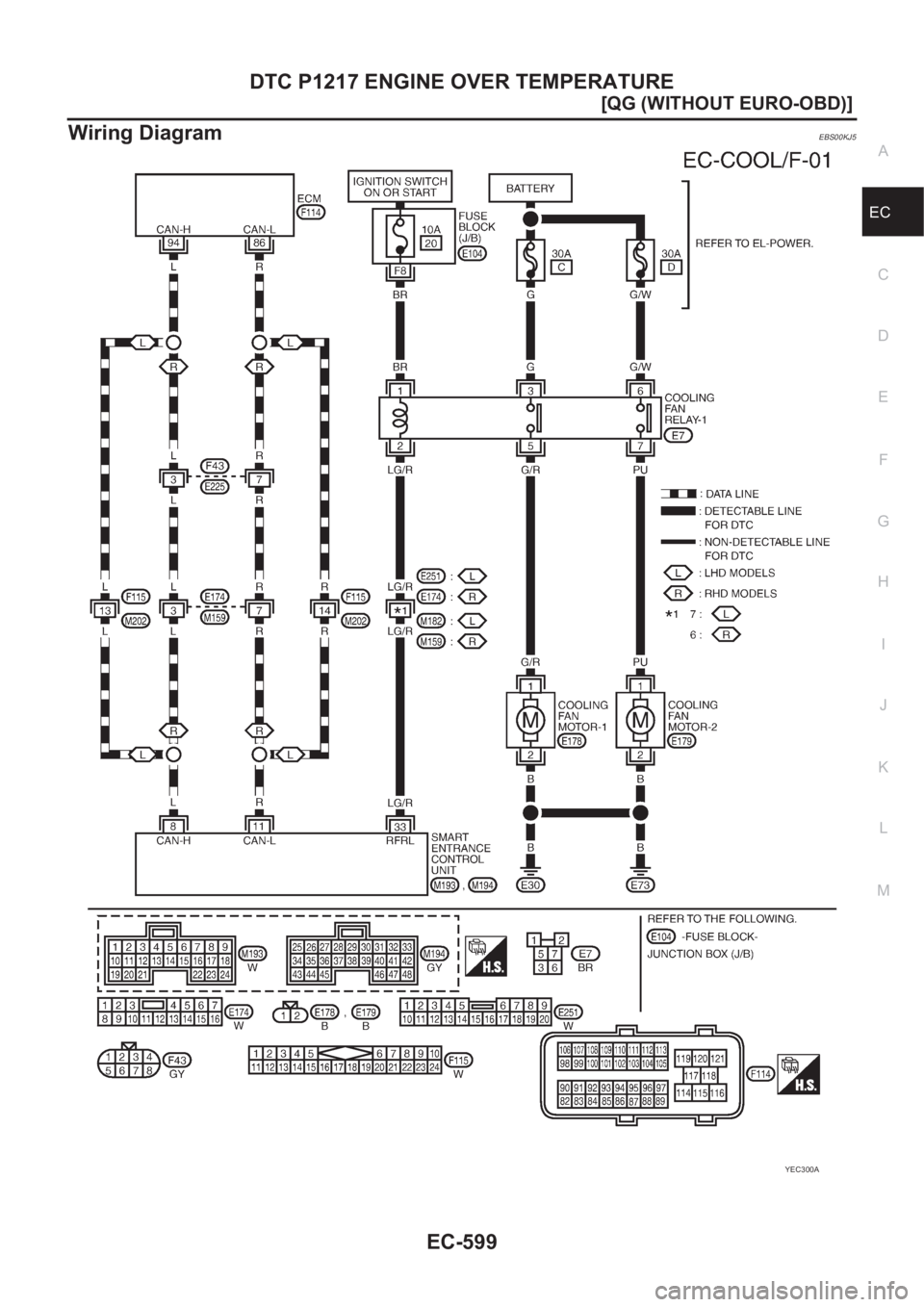

DTC P1217 ENGINE OVER TEMPERATURE
EC-599
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KJ5
YEC300A

EC-604
[QG (WITHOUT EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
3. CHECK COOLING FAN MOTORS CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect cooling fan motor-1 harness connector and cooling
fan motor-2 harness connector.
3. Check harness continuity between cooling fan relay-1 terminal 5
and cooling fan motor-1 terminal 1, cooling fan motor-1 terminal
2 and body ground.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between cooling fan relay-1 terminal 7
and cooling fan motor-2 terminal 1, cooling fan motor-2 terminal
2 and body ground.
Refer to wiring diagram.
6. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK COOLING FAN OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect smart entrance control unit.
2. Check harness continuity between smart entrance control unit
terminal 33 and cooling fan relay-1 terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E251, M182 (LHD models)
●Harness connectors E174, M159 (RHD models)
●Harness for open or short between smart entrance control unit and cooling fan relay-1
>> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK COOLING FAN RELAY-1
Refer to EC-606, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace cooling fan relay.Continuity should exist.
Continuity should exist.
MBIB0252E
Continuity should exist.
MBIB0264E

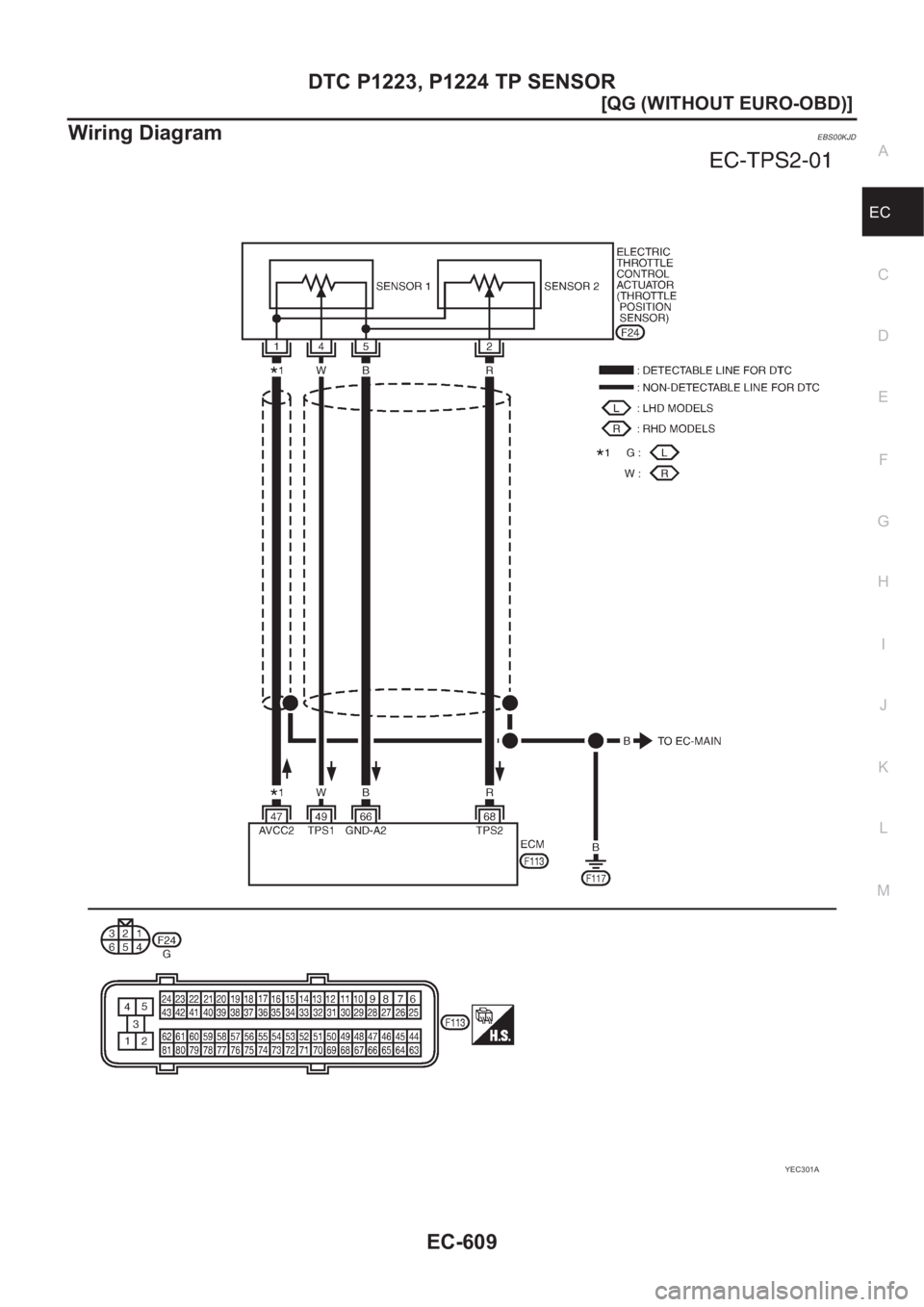

DTC P1223, P1224 TP SENSOR
EC-609
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS00KJD
YEC301A
