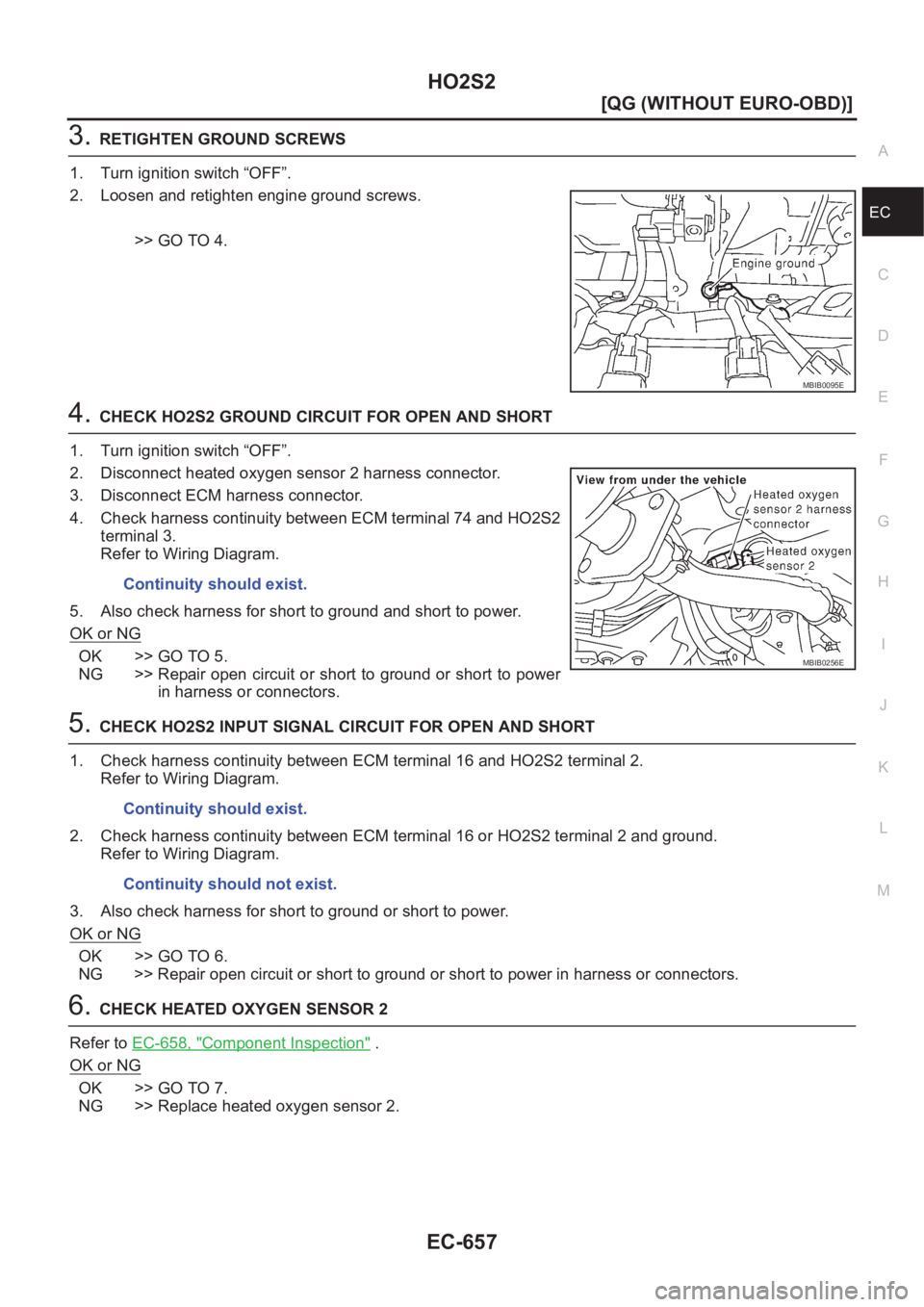

3.RETIGHTEN GROUND SCREWS
1. Turn ignition switch “OFF”.
2. Loosen and retighten engine ground screws.
>> GO TO 4.
4.CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect heated oxygen sensor 2 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between ECM terminal 74 and HO2S2
terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
5.CHECK HO2S2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 16 and HO2S2 terminal 2.
Refer to Wiring Diagram.
2. Check harness continuity between ECM terminal 16 or HO2S2 terminal 2 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to ground or short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK HEATED OXYGEN SENSOR 2
Refer to EC-658, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> Replace heated oxygen sensor 2.
MBIB0095E
Continuity should exist.
MBIB0256E
Continuity should exist.
Continuity should not exist.

IGNITION SIGNAL
EC-661
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

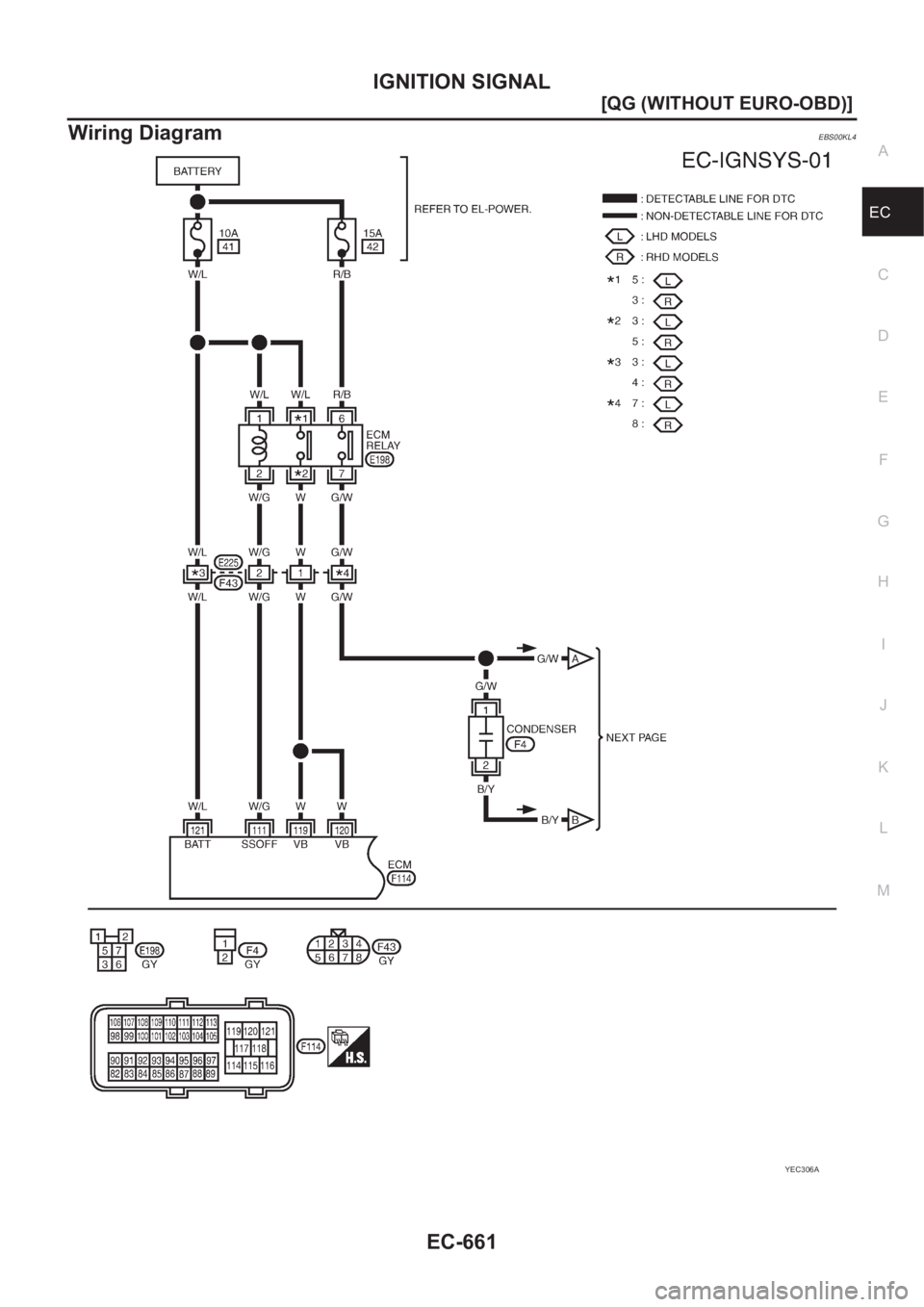

Wiring DiagramEBS00KL4
YEC306A

EC-666
[QG (WITHOUT EURO-OBD)]
IGNITION SIGNAL
6. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
1. Turn ignition switch “OFF”.
2. Disconnect ECM relay.
3. Check harness continuity between ECM relay terminal 7 and
condenser terminal 1.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
7. DETECT MALFUNCTIONING PART
Check the following.
●Harness connectors E225, F43
●Harness for open or short between ECM relay and condenser
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV
Check voltage between ECM relay terminal 6 and ground with CON-
SULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.
●15A fuse
●Harness for open or short between ECM relay and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK ECM RELAY
Refer to EC-668, "
Component Inspection" .
OK or NG
OK >> GO TO 18.
NG >> Replace ECM relay.Continuity should exist.
MBIB0247E
Voltage: Battery voltage
PBIB0625E

IGNITION SIGNAL
EC-667
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

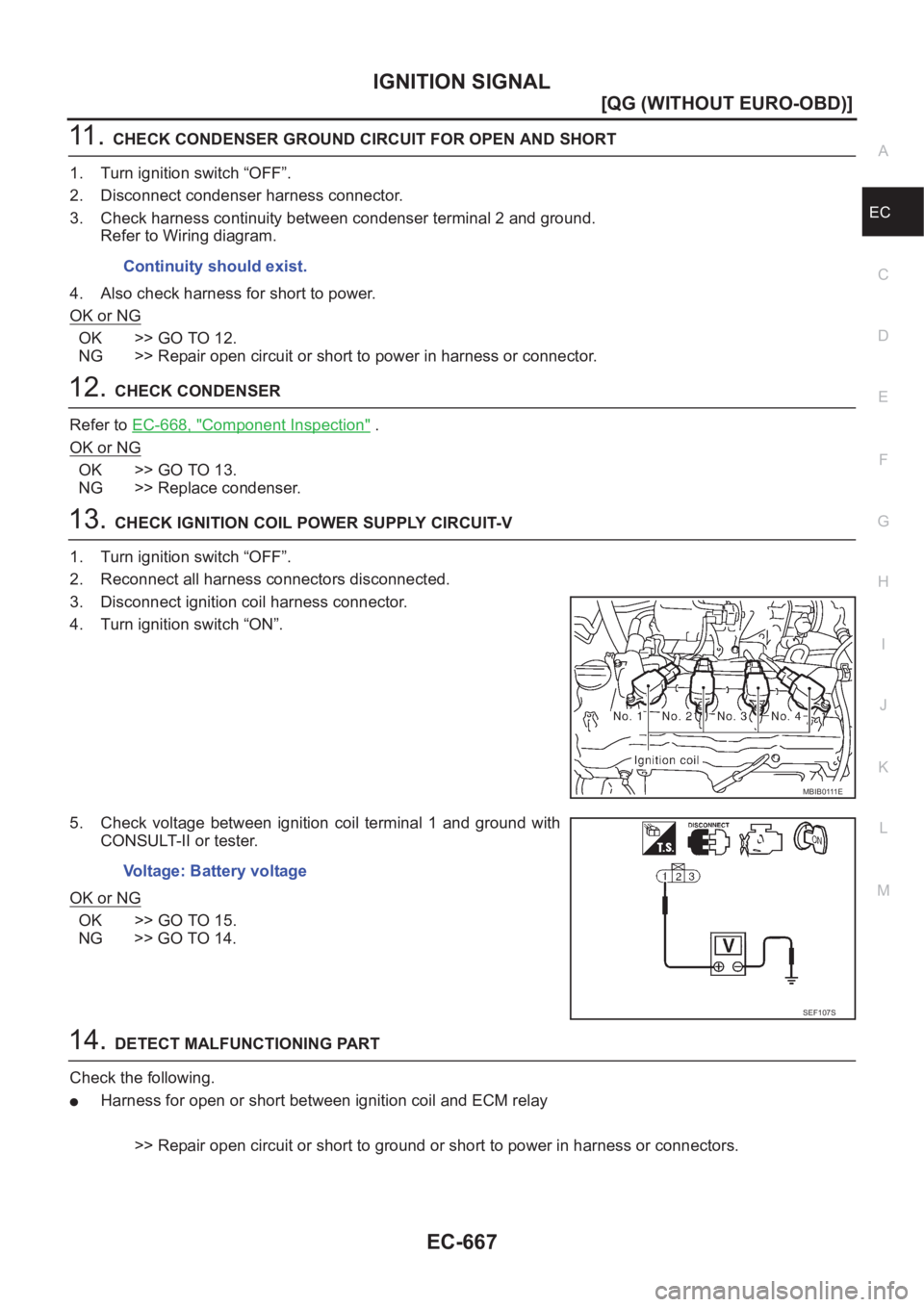

11 . CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect condenser harness connector.
3. Check harness continuity between condenser terminal 2 and ground.
Refer to Wiring diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 12.
NG >> Repair open circuit or short to power in harness or connector.
12.CHECK CONDENSER
Refer to EC-668, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace condenser.
13.CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
1. Turn ignition switch “OFF”.
2. Reconnect all harness connectors disconnected.
3. Disconnect ignition coil harness connector.
4. Turn ignition switch “ON”.
5. Check voltage between ignition coil terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 15.
NG >> GO TO 14.
14.DETECT MALFUNCTIONING PART
Check the following.
●Harness for open or short between ignition coil and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
M B I B 0 111 E
Voltage: Battery voltage
SEF107S

EC-668
[QG (WITHOUT EURO-OBD)]
IGNITION SIGNAL

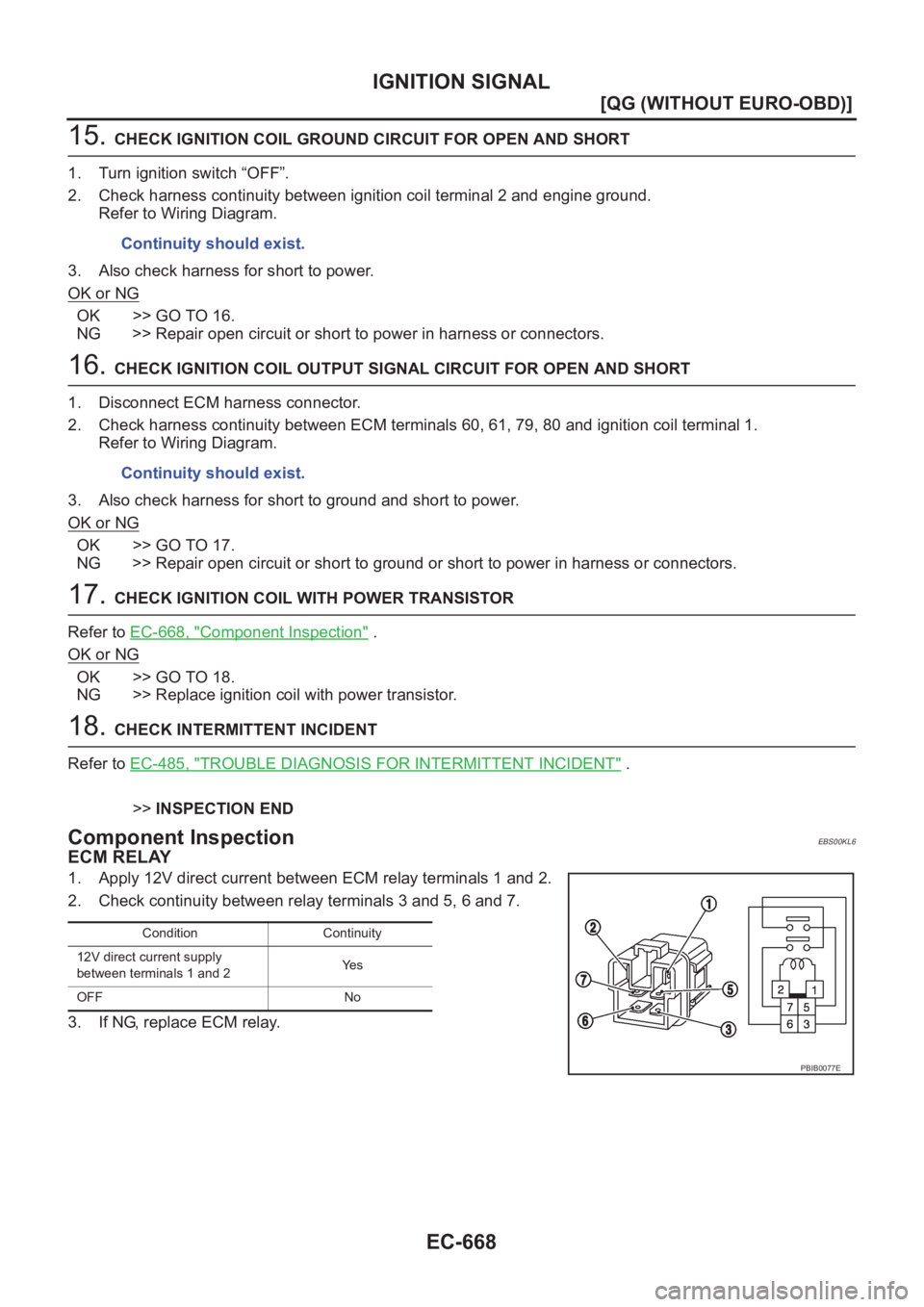

15. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Check harness continuity between ignition coil terminal 2 and engine ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 16.
NG >> Repair open circuit or short to power in harness or connectors.
16. CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 60, 61, 79, 80 and ignition coil terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 17.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
17. CHECK IGNITION COIL WITH POWER TRANSISTOR
Refer to EC-668, "
Component Inspection" .
OK or NG
OK >> GO TO 18.
NG >> Replace ignition coil with power transistor.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS00KL6
ECM RELAY
1. Apply 12V direct current between ECM relay terminals 1 and 2.
2. Check continuity between relay terminals 3 and 5, 6 and 7.
3. If NG, replace ECM relay.Continuity should exist.
Continuity should exist.
Condition Continuity
12V direct current supply
between terminals 1 and 2Ye s
OFF No
PBIB0077E

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-671
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

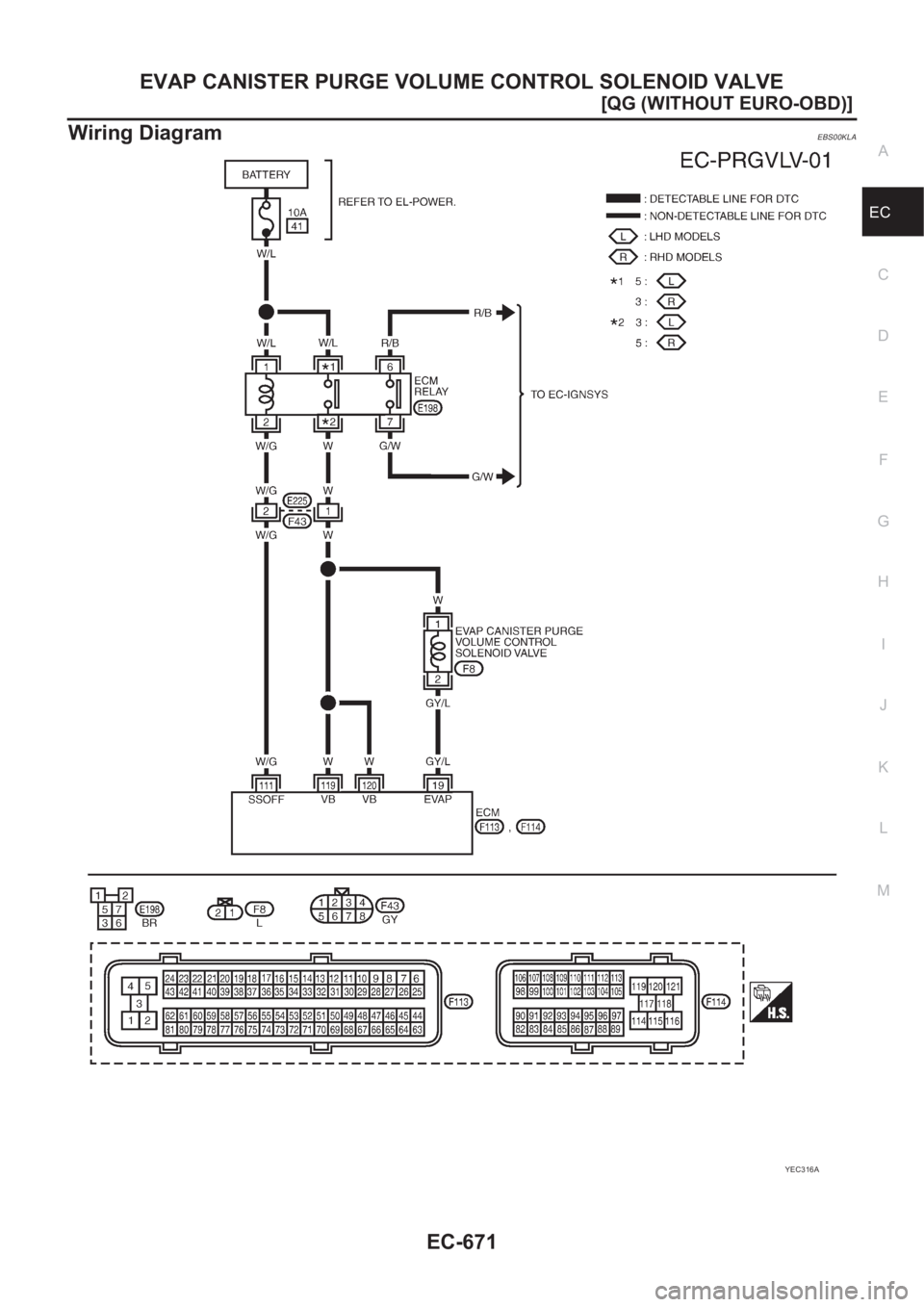

Wiring DiagramEBS00KLA
YEC316A

EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
EC-675
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OUTPUT SIGNAL CIR-
CUIT FOR OPEN AND SHORT
1. Turn ignition switch “OFF”.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 19 and EVAP canister purge volume control solenoid
valve terminal 2. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK (With CONSULT-II)>>GO TO 7.
OK (Without CONSULT-II)>>GO TO 8.
NG >> Repair open circuit or short to ground and short to power in harness or connectors.
7.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE OPERATION
With CONSULT-II
1. Reconnect all harness connectors disconnected.
2. Start engine.
3. Perform “PURG VOL CONT/V” in “ACTIVE TEST” mode with
CONSULT-II. Check that engine speed varies according to the
valve opening.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8.CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-676, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace EVAP canister purge volume control solenoid valve.
9.CHECK INTERMITTENT INCIDENT
Refer to EC-485, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
PBIB0569E

POWER STEERING PRESSURE SENSOR
EC-679
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

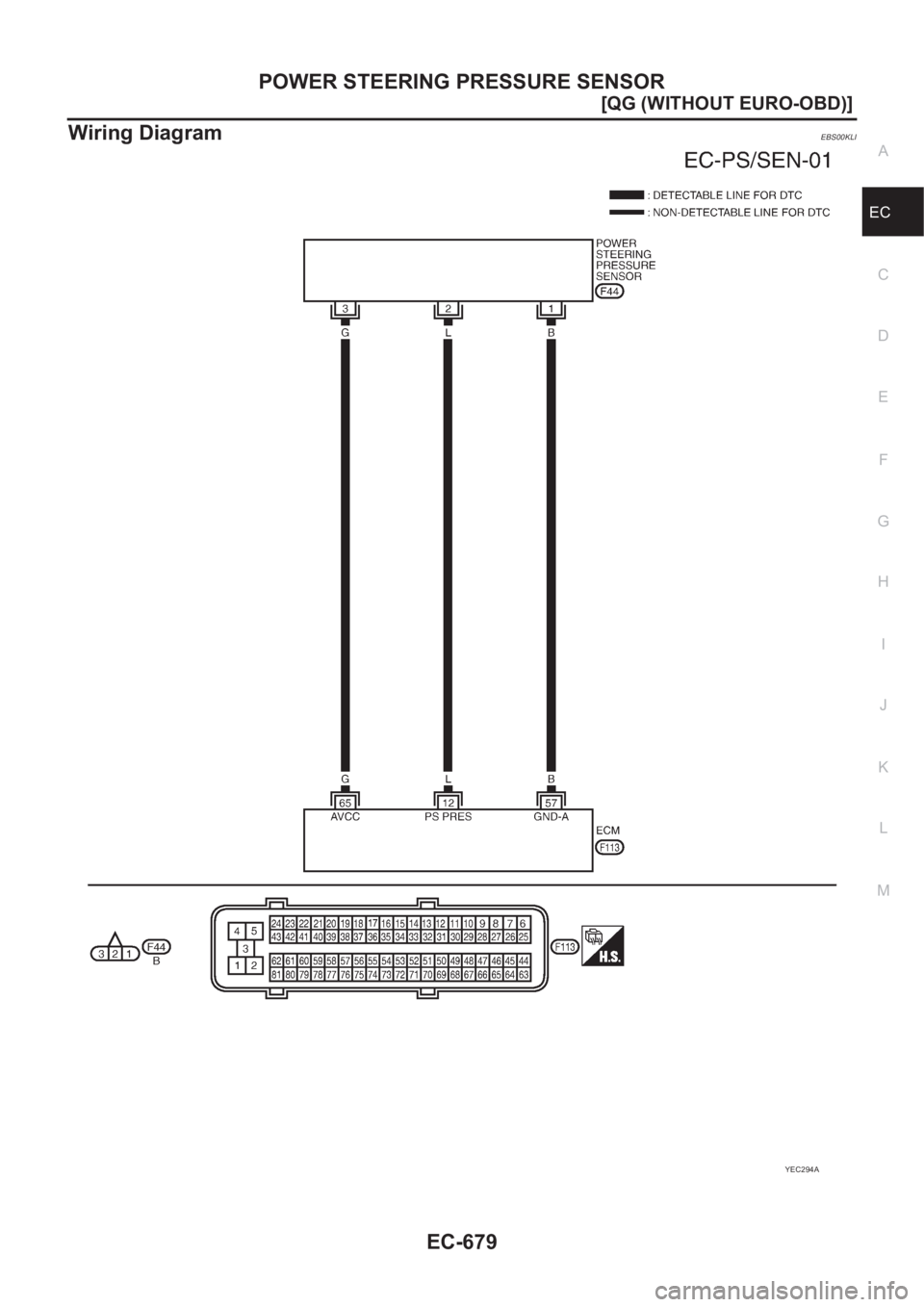

Wiring DiagramEBS00KLI
