207 Operation
Driving instructions
Driving downhill

Select gear range1 on the automatic
transmission (
page 137).


Drive downhill observing the same
rules as driving uphill (
page 206).Driving through water
119 in (48 cm)


Before driving through water, deter-
mine its depth.
It should not be deeper than approxi-
mately 19 in (48 cm).


Comply with the warnings
(page 203) and rules for off-road
driving (
page 204).


Switch off the exterior lamps as well as
the climate control.


Select gear range2 or1 on the auto-
matic transmission (
page 137).


Enter the water only at a shallow spot,
driving at walking speed.


Do not stop vehicle immersed in water,
and do not shut off the engine.
There is a very high level of driving re-
sistance in water. The surface is slip-
pery and may not be firm, making
pulling away in water difficult and dan-
gerous.


Clean mud off the tire tread after driv-
ing through water.


To dry the brakes, apply pressure to the
brake pedal several times after leaving
the water.
!Only apply the service brake if the vehi-
cle travels straight downhill, i.e. in the
line of gravity.iThe special LOW RANGE – ABS setting
allows for precise and brief (cyclical)
blocking of the front wheels, permitting
them to dig into loose ground.
Remember that, when stopped, the
front wheels slide across a surface and
thus lose their ability to steer the vehi-
cle.
!Never accelerate before driving into
the water. The bow wave could force
water into the engine and auxiliary
equipment, thus damaging them.

208 OperationDriving instructionsCrossing obstacles


Check the vehicle clearance before
crossing obstacles.


Comply with the warnings
(page 203) and rules for off-road
driving (
page 204).


Select gear range1 on the automatic
transmission (
page 137).


Cross obstacles (e.g. tree stumps or
big rocks) very slowly by aiming one of
the front wheels at the center of the ob-
stacle, and repeat same with the rear
wheel.
!Obstacles can damage the vehicle un-
dercarriage or suspension compo-
nents. If possible use the assistance of
a second person.
After off-road driving or crossing obsta-
cles, inspect vehicle for any damage,
especially vehicle undercarriage and
suspension components. Failure to do
so can adversely affect the vehicle's fu-
ture performance, including increased
chance of an accident.
!Special attention is needed when you
cross obstacles on a steep incline.
The vehicle could slide sideways as a
result of its possible slanted position.

210 OperationDriving instructionsOff-road driving increases strain on the ve-
hicle.
We recommend that you inspect the vehi-
cle for possible damage after each off-road
trip. Recognizing any damage and a subse-
quent timely repair reduces the chance of
a possible breakdown or accident later on.
Proceed as follows:

Switch the transfer case in position
HIGH (
page 141).


Disengage differential locks
(page 146).


Remove excessive dirt from tires,
wheels, wheel housings, and under-
body.
For instance, after driving in mud, clean
the radiator, chassis, engine, brakes,
and wheels from extreme dirt using a
strong jet of water.


Inspect frame, oil pan, brake hoses,
etc., as well as vehicle underbody for
possible damage.


Check tires for possible damage and
remove foreign objects. Clean all exte-
rior lamps and conduct a brake test.


Clean all exterior lamps and check
them for possible damage.


Check for brush or branches caught in
the undercarriage.
They could increase the possibility of a
fire, as well as cut fuel and/or brake
lines, puncture rubber bellows of the
axles or drive shafts.


After continued operation in mud,
sand, water or other dirty conditions,
clean the brake discs, wheels, brake
pads and check and clean axle joints.


Conduct a brake test.Control and operation of radio trans-
mitters
COMAND, radio and telephone*Warning!
G
Do not forget that your primary responsibili-
ty is to drive the vehicle safely. Only operate
the COMAND, radio or telephone
1 if road,
traffic and weather conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of approximately
50 feet (approximately 14 m) every second.
1Observe all legal requirements.

218 OperationEngine compartmentChecking engine oil level
When checking the oil level the vehicle
must

be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
With the operating system
You can check the engine oil level on the
multifunction display.

Turn the key in the starter switch to
position2.
The standard display (
page 111) should
appear in the multifunction display.

Press button
k
or
j
on the
steering wheel until the following mes-
sage is seen in the multifunction dis-
play:
ENGINE OIL LEVEL - MEASUREMENT IN
PROCESS! MEASUREMENT CORRECT ONLY
IF VEH. LEVEL
After about three seconds, this mes-
sage is displayed:
ENGINE OIL LEVEL –
MEASURING NOW!
One of the following messages will sub-
sequently appear in the indicator:

ENGINE OIL LEVEL – OK



ENGINE OIL LEVEL – ADD 1.0 QUART
(1.0 LITER)!


ENGINE OIL LEVEL – ADD 1.5 QUART
(1.5 LITER)!


ENGINE OIL LEVEL – ADD 2.0 QUART
(2.0 LITER)!
Other display messages
If there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear: ENGINE OIL LEVEL – REDUCE OIL LEVEL!
Have excess oil siphoned.
If the key is not turned to position2 in the
starter switch:
ENGINE OIL LEVEL – SWITCH ON IGNITION!
Switch on the ignition.
iIf you want to cancel the measuring
process, press the
k
or
j
but-
tons on the multifunction steering
wheel.
!Excessive oil must be siphoned or
drained off. It could cause damage to
the engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
The oil dipstick tube allows for draining
of oil by using a suction device
(page 219).

224 OperationTires and wheels
Tires and wheelsSee your authorized Mercedes-Benz Light
Truck Center for information on tested and
recommended rims and tires for summer
and winter operation. They can also offer
advice concerning tire service and pur-
chase.
Retread tires are not tested or recom-
mended by Mercedes-Benz, since previous
damage cannot always be recognized on
retreads. Mercedes-Benz can therefore
not assure the operating safety of the vehi-
cle when such tires are used.
Important guidelines

Use only sets of tires and rims of the
same type and make.


Tires must be of the correct size for the
rim.


Break in new tires for approximately
60 miles (100 km) at moderate
speeds.


Regularly check the tires and rims for
damage. Dented or bent rims can
cause tire pressure loss and damage to
the tire beads.


If vehicle is heavily loaded, check tire
pressure and correct as required.


Do not allow your tires to wear down
too far. Adhesion properties on wet
roads are sharply reduced at tread
depths under
1⁄8in (3 mm).


When replacing individual tires, you
should mount new tires on the front
wheels first (on vehicles with
same-sized wheels all around).
Warning!
G
Replace rims or tires with the same designa-
tion, manufacturer and type as shown on the
original part. See your authorized
Mercedes-Benz Light Truck Center for fur-
ther information. If incorrectly sized rims
and tires are mounted:

The wheel brakes or suspension compo-
nents can be damaged.


The correct operating clearance of the
wheels and the tires are no longer guar-
anteed.
Warning!
G
Do not mix different tire construction types
(i.e. radial, bias, bias-belted) on your vehicle
because handling may be adversely affected
and may result in loss of control.Warning!
G
Worn, old tires can cause accidents. If the
tire tread is badly worn, or if the tires have
sustained damage, replace them.
When replacing rims, use only genuine
Mercedes-Benz wheel bolts specified for the
particular rim type. Failure to do so can re-
sult in the bolts loosening and possibly an
accident.

225 Operation
Tires and wheels
Life of tire
The service life of a tire is dependent upon
varying factors including but not limited to:

Driving style


Tire pressure


Distance driven
Direction of rotation
Unidirectional tires offer added advantag-
es, such as better hydroplaning perfor-
mance. To benefit, however, you must
ensure that the tires rotate in the direction
specified.
An arrow on the sidewall indicates the in-
tended direction of rotation of the tire.
Checking tire inflation pressure
Correct the tire pressure only when tires
are cold.
Regularly check your tire pressure at inter-
vals of no more than 14 days.
If the tires are warm, you should only cor-
rect the tire pressure if it is too low for cur-
rent operating conditions.
A table on the fuel filler flap lists the spec-
ified tire inflation pressures for warm and
cold tires as well as for various operating
conditions.
Warning!
G
Tires and spare wheel should be replaced af-
ter six years, regardless of the remaining
tread.!Keep unmounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease and gasoline.
Warning!
G
If the tire pressure repeatedly drops

check the tires for punctures from for-
eign objects


check to see whether air is leaking from
the valves or from around the rim

226 OperationTires and wheelsTire pressure changes by approximately
1.5 psi (0.1 bar) per 18°F (10°C) of air
temperature change. Keep this in mind
when checking tire pressure where the
temperature is different from the outside
temperature.
Tire temperature and tire pressure are also
increased while driving, depending on the
driving speed and the tire load.Check the spare tire periodically for condi-
tion and inflation. Spare tire will age and
b e c o m e w o r n o v e r t i m e e v e n i f n e v e r u s e d ,
and thus should be inspected and replaced
when necessary.
Rotating wheels
The wheels can be rotated every 3000 to
6 000 miles (5000 to 10 000 km) or sooner
if necessary, according to the degree of
tire wear. The same direction of tire rota-
tion must be retained.
Rotate the wheels before the characteris-
tic tire wear pattern becomes visible
(shoulder wear on front wheels and tread
center wear on rear wheels).
Thoroughly clean the inner side of the
wheels after each rotation. Check and en-
sure proper tire inflation pressure.
iThe pressures listed for light loads are
minimum values offering high driving
comfort.
Increased inflation pressures listed for
heavier loads may also be used for light
loads. These higher pressures produce
favorable handling characteristics. The
ride of the vehicle, however, will be
somewhat harder. Never exceed the
max. values or inflate tires below the
min. values listed in the fuel filler flap.
Warning!
G
Follow recommended inflation pressures.
Do not overinflate tires. Overinflated tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Do not overload the tires by exceeding the
specified vehicle capacity weight (as indicat-
ed by the label on the pillar in the driver’s
door opening). Overloading the tires can
overheat them, possibly causing a blowout.
Warning!
G
Rotate front and rear wheels only if there are
of the same size.

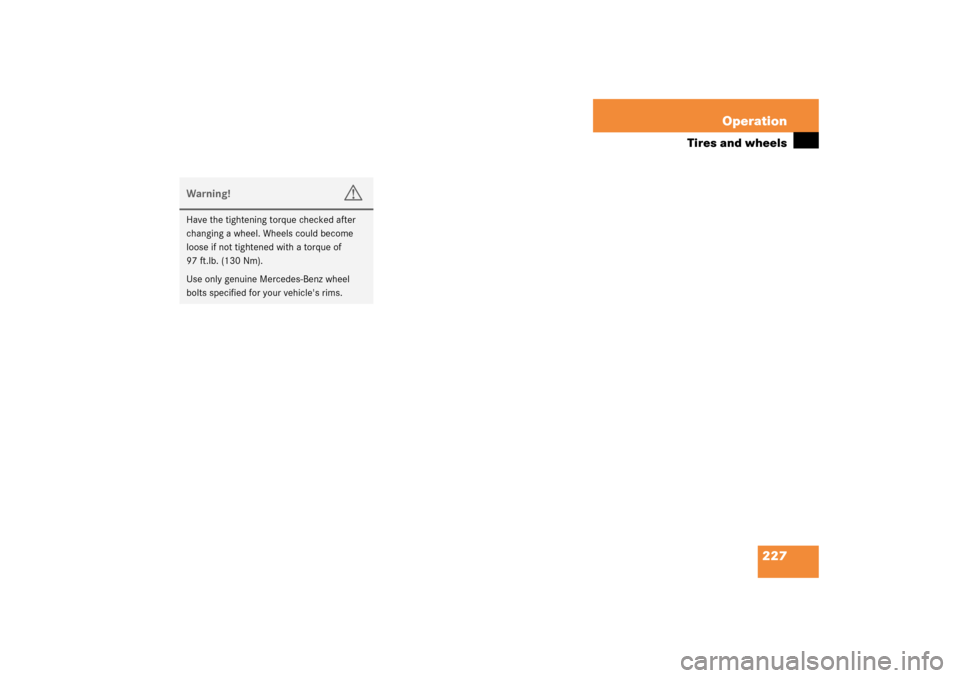

227 Operation
Tires and wheels
Warning!
G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
97 ft.lb. (130 Nm).
Use only genuine Mercedes-Benz wheel
bolts specified for your vehicle's rims.
