2003 MERCEDES-BENZ E-CLASS engine

274 OperationWinter drivingBlock heater (Canada only)
The engine is equipped with a block heat-
er.
The electrical cable may be installed at
your authorized Mercedes-Benz Center.
Snow chains
When driving with snow chains, always se-
lect the raised level of the level control sys-
tem AIRMATIC DC* (
page 209). Other
settings may result in damage to your vehi-
cle.
Snow chains should only be driven on
snow-covered roads at speeds not to ex-
ceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.Please observe the following guidelines
when using snow chains:


Use of snow chains is not permissible
with all wheel/tire combinations.


Chains should only be used on the rear
wheels. Follow the manufacturer's
mounting instructions.


Only use snow chains that are ap-
proved by Mercedes-Benz. Your autho-
rized Mercedes-Benz Center will be
glad to advise you on this subject.
iWhen driving with snow chains, you
may wish to deactivate the ESP
(page 76) before setting the vehicle
in motion. This will improve the vehi-
cle’s traction.
!Use of snow chains is not permissible
with tire size 245 / 45 R17
(page 361).
ProCarManuals.com

275 Operation
Maintenance
Maintenance
Flexible Service System PLUS (FSS PLUS)
We strongly recommend that you have
your vehicle serviced by your authorized
Mercedes-Benz Center, in accordance with
the Service Booklet at the times called for
by the FSS PLUS
(Flexible Service System PLUS).
Failure to have the vehicle maintained in
accordance with the Service Booklet at the
designated times /mileage called for by
the FSS PLUS may result in vehicle dam-
age not covered by the Mercedes-Benz
Limited Warranty.
FSS PLUS will notify you when your next
service is due.
Approximately one month before your next
service is due, one of the following mes-
sages will appear in the multifunction dis-
play while you are driving or when you
switch on the ignition (example service A):Service A in XXXX miles (km)
Service A in XX days
Service A in X day Service A due now!
The type of service due is indicated in the
speedometer display field:
from
Service A(Minor service)
toService H(Major service)
Clearing the service indicator
You can clear the service indicator
Press the jbutton on the multi-
function steering wheel.iThe additional + after the type of ser-
vice indicates the degree of wear of the
brake pads.
The brake pads may reach their wear
limit in the time period up to the next
service interval.
Have the brake pads checked and, if
necessary, replaced by an authorized
Mercedes-Benz Center during your
next service appointment.iThe interval between services depends
on your driving habits. A gentle driving
style, moderate engine speeds and the
avoidance of short distance trips will
lengthen the interval between services.
ProCarManuals.com

276 OperationMaintenance
The service indicator is cleared and the
standard display appears in the multi-
function display.
Service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the multifunction display:Service A exceeded by XXXXX miles (km)
Service A exceeded by XXX days
Service A exceeded by X day An authorized Mercedes-Benz Center will
reset the service indicator following a com-
pleted service.
Calling up the service indicator
Switch the ignition on.
The standard display of the control sys-
tem appears (
page 121).

Press buttonk orj on the mul-
tifunction steering wheel until the
FSS PLUS indicator appears in the mul-
tifunction display.
Resetting the service indicator
In the event that a service on your vehicle
is not carried out by an authorized
Mercedes-Benz Center, you can reset the
service indicator yourself.
Switch the ignition on.
The standard display of the control sys-
tem appears (
page 121).

Press buttonk orj on the mul-
tifunction steering wheel until the
FSS PLUS indicator appears in the mul-
tifunction display.

Press the reset knob (
page 22) for
about five seconds.
iIf the battery is disconnected, the days
of disconnection will not be included in
the count shown by the service indica-
tor. To arrive at the true service dead-
line, you will need to subtract these
days from the days shown in the ser-
vice indicator.
Do not confuse the service indicator
with the engine oil level indicator :.
ProCarManuals.com

277 Operation
Maintenance
The
SERVICE MENU
appears in the multi-
function display.

Select the
CONFIRMATION
menu with the
+ or - button.

Press the ÿ button.
The service indicator now displays the CONFIRMATION
menu.
The selection marker is on
CONFIRM
.

Press the ÿbutton.
The service indicator now displays the CONFIRM
menu.The selection maker is on
STANDARD
OIL
.

Press the ÿ button.
The words
SERVICE CONFIRMED
appear
in the multifunction display.
The service indicator is reset.

Press buttonè on the multifunction
steering wheel until the standard dis-
play appears in the multifunction dis-
play.FSS PLUS now recalculates the values.
You cannot call up the service display or
the service menu during this time.
iIf the service indicator was inadvertent-
ly reset, have an authorized
Mercedes-Benz Center correct it.
Only reset if the proper service has
been performed. Resetting the system
without proper service as called for by
the FSS PLUS will cause the FSS PLUS
to incorrectly determine the next ser-
vice interval which will result in engine
damage not covered by the
Mercedes-Benz Limited Warranty.
ProCarManuals.com

282 OperationVehicle careEngine cleaning
Prior to cleaning the engine compartment,
make sure to protect electrical compo-
nents and connectors from contact with
water and cleaning agents.
Corrosion protection, such as MB Anticor-
rosion Wax should be applied to the engine
compartment after every engine cleaning.
Before applying, all control linkage bush-
ings and joints should be lubricated. The
poly-V-belt and all pulleys should be pro-
tected from any wax.
Vehicle washing
Do not use hot water or wash your vehicle
in direct sunlight. Use only a mild car wash
detergent, such as Mercedes-Benz ap-
proved Car Shampoo.
Thoroughly spray the vehicle with a dif-
fused jet of water. Direct only a very weak
spray towards the ventilation intake. Use
plenty of water and rinse the sponge and
chamois frequently. Rinse with clear water and thoroughly wipe
dry with a chamois. Do not allow cleaning
agents to dry on the finish.
Due to the width of the vehicle, fold in out-
side mirrors prior to running the vehicle
through an automatic car wash to prevent
damage to the mirrors.
In the winter, thoroughly remove all traces
of road salt as soon as possible.
When washing the undercarriage, do not
forget to clean the inner sides of the
wheels.Ornamental moldings
For regular cleaning and care of very dirty
chrome-plated parts, use a chrome clean-
er.
Headlamps, tail lamps, turn signal
lenses
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo,
with plenty of water.
To prevent scratches, never apply strong
force and use only a soft, non-scratchy
cloth when cleaning the lenses. Do not at-
tempt to wipe dirty lenses with a dry cloth
or sponge.
iVehicles with KEYLESS-GO*:
If a door handle is hit by a strong jet of
water, and a SmartKey with KEY-
LESS-GO* is in close proximity, i.e.
within approx. 3 ft. (approx. 1 m), the
vehicle could be inadvertently locked
or unlocked.
ProCarManuals.com

284 OperationVehicle careTo prevent scratches, never apply strong
force and use only a soft, non-scratchy
cloth when cleaning the sensor cover. Do
not attempt to wipe dirty sensors with a
dry cloth or sponge.Cleaning the Parktronic* system
sensors
1Parktronic* sensors
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Shampoo
with plenty of water.
When using a steam cleaner or power
washer, aim nozzle only briefly from a min-
imum distance of 4 in. (10 cm) at
sensors1.
To prevent scratches, never apply strong
force and use only a soft, non-scratchy
cloth when cleaning the sensor. Do not at-
tempt to wipe dirty sensors with a dry cloth
or sponge.Light alloy wheels
Mercedes-Benz approved Wheel Care
should be used for regular cleaning of the
light alloy wheels.
If possible, clean wheels once a week with
Mercedes-Benz approved Wheel Care, us-
ing a soft bristle brush and a strong spray
of water.
Follow the instructions on the container.
iRestart the engine after cleaning sen-
sor cover1.
iUse only acid-free cleaning materials.
Acid could lead to corrosion.
ProCarManuals.com

291 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)The red brake warning lamp
lights up while driving and you
hear a warning sound.
You are driving with the parking brake set.
or
There is a malfunction in the SBC brake sys-
tem.

Release the parking brake.

Read and observe the message in the
display.
The red brake warning lamp
lights up while driving.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the last message displayed can
result in an accident. Have your brake sys-
tem checked immediately if the brake warn-
ing lamp stays on.
Don’t add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
ProCarManuals.com

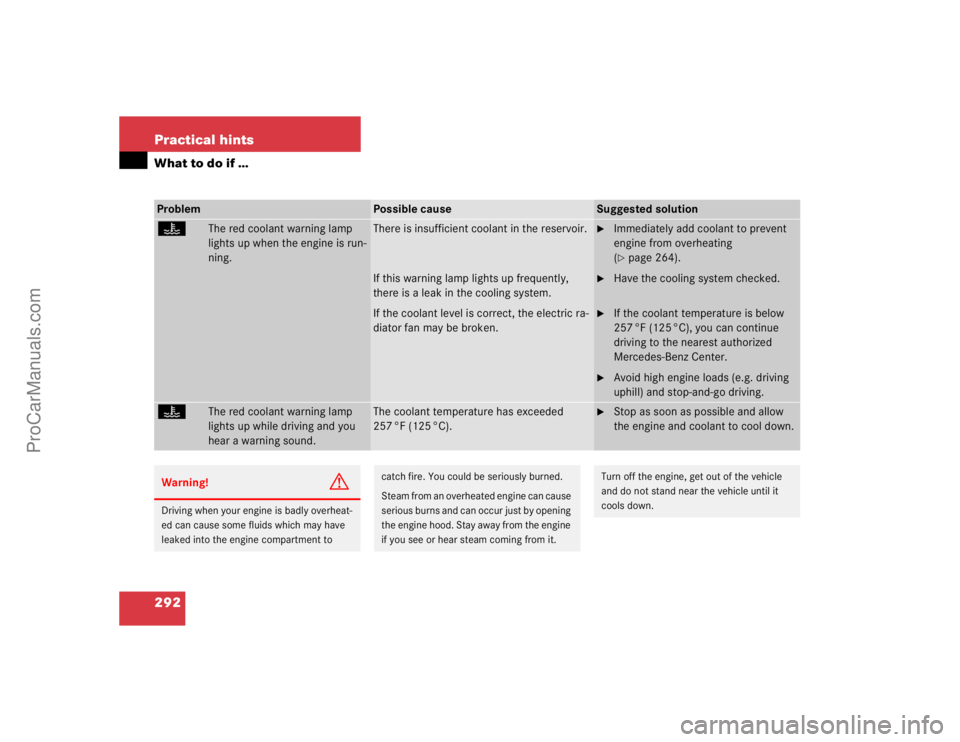

292 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
D
The red coolant warning lamp
lights up when the engine is run-
ning.
There is insufficient coolant in the reservoir.
If this warning lamp lights up frequently,
there is a leak in the cooling system.
If the coolant level is correct, the electric ra-
diator fan may be broken.

Immediately add coolant to prevent
engine from overheating
(page 264).

Have the cooling system checked.

If the coolant temperature is below
257 °F (125 °C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.

Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
D
The red coolant warning lamp
lights up while driving and you
hear a warning sound.
The coolant temperature has exceeded
257 °F (125 °C).

Stop as soon as possible and allow
the engine and coolant to cool down.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.
ProCarManuals.com
