2003 MERCEDES-BENZ E-CLASS brake fluid

Contents
Adjusting air distribution .............. 177
Adjusting air volume .................... 177
Defrosting .................................... 178
Air recirculation mode.................. 178
Charcoal filter .............................. 180
Rear window defroster ................. 180
Air conditioner ............................. 181
Residual heat and ventilation ....... 182
Rear air conditioning .................... 182
Power windows.................................. 184
Opening and closing the windows 184
Synchronizing power windows ..... 186
Sliding/pop-up roof* ......................... 187
Opening and closing the slid-
ing/pop-up roof* ......................... 187
Synchronizing the
sliding/pop-up roof ...................... 189
Panorama sliding/pop-up roof*......... 190
Panorama sliding/pop-up roof* ... 190
Solar panel* ................................. 193
Driving systems ................................. 194
Cruise control .............................. 194
Distronic* .................................... 197
AIRMATIC DC (Dual Control)* ...... 209
PARKTRONIC system* ................. 212
Loading.............................................. 216Roof rack ...................................... 216
Ski sack* ...................................... 216
Split rear bench seat*................... 219
Folding front passenger seat* ...... 222
Expanding the cargo area* ........... 223
Loading instructions ..................... 224
Cargo tie-down rings ..................... 225
Useful features ................................... 226
Interior storage spaces ................. 226
Ashtrays........................................ 231
Cigarette lighter ............................ 232
12-V socket* ................................ 232
Heated steering wheel* ................ 233
Telephone* ................................... 233
Tele Aid* ....................................... 234
Garage door opener ...................... 243
Operation.......................................... 247
The first 1000 miles (1500km) ........... 248
Driving instructions ............................ 249
Drive sensibly – save fuel.............. 249
Drinking and driving ...................... 249
Pedals ........................................... 249
Power assistance .......................... 250
Brakes........................................... 250Driving off ..................................... 252
Parking ......................................... 252
Tires.............................................. 252
Aquaplaning .................................. 253
Tire traction .................................. 253
Tire speed rating ........................... 254
Winter driving instructions ............ 254
Standing water ............................. 255
Passenger compartment............... 255
Traveling abroad ........................... 255
Control and operation of radio
transmitter.................................... 256
Catalytic converter ....................... 256
Emission control ........................... 257
Coolant temperature .................... 258
At the gas station ............................... 259
Check regularly and before
a long trip ..................................... 260
Engine compartment .......................... 261
Hood ............................................. 261
Engine oil ...................................... 262
Transmission fluid level ................ 264
Coolant level ................................. 264
Battery .......................................... 266
Windshield washer system and
headlamp cleaning system* ......... 267
ProCarManuals.com

Contents
Technical data................................. 355
Spare parts service ............................ 356
Warranty coverage............................. 357
Loss of Service and Warranty
Information Booklet ..................... 357
Identification labels ........................... 358
Layout of poly-V-belt drive ................. 359
E 320 / E 500 ............................... 359
Engine................................................ 360
Rims and tires.................................... 361
Same-sized tires........................... 361
Minispare wheel ........................... 362
Sport package .............................. 362
Electrical system ............................... 363
Main dimensions ............................... 364
Weights.............................................. 365Fuels, coolants, lubricants etc. ........... 366
Capacities ..................................... 366
Engine oils .................................... 368
Engine oil additives ....................... 368
Air conditioner refrigerant............. 368
Brake fluid..................................... 368
Premium unleaded gasoline .......... 369
Fuel requirements ......................... 369
Gasoline additives......................... 369
Coolants ....................................... 370
Windshield and headlamp washer
system .......................................... 372
Consumer information ........................ 373
Uniform tire quality grading .......... 373
Technical terms............................... 375Index................................................. 381
ProCarManuals.com

79 Safety and Security
Driving safety systems
The SBC brake servo assistance switches
off automatically when you:

turn the key in the starter switch to
position0 or remove the key (after ap-
proximately two minutes)


lock the vehicle with the SmartKey
from outside (after approximately
20 seconds)
Note on driving with the SBC


Following extended periods of only mi-
nor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This im-
proves the grip of the brake pads.
iIf the SBC brake system is activated
when the brake pedal is first de-
pressed, you may feel a reduced pedal
resistance and longer pedal travel than
normal. When releasing the pedal, you
may also feel the brake pedal pulsate
and you may hear a sound which is
caused by the activation of the SBC
pump. This is normal and not an indica-
tion of a malfunction. Pedal travel re-
turns to normal when you release the
brake pedal and the sound soon ceas-
es.
Warning!
G
Have brake pad replacement and other work
on the SBC brake system carried out by
qualified technicians only. Contact your au-
thorized Mercedes-Benz Center for further
information. The SBC brake system must be
deactivated prior to working on the system.
High pressure is intermittently built up in the
system as part of its automatic self-test. In
addition, the system is automatically acti-
vated when the vehicle is unlocked by re-
mote control, when the driver or passenger
door is opened, when the key in the starter
switch is turned to position1, when the
brake pedal is depressed or when the park-
ing brake is released. Failure to deactivate
the system prior to maintenance will cause
brake pistons to extend and brake fluid to
leak, which may result in injuries (contu-
sions and acid burns). Extended brake pis-
tons may also cause injury.
Warning!
G
Be very careful not to endanger other road
users when you apply the brakes.
ProCarManuals.com

251 Operation
Driving instructions
To help prevent brake disk corrosion after
driving on wet road surfaces (particularly
salted roads), it is advisable to brake the
vehicle with considerable force prior to
parking. The heat generated serves to dry
the brakes.
If your brake system is normally only sub-
jected to moderate loads, you should occa-
sionally test the effectiveness of the
brakes by applying above-normal braking
pressure at higher speeds. This will also
enhance the grip of the brake pads. If the parking brake is released and the
brake warning lamp in the instrument clus-
ter stays on, there is a malfunction in the
SBC brake system (
page 77) or the
brake fluid level in the reservoir is too low.
Brake pad wear or a leak in the system may
be the reason for low brake fluid in the res-
ervoir.
Have the brake system inspected at an au-
thorized Mercedes-Benz Center immedi-
ately.
All checks and service work on the brake
system should be carried out by an autho-
rized Mercedes-Benz Center.
Only install brake pads and brake fluid rec-
ommended by Mercedes-Benz.
After hard braking, it is advisable to drive
on for some time, rather than immediately
parking, so that the air stream will cool
down the brakes faster.
It can also result in the brakes overheating,
thereby significantly reducing their effec-
tiveness. It may not be possible to stop the
vehicle in sufficient time to avoid an acci-
dent.!Be very careful not to endanger other
road users when you apply the brakes.
Refer to the description of the Brake
Assist System (BAS) (
page 74).
Warning!
G
If other than recommended brake pads are
installed, or other than recommended brake
fluid is used, the braking properties of the
vehicle can be degraded to an extent that
safe braking is substantially impaired. This
could result in an accident.
Be certain to read and observe the warning
notices on brake pad replacement
(page 305).!When driving down long and steep
grades, relieve the load on the brakes
by shifting into a lower gear to use the
engine’s braking power. This helps pre-
vent overheating of the brakes and re-
duces brake pad wear.
ProCarManuals.com

260 OperationAt the gas station
Check regularly and before a long trip
1Windshield washer and headlamp
cleaning system
For more information on refilling the
reservoir, see the "Operation" section
(
page 267).
2Brake fluid
More information on brake fluid can be
found in the "Technical data" section
(page 368).
3Coolant level
More information on the coolant level
can be found in the "Operation" section
(page 264).Engine oil level
More information on engine oil can be
found in the "Operation" section
(
page 262).
See also "Opening hood" (
page 261).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
the "Practical hints" section (page 332).
See also the section on the exterior lamp
switch (
page 112).
Tire inflation pressure
More information on tire inflation pressure
can be found in the "Operation" section
(
page 269).
iUse only premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products Pamphlet.iLeaving the engine running and the fuel
cap open can cause the ?lamp to
illuminate.
ProCarManuals.com

280 OperationVehicle care
Vehicle careCleaning and care of vehicle
In operation, your vehicle is subjected to
varying external influences which, if gone
unchecked, can attack the paintwork as
well as the undercarriage and cause last-
ing damage.
Such damage is caused not only by ex-
treme and varying climatic conditions, but
also by:

Air pollution


Road salt


Tar, gravel and stone chippingTo avoid paint damage, you should imme-
diately remove:


Grease and oil


Fuel


Coolant


Brake fluid


Insects


Tree resins etc.
Frequent washing reduces and / or elimi-
nates the aggressiveness and potency of
the above adverse influences.
More frequent washings are necessary to
deal with unfavorable conditions, for ex-
ample:


Near the ocean


In industrial areas (smoke, exhaust
emissions)


During winter operationYou should check your vehicle from time to
time for stone chipping or other damage.
A n y d a m a g e s h o u l d b e r e p a i r e d a s s o o n a s
possible to prevent the start of corrosion.
In doing so, do not neglect the underside of
the vehicle. A prerequisite for a thorough
check is a washing of the undercarriage
followed by a thorough inspection. Dam-
aged areas need to be reundercoated.
Your vehicle has been treated at the facto-
ry with a wax-base rustproofing in the body
cavities which will last for the lifetime of
the vehicle. Post-production treatment is
neither necessary nor recommended by
Mercedes-Benz because of the possibility
of incompatibility between materials used
in the production process and others ap-
plied later.
We have selected car-care products and
compiled recommendations which are
specially matched to our vehicles and
which always reflect the latest technology.
You can obtain Mercedes-Benz approved
car-care products at your authorized
Mercedes-Benz Center.
Warning!
G
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the partic-
ular container. Always open your vehicle’s
doors or windows when cleaning the inside.
Never use fluids or solvents that are not de-
signed for cleaning your vehicle.
ProCarManuals.com

291 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)The red brake warning lamp
lights up while driving and you
hear a warning sound.
You are driving with the parking brake set.
or
There is a malfunction in the SBC brake sys-
tem.

Release the parking brake.

Read and observe the message in the
display.
The red brake warning lamp
lights up while driving.
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the last message displayed can
result in an accident. Have your brake sys-
tem checked immediately if the brake warn-
ing lamp stays on.
Don’t add brake fluid before checking the
brake system. Overfilling the brake fluid res-
ervoir can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
ProCarManuals.com

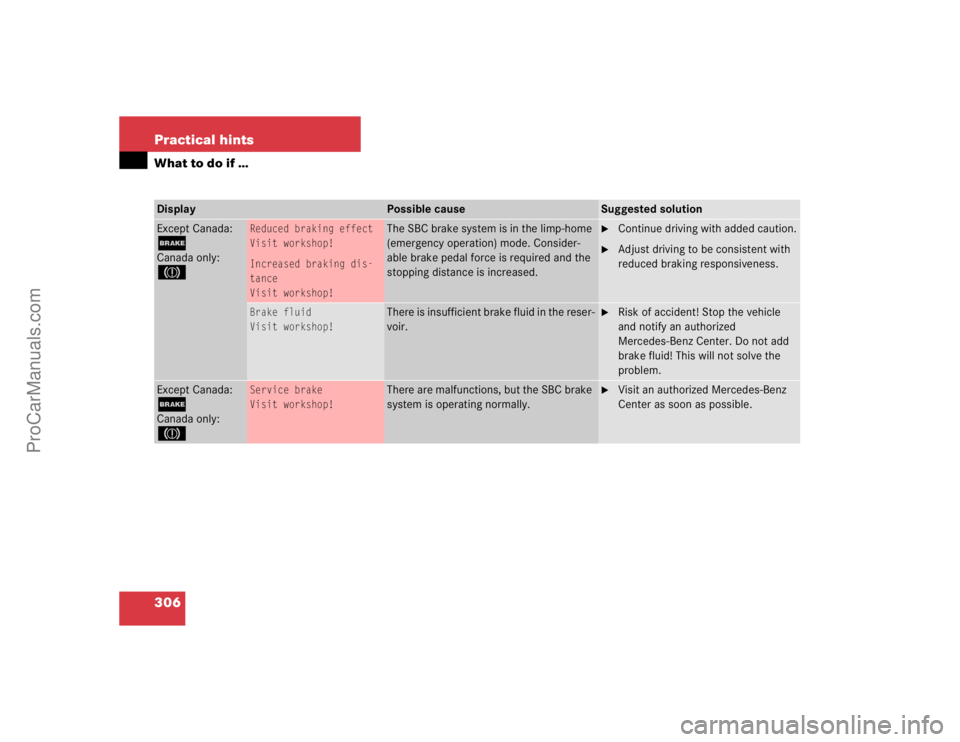

306 Practical hintsWhat to do if …Except Canada:;Canada only:3
Reduced braking effect
Visit workshop!
Increased braking dis-
tance
Visit workshop!
The SBC brake system is in the limp-home
(emergency operation) mode. Consider-
able brake pedal force is required and the
stopping distance is increased.

Continue driving with added caution.

Adjust driving to be consistent with
reduced braking responsiveness.
Brake fluid
Visit workshop!
There is insufficient brake fluid in the reser-
voir.

Risk of accident! Stop the vehicle
and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Except Canada:;Canada only:3
Service brake
Visit workshop!
There are malfunctions, but the SBC brake
system is operating normally.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Display
Possible cause
Suggested solution
ProCarManuals.com
