2003 MAZDA MODEL MX-5 MIATA Owners Manual

2-9
Essential Safety Equipment
Seat Belt Systems
Form No. 8R09-EA-02G
Incorrect Positioning of the Driver
and Passenger Seat Belts:
Incorrect positioning of the driver
and passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting
systems cannot provide adequate
protection in an accident and this
could result in serious injury. Wear
seat belts only as recommended in
this owner’s manual.
Expended Seat Belt Pretensioners:
Use of front seat belts with the
pretensioner system expended is
dangerous.
The seat belt pretensioners will only
function once. After they are
expended, they will not work again
and must be replaced immediately,
even if there was no front seat
occupant seated at the time.
If the seat belt pretensioners are not
replaced, the risk of injury in a
collision will increase.
Always have an Authorized Mazda
Dealer inspect and replace the seat
belt pretensioners after a collision.
Modification or Testing of the
Pretensioner System:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants could be
seriously injured. Never modify the
components or wiring, or use
electronic testing devices on the
pretensioner system.
WARNING
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
• The pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
• Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally
has no effect on occupants,
however, those with sensitive skin
may experience light skin irritation.
If residue from the deployment of
the air bags or the pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
WARNING
J07R_8R09_EA_02G_Edition4.book Page 9 Monday, February 3, 2003 1:16 PM

2-10
Essential Safety Equipment
Seat Belt Systems
Form No. 8R09-EA-02G

Air Bag/Seat Belt Pretensioner
System Warning Light
If the air bag/seat belt pretensioner system
is OK, the warning light comes on when
the ignition switch is turned to the ON
position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn
’t come on at all when the
ignition switch is turned to the ON
position. If any of these occur, consult an
Authorized Mazda Dealer as soon as
possible. The system may not work in an
accident. If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
WARNING
Seat Belt Extender
J07R_8R09_EA_02G_Edition4.book Page 10 Monday, February 3, 2003 1:16 PM

2-11
Essential Safety Equipment
Seat Belt Systems
Form No. 8R09-EA-02G
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
Unnecessary Use of an Extender:
Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly.
In an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.
Using an Improper Extender:
Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the
particular vehicle and seat. NEVER
use the extender in a different vehicle
or seat.
Using an Extender That is Too Long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Don ’t use the extender or choose one
shorter in length if the distance
between the extender ’s buckle and the
center of the user ’s body is less than
15cm (6 in).
WARNINGSeat Belt Warning Light
J07R_8R09_EA_02G_Edition4.book Page 11 Monday, February 3, 2003 1:16 PM

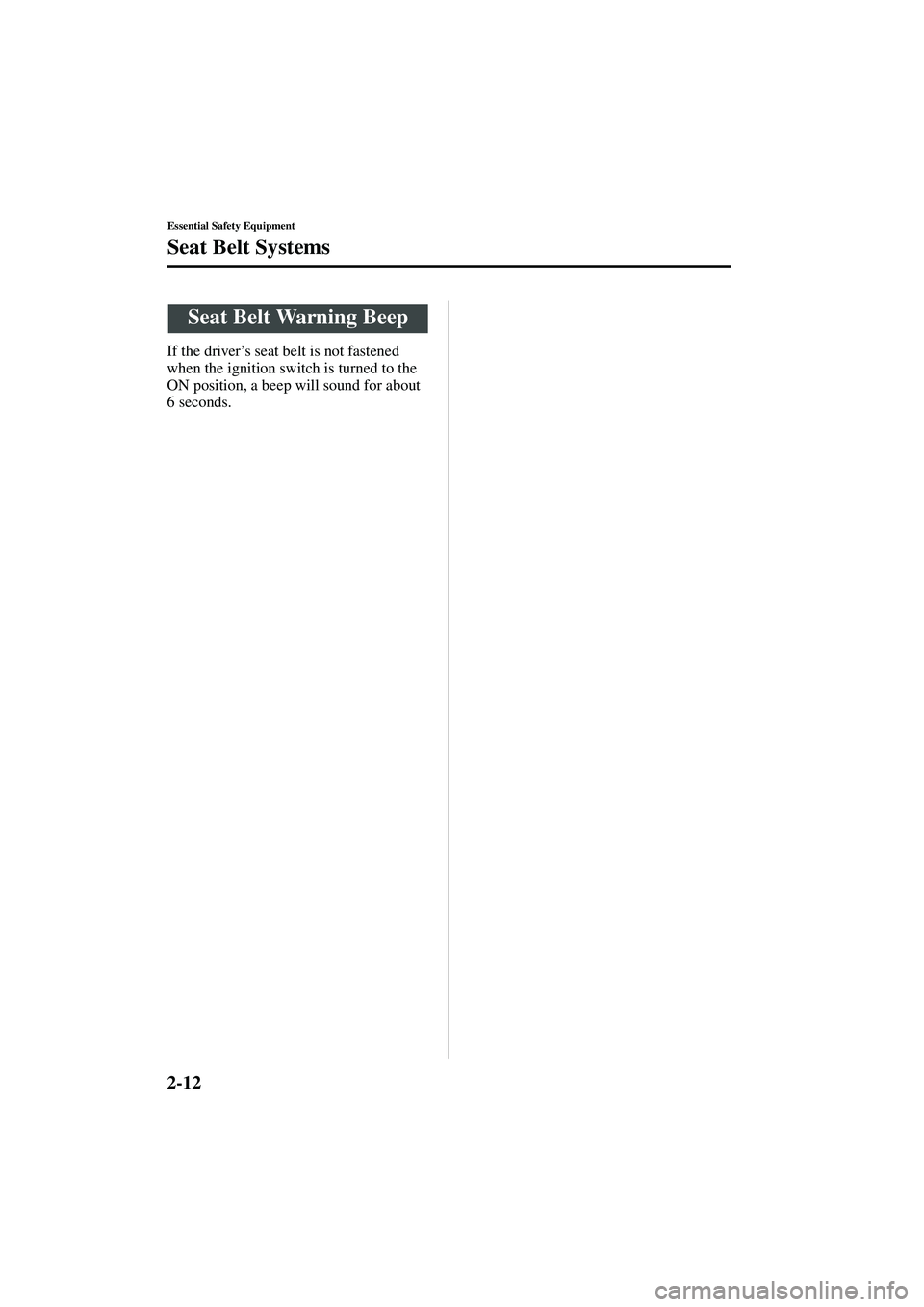

2-12
Essential Safety Equipment
Seat Belt Systems
Form No. 8R09-EA-02G
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.
Seat Belt Warning Beep
J07R_8R09_EA_02G_Edition4.book Page 12 Monday, February 3, 2003 1:16 PM

2-13
Essential Safety Equipment
Form No. 8R09-EA-02G
Child Restraint
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should use seat belts, both lap and
shoulder. If the shoulder belt crosses the neck or face, move the child closer to the center of
the vehicle .
A rear-facing child-restraint system should NEVER
be used in the front seat because it
would be too close to the air bag.
We have provided a deactivation switch that will disable passenger-side air bag inflation.
Do not switch off the passenger-side air bag without reading the "Passenger-Side Air Bag
Deactivation Switch" (page 2-23).
Child Restraint Precautions
Proper Size of Child-Restraint System:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
WARNING
J07R_8R09_EA_02G_Edition4.book Page 13 Monday, February 3, 2003 1:16 PM

2-14
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G
Follow the Manufacturer’s Instructions and Always Keep the Child-Restraint System
Buckled Down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
the child-restraint system is properly secured in place according to the child-restraint
system manufacturer ’s instructions. When not in use, remove it from the vehicle or
fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH
child-restraint systems.
Holding a Child While the Vehicle is Moving:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces
that could result in serious injury or death to the child, or the child may be slammed
into the adult, injuring the adult. Always secure a child in a proper child-restraint
system.
Rear-Facing Child-Restraint System:
When a rear-facing child-restraint system is installed on the passenger ’s seat and the
passenger-side air bag deactivation switch is not in the OFF position, it is extremely
dangerous. In an accident, the air bag could inflate and cause serious injuries or even
death to the child in the rear-facing child-restraint system. When using a rear-facing
child-restraint system, always set the passenger-side air bag deactivation switch to
OFF position.
WARNING
Deploying air bag
J07R_8R09_EA_02G_Edition4.book Page 14 Monday, February 3, 2003 1:16 PM

2-15
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
Child-Restraint Tether:
Using a child-restraint system that requires a tether is dangerous. Your Mazda doesn ’t
have a child-restraint tether. The child-restraint system cannot be properly secured. In
a collision, it could move and cause serious injury or even death to the child or
someone else. Always use a child-restraint system designed for use without a tether.
A seat belt or child-restraint system can become very hot in a closed vehicle during
warm weather. To avoid burning yourself or a child, check them before you or your child
touches them.
NOTE
Your Mazda is equipped with LATCH lower anchors for attachment of specially
designed LATCH child-restraint systems behind the passenger seat. When using these
anchors to secure a child-restraint system, refer to "LATCH Child-Restraint Systems"
(page 2-18).
WARNING
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 15 Monday, February 3, 2003 1:16 PM

2-16
Essential Safety Equipment
Child Restraint
Form No. 8R09-EA-02G
The passenger lap/shoulder belt can easily
be converted into the automatic locking
mode, which must be done to hold the
child-restraint system.
Some child-restraint systems also employ
specially designed LATCH attachments;
refer to "LATCH Child-Restraint
Systems" (page 2-18).
Follow these instructions when installing
a child-restraint system on the passenger’s
seat, unless you are attaching a LATCH-
equipped child-restraint system to the
LATCH lower anchors. Refer to "LATCH
Child-Restraint Systems" (page 2-18).
Before installing a rear-facing child-
restraint system, the passenger-side air
bag must be deactivated (page 2-23). 1. Slide the seat as far back as possible.
2. Secure the child-restraint system with
the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.
3. To get the retractor into the automatic locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.
4. Push the child-restraint system firmly into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in automatic
locking mode. If the belt does not lock
the seat down tight, repeat this step.
Installing a Child-
Restraint System
NOTE
Follow the child-restraint system
manufacturer’ s instructions carefully.
If you are not sure whether you have a
LATCH system, check in the child-
restraint system manufacturer ’s
instructions and follow them
accordingly. Depending on the type of
child-restraint system, it may not
employ seat belts which are in
automatic locking mode.
NOTE
Before installing a child-restraint
system, refer to "Passenger-Side Air
Bag Deactivation Switch" (page 2-23).
J07R_8R09_EA_02G_Edition4.book Page 16 Monday, February 3, 2003 1:16 PM
