2003 MAZDA MODEL MX-5 MIATA Owners Manual

8-31
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
Light Bulbs
Front turn signal lights/Parking lights
Side-marker lights Overhead light
Trunk lights/
License plate lights
High-mount brake light
Rear turn signal lights Brake lights/Taillights Reverse lights
Headlights
J07R_8R09_EA_02G_Edition4.book Page 31 Monday, February 3, 2003 1:16 PM

8-32
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
Your Mazda’s headlights have replaceable
halogen bulbs.
Replacing a Headlight Bulb
1. Make sure the headlight switch is off.
2. Lift the hood and find the high and low
beam bulbs in the rear of the headlight
body.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
3. Turn the socket and bulb assembly counterclockwise and remove it while
holding the rubber socket cover in
place. Carefully remove the headlight
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Disconnect the bulb from the electrical connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
Do not touch the glass surfaceTa b
Low beam bulb
J07R_8R09_EA_02G_Edition4.book Page 32 Monday, February 3, 2003 1:16 PM

8-33
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
5. Install the new bulb in the reverse order of removal.
NOTE
Use the protective cover and carton of
the replacement bulb to dispose of the
old bulb promptly out of the reach of
children.
High beam bulb
Ta b
J07R_8R09_EA_02G_Edition4.book Page 33 Monday, February 3, 2003 1:16 PM

8-34
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G

Replacing a Bulb (Front)
To replace the fog light bulbs, contact an Authorized Mazda Dealer.

Replacing a Bulb (Interior)
Side-marker lights
Front turn signal lights/Parking lights
Overhead light
J07R_8R09_EA_02G_Edition4.book Page 34 Monday, February 3, 2003 1:16 PM

8-35
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G

Replacing a Bulb (Rear)
Rear bulb access
To replace the turn signal light, brake
light/taillight or reverse light bulb, pull the
center section of the plastic retainer and
remove the retainers and trunk end trim.
J07R_8R09_EA_02G_Edition4.book Page 35 Monday, February 3, 2003 1:16 PM

8-36
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
High-mount brake light
Trunk lights/License plate lights Rear turn signal lights
Brake lights/Taillights
Reverse lights
J07R_8R09_EA_02G_Edition4.book Page 36 Monday, February 3, 2003 1:16 PM

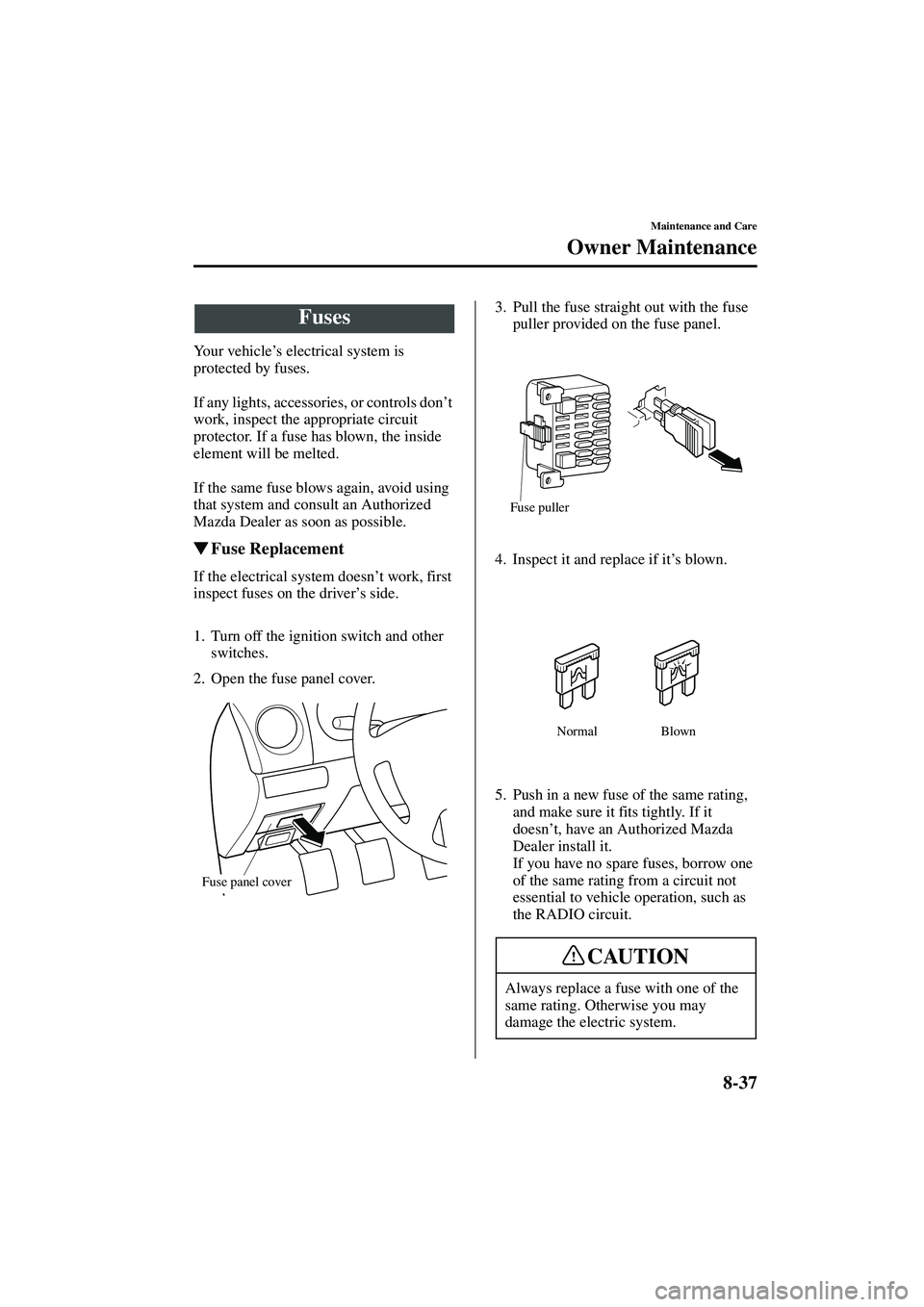

8-37
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
Yo u r v e h i c l e’s electrical system is
protected by fuses.
If any lights, accessories, or controls don ’t
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

Fuse Replacement
If the electrical system doesn
’t work, first
inspect fuses on the driver ’s side.
1. Turn off the ignition switch and other switches.
2. Open the fuse panel cover. 3. Pull the fuse straight out with the fuse
puller provided on the fuse panel.
4. Inspect it and replace if it ’s blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly. If it
doesn ’t, have an Authorized Mazda
Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the RADIO circuit.
Fuses
Fuse panel cover
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Fuse puller
Normal Blown
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 37 Monday, February 3, 2003 1:16 PM

8-38
Maintenance and Care
Owner Maintenance
Form No. 8R09-EA-02G
If the headlights or other electrical
components don’t work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new one of the same rating.
Fuse block cover
Ta b
NormalBlown
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-39).
