Driving Your Mazda
Starting and Driving
Form No. 8R09-EA-02G

Anti-Lock Brake System (ABS)
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel
’s brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don ’t
pump the brakes, continue to press down
on the brake pedal.

ABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you’
re driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function
normally as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
ABS:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident. So don ’t rely on ABS as a
substitute for safe driving.
NOTE
Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
WARNING
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don ’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
J07R_8R09_EA_02G_Edition4.book Page 7 Monday, February 3, 2003 1:16 PM

5-8
Driving Your Mazda
Starting and Driving
Form No. 8R09-EA-02G

Brake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.

Manual Transmission Shift
Pattern
The shift pattern of the transmission is
conventional, as shown.
Press the clutch pedal all the way down
while shifting; then release it slowly.
(5-speed transmission)
A safety feature prevents accidental
shifting from 5 to reverse. The shift lever
must be put in neutral before being shifted
to reverse.
(6-speed transmission)

Vehicles with 6-speed transmission are
equipped with a device to prevent shifting
to reverse by mistake. Apply greater than
normal force when shifting to reverse.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.
Driving with Worn Disc Pads:
Driving with worn disc pads is
dangerous. The brakes could fail and
cause a serious accident. As soon as
you hear a screeching noise consult
an Authorized Mazda Dealer.
WARNING
Manual Transmission
Operation
5-speed transmission
6-speed transmission Neutral position
Neutral position
J07R_8R09_EA_02G_Edition4.book Page 8 Monday, February 3, 2003 1:16 PM

5-9
Driving Your Mazda
Starting and Driving
Form No. 8R09-EA-02G

Recommendations for Shifting
Upshifting
For normal acceleration, we recommend
these shift points.
For cruising
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade
, downshift
before the engine starts to overwork. This
reduces the chance of stalling and gives
better acceleration when you need more
speed.
On a steep downgrade
, downshifting
helps maintain safe speed and prolongs
brake life.
Sudden Engine-Braking:
Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed
could cause the tires to skid. This
could lead to loss of vehicle control
and an accident. Do not use sudden
engine braking on slippery road
surfaces or at high speeds.
• Keep your foot off the clutch pedal
except when shifting gears. Also,
don’
t use the clutch to hold the
vehicle on an upgrade. This will
avoid needless clutch wear and
damage.
• Make sure the vehicle comes to a
complete stop before shifting to
reverse.
Shifting to reverse while the vehicle
is still moving may damage the
transmission.
NOTE
If shifting to reverse is difficult, shift
into neutral, release the clutch pedal,
and try again.
WARNING
CAUTION
5-speed
transmission 6-speed
transmission
1 to 2 24 km/h (15 mph) 23 km/h (14 mph)
2 to 3 42 km/h (26 mph) 37 km/h (23 mph)
3 to 4 55 km/h (34 mph) 50 km/h (31 mph)
4 to 5 66 km/h (41 mph) 56 km/h (35 mph)
5 to 6 —66 km/h (41 mph)
5-speed
transmission 6-speed
transmission
1 to 2 15 km/h (9 mph) 18 km/h (11 mph)
2 to 3 29 km/h (18 mph) 32 km/h (20 mph)
3 to 4 47 km/h (29 mph) 44 km/h (27 mph)
4 to 5 61 km/h (38 mph) 56 km/h (35 mph)
5 to 6 —68 km/h (42 mph)
J07R_8R09_EA_02G_Edition4.book Page 9 Monday, February 3, 2003 1:16 PM

5-10
Driving Your Mazda
Starting and Driving
Form No. 8R09-EA-02G
Various Lockouts:

Transmission Ranges
The shift lever must be in P or N to
operate the starter.
P (Park)
P locks the transmission and prevents the
rear wheels from rotating.
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except as
explained under Rocking the Vehicle
(page 4-7).
N (Neutral)
In N, the wheels and transmission are not
locked. The vehicle will roll freely even
on the slightest incline unless the parking
brake or brakes are on.
Automatic Transmission
Controls
Indicates that you must depress the
brake pedal and hold in the lock-
release button to shift (The ignition
switch must be in the ON position).
Indicates the shift lever can be
shifted freely into any position.
Indicates that you must hold in the
lock-release button to shift.
Lock-release button

To prevent unsafe
shifting
Shift pattern
indicator
Shows shift lever
position
Overdrive button
For turning the
overdrive off or on
Holding the Vehicle with P:
Setting the shift lever to the P position
without using the parking brake to
hold the vehicle is dangerous. If P
fails to hold, the vehicle could move
and cause an accident. To hold the
vehicle, set the shift lever to P AND
set the parking brake.
•
Shifting into P, N or R while the
vehicle is moving can damage your
transmission.
• Shifting into a driving gear or
reverse when the engine is running
faster than idle can damage the
transmission.
WARNING
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 10 Monday, February 3, 2003 1:16 PM

5-11
Driving Your Mazda
Starting and Driving
Form No. 8R09-EA-02G
D (Drive)
D is the normal driving position. From a
stop, the transmission will automatically
shift through a 4-gear sequence.
2 (Second)
The 2 position is helpful when driving in
heavy, slow-moving traffic and climbing
hills, for engine braking assist when going
down hills, or for starting on slick
surfaces and other situations where gentle
acceleration may be necessary.
Do not exceed 104 km/h (64 mph) in the 2
position.
1 (Low)
Use the 1 position for maximum power in
hard-pulling situations, or for climbing
and descending very steep grades.
Do not exceed 59 km/h (36 mph) in the 1
position.

Shift-Lock System
The shift-lock system prevents shifting
out of P unless the brake pedal is
depressed.

To shift from P:
1. Depress and hold the brake pedal.
2. Start the engine.
3. Push and hold the lock-release button.
4. Move the shift lever.
Shifting from N or P:
It ’s dangerous to shift from N or P
into a driving gear when the engine is
running faster than idle. If this is
done, the vehicle could move
suddenly, causing an accident or
serious injury. If the engine is
running faster than idle, don ’t shift
from N or P into a driving gear.
Shifting into N while Driving:
Shifting into N while driving is
dangerous. Engine braking cannot be
applied when decelerating which
could lead to an accident or serious
injury. Do not shift into N when
driving the vehicle.
WARNING
Sudden Engine-Braking:
Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed
could cause the tires to skid. This
could lead to loss of vehicle control
and an accident. Do not use sudden
engine braking on slippery road
surfaces or at high speeds.
NOTE
• When the ignition switch is in the
ACC or LOCK position, the
transmission cannot be shifted from
P.
• If the brake is pumped with the shift
lever in P, a chattering near the shift
lever may be heard. This does not
indicate an abnormality.
• To be sure the vehicle is in park,
the ignition key cannot be
removed unless the shift lever is in
P.
WARNING
J07R_8R09_EA_02G_Edition4.book Page 11 Monday, February 3, 2003 1:16 PM

5-12
Driving Your Mazda
Starting and Driving
Form No. 8R09-EA-02G

Shift-Lock Override
If the shift lever won
’t move from P with
the brake pedal depressed, continue to
hold down the pedal.
1. Remove the shift-lock override cover with a screwdriver.
2. Insert a screwdriver and push it down.
3. Push and hold the lock-release button.
4. Move the shift lever.
5. Take the vehicle to an Authorized Mazda Dealer to have the system
checked.

Overdrive
Overdrive operation
In D, the transmission automatically shifts
to overdrive, which improves fuel
economy and reduces noise. To allow engine braking when going
down a steep grade, make sure the
overdrive button is in the off position.
And for a smoother ride with less shifting,
don
’t use it when:
• Going up a steep grade.
• Driving in stop-and-go traffic.
• Pulling heavy loads.
To turn off the overdrive, push the
button.
The transmission will then shift through a
3-gear sequence in D.
Shift patterns without overdrive:
D = 1st, 2nd, 3rd
2 = 2nd
1 = 1st
To turn it on, push the button again.
Shift patterns with overdrive:
D = 1st, 2nd, 3rd, 4th
2 = 2nd
1 = 1st
Shift lever
Overdrive button
J07R_8R09_EA_02G_Edition4.book Page 12 Monday, February 3, 2003 1:16 PM

5-13
Driving Your Mazda
Starting and Driving
Form No. 8R09-EA-02G

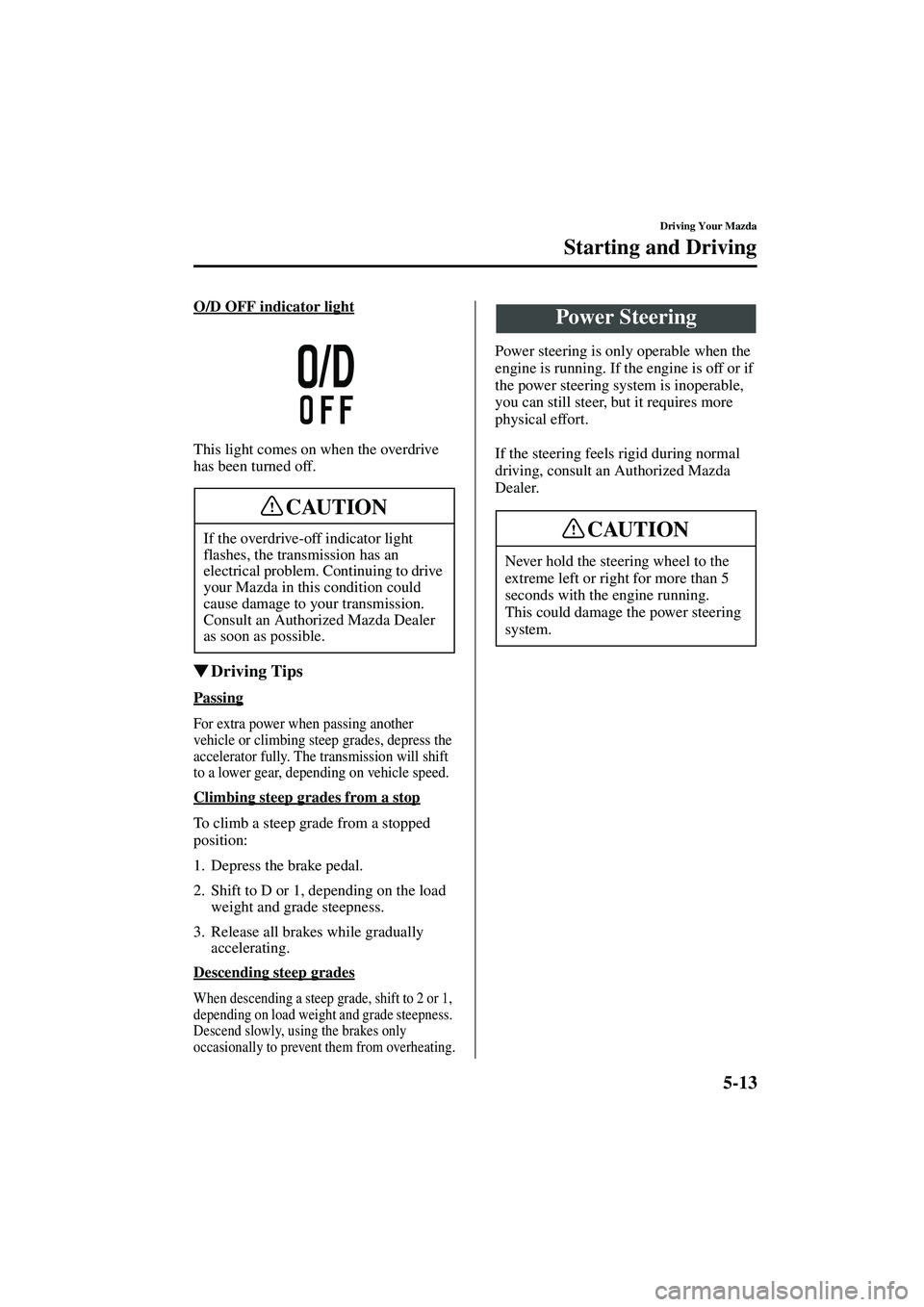

O/D OFF indicator light
This light comes on when the overdrive
has been turned off.

Driving Tips
Passing
For extra power when passing another
vehicle or climbing steep grades, depress the
accelerator fully. The transmission will shift
to a lower gear, depending on vehicle speed.
Climbing steep grades from a stop
To climb a steep grade from a stopped
position:
1. Depress the brake pedal.
2. Shift to D or 1, depending on the load
weight and grade steepness.
3. Release all brakes while gradually accelerating.
Descending steep grades
When descending a steep grade, shift to 2 or 1,
depending on load weight and grade steepness.
Descend slowly, using the brakes only
occasionally to prevent them from overheating.
Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels rigid during normal
driving, consult an Authorized Mazda
Dealer.
If the overdrive-off indicator light
flashes, the transmission has an
electrical problem. Continuing to drive
your Mazda in this condition could
cause damage to your transmission.
Consult an Authorized Mazda Dealer
as soon as possible.
CAUTION
Power Steering
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running.
This could damage the power steering
system.
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 13 Monday, February 3, 2003 1:16 PM

5-14
Driving Your Mazda
Starting and Driving
Form No. 8R09-EA-02G
With cruise control, you can set and
automatically maintain any speed of more
than about 40 km/h (25 mph).

Cruise Set Indicator Light
This light comes on when a cruising speed
is set.

Activation/Deactivation
To activate the system, press the CRUISE
MAIN switch.
To deactivate the system, push the switch
again.
Cruise Control
Cruise Control Use:
Using cruise control in the following
conditions could cause you to lose
control of the vehicle:
•
Heavy or unsteady traffic
• Slippery or winding roads
• Similar restrictions that require
inconsistent speed
Don ’t use cruise control in these
situations.
WARNING
Cruise Main Switch:
Leaving the CRUISE MAIN switch
on when not using the cruise control
is dangerous as it may be switched on
accidentally. This could result in loss
of vehicle control. Keep the CRUISE
MAIN switch off when cruise control
is not in use.
Indicator light
WARNING
J07R_8R09_EA_02G_Edition4.book Page 14 Monday, February 3, 2003 1:16 PM
