2003 Hyundai Matrix Owner's Manual

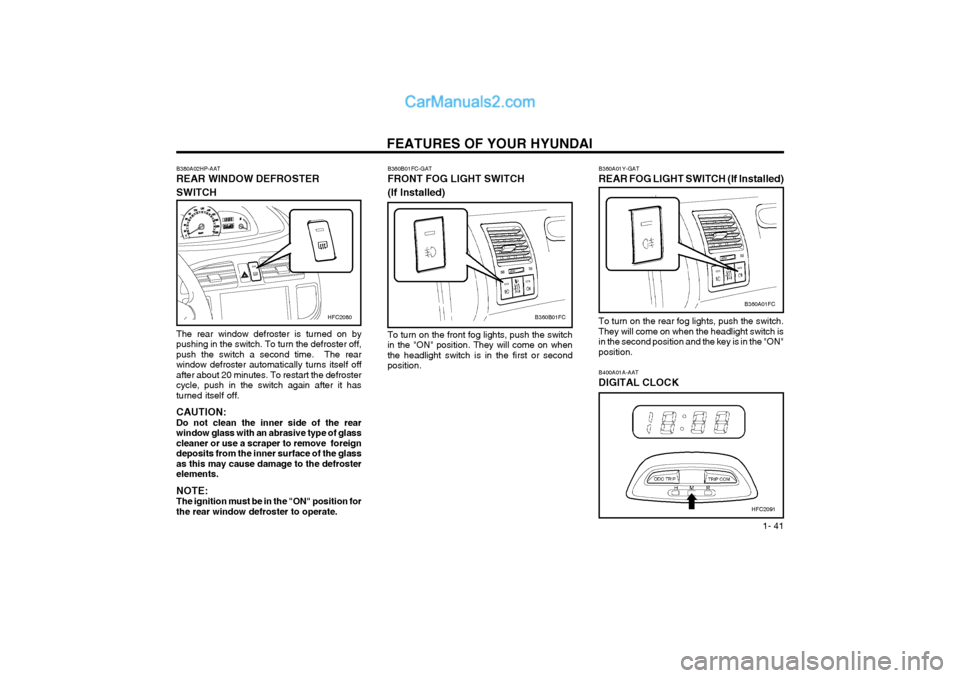

FEATURES OF YOUR HYUNDAI 1- 41
B400A01A-AAT DIGITAL CLOCK
HFC2091
B360A01Y-GAT REAR FOG LIGHT SWITCH (If Installed)
To turn on the rear fog lights, push the switch. They will come on when the headlight switch isin the second position and the key is in the "ON"position.
B360A01FC
B380A02HP-AAT REAR WINDOW DEFROSTER SWITCHHFC2080
The rear window defroster is turned on by pushing in the switch. To turn the defroster off,push the switch a second time. The rearwindow defroster automatically turns itself offafter about 20 minutes. To restart the defrostercycle, push in the switch again after it hasturned itself off. CAUTION: Do not clean the inner side of the rearwindow glass with an abrasive type of glasscleaner or use a scraper to remove foreigndeposits from the inner surface of the glassas this may cause damage to the defrosterelements. NOTE: The ignition must be in the "ON" position forthe rear window defroster to operate.B360B01FC
B360B01FC-GAT FRONT FOG LIGHT SWITCH (If Installed) To turn on the front fog lights, push the switch in the "ON" position. They will come on whenthe headlight switch is in the first or secondposition.

FEATURES OF YOUR HYUNDAI
1- 42
There are three control buttons for the digital clock. Their functions are: HOUR - Push "H" to advance the hour indicat-
ed. MIN - Push "M" to advance the minute indicat-
ed.RESET - Push "R" to reset minutes to ":00" to
facilitate resetting the clock to the correct time.When this is done: Pressing "R" between 10 : 30 and 11 : 29 changes the readout to 11 : 00.Pressing "R" between 11 : 30 and 12 : 29changes the readout to 12 : 00. B430A01FC-GAT FRONT ASHTRAY
HFC2056
The front ashtray may be opened by pulling it up by its top edge. To remove the ashtray to emptyor clean it, pull the cover up all the way out. Theashtray light will only illuminate when the exter-nal lights are on.
B420A02A-AAT CIGARETTE LIGHTER For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position.To use the cigarette lighter, push it all the wayinto its socket. When the element has heated,
B420A01FC the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressed in. Thiscan damage the heating element and create afire hazard.If it is necessary to replace the cigarette lighter,use only a genuine Hyundai replacement or itsapproved equivalent. CAUTION: Do not use electric accessories or equip-ment other than the Hyundai genuine partsin the socket.
B450A01FC-GAT DRINK HOLDER (If Installed)
HFC2097
The drink holder is used for holding cups or cans.To use the passenger's drink holder, push thedrink holder and pull it entirely. WARNING: Do not place objects other than cups orcans in the drink holder. Such objects canbe thrown out in the event of a sudden stopor an accident, possibly injuring the pas-sengers in the vehicle.
Driver's Passenger's

FEATURES OF YOUR HYUNDAI 1- 43
B340G01FC-GAT HEADLIGHT LEVELING DEVICE
SYSTEM (If Installed) To adjust the headlight beam level according to the number of the passengers and the loadingweight in the luggage area, turn the beamleveling switch.The higher the number of the switch position,the lower the headlight beam level. Alwayskeep the headlight beam at the proper levelingposition, or headlights may dazzle other roadusers.Listed below are the examples of proper switch
settings. For loading conditions other than thoselisted below, adjust the switch position so thatthe beam level may be the nearest as thecondition obtained according to the list.
B340G01FC
B611A01FC-GAT REAR SEAT ARM REST (If Installed)This arm rest is located in the center of the rear seat back with box.The drink holder in the box can be used byopening the lid of the arm rest. WARNING:
o Do not place objects other than cups or
cans in the drink holder. Such objectscan be thrown out in the event of asudden stop or an accident, possiblyinjuring the passengers in the vehicle.
o Be careful not to injure your fingers when you open the lid of the arm rest.
B610A01FC
B450B01FC-GAT REAR DRINK HOLDER (If Installed)
HFC2098
The drink holder is located on the rear main console for holding cups or cans. The drinkholder can be used by pushing the knob on therear main console downward and then releas-ing it. CAUTION:
o To prevent damage, ensure that the rear drinkholder, located in the rear console,is closed before folding the rear seatbackand seat cushion.
o Place the drink holder in its original po- sition while not in use.

FEATURES OF YOUR HYUNDAI
1- 44
B460C01S-AAT Tilting the Sunroof
HFC2022
The sunroof can be tilted by pushing the button with the sunroof closed. Release the buttonwhen the sunroof reaches the desired position.
B460B01E-AAT OPERATING THE SUNROOF SYSTEM Opening or Closing the Sunroof
HFC2021
The sunroof can be only electrically opened or closed. To open or to close, press and hold thebutton located in the front overhead console.Release the button when the sunroof reachesthe desired position.
B460A01S-AAT SUNROOF (If Installed) The sunroof can be operated with the ignition key in the "ON" position
WARNING:
o Do not close a sunroof if anyone's hands,
arms or body are between the slidingglass and the sunroof sash, as this couldresult in an injury.
o Do not place your head or arms out of the sunroof opening at any time.
CAUTION:
o Do not open the sunroof in severely cold temperature or when it is covered withice or snow.
o Periodically remove any dirt that may have accumulated on the guide rails.
B470A01S-AAT SUNSHADE
B470A01FC The sunshade can be opened and closed by sliding it forward or rearward when the sunroofis closed. The sunshade will open automati-cally when the sunroof is opened, but it must beclosed manually.
Loading condition
Switch
position
Driver only Driver + front passenger Full passengers (including driver)Full passengers (including driver) + Maximum permis- sible loadingDriver + Maximum permis- sible loading 0
1 2
3
0

FEATURES OF YOUR HYUNDAI 1- 45
B480A01E-AAT FRONT INTERIOR LIGHT Map Light
B480A01E
The two map light switches are located on both sides of the front overhead console. Push in themap light switch to turn the light on or off. Thislight produces a spot beam for convenient useas a map light at night or as a personal light forthe driver and the passenger.B480B01E
With Sunroof Without Sunroof
2. Turn the hexagonal bolts with a socket wrench counterclockwise to remove the front overhead console .
3. Insert the hexagonal head wrench provided with the vehicle into the socket. This wrenchcan be found in the vehicle's luggage roomor glove box.
4. Turn the wrench clockwise to open or coun- terclockwise to close.
B460D01FC-GAT Manual Operation of Sunroof
HFC1036
If the sunroof does not electrically operate:
1. Remove the rectangular plastic interior light lens in the front overhead console.
NOTE: After washing the car or after there is rain,be sure to wipe off any water that is on thesunroof before operating it.
HFC1037
HFC1038

FEATURES OF YOUR HYUNDAI
1- 46 B500A01A-AAT GLOVE BOX
HFC2095
WARNING: To avoid the possibility of injury in case ofan accident or a sudden stop, the glove boxdoor should be kept closed when the car isin motion.
o To open the glove box, pull on the glove box release lever.
B491A02F-GAT SPECTACLE CASE (If Installed)HXDOM241
The spectacle case is located on the front overhead console.Push the end of the cover to open the spectaclecase. WARNING: Do not open the spectacle case while thevehicle is moving. The rear view mirror ofthe vehicle can be blocked by an openspectacle case.
The interior courtesy light has a button of three positions. The three positions are:
oDR In the "DR" position, the interior courtesy light comes on when any door is opened regardlessof the ignition key position. The light goes outwhen the door is closed.
oON In the "ON" position, the light stays on at all times.
o OFF In the "OFF" position, the light stays off at all times even though a door is open.
B490A01E-AAT INTERIOR LIGHT
B490A01E
With Sunroof
Without Sunroof
B490B01E

FEATURES OF YOUR HYUNDAI 1- 47
B510D01E
B510B01FC-GAT OUTSIDE REARVIEW MIRROR Electric Type
HFC2011
The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behindthe vehicle, and to the rear of the left and rightsides.The remote control outside rearview mirrorswitch controls the adjustments for both rightand left outside mirrors.
HFC2058
The multi box may be opened by pulling it out by its grip.It is used for storing small articles.If the multi box is removed, the fuse box for thelights and other electrical accessories will beexposed.
B500B02E-GAT MULTI BOX
To adjust the position of either mirror:
1. Move the selecting switch to the right or left
to activate the adjustable mechanism for the corresponding door mirror.
2. Now, adjust mirror angle by depressing the appropriate perimeter switch as illustrated.
CAUTION:
o Do not operate the switch continuously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage. To removeany ice, use a sponge, soft cloth or ap-proved de-icer.
WARNING:Be careful when judging the size or distanceof any object seen in the passenger siderear view mirror. It is a convex mirror with acurved surface. Any objects seen in thismirror are closer than they appear.

FEATURES OF YOUR HYUNDAI
1- 48
B510C01A-AAT FOLDING THE OUTSIDE REARVIEW MIRRORS
B510C01FC
To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be foldedrearward for parking in narrow areas. WARNING: Do not adjust or fold the outside rearviewmirrors while the vehicle is moving. Thiscould result in loss of control, and an acci-dent which could cause death, serious in-jury or property damage.
B510D01HP-AAT OUTSIDE REARVIEW MIRROR HEATER (If Installed)
The outside rearview mirror heater is actuated in connection with the rear window defroster.To heat the outside rearview mirror glass, pushin the switch for the rear window defroster. Therearview mirror glass will be heated for defrost-ing or defogging and will give you improved rearvision in inclement weather conditions. Pushthe switch again to turn the heater off. Theoutside rearview mirror heater automaticallyturns itself off after 20 minutes.
HFC2080
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRROR
B520A01E
Your Hyundai is equipped with a day/night inside rearview mirror. The "night" position isselected by flipping the tab at the bottom of themirror toward you. In the "night" position, theglare of headlights of cars behind you is re-duced.
