2003 Hyundai Matrix Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 1
1. FEATURES OF
YOUR HYUNDAI
B010A01FC-1
B010A01O-GAT FUEL RECOMMENDATIONS Use Unleaded Gasoline Unleaded gasoline with a Pump Octane Rating of 87 (Research Octane Number 91) or highermust be used in Hyundai vehicle. If leadedgasoline is used, it will cause the catalyticconverter to become ineffective and the emis-sion control system to malfunction. This canalso result in increased maintenance expense.To avoid accidental use of leaded fuel, the largenozzle used with leaded gasoline at servicestations can not be inserted into fuel tankopening of Hyundai vehicle. NOTE:
o For some countries, Hyundai vehicles
are designed to use leaded gasoline.When you are going to use leaded gaso-line, ask to Hyundai dealer whether leadedgasoline in your vehicle is available ornot.
o Octane Rating of leaded gasoline is same with unleaded one.
Use Diesel Diesel fuel of 52 to 54 cetane is used in Hyundai vehicle. If two types of diesel fuel are available,
use summer or winter fuel properly according tothe following temperature conditions.
o Above -5°C (23°F) ... Summer type diesel fuel.
o Below -5°C (23°F) ... Winter type diesel fuel.Watch the fuel level in the tank very carefully : If the engine stops through fuel failure, thecircuits must be completely purged to permitrestarting. CAUTION:
o Do not let any gasoline or water enter the tank. This would make it necessary todrain it out and to bleed the lines to avoidjamming the injection pump and damag-ing the engine.
o In winter, in order to cut down incidents due to freezing, paraffin oil may be addedto the fuel if the temperature drops tobelow -10°C. Never use more than 20%paraffin oil. B010B01A-AAT What About Gasohol?Gasohol (a mixture of 90% unleaded gasoline and 10% ethanol or grain alcohol) may be usedin your Hyundai. However, if your engine devel-ops driveability problems, the use of 100%unleaded gasoline is recommended. Fuels withunspecified quantities of alcohol, or alcoholsother than ethanol, should not be used. B010E01A-AAT Gasolines for Cleaner Air To help contribute to cleaner air, Hyundai rec- ommends that you use gasolines treated withdetergent additives, which help prevent depositformation in the engine. These gasolines willhelp the engine run cleaner and enhance per-formance of the Emission Control System.
B010D01S-AAT Do not Use Methanol Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This typeof fuel can reduce vehicle performance anddamage components of the fuel system. CAUTION: Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuelsystem and performance problems that are
caused by the use of methanol or fuelscontaining methanol.
1

FEATURES OF YOUR HYUNDAI
1- 2
B030A01E
B030A01A-AAT KEYS For greater convenience, the same key oper- ates all the locks in your Hyundai. However,because the doors can be locked without a key,carrying a spare key is recommended in caseyou accidentally lock one key inside the car.
o Don't let the engine idle longer than 3 min-
utes at one time.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.
B010F01A-AAT Operation in Foreign CountriesIf you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding registra-tion and insurance.
o Determine that acceptable fuel is available. B020A01S-GAT BREAKING IN YOUR NEW HYUNDAI During the First 2,000 Km (1,200 Miles)(Gasoline Engine) No formal "break-in" procedure is required with your new Hyundai. However, you can contrib-ute to the economical operation and durabilityof your Hyundai by observing the followingrecommendations during the first 2,000 km(1,200 miles).
o Don't drive faster than 88 km/h (55 mph).
o While driving, keep your engine speed (rpm, or revolutions per minute) between2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, de- press the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in toohigh a gear that theengine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time. B020B01FC-GAT BREAKING IN YOUR NEW HYUNDAI During the First 1,000 Km (600 Miles)(Diesel Engine) No formal "break-in" procedure is required with your new Hyundai. However, you can contrib-ute to the economical operation and durabilityof your Hyundai by observing the followingrecommendations during the first 1,000 km(600 miles).
o While driving, keep your engine speed (rpm,
or revolutions per minute) within 3,000 rpm.
o While driving, keep under three quarters of maximum speed.
o Use moderate acceleration. Don't start, de- press the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too-high a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.
o Don't let the engine idle longer than 3 min- utes at one time.
o Don't tow a trailer during the first 1,000 km (600 miles) of operation.

FEATURES OF YOUR HYUNDAI 1- 3
B030B01A-AAT Record Your Key Number
B030B01E
A code number is stamped on the number plate that came with the keys to your Hyundai. Thiskey number plate should not be left with thekeys but kept in a safe place, not in the vehicle.The key number should also be recorded in aplace where it can be found in an emergency. If you need additional keys, or if you should lose your keys, your authorized Hyundai dealer canmake new keys if you can supply the keynumber. B880A01A-GAT IMMOBILIZER SYSTEM (If Installed) The immobilizer system is an anti-theft device,
designed to deter automobile theft. B880B03A-GAT Keys
All of the locks fitted to the vehicle are operated by the same key. However, since it is possibleto lock the doors without the use of the key, careshould be exercised to ensure that the key doesnot become locked inside the vehicle by mis-take. NOTE: If you make your own duplicate key, you willnot be able to cancel the system or start theengine.
AX10020A-1B880C02A-GAT Key Numbers
AX10030A-1
The vehicle key number is recorded upon a metal tag attached to the keys when the vehicleis first delivered to you.The key number should be recorded and keptin a safe place in case the need to order furtherkeys arises. New keys are available from anyHyundai dealer by quoting the relevant keynumber.In the interest of security, the metal tag at-tached to the keys which bears the key numbershould be removed from the key ring after youreceive your new vehicle. In addition, key num-bers cannot be provided by Hyundai for secu-rity reasons.If you need additional keys or if you should loseyour keys, your authorized Hyundai dealer canmake new keys.

FEATURES OF YOUR HYUNDAI
1- 4
HFC2004
UNLOCK
LOCK
B040A02Y-AAT DOOR LOCKS WARNING:
o Unlocked doors can be dangerous. Be-
fore you drive away (especially if thereare children in the car), be sure that allthe doors are securely closed and lockedso that the doors cannot be inadvertentlyopened from the inside. This helps en-sure that the doors will not be openedaccidentally. Also, when combined withthe proper use of seat belts, locking thedoors helps keep occupants from beingejected from the car in case of an acci-dent.
o Before opening the door, always look for and avoid oncoming traffic.
o In case of accident the door is unlocked automatically (If installed)
B040B01A-AAT Locking and Unlocking Front Doors With a Key
operation of the ignition key. For example, turn the ignition key once for digit number"1", and twice for "2", and so on. However,for the digit number "0", you must turn theignition key for 10 times.
2. Wait for 3~10 seconds.
3. You may set the remaining number of digits by following the same procedures 1 and 2.
4. If all of four digits have been tried success- fully, turn the ignition key "ON" and checkthat the immobilizer indicator illuminates.From this time, you have to start your enginewithin 30 seconds. If you start your engineafter 30 seconds, your engine will not start.
NOTE:If the engine dies while driving after limphome procedure, you can start your enginewithin 8 seconds without limp home proce-dure again.
5. If the immobilizer indicator blinks for five seconds, you have to try the limp home procedure again from the beginning.
After doing the limp home procedure, you haveto consult with your authorized Hyundai dealeras soon as possible. CAUTION:
o If you fail to try the limp home procedure with the sequence of three times, youhave to wait for about one hour to do thelimp home procedure again.
o If you cannot start your engine in spite of limp home procedure, have your vehicletowed by an authorized Hyundai dealer.
B880D02A-GAT Limp home procedures In case the immobilizer warning indicator blinks for five seconds when the ignition key isturned to "ON" position, this indicates that theimmobilizer system is out of order. And youcannot start the engine without the limp homeprocedures with ignition key. The following procedure is how to start the engine with the function of the limp home. (0,1, 2, 3 as a sample password). NOTE: You can get the limp home password whenthe vehicle is first delivered to you. If you donot have the password, consult your autho-rized Hyundai dealer.
1. To set the password you may turn theignition key "ON" and then turn it "OFF" according to the digit numbers, then theimmobilizer indicator will blink along with the
B880D01FC

FEATURES OF YOUR HYUNDAI 1- 5
HFC2009
o The door can be locked or unlocked with akey.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key toward the rear.
B040C01FC-GAT Locking From the Outside
The doors can be locked without a key.
To lock the doors first push the inside lock switch to the "LOCK" position, so that the redmark on the switch is not visible, then close thedoor.The door will not lock if the key is left in theignition switch when the front doors close. Thisis normal. (If installed) NOTE:
o When locking the door this way, be care- ful not to lock the door with the ignitionkey left in the vehicle. B040D01FC-GAT Locking From the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK"position. When this is done, neither the outsidenor the inside door handle can be used. NOTE: When the door is locked, the red mark on theswitch is not visible and the character"LOCK" on the switch is visible.
B040D01FC
UNLOCK
LOCK B040E03A-AAT CHILD-PROTECTOR REAR DOOR LOCK
Your Hyundai is equipped with a "child-protec- tor" rear door lock assembly. When the lock mechanism is engaged, the rear door cannotbe opened from the inside. It's use is recom-mended whenever there are small children inthe rear seat. To engage the child-protector feature so that the door cannot be opened from the inside,move the child-protector lever to the " "position and close the door. Move the lever tothe opposite direction of the " " position whennormal door operation is desired. If you wish to be able to open the door from the outside, the outside door handle will functionnormally.HFC2006
o To protect against theft, always remove
the ignition key, close all windows, and lock all doors and the tail gate whenleaving your vehicle unattended.

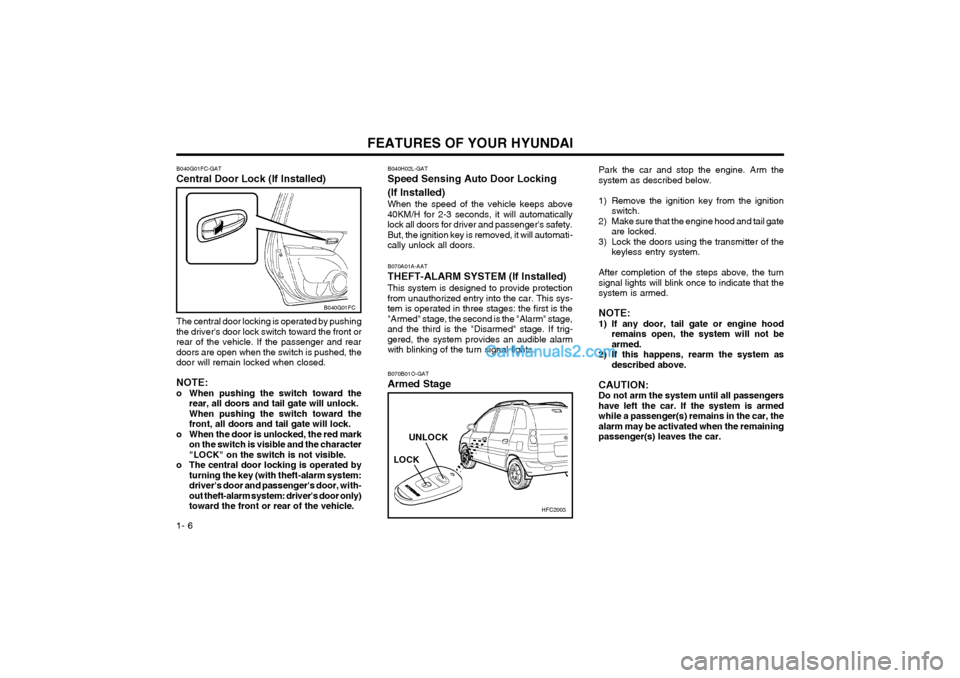

FEATURES OF YOUR HYUNDAI
1- 6 B070A01A-AAT THEFT-ALARM SYSTEM (If Installed) This system is designed to provide protection from unauthorized entry into the car. This sys-tem is operated in three stages: the first is the"Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If trig-gered, the system provides an audible alarmwith blinking of the turn signal lights. B070B01O-GAT Armed Stage
HFC2003
LOCK
UNLOCK
B040H02L-GAT
Speed Sensing Auto Door Locking (If Installed) When the speed of the vehicle keeps above 40KM/H for 2-3 seconds, it will automaticallylock all doors for driver and passenger's safety.But, the ignition key is removed, it will automati-cally unlock all doors.
Park the car and stop the engine. Arm thesystem as described below.
1) Remove the ignition key from the ignition
switch.
2) Make sure that the engine hood and tail gate are locked.
3) Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that thesystem is armed. NOTE:
1) If any door, tail gate or engine hood remains open, the system will not bearmed.
2) If this happens, rearm the system as described above.
CAUTION:Do not arm the system until all passengershave left the car. If the system is armedwhile a passenger(s) remains in the car, thealarm may be activated when the remainingpassenger(s) leaves the car.
B040G01FC
B040G01FC-GAT
Central Door Lock (If Installed) The central door locking is operated by pushing the driver's door lock switch toward the front or
rear of the vehicle. If the passenger and reardoors are open when the switch is pushed, the
door will remain locked when closed. NOTE:
o When pushing the switch toward the
rear, all doors and tail gate will unlock.When pushing the switch toward thefront, all doors and tail gate will lock.
o When the door is unlocked, the red mark on the switch is visible and the character"LOCK" on the switch is not visible.
o The central door locking is operated by turning the key (with theft-alarm system:driver's door and passenger's door, with-out theft-alarm system: driver's door only)toward the front or rear of the vehicle.

FEATURES OF YOUR HYUNDAI 1- 7
After completion of the step above, the turn signal lights will blink twice to indicate that thesystem is disarmed. NOTE: Once the system has been disarmed, it can not be rearmed except by repeating thearming procedures. CAUTION: Only the transmitter can disarm the armedstage. If the transmitter does not disarmthe system, it is necessary to take thefollowing steps;
1. Unlock the door with the key, which willcause, the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition key to "ON" posi- tion.
3. Wait for 30 seconds. After completing the steps above, the sys- tem will be disarmed.
B070D02O-AAT Disarmed Stage
B070C01FC-GAT Alarm StageThe alarm will be activated if any of the following occurs while the car is parked and thesystem is armed.
1) A front or rear door is opened without using
the transmitter.
2) The tail gate is opened without using the transmitter.
3) The engine hood is opened. The alarming horn will sound and the turn signal light will blink continuously for 27 seconds (E.Conly/ Except E.C 3 times). To turn off thesystem, unlock the door or tail gate with thetransmitter.
3A9BA21
B070F01A-GAT Keyless Entry System (If Installed) Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turnsignal lights will blink once to indicate thatthe system is armed. B070E02HP-GAT Replacing the batteryWhen the transmitter's battery begins to get weak, it may take several pushes on the buttonto lock or unlock the doors, and the LED will notlight. Replace the battery as soon as possible. Battery type : CR2032
Replacement instructions:
1. Separate the case with a blade screwdriver as shown in the illustration.
MSO-0048-1
Screwdriver
Unlocking doors
1. Push the "UNLOCK" button on the transmit-
ter.
2. At the same time all doors unlock, the turn signal light will blink twice to indicate that the system is disarmed.
The system will be disarmed when the driver'sor passenger's door is unlocked by depressingthe "UNLOCK" button on the transmitter.

FEATURES OF YOUR HYUNDAI
1- 8 To raise or lower the window, turn the window regulator handle clockwise or counterclock-wise. WARNING: When opening or closing the windows, makesure your passenger's arms, hands andbody are safely out of the way.
B060A01E-AAT POWER WINDOWS (If Installed)
Close Open
B060A01FC
The power windows operate when the ignition key is in the "ON" position. The main switchesare located on the driver's armrest and controlthe front and rear windows on both sides of thevehicle. The windows may be opened by de-pressing the appropriate window switch andclosed by pulling up the switch. To open thewindow on the driver's side, press the switch(1)down. The window moves as long as the switchis operated.
(1)
HFC2013
In order to prevent operation of the passenger front and rear windows, a window lock switch isprovided on the armrest of the driver's door. Todisable the power windows, press the window
lock switch.To revert to normal operation, press the win-dow lock switch a second time. Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing the switch. To stop atthe desired position push the switch again. WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closingwindow.
2) Never try to operate the main switch on the driver's door and the individual doorwindow switch in opposing directions atthe same time. If this is done, the windowwill stop and cannot be opened or closed.
B050A01A-AAT WINDOW GLASS
B050A01FC
2. Remove the old battery from the case and
note the polarity. Make sure the polarity of the new battery is the same(+side facingdown), then insert it in the transmitter.
MSO-0048-2
Case
Battery
